Description

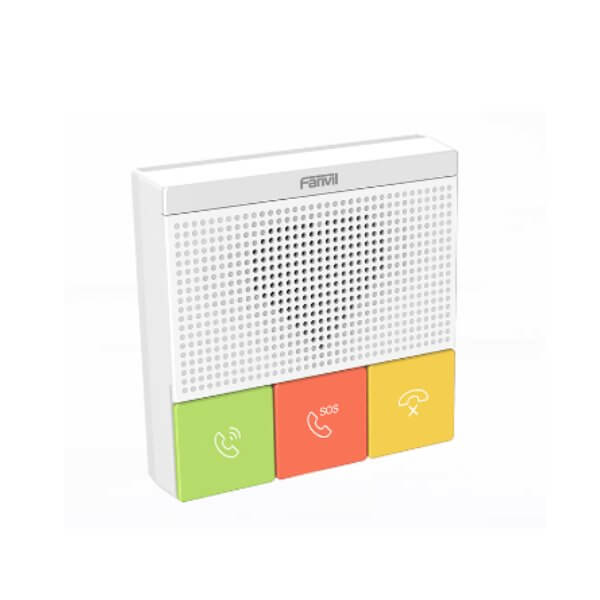

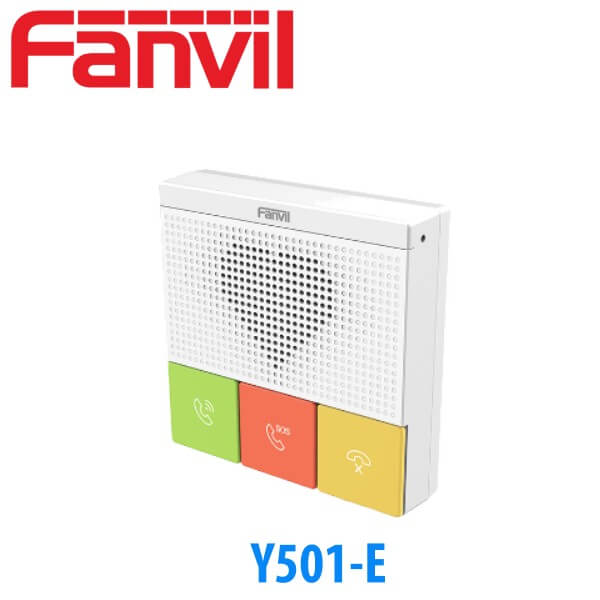

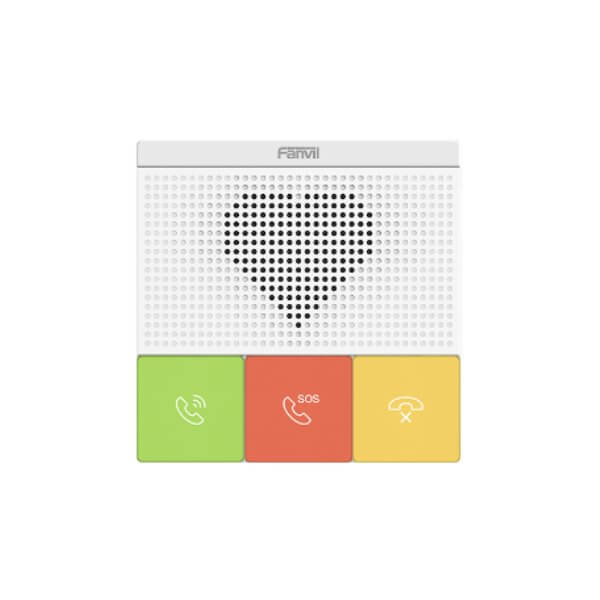

Fanvil Y501-E SIP Intercom Dubai

The Fanvil Y501-E Dubai SIP healthcare intercoms represent a pinnacle of design tailored specifically for home-based care, nursing homes, and a variety of indoor applications. Engineered to facilitate emergency communication, ensure security protection, and enable broadcasting, these intercoms offer a comprehensive array of features to meet the diverse needs of healthcare environments. At the heart of their functionality lies the provision of high-definition audio, which ensures crystal-clear communication even in the most critical situations. With the capacity to support 2 SIP accounts, these intercoms offer flexibility in managing communications protocols efficiently.

Moreover, the detachable DSS keys enhance usability by allowing for customizable configurations tailored to specific requirements. The IP54 waterproof and dustproof rating ensures durability and reliability even in challenging environmental conditions, providing peace of mind in demanding healthcare settings. A notable feature of the Fanvil Y501-E Dubai is the inclusion of built-in 2.4G & 5G Wi-Fi (Y501W/Y501W-E), enabling seamless connectivity and facilitating communication across networks. This Wi-Fi capability extends the reach and functionality of the intercoms, enhancing their utility in various healthcare scenarios.

In terms of installation, the Fanvil Y501-E Dubai offers flexibility with different mounting options, including standard 86 box embedded and wall mountable configurations. This versatility ensures compatibility with diverse architectural layouts, allowing for seamless integration into healthcare facilities of varying designs.The Fanvil Y501-E Dubai SIP healthcare intercoms redefine communication in healthcare settings, offering a blend of advanced features, durability, and flexibility. With their robust design and comprehensive functionality, they deliver a timely and reliable healthcare communication experience that meets the demands of modern healthcare environments.

Highlights

• Support specific 433MHz wireless button
• Features 2 SIP accounts and 3 antibacterial material detachable function buttons
• Support HD audio with codec G.722 and Opus
• Built-in 2.4G&5G Wi-Fi(Y501W/Y501W-E)
• Built-in 1 short circuit input/output interface
• IP54 waterproof and dustproof
• Support PoE power supply
• Support wall mountable installation (Y501/Y501W) and 86 box embedded installation(Y501-E/Y501W-E)

Features

Generic

• 2 SIP Lines
• Auto answer
• HD Voice
• PoE Enabled
• Built-in 2.4GHz & 5G Wi-Fi(Y501W/Y501W-E)
• Intercom function
• External Power Supply (Optional)

Intercom Function

• Support customized DSS keys
• Support wireless button (Optional)
• Network Time Synchronization
• Built-in Wi-Fi
  • 2.4G, 802.11 b/g/n
  • 5G, 802.11 a/n
• Action URL / Active URL

Audio

• Narrowband Codec : G.711a/u, G.729AB, G.723.1, G.726, iLBC
• Wideband Codec : G.722, Opus
• Duplex intercom with Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer up to 300ms
• DTMF : In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO

Networking

• Physical : 10/100 Mbps Ethernet
• WIFI : 2.4G & 5G (Y501W/Y501W-E)
• IP Mode : IPv4/IPv6/IPv4&IPv6
• IP Configuration : Static / DHCP / PPPoE
• Wi-Fi Encryption : WPA /WPA2-PSK /802.X EAP
• VPN : L2TP / OpenVPN
• VLAN
• LLDP
• QoS

Protocols

• SIP2.0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• IPv6
• LLDP
• PPPoE
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069

Physical Specifications

• Y501 Series : 3 DSS buttons (Speed dial, Emergency, Cancel)
• Up to 10 wireless buttons supported
• Status indicator light : Red(registration failed、network anomaly)、Green(registration successful、call)
• 1 RJ45 port
• 1 short circuit input interface
• 1 relay : NC/NO Contacts, Max DC30V/1A, AC125V/0.5A
• Power : DC12V/1A or POE
• Power Consumption (Adapter)：
  • 0.94W~1.98W(Y501/Y501-E)
  • 1.42W~2.35W(Y501W/Y501W-E)
• Power Consumption (PoE)：
  • 1.48W~2.37W(Y501/Y501-E)
  • 1.99W~3.05W(Y501W/Y501W-E)
• Housing material : ABS
• 433 wireless button specification：
  • communication mode：FSK
  • working frequency：433MHZ
  • communication protocol：Ebelong1.1
• Installation : Indoor installation
  • Standard 86 Box Embedded
  • Wall Mountable
• Color : White
• working temperature : -10 ~50 °C
• Storage temperature : -20 ~ 50 °C
• Relative humidity : 10% – 90%
• N.W/CNT : 3.7kg
• G.W/CNT : 3.98kg
• Equipment Dimension :
  • 87.56 x 87.56 x 30mm (Wall Mountable)
  • 87.56 x 87.56 x 21.5mm (86 Box Embedded)
• Packing Dimension : 95x106x40mm
• Outer CTN Dimension : 224x220x210mm (20 pcs)
