Fanvil Y501W Dubai


Fanvil Y501W Dubai

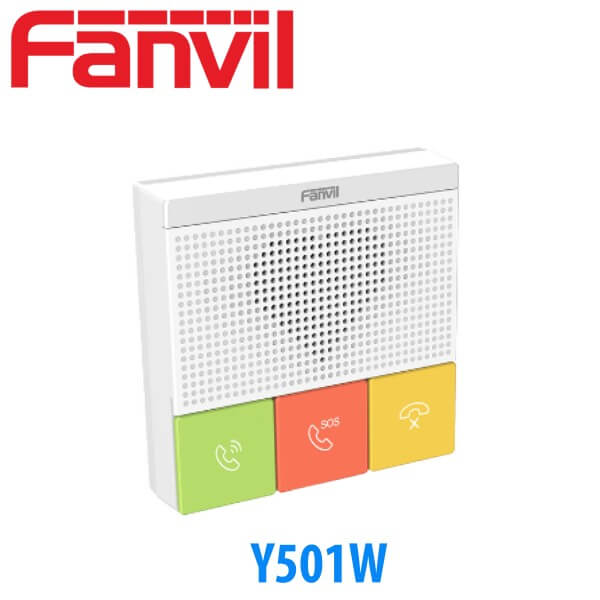

The Fanvil Y501W Dubai SIP healthcare intercoms represent a pinnacle in communication technology, meticulously engineered for a myriad of settings including home-based care, nursing houses, and various indoor applications.

Ask for Quote & Get Low Price


Fanvil Y501W SIP Intercom Dubai

The Fanvil Y501W Dubai SIP healthcare intercoms represent a pinnacle in communication technology, meticulously engineered for a myriad of settings including home-based care, nursing houses, and various indoor applications. Their purpose goes beyond mere communication; they serve as guardians of safety, enabling emergency communication, ensuring security protection, and facilitating seamless broadcasting within healthcare environments.At the heart of the Y501W series lies a suite of advanced features meticulously crafted to enhance user experience and efficacy. With high-definition audio capabilities, conversations are rendered with unparalleled clarity, fostering effective communication even in critical situations. Each device supports up to 2 SIP accounts, providing flexibility and scalability to meet diverse communication needs within healthcare settings.

Moreover, the Y501W intercoms boast detachable DSS (Dynamic Screen Switch) keys, empowering users with customizable control over their communication preferences. Whether it’s activating emergency protocols or initiating routine communications, these keys offer intuitive access to essential functions, enhancing operational efficiency.In addition to their functional prowess, the Y501W series is engineered to withstand the rigors of healthcare environments. Featuring an IP54 waterproof and dustproof rating, these intercoms are resilient against environmental factors, ensuring uninterrupted operation even in challenging conditions. Furthermore, the inclusion of built-in 2.4G & 5G Wi-Fi connectivity (Y501W/Y501W-E) enhances versatility, facilitating seamless integration into modern healthcare infrastructures.

Versatility extends to installation options, with the Fanvil Y501W Dubai offering different modes including standard 86 box embedding and wall mountability. This flexibility ensures compatibility with diverse architectural layouts, allowing healthcare facilities to tailor their communication infrastructure to specific needs.The Fanvil Y501W Dubai SIP healthcare intercoms epitomize a fusion of cutting-edge technology and thoughtful design, delivering a timely healthcare communication experience that transcends conventional boundaries. Whether facilitating patient care, enabling emergency response, or fostering collaboration among healthcare professionals, these intercoms stand as indispensable allies in the pursuit of superior healthcare delivery.


  • Support specific 433MHz wireless button
  • Features 2 SIP accounts and 3 antibacterial material detachable function buttons
  • Support HD audio with codec G.722 and Opus
  • Built-in 2.4G&5G Wi-Fi(Y501W/Y501W-E)
  • Built-in 1 short circuit input/output interface
  • IP54 waterproof and dustproof
  • Support PoE power supply
  • Support wall mountable installation (Y501/Y501W) and 86 box embedded installation(Y501-E/Y501W-E)



  • 2 SIP Lines
  • Auto answer
  • HD Voice
  • PoE Enabled
  • Built-in 2.4GHz & 5G Wi-Fi(Y501W/Y501W-E)
  • Intercom function
  • External Power Supply (Optional)

Intercom Function

  • Support customized DSS keys
  • Support wireless button (Optional)
  • Network Time Synchronization
  • Built-in Wi-Fi
    • 2.4G, 802.11 b/g/n
    • 5G, 802.11 a/n
  • Action URL / Active URL


  • Narrowband Codec : G.711a/u, G.729AB, G.723.1, G.726, iLBC
  • Wideband Codec : G.722, Opus
  • Duplex intercom with Acoustic Echo Canceller (AEC)
  • Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE)
  • Packet Loss Concealment (PLC)
  • Dynamic Adaptive Jitter Buffer up to 300ms
  • DTMF : In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO


  • Physical : 10/100 Mbps Ethernet
  • WIFI : 2.4G & 5G (Y501W/Y501W-E)
  • IP Mode : IPv4/IPv6/IPv4&IPv6
  • IP Configuration : Static / DHCP / PPPoE
  • Wi-Fi Encryption : WPA /WPA2-PSK /802.X EAP
  • VPN : L2TP / OpenVPN
  • VLAN
  • LLDP
  • QoS


  • SIP2.0 over UDP/TCP/TLS
  • STUN
  • DHCP
  • IPv6
  • LLDP
  • PPPoE
  • L2TP
  • OpenVPN
  • SNTP
  • TR-069

Physical Specifications

  • Y501 Series : 3 DSS buttons (Speed dial, Emergency, Cancel)
  • Up to 10 wireless buttons supported
  • Status indicator light : Red(registration failed、network anomaly)、Green(registration successful、call)
  • 1 RJ45 port
  • 1 short circuit input interface
  • 1 relay : NC/NO Contacts, Max DC30V/1A, AC125V/0.5A
  • Power : DC12V/1A or POE
  • Power Consumption (Adapter):
    • 0.94W~1.98W(Y501/Y501-E)
    • 1.42W~2.35W(Y501W/Y501W-E)
  • Power Consumption (PoE):
    • 1.48W~2.37W(Y501/Y501-E)
    • 1.99W~3.05W(Y501W/Y501W-E)
  • Housing material : ABS
  • 433 wireless button specification:
    • communication mode:FSK
    • working frequency:433MHZ
    • communication protocol:Ebelong1.1
  • Installation : Indoor installation
    • Standard 86 Box Embedded
    • Wall Mountable
  • Color : White
  • working temperature : -10 ~50 °C
  • Storage temperature : -20 ~ 50 °C
  • Relative humidity : 10% – 90%
  • N.W/CNT : 3.7kg
  • G.W/CNT : 3.98kg
  • Equipment Dimension :
    • 87.56 x 87.56 x 30mm (Wall Mountable)
    • 87.56 x 87.56 x 21.5mm (86 Box Embedded)
  • Packing Dimension : 95x106x40mm
  • Outer CTN Dimension : 224x220x210mm (20 pcs)
