The entrance panel is already cut. The metalwork contractor has left a flush opening, the lock cable is waiting inside the frame, and the security team wants one device that can call reception, open the door, read cards, log access, and send video back to the control desk. This is where a normal wall-mounted video door phone becomes the wrong fit.

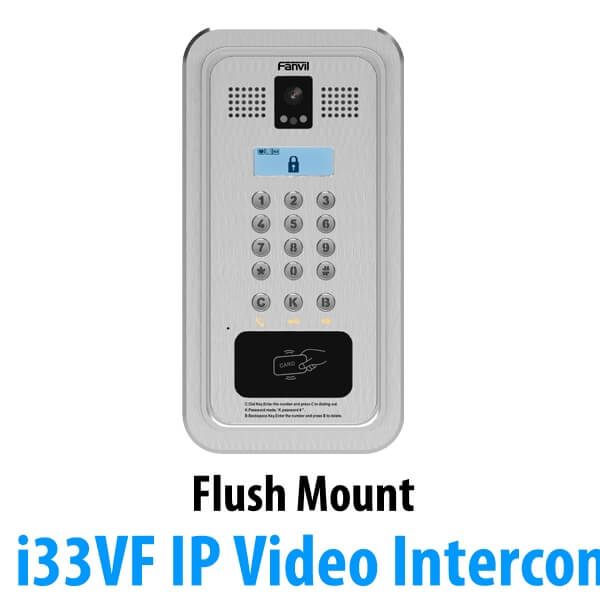

The Fanvil i33VF is built for that embedded entrance job. Not a plastic surface-mounted doorbell. Not a basic intercom. A flush-mount SIP video door phone with keypad, LCD display, RFID access, 2 SIP lines, 2 MP camera, PoE support, Wiegand interface, 2 relays, 2 indoor switch inputs, 2 door magnetic detection inputs, ONVIF, and RTSP video. For Dubai warehouses, apartment entrances, staff doors, and guarded villa gates, it gives the ELV contractor one wired access point that talks to the PABX and the door hardware at the same time.

What the i33VF is built to do

The i33VF is the flush-mount version in Fanvil’s i33 video door phone family. It is designed to sit embedded in a door frame, entrance panel, lobby column, warehouse gate housing, or custom metal faceplate. The related i33V is the wall-mount version; the i33VF is the one to quote when the project drawing shows the unit recessed into the entrance.

Visitors use the backlit keypad to call, enter a password, or correct a room number before placing the call. Staff can use RFID or IC cards for access. Reception or the guard room answers the call on a SIP phone, indoor station, softphone, or PABX extension. A programmed key can release the lock. For a Dubai office tower, DIP warehouse, staff entrance, or apartment lobby, this means the intercom is part of the phone system, not a separate island.

The 128 × 48 dot LCD gives enough feedback for room or extension entry without turning the door unit into a large touchscreen. That matters on outdoor entrances. Fewer screen parts, clear keypad use, and a metal front that can take daily visitor traffic.

2 SIP lines — what that means on a door phone

On a desk phone, SIP lines often get misunderstood as simultaneous outside calls. On a door phone, the confusion is different. “2 SIP lines” does not mean two visitors can have two full conversations at the same entrance panel at the same time. It means the device can register and handle SIP account identities and call appearances within the phone system.

A practical Dubai setup: line 1 registers to the office PABX and calls reception during working hours. Line 2 can support a second call identity or route used for guard room handling, maintenance access, or a separate tenant pattern, depending on the PABX plan. In a small office, both may never be used. In a mixed-use building or warehouse gate, the second SIP identity can save a second device.

The number to check is not only SIP lines. Check how the call should behave. Should it ring reception first, then security? Should it call a group? Should the lock release from DTMF? Should card access work when the PABX is down? Those are the questions we resolve during staging before dispatch.

The access-control part buyers often miss

Many competitor pages stop at “video door phone with RFID”. That is only the front of the i33VF. The wiring side is where it becomes useful on a project.

The i33VF has 2 relays for lock or auxiliary control, 2 indoor switch inputs for exit buttons, and 2 door magnetic detection inputs for door status. It also has a Wiegand port for card-reader integration. That gives the security integrator room to wire a real entrance: electric lock, request-to-exit button, door contact, and card access, not just a visitor call button.

It supports up to 5,000 RFID or IC cards and 200,000 door-open records. In plain words: enough memory for staff cards in a residential tower, warehouse team, shared office floor, or compound gate without treating every card as a one-off manual workaround. For many JAFZA, Al Quoz, DIP, Business Bay, and DMCC jobs, that is the difference between a neat handover and a spreadsheet headache after installation.

Video is not only for the call

The i33VF has a 2 MP camera with infrared support and a 112° horizontal viewing angle. That gives reception a wide view of the person at the entrance instead of a narrow face-only shot. In a villa gate, warehouse roller-shutter entrance, or staff access door, the extra view helps the guard see whether the person is alone, carrying stock, or standing outside the correct door.

Because the i33VF supports ONVIF and RTSP, the entrance camera can also be viewed in a monitoring or recording setup where the security design allows it. This is the detail many product listings skip. The door phone can ring a SIP extension, open a lock, and feed a camera workflow. One Cat6 point at the entrance. One device to stage.

For reception desks that need to see the entrance from the phone side, pair the door unit with a suitable Fanvil desk phone or indoor station. Heavy reception seats can be planned through the Fanvil IP phone range in Dubai, while door-specific projects can be quoted with the newer Fanvil i60 video door phone where a compact current-series unit is a better match.

Power, network, and the truth about the adapter

The i33VF uses one 10/100 Mbps RJ45 network port and supports PoE. It does not need Gigabit. There is no PC passthrough at a gate or entrance panel, and the video stream does not need a Gigabit switch port. What matters is stable Cat6, correct PoE budget, proper lock wiring, and a clean route back to the network cabinet.

For new Dubai fit-outs, PoE from the comms room is the cleaner answer. One data cable reaches the i33VF, powers the unit, and keeps the entrance face free of local adapters. For older sites where the door frame already has 12V access-control power, we check whether the available supply is correct for the door phone and lock plan before quoting.

Electric locks need their own attention. The i33VF relays are control points; the lock, power supply, fire-release requirement, exit button, and door contact must be drawn correctly. We quote the phone as part of that access-control conversation, not as a loose device in a box.

Current integration details competitors usually leave out

The i33VF is not a new launch, but it still has project details that many UAE listings miss. For an ELV contractor, those details are more useful than another line saying “HD video”.

First: the door phone can be planned into a wider security system through ONVIF and RTSP. That matters when the NVR or monitoring system needs a view of the entrance. Second: Wiegand support gives card-reader integration options. Third: 2 door magnetic detection inputs let the system read door state, not only trigger a relay. Fourth: 200,000 door-open records and 5,000 card capacity make it suitable for staff and tenant access where the card list is not tiny.

It also supports secure SIP functions such as encrypted signalling options and VPN-related network settings where the customer network requires them. We keep that work inside staging. The site team should receive a labelled unit with extension, card mode, lock release, and test-call behaviour already checked.

Platform compatibility in Dubai

The i33VF registers as a SIP endpoint, so it can be used with common PABX platforms used in UAE projects: 3CX, Grandstream UCM, Yeastar, Asterisk, and other SIP-based systems. In a standard office setup, the door phone becomes an extension. Press call at the gate, and the selected extension, ring group, guard desk, or reception phone rings.

For Etisalat or du business voice environments, the usual design is through the customer PABX or SIP routing plan. We do not treat the door phone as a random internet calling device. We configure it as part of the customer’s licensed business telephony setup, with DTMF door release and ring behaviour tested before handover.

i33VF, i33V, i60K, or i61 — which Fanvil door phone fits?

For a full phone-system quote, match the entrance unit with the right reception endpoint. A small office can ring a normal Fanvil desk phone. A larger reception desk with many transfers can be planned through the Fanvil X-range matrix and the main PABX and telephony hub.

Pricing, supply, staging, and installation from Dubai

Vector Digital Systems supplies the Fanvil i33VF from Dubai for project buyers: ELV contractors, PABX installers, security integrators, fit-out companies, facility managers, and resellers buying for UAE and MEA projects. Same-day AED quote on WhatsApp, VAT breakdown and delivery included. For 10+ door units, we quote staging and labelling as part of the project pack.

For installation jobs, we check the door type, lock type, exit button, door contact, cable route, PABX platform, PoE switch, and reception call flow. A door phone is only successful when the visitor presses one button and the right person answers. Everything else is engineering detail behind that moment.

Frequently asked questions

Will the Fanvil i33VF work with our 3CX, Grandstream UCM, Yeastar, or Asterisk PABX?

Yes. The i33VF is a SIP video door phone and can register to common SIP PABX platforms used in Dubai projects, including 3CX, Grandstream UCM, Yeastar, and Asterisk. We stage the SIP extension, call route, and DTMF unlock behaviour before dispatch.

Does the Fanvil i33VF come with a power adapter, or do I need PoE?

The i33VF supports PoE and DC 12V/1A power. The public Fanvil datasheet does not confirm an adapter in the box, so Vector Digital Systems quotes the PSU as an add-on where the site does not have PoE. For new projects, PoE from the network cabinet is usually cleaner.

What does 2 SIP lines actually mean on the Fanvil i33VF?

It means the door phone can handle 2 SIP account or call appearances. It does not mean two visitors should use the same panel for two separate conversations at the same time. In real projects, one line can call reception and the second can support another route or identity if the PABX design needs it.

Fanvil i33VF vs Fanvil i60K — what is the difference?

The i33VF is the flush-mount embedded model with keypad, LCD, RFID, Wiegand, 2 relays, and door-contact inputs. The i60K is a newer compact keypad video door phone with modern access methods such as PIN, IC card, BLE, app, DTMF, and SIP calling. Choose i33VF when the entrance is already designed for a recessed unit; choose i60K when the project wants a newer compact door phone.

Can the Fanvil i33VF open an electric lock?

Yes. The i33VF has 2 relays and supports lock release by DTMF, password, RFID or IC card, indoor switch, and web page. The lock, power supply, exit button, fire-release requirement, and door contact must be wired correctly, so we review the access-control plan before quoting project quantities.

Does the Fanvil i33VF work with an NVR or monitoring system?

Yes, where the monitoring design supports it. The i33VF supports ONVIF and RTSP, so the entrance camera can be included in a suitable video-monitoring workflow. We confirm this during project review because NVR behaviour depends on the recording platform and network design.

Does Vector Digital Systems configure the Fanvil i33VF before delivery?

Yes. Staging is standard for project supply: SIP registration, provisioning, call button behaviour, DTMF unlock testing, card-access review, relay plan check, and test calls before dispatch. For multi-door projects, each i33VF is labelled by entrance name before delivery.

Is VoIP legal in the UAE and will the Fanvil i33VF work with Etisalat or du?

Business VoIP over licensed operator services is standard in the UAE under TRA regulation. The i33VF is normally registered to the customer’s PABX, which then routes calls through the approved Etisalat or du business voice setup. We configure door-phone calling as part of that licensed business environment.

Is the Fanvil i33VF covered under Fanvil warranty in the UAE?

Yes. Fanvil manufacturer warranty applies, with local support handled through Vector Digital Systems from Dubai for units supplied by us. Warranty handling depends on proper installation, correct power, correct environmental placement, and no physical damage to the entrance unit.

Who is the supplier of Fanvil i33VF in Dubai?

Vector Digital Systems LLC is an authorised Fanvil supplier in Dubai, UAE, operating since 2009. We supply the Fanvil i33VF with staging, provisioning, access-control review, and installation across the UAE, with official quotations, VAT details, and warranty handling for procurement teams and project contractors.

What is the best Fanvil video door phone for a flush-mount entrance in Dubai?

For a recessed entrance panel that needs keypad calling, RFID card access, Wiegand, relays, door-contact inputs, ONVIF, and SIP calling, the Fanvil i33VF is the right Fanvil choice. If the project does not require flush mounting and prefers a newer compact keypad model, quote the Fanvil i60K instead.

Does Vector Digital Systems export Fanvil i33VF from Dubai?

Yes. Vector Digital Systems exports Fanvil door phones from Dubai to telecom resellers, PABX installers, ELV contractors, and security integrators across Saudi Arabia, Oman, Qatar, Kuwait, Bahrain, Kenya, Tanzania, Uganda, Nigeria, and Ghana. FOB Dubai pricing is available with commercial invoice, packing list, certificate of origin, and Fanvil manufacturer warranty documentation.

UAE coverage for Fanvil i33VF projects

Vector Digital Systems supplies and installs Fanvil i33VF video door phones across Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah, and Umm Al Quwain. Dubai project coverage includes Business Bay, JLT, DMCC, DIFC, Dubai Internet City, JAFZA, DIP, Al Quoz, Dubai South, and warehouse or staff-entry sites where access control and PABX calling meet at the door.

MEA export from Dubai

For export buyers, we quote Fanvil i33VF quantities FOB Dubai with documentation for customs and procurement files: commercial invoice, packing list, and certificate of origin. Typical buyers include PABX installers in Oman and Qatar, security integrators in Kenya and Tanzania, telecom resellers in Nigeria and Ghana, and project contractors buying mixed Fanvil door phones and desk phones under one shipment.
