The mistake usually shows up after the phones are already on the desks. The manager gets an entry-level handset because the quote looked clean. Then the first busy day starts: two calls on hold, a supplier calling back, one internal transfer, a headset plugged in, and the desk needs more keys than the phone has. That is where the Fanvil X5U earns its place.

The X5U is not the model for every extension in a 40-desk Dubai office. It is the model for the people who actually handle traffic: managers, team leads, accounts counters, small reception desks, service desks, and sales coordinators who need visible keys, headset freedom, and Gigabit passthrough without moving to a full operator console. Vector Digital Systems supplies the Fanvil X5U from Dubai with staging, provisioning, and installation across the UAE.

What the Fanvil X5U is

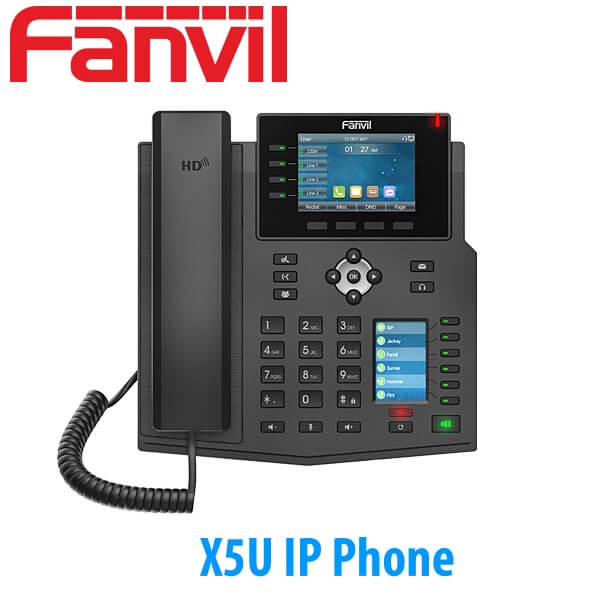

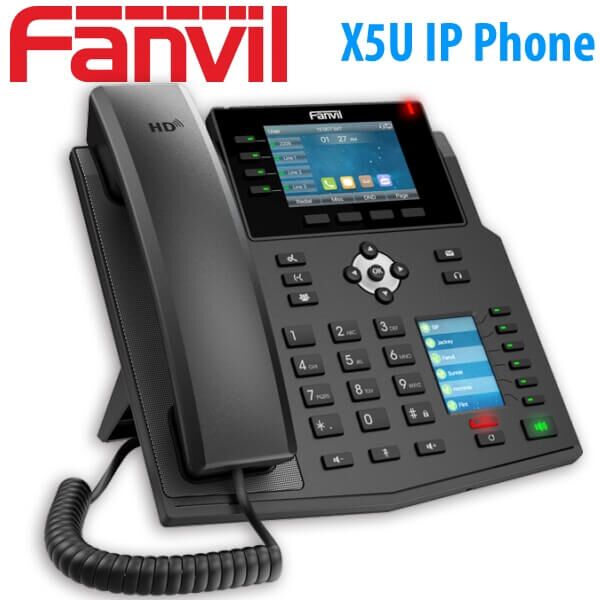

The Fanvil X5U is a high-end business IP phone with a 3.5-inch 480×320 main colour screen and a 2.4-inch 240×320 DSS screen. It supports 16 SIP lines, 4 line keys with LED indicators, 6 physical DSS keys, and up to 30 DSS entries across 5 pages. In plain office language: it gives a busy desk enough call appearances and enough visible programmable keys without taking the desk into full receptionist-console size.

It has dual 10/100/1000 Mbps Ethernet ports, so the phone and the user’s PC can share one Cat6 point at the desk. It supports IEEE 802.3af PoE, built-in Bluetooth 4.2 for headset or mobile device pairing, Wi-Fi through the Fanvil WF20 dongle, and EHS wireless headset connection through the correct cable. HD voice uses G.722 and Opus, so internal calls sound clearer when the PABX and network are set properly.

For a Dubai office replacing an old analogue PABX, the X5U is often the right model for the desks that complain first when the phone is too small: branch managers, reception assistants, sales supervisors, and staff who need BLF status before transferring calls. The remaining staff desks can use lighter models from the Fanvil IP phone range, so the project stays sensibly sized.

16 SIP lines — what buyers should understand before ordering

“16 SIP lines” does not mean one person can make 16 outside calls at the same time. It means the phone can hold up to 16 registered line appearances or call identities, depending on how the PABX is configured. The handset is giving the user capacity to manage calls, accounts, and appearances. The number of outside calls your company can make is still controlled by the PABX and the Etisalat or du SIP trunk.

A normal staff desk usually needs 1 extension and 1 or 2 call appearances. A team lead may need a personal extension, a department line, a branch line, a queue appearance, and BLF keys for common contacts. A small reception desk may need to hold one call, answer a second, watch 10 internal extensions, and transfer without guessing. That is where the X5U’s 16-line capacity and 30 DSS entries make sense.

The second screen is the reason to buy it

The X5U has a separate DSS screen for programmable keys. DSS keys are the shortcuts people actually use after installation: BLF for colleagues, speed dial for suppliers, park keys, pickup keys, queue keys, paging keys, door-release keys, and branch extensions. On the X5U, 6 physical DSS keys sit beside the 2.4-inch screen and page through up to 30 entries.

For a small reception desk in JLT, Business Bay, Deira, or a DMCC office, this avoids blind transferring. The user can see who is busy before sending the caller across. Red means the extension is active. Free means the transfer can go through. That one detail reduces callbacks, complaints, and the “sorry, he is on another call” loop.

The X5U is also a better fit than an oversized console where the desk only needs 10 to 25 monitored contacts. For a 100-extension reception desk, move up to Fanvil X210. For a manager who only needs a larger main screen and more side keys than X5U, look at X6U. For a department lead, service counter, clinic desk, trading office, or project site office, X5U sits in the useful middle.

Headset desk, not just handset desk

Many Dubai offices buy phones by display size and forget headsets. Then the sales coordinator or accounts counter starts using the handset for two hours each morning. The X5U already has built-in Bluetooth 4.2 and a dedicated RJ9 headset port. It also supports EHS wireless headset use through the right cable, so remote answer can work from the headset base.

That matters for a manager who moves between desk and cabinet, a receptionist who prints visitor passes, or a service desk user who checks paperwork while speaking. When we stage the phone, we also label the extension, test the headset path where supplied, and set the answer behaviour the way the user expects. Small thing. Fewer calls after handover.

Power and network truth

The X5U supports IEEE 802.3af PoE. In a proper office fit-out, PoE comes from the comms room switch, so the phone needs one network cable and no power brick on the desk. That keeps desks cleaner and makes a 20-seat or 50-seat rollout easier to support.

The two Ethernet ports are Gigabit, not 10/100. The LAN port connects to the network and the PC port passes the workstation behind the phone. One wall point. One switch port plan. Across a floor in Dubai Internet City, JAFZA, DIP, or an Abu Dhabi branch, that saves cabling and switch capacity compared with giving every desk separate runs.

Current X5U-V2 capability notes buyers usually miss

Many UAE product listings still describe the X5U as it shipped years ago. The current X5U-V2 software branch has added practical details that matter in project support. Persian language support is now available, useful for mixed-language offices and export buyers. OpenVPN can use two-factor authentication. Ringtone behaviour can be controlled with fixed volume and minimum volume limits, which helps offices where users keep reducing the ring to zero.

Caller ID display can show extra transfer information using “from” and “via” fields, so a user can see not only the caller but also the person who transferred the call. That is useful on manager desks and service counters where calls move between departments. The phone can also repeatedly request the same provisioning file where the deployment server requires that behaviour, which helps staged batches stay aligned with the project template.

For larger contact lists, local contact import can be set to add new entries or overwrite old entries. Button labels can scroll on the secondary screen, which helps when BLF names are longer than the key area. Recent headset support has also widened, including Fanvil DH401B, DH301B, DH301D Bluetooth headsets and selected EHS headset models.

Platform compatibility in Dubai

The Fanvil X5U registers as a SIP endpoint on common business PABX platforms used in the UAE, including 3CX, Grandstream UCM, Yeastar, and Asterisk. It can also be deployed with Etisalat and du business SIP services through the PABX or, where the design allows, direct SIP registration.

Vector Digital Systems stages the phones before dispatch: extensions registered, provisioning template applied, DSS and BLF keys programmed, ringtone and headset behaviour checked, and test calls made. For a Dubai office, Abu Dhabi branch, or multi-site UAE rollout, the goal is not to hand over sealed boxes. The goal is to deliver labelled phones that already know their extension and their job.

Fanvil X4U, X5U, X5U-R, or X6U?

For full role-by-role sizing, use the Fanvil X-range comparison. For a full PABX replacement, Vector Digital Systems can map every desk: X5U for the busy positions, X303 or X4U for staff desks, X210 for reception, and Fanvil door phones where gate or entrance calling is required.

Pricing, supply, and staging from Dubai

Fanvil X5U pricing is quoted in AED based on quantity, accessories, staging requirement, and delivery location. We do not publish fixed pricing because project orders often include PSU adapters, EHS cables, headset pairing, provisioning work, installation, and mixed Fanvil models under one quote.

Frequently asked questions

Will the Fanvil X5U work with our 3CX / Grandstream UCM / Yeastar?

Yes. The Fanvil X5U is a SIP IP phone and works with 3CX, Grandstream UCM, Yeastar, Asterisk, and Etisalat or du SIP trunk projects through the PABX. Vector Digital Systems registers the extension, applies the provisioning template, programs BLF keys, and tests calls before dispatch.

Does the Fanvil X5U come with a power adapter, or do I need PoE?

The X5U supports IEEE 802.3af PoE and an optional 5V/2A external power supply. The adapter is optional, so PoE is the cleanest deployment method. If your switch is not PoE, ask us to include the Fanvil PSU in the same quote.

What does 16 SIP lines actually mean — can I make 16 calls at once?

No. 16 SIP lines means the phone has capacity for line registrations and call appearances. It does not mean 16 simultaneous trunk calls. Simultaneous calling is controlled by your PABX and Etisalat or du SIP trunk capacity.

Fanvil X5U vs X6U — what is the difference?

The X5U has 16 SIP lines, a 3.5-inch main screen, one 2.4-inch DSS screen, and up to 30 DSS entries. The X6U steps up to 20 SIP lines, a 4.3-inch main screen, two 2.4-inch DSS screens, and up to 60 DSS entries. Choose X5U for a busy manager or service desk. Choose X6U when the user needs more BLF visibility.

Does Vector Digital Systems configure the Fanvil X5U before delivery?

Yes. Staging is standard for project quantities: extension registration, provisioning template, DSS and BLF programming, ringtone settings, headset behaviour, labels, and test calls. Phones arrive ready for installation, not as blank handsets.

Is the Fanvil X5U covered under Fanvil warranty in the UAE?

Yes. Vector Digital Systems supplies Fanvil phones with manufacturer warranty handling from Dubai. For project deployments, warranty support is tied to the supplied configuration, accessories, and installation scope.

Is VoIP legal in the UAE and will the X5U work with Etisalat or du?

Business VoIP over licensed services is standard in the UAE under TRA regulation. The Fanvil X5U can be deployed on Etisalat and du business SIP services through a compatible PABX or approved SIP design. We configure it for licensed business use.

Who is the supplier of Fanvil X5U in Dubai?

Vector Digital Systems LLC is an authorised Fanvil supplier in Dubai, UAE, operating since 2009. We supply the Fanvil X5U with staging, provisioning, installation, warranty handling, and procurement documents for IT managers, system integrators, ELV contractors, and corporate buyers.

What is the best high-end IP phone for a manager desk in Dubai?

For a manager or service desk that needs 16 SIP lines, built-in Bluetooth, Gigabit passthrough, and up to 30 DSS keys, the Fanvil X5U is a sensible high-end choice. If the same desk must monitor more than 30 users, step up to the Fanvil X6U or X210 depending on the BLF count.

Do you give project pricing for 50 Fanvil X5U phones?

Yes. We quote project pricing for 10+, 25+, and 50+ phones with VAT breakdown, delivery, staging, PSU adapters where needed, EHS cables, and installation. For most projects, only selected desks need X5U; we can mix Fanvil models in one quote.

Does Vector Digital Systems export Fanvil X5U from Dubai?

Yes. We export Fanvil X5U phones from Dubai to telecom resellers, PABX installers, and system integrators in Saudi Arabia, Oman, Qatar, Kuwait, Bahrain, Kenya, Tanzania, Nigeria, Ghana, and Pakistan. FOB Dubai pricing is available with commercial invoice, packing list, certificate of origin, and Fanvil manufacturer warranty.

UAE coverage and MEA export

Vector Digital Systems supplies and installs Fanvil X5U IP phones across Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah, and Umm Al Quwain. We support office fit-outs, PABX replacement, multi-branch rollouts, and free zone projects in DMCC, JLT, Dubai Internet City, Dubai Silicon Oasis, JAFZA, and Dubai South.

For export buyers, we handle Fanvil X5U project quantities from Dubai with FOB Dubai pricing and standard export documents: commercial invoice, packing list, and certificate of origin. Gulf resellers, East Africa PABX installers, West Africa telecom dealers, and Central Asia IT distributors can send the destination, quantity, and required accessory list for a same-day export quote.
