A manager’s desk is not a reception console. It still needs more than a basic staff phone. In a Dubai office handover, this is the seat where calls are held, transferred, parked, picked up from other extensions, answered on a headset, and sometimes shared between two business identities. Not one hundred BLF keys. Not a tiny two-line handset either. The middle ground is where the Fanvil X6U fits.

The X6U is the high-end Fanvil desk phone for senior users, team leaders, branch managers, admin supervisors, and smaller reception counters that need visible DSS keys without moving up to the X210 operator layout. It gives the user 20 SIP lines, three colour displays, built-in Bluetooth, dual Gigabit network ports, PoE, EHS support, Wi-Fi through a USB dongle, and up to 60 DSS keys. For many UAE projects, it is the “one step below operator console” phone.

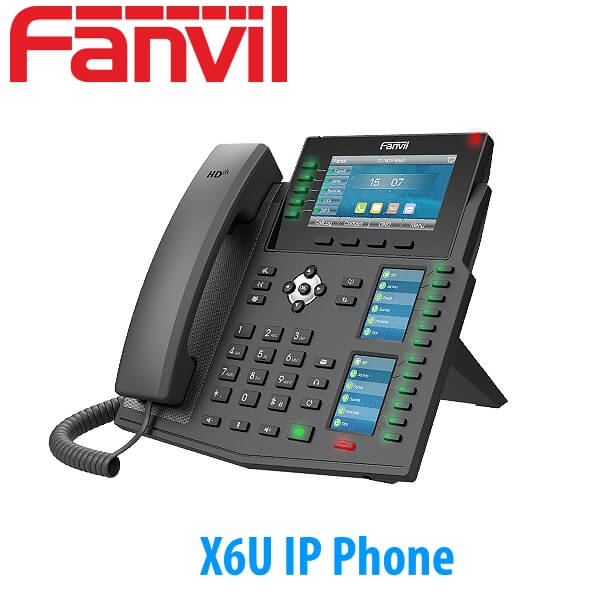

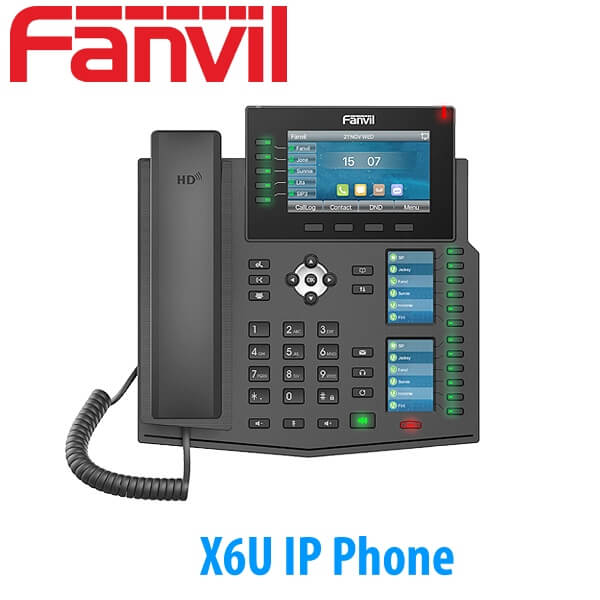

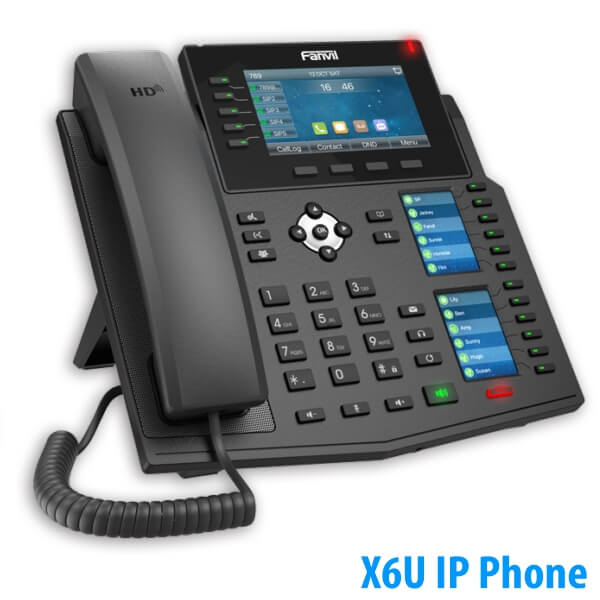

What the Fanvil X6U is

The Fanvil X6U is a high-end enterprise IP phone in the XU series. The centre screen is a 4.3-inch colour display used for call handling, menus, contacts, and call information. On both sides of it are two 2.4-inch colour DSS screens. Those side screens are the reason buyers choose this phone over a normal executive handset. They let the user keep names, extension numbers, speed dials, BLF keys, park slots, pickup keys, and feature codes visible instead of buried in a menu.

There are 12 two-colour physical DSS keys beside the side screens, with page switching to reach up to 60 DSS positions. That matters in offices where the manager or admin desk handles calls for a small team. Five line keys with LED indicators sit on the main display area. The phone also supports HD voice through the handset and speakerphone, with G.722 and Opus wideband audio support for clearer speech when the SIP path also supports it.

For Dubai PABX projects, we position the X6U above the X5U and below the X210. The X5U is a strong executive phone with fewer DSS positions. The X210 is the operator model with 106 DSS keys. The X6U sits between them: enough keys for managers and admin users, but not oversized for every front-desk job. For full range sizing, see the Fanvil IP phone comparison for Dubai projects.

20 SIP lines — the number buyers often misread

“20 SIP lines” does not mean the phone will create 20 outside trunk calls by itself. It means the phone can register and manage up to 20 SIP accounts or line appearances. Think of it as identity and call-handling capacity on the handset, not the number of outside calls your business can make at the same second.

A real deployment example: a Dubai branch manager may have one extension for the local branch, one group line for sales calls, one shared support appearance, and several call park or pickup keys. The X6U has the capacity to show and manage those identities and call states. The actual number of simultaneous outside calls is controlled by the PABX, the SIP trunk from Etisalat or du, and the number of channels purchased on that service.

For most staff desks, 20 SIP lines is more than needed. A regular accounts user, warehouse coordinator, or office desk normally needs one or two accounts. That user is better served by an X301G, X303G, X3U, or X4U depending on display, Gigabit, and DSS needs. The X6U earns its place when the user needs visible call control, headset use, and a larger DSS layout.

The real reason to buy the X6U: visible control without an operator console

The X6U is not just a bigger display phone. Its value is the DSS layout. In a small Business Bay office, the admin manager may need keys for the general manager, accounts, sales, warehouse, meeting room, driver, security, and two call park slots. On a two-line phone, those become printed cheat sheets or memorised codes. On the X6U, they become labelled keys on the side screens.

DSS and BLF are the difference between transferring with confidence and guessing. BLF tells the user if an extension is free or already on a call before transferring. Green or idle status means transfer. Busy status means hold the caller, take a message, or park the call. That one behaviour reduces the “he is on another call, please call again” loop that makes offices sound disorganised.

This matters in Dubai free zone offices where the front desk may not be a full-time receptionist. A team assistant in DMCC, JLT, DIFC, or Dubai Internet City can handle visitor calls, sales transfers, and internal calls from one phone. The X6U gives that user enough keys without forcing the site to buy the larger X210 layout.

The same logic applies to branch rollouts. In a multi-site PABX replacement, not every desk needs the same phone. A common mix is one X6U for the branch head, one X6U or X210 for reception depending on extension count, then X303G or X4U phones for staff desks. Vector Digital Systems stages that mix under one project quote, with extensions, labels, BLF, and test calls completed before dispatch.

Three screens, not three distractions

The 4.3-inch main colour screen is for the active call. The two 2.4-inch side screens are for keys. This separation is useful. The user can be on a call, see caller details on the main screen, and still view DSS labels on the side screens. On smaller phones, feature keys often share the same visual area as menus and call status. On the X6U, the layout feels more like a compact desk console.

The 12 physical DSS keys are two-colour keys with labels shown beside them on the side displays. Page switching expands that to up to 60 DSS positions. We normally program the first page for the most-used internal extensions, the second page for call park, pickup, group voicemail, speed dials, and service codes, and the third page for branch or department numbers where the PABX supports it.

That programming is part of staging. We do not ship a carton of phones and ask the installer to build every BLF key on site. For project quantities, Vector Digital Systems registers the extensions, applies the provisioning template, programs DSS labels, tests calls, and marks the phone list before dispatch from Dubai.

Power and network truth for the Fanvil X6U

The X6U has dual Gigabit Ethernet ports: one network port and one PC port bridged through the phone. In a fit-out, this saves a switch port and a wall point at every desk where a PC sits behind the phone. One Cat6 cable comes from the comms room to the phone, then a short cable runs from the phone to the workstation.

The phone is PoE enabled. Fanvil’s current datasheet lists PoE power dissipation at 1.49W standby and 6.88W high. The datasheet does not publish a PoE class number for the X6U, so we size the switch by the published wattage and the full phone count on the project. For a 30-phone deployment, that planning is not theory. It decides whether the existing switch can power the site or whether a PoE switch must be added.

For Dubai office work, PoE is the clean choice. Power comes from the comms room. The desk stays clear. During handover, the installer tests the phone from the rack side and the desk side. In older offices replacing an analogue PABX, we check the cabling first because some desks still have voice-only pairs instead of usable Ethernet.

Headsets, Bluetooth, Wi-Fi dongle, and call recording use cases

The X6U has built-in Bluetooth 2.1 for Bluetooth headset pairing. It also supports EHS wireless headset use through the correct EHS cable. For users who answer calls all day, this is often more valuable than another screen size. A branch manager can leave the handset down, answer from the headset, and still use DSS keys for transfer and call park.

Wi-Fi is supported through a USB dongle, not built into the X6U body. That distinction matters. If the desk has a clean Cat6 run, use the cable. If the desk is temporary, in a serviced office, or in a villa office where pulling a new cable is not approved, a supported Wi-Fi dongle may solve the connection problem. Voice quality will then follow Wi-Fi quality. Weak Wi-Fi means weak calls.

The USB port can also be used with a flash drive for supported recording scenarios, depending on the PABX policy and phone settings. For regulated or management-reviewed call recording, we normally keep the recording on the PABX or call platform rather than asking users to manage USB files at the desk.

One small detail we check during staging: headset mode. Many support desks complain that the phone “does not work with the headset” when the issue is simply a missing EHS cable, wrong headset mode, or no answer key mapped. We set that before dispatch when the headset model is supplied with the order.

Current X6U capability notes most UAE listings miss

Many local listings stop at “20 SIP lines, PoE, Gigabit.” That is not enough for a project buyer. Current Fanvil X6U files show several details that matter in deployment: six-way audio conference support in current datasheet material, Opus codec support, IPv4 and IPv6 network support, TR-069 management, auto-provisioning by common methods, local phonebook capacity up to 2,000 entries, remote XML/LDAP phonebook support, and call logs up to 1,000 entries.

The X6U also supports SIP hotspot use. In simple terms, selected Fanvil phones can share account handling in a small group setup where the PABX design allows it. We do not use that as a replacement for a proper office PABX in a business fit-out, but it is useful to know when dealing with small temporary offices, site offices, or branch desks that need a quick call arrangement.

Fanvil has also listed X6U and X6U-V2 among devices verified for zero-touch auto provisioning with PortSIP PBX. For Vector Digital Systems, the practical value is simple: platform files are not frozen at launch. The phone is still part of active Fanvil platform work. We still test each Dubai project against the customer’s actual PABX, because “listed” and “provisioned correctly for your dial plan” are not the same thing.

Platform fit in Dubai: PABX, SIP trunks, and staging

The X6U registers as a standard SIP endpoint on common business platforms used in the UAE, including 3CX, Grandstream UCM, Yeastar, Asterisk, and other SIP-based systems. It can also be used in projects where Etisalat or du SIP trunks terminate on the office PABX. The handset does not replace the PABX. It registers to it.

For a PABX replacement, we map users before phones are opened. Reception, branch manager, accounts, sales, warehouse, meeting room, and director desks do not all need the same handset. The X6U is normally assigned only to the desks that need the bigger DSS layout, headset use, and multi-line handling. That keeps the project cost sensible without under-sizing the important seats.

Vector Digital Systems stages Fanvil phones in Dubai before delivery: extensions registered, provisioning template applied, BLF keys programmed, phone labels checked, and test calls made. For multi-site rollouts, we stage by location and extension range so the Abu Dhabi branch, Dubai head office, and Sharjah warehouse are not mixed during dispatch.

Fanvil X5U vs X6U vs X7 vs X210

Choose the X5U if the user wants a senior desk phone but does not need the larger DSS layout. Choose the X6U if the user needs up to 60 DSS keys, Bluetooth, dual Gigabit, and a three-screen layout. Choose the X7 if the user prefers a larger touch-led desk phone. Choose the X210 if the seat is true reception or operator duty. For staff desks behind these users, compare the Fanvil X303G and Fanvil X4U.

Pricing, supply, and project staging from Dubai

Vector Digital Systems LLC is an authorised Fanvil supplier in Dubai, operating since 2009. We quote the Fanvil X6U in AED with VAT breakdown, delivery, PSU add-ons where needed, and installation scope if required. We do not publish fixed pricing because project quantities, staging, delivery location, and accessories change the final quote.

For 10+ or 50+ phones, we quote by desk role instead of one flat model list. That is how real PABX projects are bought: X6U for managers, X210 for reception, X303G or X4U for staff, W611W for roaming warehouse users, and EHS or PSU accessories added only where needed.

Frequently asked questions

Will the Fanvil X6U work with our 3CX / Grandstream UCM / Yeastar system?

Yes. The X6U is a SIP desk phone and can be registered to 3CX, Grandstream UCM, Yeastar, Asterisk, and other SIP-based PABX systems. Vector Digital Systems stages the phone before delivery, including extension registration, provisioning template, DSS labels, BLF keys, and test calls.

Does the Fanvil X6U come with a power adapter, or do I need PoE?

The X6U is PoE enabled, and Fanvil lists the external power supply as optional. If your network switch provides PoE, one cable powers and connects the phone. If your switch is not PoE, we quote the correct 5V/2A PSU add-on with the phone.

What does 20 SIP lines actually mean — can I make 20 calls at once?

No. The 20 SIP lines are registered accounts and call appearances on the phone. They help the user handle multiple identities, held calls, park slots, and transfers. The number of simultaneous outside calls depends on your PABX and Etisalat or du SIP trunk channels.

Fanvil X6U vs X210 — what is the difference?

The X6U has up to 60 DSS keys and is suited to managers, admin supervisors, and small reception desks. The X210 has 106 DSS keys and larger side screens, making it the stronger choice for a full reception or operator seat that watches the whole office before transferring calls.

Does Vector Digital Systems configure the Fanvil X6U before delivery?

Yes. For project quantities, staging is included: extensions registered, provisioning template applied, DSS and BLF keys programmed, headset mode checked where needed, and test calls made before dispatch from Dubai.

Is the Fanvil X6U covered under Fanvil warranty in the UAE?

Yes. The X6U is supplied with Fanvil manufacturer warranty, handled through Vector Digital Systems LLC in Dubai for supported UAE deployments and export orders supplied by us.

Is VoIP legal in the UAE, and will the X6U work with Etisalat or du?

Business VoIP over licensed services is standard in the UAE under TRA regulation. The X6U works as a SIP endpoint behind your licensed Etisalat or du business SIP trunk, normally through a PABX such as 3CX, Grandstream UCM, Yeastar, or Asterisk.

Who is the supplier of Fanvil X6U in Dubai?

Vector Digital Systems LLC is an authorised Fanvil supplier in Dubai, UAE, operating since 2009. We supply the Fanvil X6U with staging, provisioning, installation, warranty handling, and procurement documentation for IT teams, PABX installers, system integrators, and corporate buyers.

What is the best executive IP phone for managers in Dubai?

For managers who need visible DSS keys, Bluetooth headset use, dual Gigabit, and 20 SIP lines, the Fanvil X6U is a strong executive choice. Choose the Fanvil X7 for a larger touch-led desk phone, or the Fanvil X210 if the same seat also performs full reception duty.

Do you give project pricing for 50 Fanvil X6U phones?

Yes. We quote project pricing for 10+, 50+, and multi-site quantities. We may not recommend 50 X6U phones if only a few desks need that level. We map the phone model to each desk role so the project does not pay executive-phone pricing for basic users.

Does Vector Digital Systems export Fanvil X6U from Dubai?

Yes. We export Fanvil X6U phones from Dubai to telecom resellers, PABX installers, and system integrators in Saudi Arabia, Oman, Kuwait, Bahrain, Iraq, Kenya, Tanzania, Uganda, Nigeria, and Ghana. FOB Dubai pricing is available with commercial invoice, packing list, certificate of origin, and Fanvil manufacturer warranty.

UAE coverage and free zone deployment

Vector Digital Systems supplies and installs the Fanvil X6U across Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah, and Umm Al Quwain. We support office fit-outs in DMCC, JLT, Business Bay, DIFC, Dubai Internet City, JAFZA, Dubai South, Mussafah, SAIF Zone, and other UAE business areas where Fanvil phones are deployed with a new or existing PABX.

MEA export from Dubai

For MEA export buyers, the X6U is often ordered as part of a mixed Fanvil project bundle: executive phones, staff phones, receptionist consoles, wireless handsets, and PSU or EHS accessories. We supply telecom resellers, PABX installers, IT distributors, and system integrators with FOB Dubai pricing.

Export documentation can include commercial invoice, packing list, and certificate of origin. Send the destination country, quantity, required accessories, and whether the phones need staging before export. We can prepare multi-site batches for Gulf, East Africa, West Africa, and Central Asia projects under one engagement.
