Fanvil i30 SIP Video Door Phone Dubai

A facility manager calls with a simple request: “We already have Fanvil i30 door phones on three entrances. I need the same model for one more gate, not a different faceplate, not a new wiring plan, not a new handover headache.” That is the real buying moment for the Fanvil i30 in Dubai now. It is not usually a first-time door-phone selection. It is a site-matching request.

You see this in JAFZA warehouses, villa compounds, school gates, clinics, older office towers, and fitted-out branches where the entrance intercom was installed years ago and the client wants the same user experience across all doors. Same keypad feel. Same card workflow. Same SIP behaviour. Same way the guard, reception desk, or PABX extension answers the visitor call.

The Fanvil i30 is now a discontinued Fanvil model, so we quote it honestly: same-model availability is checked per request. Where stock, project leftovers, or matched replacement supply is possible, Vector Digital Systems LLC supplies from Dubai with staging and installation. Where a site needs a new design, we discuss the available Fanvil door-phone range separately. This page is for buyers who asked for the i30 by name.

What the Fanvil i30 is

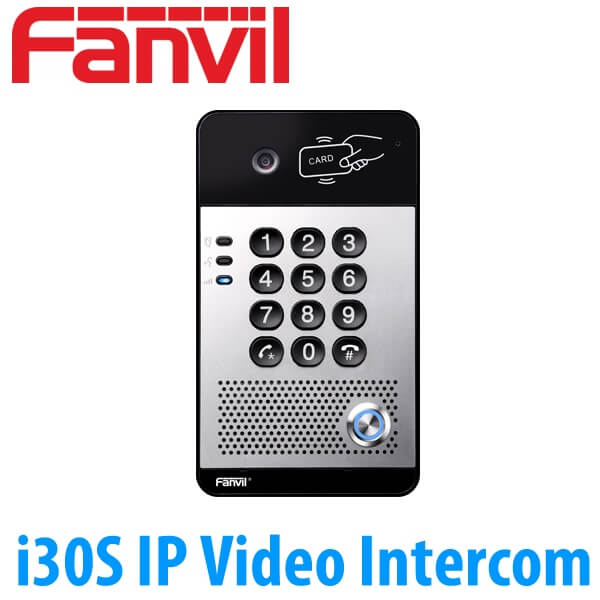

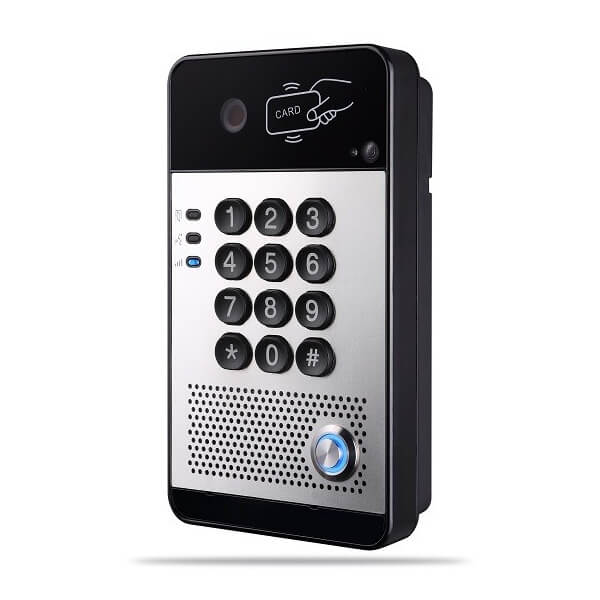

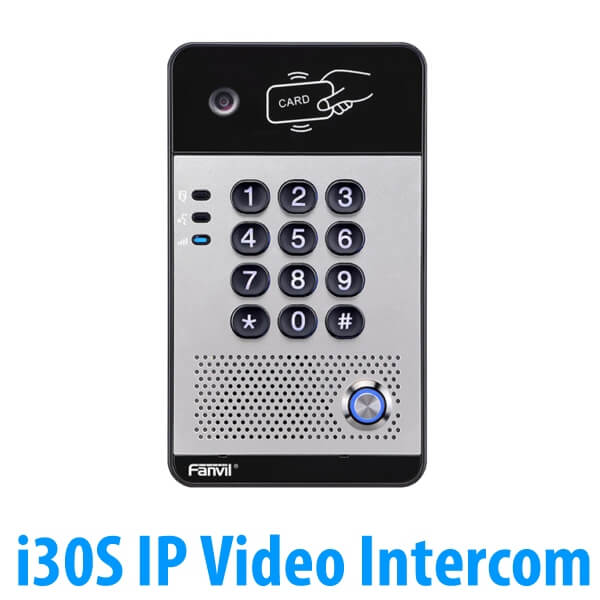

The Fanvil i30 is a SIP video door phone with access control built into the door station. It combines a camera, keypad, RFID/card access, SIP calling, door relay control, and intercom audio in one unit. For a Dubai office entrance, that means a visitor presses the call key, the i30 calls reception or a security extension, and the staff member can speak to the visitor and release the door from the phone system.

It supports 2 SIP lines and SIP 2.0. Voice runs over IP/RTP and video is available through RTSP. The camera stream supports 1280 × 720 resolution, with a wide viewing angle suited to a doorway rather than a desk. The unit has a 3W speaker, echo cancellation, and access methods including call, code, indoor switch, RFID card, and remote DTMF door release.

That mix is why the i30 still gets searched in the UAE even after discontinuation. Buyers are not only comparing product sheets. They are trying to keep a working building consistent. A warehouse in Dubai Investment Park may have one i30 at the staff entrance and one at the loading bay. A villa compound in Jumeirah may have the same call-flow at multiple gates. A branch office may have the i30 already approved in the ELV drawing. For those cases, the same model matters.

2 SIP lines — what that means on a door phone

“2 SIP lines” does not mean two visitors can stand at the gate and run two full conversations at the same time. On a door phone, the line count means SIP account and call-handling capacity. The i30 can register as a SIP endpoint and call extensions or groups on the PABX. The actual call routing depends on how the PABX is programmed.

A typical Dubai office setup is simple: the i30 calls reception during office hours, then security after hours. A warehouse setup may call the guard desk first, then a supervisor extension if there is no answer. A villa gate may call an indoor station or a mobile-linked extension through the site phone system. The i30 is the door endpoint. The PABX decides who rings, how long it rings, and where the call goes next.

Why project buyers still ask for the i30

The first reason is site matching. A new door station can be better on paper and still be wrong for a live building if it changes the bracket position, keypad layout, card behaviour, or camera angle the team is used to. When an ELV contractor is closing a defect list, the best answer is often the same unit already accepted by the client.

The second reason is PABX behaviour. The i30 is a SIP device. Once the extension, DTMF release code, relay timing, and calling group are already known, adding another i30 to the site is not a fresh design exercise. We register it, apply the matching parameters, test door release, and label the extension before dispatch where the site details are provided.

The third reason is access-control familiarity. The i30 can work with code, RFID/card, indoor switch, and remote DTMF release. Security teams like not retraining the guard desk for every entrance. Reception teams like seeing the same call name on the phone display: “Main Gate”, “Warehouse Door”, “Back Entrance”, “Villa Gate”.

For fresh sites, we will still ask about the door type, lock voltage, PoE switch, sun exposure, mounting height, and whether the camera feed must be viewed on a reception phone, indoor station, or NVR. For a same-model request, we ask one extra question first: are you matching an existing Fanvil i30 already installed on site?

Access control and door release

The Fanvil i30 supports the door workflows most UAE ELV teams expect from a SIP entrance station. A visitor can press the call key and speak to reception. Staff can release the door using a programmed DTMF code from the answering phone. Authorised users can open by card or code. An indoor exit switch can release the lock from inside.

The relay and lock wiring still need proper site checking. A magnetic lock, strike lock, gate controller, or access-control panel will not always wire the same way. We ask for the lock type, voltage, fail-safe or fail-secure behaviour, and whether the door release is handled directly by the i30 or through a controller. That one check prevents the classic handover problem: the intercom calls perfectly, but the door does not open.

For reception visibility, pair the door call with a capable Fanvil desk phone from the Fanvil IP phone range. For PABX projects, see our IP PABX Dubai service page before finalising the entrance call-flow.

Power and network truth

The Fanvil i30 supports PoE 802.3af. For project work, PoE is the clean way to install it: one network cable from the door station back to the PoE switch or injector, with power and data on the same run. No small power supply hidden inside a gate pillar. No outdoor socket added late by the electrical team. No separate power fault that gets blamed on the PABX.

The i30 also appears in older site documents with 12V DC power planning, so we do not assume your site is PoE-ready. We check the switch, cable path, lock power, relay wiring, and whether the door controller needs separate power. For fit-outs in Dubai, Abu Dhabi, Sharjah, and free zones such as JAFZA, DMCC, and Dubai Investment Park, this check is done before we quote the installation scope.

Video, RTSP, and NVR planning

The i30 is a SIP video door phone, not just an audio intercom with a keypad. Its video stream can be used for reception viewing and project integration where the site design supports it. The camera stream supports 1280 × 720 resolution, and video is carried using RTSP. That matters for security teams who want the door camera visible beyond the answering phone.

On some projects, the only requirement is that reception sees and speaks to the visitor before release. On others, the consultant asks whether the door camera can be viewed or recorded by the security system. We do not promise NVR display from a product name alone. We check the NVR brand, codec support, network VLAN, stream path, and login method. Then we test the stream during staging or site work.

This is one of the missed details in many i30 quotations. The door phone may register to the PABX correctly, but video and door release need separate testing. We test call, audio, video, DTMF release, card/code access where required, and label the extension clearly before handover.

Platform compatibility in Dubai projects

The Fanvil i30 is a standard SIP endpoint. It can register to common SIP platforms used in UAE business phone systems, including 3CX, Grandstream UCM, Yeastar, and Asterisk-based PABX environments. For Etisalat and du business voice projects, the usual design is not to register the door phone to the trunk directly. The i30 registers to the site PABX, then the PABX controls call routing, ring groups, time conditions, and extension naming.

During staging, we ask for the SIP extension, password, server address, door release code, call destination, time schedule, and site VLAN details. For project quantities or multiple entrances, we prepare a clear extension map: Main Gate, Reception Door, Loading Bay, Staff Entrance, Parking Barrier. That naming discipline saves time when the client calls later and says one specific entrance is not opening.

i30 same-model decision table

This table is deliberately not a normal “one up, one down” desk-phone comparison. The i30 buyer is usually solving a site-matching problem. If you are maintaining an existing i30 installation, the question is availability and configuration. If you are building a new entrance system, the question becomes door type, camera need, lock wiring, PoE design, and PABX call-flow.

Pricing, supply, and installation from Dubai

Fanvil i30 pricing is quoted in AED after availability check. Because the model is discontinued, we do not publish fixed pricing or promise open-ended stock. Send the required quantity, site location, and whether you are matching existing i30 units. We will confirm same-model availability, VAT, delivery, installation scope, and any power or lock-control accessories needed.

Vector Digital Systems LLC supplies from Dubai, operating since 2009 as an authorised Fanvil supplier. For UAE projects, we can handle supply only, supply with staging, or supply and installation. For ELV contractors and PABX installers, we can stage the unit for your customer’s SIP platform before dispatch so your site visit is fixing, wiring, and testing — not guessing at SIP credentials beside a gate.

Frequently asked questions

Is the Fanvil i30 still available in Dubai?

The Fanvil i30 is a discontinued Fanvil model, so availability is checked per request. Vector Digital Systems can quote same-model supply from Dubai where stock or project-matched supply is available, especially for sites that already use i30 door phones and need matching units.

Will the Fanvil i30 work with our 3CX / Grandstream UCM / Yeastar system?

Yes, the i30 works as a standard SIP door phone on common PABX platforms including 3CX, Grandstream UCM, Yeastar, and Asterisk-based systems. We register the SIP extension, set the call destination, test audio, check DTMF door release, and confirm the call-flow before delivery or during installation.

Does the Fanvil i30 come with a power adapter, or do I need PoE?

The i30 supports PoE 802.3af, which is the preferred project method. Because this is a discontinued model and supply can vary, we do not assume a power adapter is inside the box. If the site has no PoE switch, we quote the needed power item in the same offer.

What does 2 SIP lines actually mean — can the i30 handle 2 calls at once?

2 SIP lines means SIP account and call-handling capacity, not two visitor conversations at once. In a normal installation, the i30 registers as a door extension and calls reception, security, or a ring group. The PABX controls simultaneous call behaviour, forwarding, and time schedules.

Can the Fanvil i30 open the gate or door?

Yes. The i30 supports door release by DTMF from the answering phone, keypad code, RFID/card access, and indoor switch, depending on how the site is wired. We check the lock type, relay wiring, door controller, voltage, and release timing before handover.

Can the Fanvil i30 video be viewed on our NVR?

The i30 supports RTSP video streaming and a 1280 × 720 camera stream. NVR viewing depends on the NVR, codec support, network path, and login method, so we test this as part of the project when NVR viewing is required.

Does Vector Digital Systems configure the i30 before delivery?

Yes. We can stage the i30 before dispatch with the SIP extension, call destination, DTMF release code, and basic test calls. For UAE site work, we also test the lock release and video path during installation where access to the door hardware is available.

Is VoIP legal in the UAE and will the i30 work with Etisalat or du?

Business VoIP over licensed Etisalat and du services is the normal route under TRA regulation. The i30 usually registers to the site PABX, and the PABX connects to Etisalat or du SIP services. We configure the door phone within that licensed business phone setup.

Is the Fanvil i30 covered under Fanvil warranty in the UAE?

Warranty depends on the available supply route because the i30 is discontinued. Vector Digital Systems confirms warranty terms in the quotation before order acceptance and handles warranty coordination from Dubai for eligible Fanvil supply.

Who is the supplier of Fanvil i30 in Dubai?

Vector Digital Systems LLC is an authorised Fanvil supplier in Dubai, UAE, operating since 2009. We supply Fanvil i30 where same-model availability exists, with staging, provisioning, installation, warranty coordination where eligible, and supplier documentation for procurement teams, ELV contractors, and PABX installers.

What is the best SIP video door phone for matching an existing Fanvil i30 site in Dubai?

For a live site already using Fanvil i30 units, the best match is usually the same Fanvil i30, subject to availability. It keeps the same keypad style, SIP behaviour, door-release workflow, and user training. For a new site with no i30 installed, we review the current Fanvil door-phone range after checking the entrance, lock, camera, and PABX requirements.

Does Vector Digital Systems export Fanvil i30 from Dubai?

Yes, where same-model availability exists. We export Fanvil door phones from Dubai to PABX installers, telecom resellers, and ELV contractors in Saudi Arabia, Oman, Qatar, Kuwait, Bahrain, Kenya, Tanzania, Uganda, Nigeria, and Ghana. FOB Dubai pricing includes commercial invoice, packing list, and certificate of origin.

UAE coverage and MEA export

Vector Digital Systems supplies and installs Fanvil i30 door phones across Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah, and Umm Al Quwain. We support villa gates, office entrances, warehouse access points, clinic doors, school reception gates, and free zone projects in DMCC, JAFZA, Dubai Internet City, Dubai Investment Park, and Business Bay.

For export, we quote FOB Dubai for telecom resellers, PABX installers, system integrators, and ELV contractors across the Gulf, East Africa, and West Africa. Export documents include commercial invoice, packing list, and certificate of origin. Share the model, quantity, destination country, and whether you need same-model i30 matching for an existing site.
