The gate is not always a gate. In Dubai projects, it is often a clinic reception door, a stockroom in Deira, a staff-only corridor in JLT, a delivery shutter in Al Quoz, or a small villa entrance where the client does not want a large video panel on the wall. The requirement is simple: press a button, call an extension, speak clearly, and open the door from the phone system when the person is approved.

That is the job of the Fanvil i10D. Not a large outdoor door station. Not a screen-based indoor monitor. A small 88 × 88 mm SIP mini intercom with two call buttons, 2 SIP lines, PoE or DC12V/1A power, IP54 protection, and one relay interface for access control wiring. We supply it from Dubai for projects where the intercom must join the PABX instead of sitting as a separate bell system.

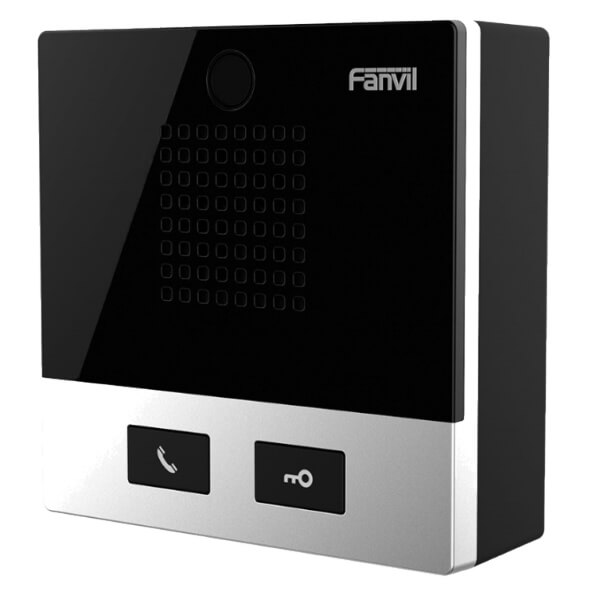

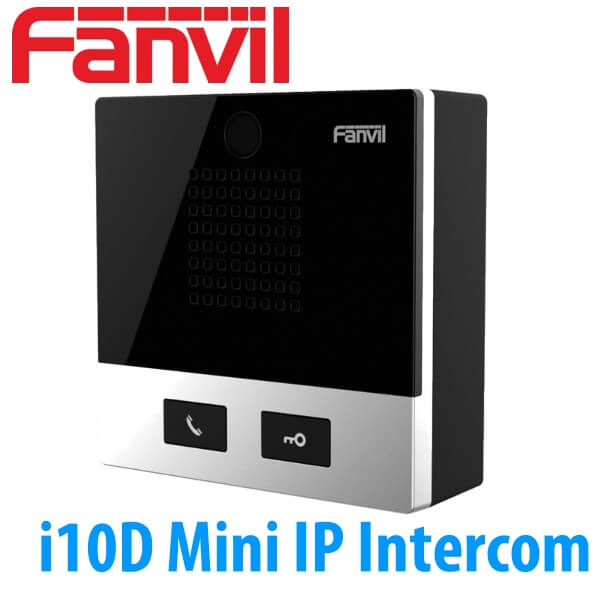

What the Fanvil i10D is

The Fanvil i10D is a 2-button SIP mini intercom for indoor installation. It connects to the network through one RJ45 port at 10/100 Mbps and registers to a SIP platform like an IP phone. Each of the two buttons can be set as a speed dial or DSS key, so one button can call reception and the other can call security, store, nurse station, back office, or a shared ring group.

It is part of the Fanvil i10 mini intercom family. The i10 has one button. The i10D has two buttons. For this page, the model is the exact Fanvil i10D — the 2-button audio mini intercom. No replacement wording. No video model wording. No mixed title that confuses procurement.

The i10D suits indoor scenes where the opening needs to stay clean: a small office entrance, clinic consultation area, service counter, reception-to-store call point, meeting-room help point, staff passage, or warehouse office door. In a UAE fit-out, it is usually quoted with the PABX, access control wiring, PoE switch, and the desk phones that will answer the call.

Why two buttons matter on a mini intercom

A single-button intercom is fine when every visitor goes to one place. Press. Call reception. Done. The i10D is for sites where one button is not enough but a large entrance panel is too much.

Example: a Dubai clinic has one button labelled Reception and another labelled Nurse. A warehouse in JAFZA has one button for Office and another for Loading Bay. A villa compound service gate has one button for Security and another for Maintenance. A small Business Bay office uses one button for Front Desk and another for Admin. Same wall plate size. Better routing.

2 SIP lines — what that number means on an intercom

The i10D has 2 SIP lines. That does not mean two people stand at the door and run two separate full conversations at once. In this class of device, SIP lines mean registered SIP accounts and call appearances — the identities and call handling capacity the intercom can hold on the phone system.

A simple deployment uses one SIP account for the intercom, with both buttons calling different extensions or ring groups. A more controlled deployment can use two SIP registrations: one identity for reception calls and one identity for a service or security route. That helps the PABX apply different caller ID names, ring rules, recordings, or time schedules.

For a PABX installer, this is useful. Button 1 can present as “Main Door” and ring reception during office hours. Button 2 can present as “Store Door” and ring operations. After 6PM, both buttons can follow a different route. The hardware stays small, but the call routing is handled in the SIP platform.

Where we use the i10D in Dubai projects

The i10D works best where the environment is controlled and the wall space is tight. It is not a decorative doorbell. It is a SIP endpoint. Once registered to the PABX, any IP phone can answer the intercom call: reception phone, operator console, back-office phone, security desk, or a time-based ring group.

In a small office, the first button calls reception and the second calls admin. In a clinic, one button calls the front desk and the second calls the treatment room. In a warehouse office, one button calls accounts and another calls dispatch. In a shared office corridor, it becomes a compact call point without installing a full entrance panel.

Because it supports intercom, access control, and broadcasting functions, the i10D can also be used as a wall call point for internal announcements or staff assistance. For larger entrances, we usually step up to a Fanvil door phone such as the Fanvil i60. For a simple one-button indoor point, compare it with the Fanvil i10.

Audio, speaker, and relay detail

The i10D has a built-in 1W speaker and acoustic echo cancellation. In plain terms, the person at the door can speak to the extension without the call turning into a loud echo loop. Fanvil lists wideband audio codecs including G.722 and Opus, which helps speech sound cleaner when the phone system and network path support it.

For door release, the i10D includes one short-circuit input/output interface and relay support for access control wiring. Fanvil lists one relay with NC/NO contacts rated up to DC30V/1A or AC125V/0.5A, plus active switching output at 12V/650mA DC. That gives the installer a clean way to connect an electric lock, strike, or existing access control interface when the site design supports it.

We do not wire door release blindly. Before quoting installation, we confirm lock type, controller location, cable route, power source, and whether the client wants release from a desk phone key, PABX feature code, time schedule, or security desk only. For Dubai offices, this avoids the usual handover problem: the intercom rings, but nobody planned the lock release wiring.

Power and network truth

The Fanvil i10D connects through one RJ45 network port at 10/100 Mbps. That is normal for a mini intercom. It is not a desk phone with PC passthrough, so there is no Gigabit pass-through port to share with a workstation. Run one dedicated Cat6 cable to the intercom location, preferably from a PoE switch in the comms room.

Fanvil lists power as DC12V/1A or PoE. For project work, PoE is cleaner: one cable for network and power, no visible wall adapter, no socket needed next to the door. In a finished office or villa corridor where cable access is poor, the installer can use DC12V/1A power where the design allows it.

Current platform and security details worth stating

The useful detail most local listings miss is not the two buttons. It is how much network control is built into this small device. The i10D supports IPv4, IPv6, static IP, DHCP, PPPoE, 802.1x, VLAN, LLDP, QoS, L2TP, and OpenVPN. That matters when the intercom is going into a managed office network rather than a home router.

For managed rollouts, we can place the intercom on the voice VLAN, set its SIP account, assign the two button actions, define the relay behaviour, and test call flow before dispatch. For an IT manager, that means the i10D is not just “a door bell with IP.” It becomes another controlled endpoint on the PABX network.

Fanvil’s public security listing includes the i10/i10V/i10D family with a support date through 31 December 2026. That is useful for procurement files, especially when a project buyer asks whether this small intercom still has manufacturer attention behind it.

Platform compatibility in Dubai

The i10D registers as a SIP endpoint. We configure it with 3CX, Grandstream UCM, Yeastar, Asterisk, and SIP-based office PABX systems used across Dubai and the wider UAE. It can call an extension, ring group, queue, or time-based route depending on how the PABX is built.

For Etisalat and du business voice projects, the i10D normally sits behind the customer’s PABX rather than registering directly to the SIP trunk. That gives the office proper call routing, door release control, internal extension dialling, and after-hours behaviour. We stage the intercom with the PABX settings before dispatch where project quantities or site schedules justify it.

A normal staged batch includes SIP account registration, button programming, relay test plan, VLAN details if supplied, label plan for Button 1 and Button 2, and live test calls to the answering extensions. For multi-site UAE rollouts, we keep the naming pattern consistent so “Main Door DXB” and “Store Door AUH” make sense on the operator phone.

Fanvil i10, i10D, i16S, or i60 — choose the right intercom

Pricing, supply, staging, and installation

Vector Digital Systems supplies the Fanvil i10D from Dubai with same-day AED quotation. We do not publish fixed AED pricing because the right quote depends on quantity, PoE switch availability, PSU requirement, access control wiring, delivery location, and whether installation is included.

For project buyers, the i10D is rarely a one-line item. It usually comes with the answering phones, PABX, PoE switch, cable work, access control handover, and testing. For 10+ or multi-site quantities, we quote the full intercom plan under one engagement so the installer and procurement team are not chasing parts from separate suppliers.

Frequently asked questions

Will the Fanvil i10D work with our 3CX / Grandstream UCM / Yeastar?

Yes. The Fanvil i10D registers as a SIP endpoint on 3CX, Grandstream UCM, Yeastar, Asterisk, and SIP-based PABX systems used in Dubai offices. We configure the SIP account, button destinations, and test calls during staging when the PABX details are supplied.

Does the Fanvil i10D come with a power adapter, or do I need PoE?

Fanvil lists the i10D power options as DC12V/1A or PoE. The public datasheet does not state that a power adapter is included in every box. For UAE projects, we quote PoE first; if your switch is not PoE, we add the correct PSU to the same quote.

What does 2 SIP lines actually mean — can the i10D make 2 calls at once?

The 2 SIP lines are registered accounts and call appearances, not a promise of two separate gate conversations at the same moment. In real use, one or two SIP identities can call programmed extensions or ring groups. Simultaneous call behaviour is controlled by the PABX and the configured route.

Fanvil i10 vs Fanvil i10D — what is the difference?

The Fanvil i10 has 1 DSS button. The Fanvil i10D has 2 DSS buttons. Choose i10 for a single call point. Choose i10D when the wall plate needs two choices, such as Reception and Security, Office and Store, or Nurse and Front Desk.

Can the Fanvil i10D open a door or gate?

Yes, when it is wired correctly into a compatible lock or access control circuit. The i10D includes relay support with NC/NO contacts and active 12V output. We confirm lock type, controller location, cable route, and release method before installation.

Does Vector Digital Systems configure the i10D before delivery?

Yes. For project supply, we register the SIP account, apply the provisioning template, program the 2 buttons, test calls to the answering extension or ring group, and document the relay plan before dispatch.

Is VoIP legal in the UAE and will this work with Etisalat or du?

Business VoIP over licensed services is used across the UAE under TRA regulation. The i10D normally connects to your office PABX, and the PABX handles Etisalat or du SIP trunk calling where required. We configure it only for licensed business telephony use.

Is the Fanvil i10D covered under Fanvil warranty in the UAE?

Yes. Vector Digital Systems supplies the Fanvil i10D with Fanvil manufacturer warranty handling from Dubai. Warranty support depends on correct installation, correct power, and no water or wiring damage outside the product’s rated use.

Who is the supplier of Fanvil i10D in Dubai?

Vector Digital Systems LLC is an authorised Fanvil supplier in Dubai, UAE, operating since 2009. We supply the Fanvil i10D with staging, provisioning, installation, warranty handling, and official quotations for IT managers, ELV contractors, PABX installers, resellers, and procurement teams.

What is the best mini SIP intercom for a two-choice indoor door point in Dubai?

For a compact indoor point with two call choices, the Fanvil i10D is the right Fanvil mini intercom: 2 DSS buttons, 2 SIP lines, IP54 housing, PoE or DC12V/1A power, and relay support. Step down to the i10 for one button. Step up to a larger Fanvil door phone when the entrance needs a stronger door-station format.

Does Vector Digital Systems export Fanvil i10D from Dubai?

Yes. We export Fanvil i10D units from Dubai to PABX installers, system integrators, and telecom resellers in Saudi Arabia, Oman, Qatar, Kuwait, Kenya, Tanzania, Uganda, Nigeria, Ghana, and Pakistan. FOB Dubai pricing is available with commercial invoice, packing list, and certificate of origin.

UAE coverage and MEA export

Vector Digital Systems supplies and installs the Fanvil i10D across all seven UAE emirates: Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah, and Umm Al Quwain. We also handle free zone and project sites in JAFZA, DMCC, JLT, Business Bay, Dubai Silicon Oasis, DIP, and Al Quoz where intercoms are tied into PABX, access control, or small office fit-outs.

For MEA export, we quote Fanvil i10D project quantities FOB Dubai with export paperwork. Telecom resellers, PABX installers, and ELV contractors source from us for Gulf, East Africa, West Africa, and South Asia projects where the buyer wants Fanvil intercoms shipped with IP phones, PoE switches, and PABX equipment under one invoice.
