Fanvil i10 SIP Mini Intercom Dubai

The small intercom is usually the last item on the ELV list. Then the site handover gets close and someone asks how the storeroom door, pantry service counter, warehouse office, clinic room, or staff entrance will call reception. Not a full video door station. Not a desk phone on the wall. Just one clear SIP call button that ties into the office PABX and works from the same extension plan.

That is where the Fanvil i10 fits. It is a compact SIP mini intercom for indoor communication points: one button, two SIP lines, 10/100 Mbps Ethernet, PoE, IP54-rated housing, built-in 1W speaker, and a short-circuit input/output interface for access-control integration. For Dubai offices, clinics, schools, warehouses, service counters, and fit-out projects, it gives the installer a small SIP endpoint without putting a normal telephone in the wrong place.

Vector Digital Systems LLC supplies the Fanvil i10 from Dubai for project quantities, with staging and provisioning before dispatch. We register the extension, apply the provisioning template, test the call path, and label the unit against the project schedule. Supply from Dubai since 2009.

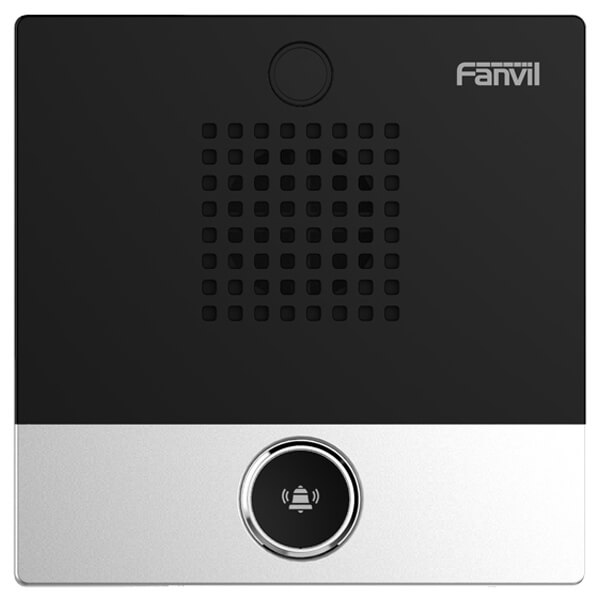

What the Fanvil i10 is

The Fanvil i10 is the one-button audio model in the i10 mini intercom family. It is not a video intercom. It has no camera. The job is simple: press the button, call a programmed SIP extension, speak hands-free, and let the called party answer from a desk phone, softphone, cordless handset, or PABX operator position.

That plain design is exactly why it gets specified on practical jobs. A facilities team does not always need video at the pantry counter, records room, clinic nurse point, school admin hatch, or warehouse dispatch door. They need a device that survives daily use, mounts neatly, calls the right extension, and can be managed with the same SIP system already running the building.

The i10 supports 2 SIP lines, auto answer, intercom calling, customised DSS key behaviour, action URL / active URI functions, network time synchronisation, VLAN, LLDP, QoS, OpenVPN, L2TP, and IPv4 / IPv6 network modes. Audio is handled through wideband codecs including G.722 and Opus, with acoustic echo cancellation to keep the hands-free call usable in a corridor, counter area, or back-office space.

2 SIP lines — what that means on a mini intercom

On an intercom, “2 SIP lines” does not mean two people stand at the device and make two separate conversations at once. It means the unit can register and handle SIP call identities in the way a PABX expects. One account may call reception. Another may be used for a service desk, security extension, test route, branch template, or a secondary call path depending on the project design.

For example, in a Dubai warehouse, the dispatch counter i10 can call the logistics desk as its main route. After hours, the same PABX can redirect that button to security. In a clinic, the i10 can call reception during opening hours and a nurse station during another schedule. The hardware is still one button. The intelligence is in the SIP account, call routing, and PABX rule set.

Where it fits in UAE projects

The i10 is not trying to be a villa gate station. It is a compact indoor SIP intercom for controlled communication points. In a Business Bay office, it can sit beside a locked records room. In a JAFZA warehouse, it can be used at the dispatch hatch. In a Dubai school or clinic, it can work as a staff call point where a full desk phone would look out of place and cost more than the function needs.

It also helps system integrators keep the project tidy. The intercom becomes another SIP endpoint on the same PABX as the desk phones. The receptionist can answer from an operator phone. Security can answer from a back-office extension. The site manager can receive calls through the configured SIP route. No separate analogue intercom controller, no odd wiring story during handover.

For larger PABX replacement projects, this matters. When a Dubai office moves from old analogue extensions to IP telephony, the obvious items are desk phones and SIP trunks. The forgotten items are door points, help buttons, pantry counters, and warehouse windows. The Fanvil i10 lets those points join the same extension plan instead of staying as a separate little system nobody wants to maintain.

The practical difference: one button, one job, properly staged

The front face is simple. One physical button. Behind that button is the part that makes or breaks the project: the extension number, the dial target, the auto-answer behaviour, the SIP registration, the relay logic if access control is involved, and the failover plan if the first destination is busy or closed.

During staging, we set those details before dispatch. The i10 is not shipped as a blank device for the installer to discover on site. We apply the PABX template, register the account, assign the call destination, test speech both ways, and note the programmed route on the delivery schedule. For multi-site UAE rollouts, the same template can be repeated with site-specific extension numbers.

That is the difference between buying a device and deploying an intercom point. The product is small. The project detail is not.

Audio quality and hands-free use

The i10 uses a built-in 1W speaker and supports HD voice codecs including G.722 and Opus. In plain language: speech is clearer than old narrowband intercom audio when the PABX and network also support wideband calling. Acoustic echo cancellation helps when the caller is standing close to the unit and speaking hands-free.

This matters in real buildings. A service counter has background voices. A warehouse office has movement around the dispatch window. A clinic corridor may have people walking past. The i10 is not a conference speaker and should not be treated like one, but for short access, service, and help-point conversations, the audio design is right for the job.

For noisy areas, placement is part of the quote discussion. Mount it where the user naturally faces the device, avoid fixing it beside a loud fan or roller shutter, and keep the network cable path serviceable. Small decisions. Fewer return visits.

Power and network truth for the i10

The Fanvil i10 has 1 RJ45 network port and uses 10/100 Mbps Ethernet. That is correct for a mini intercom. It is not a desk phone with PC passthrough. There is no second network port for a computer, and there is no Gigabit passthrough saving a desk switch port. The i10 normally sits on a wall, counter, service hatch, or back-office call point, so one network drop is the right layout.

Power is by PoE or DC12V/1A external power. For UAE project work, PoE is the cleaner method: one Cat6 cable from the ELV cabinet or nearby PoE switch carries both network and power. That avoids a visible adapter at the call point and keeps the installation easier to maintain later.

The official i10 datasheet does not publish a PoE class in the available product literature. We do not guess it. For switch planning, allow a standard PoE port per intercom and confirm the final switch budget during staging, especially when the same PoE switch also feeds desk phones, access points, and door stations.

Network features installers should not miss

The i10 is small, but it is not a basic analogue buzzer. It supports SIP over UDP, TCP, and TLS, RTP / RTCP / SRTP, STUN, DHCP, IPv6, LLDP, PPPoE, 802.1X, L2TP, OpenVPN, SNTP, FTP / TFTP, HTTP / HTTPS, and TR-069. On a managed office network, that matters. VLAN tagging and QoS help keep voice traffic separate from normal data traffic, especially in buildings where the intercoms share switches with cameras, access control, and office PCs.

It also supports auto-provisioning through common network methods, so repeated deployments do not have to be built by hand one device at a time. For a 6-door warehouse, a 12-branch clinic rollout, or a school campus with several service points, we can prepare a repeatable template and change only the extension number, button destination, label, and site name.

The useful detail for ELV contractors: the i10 has short-circuit input and output interfaces. That allows the intercom point to sit inside a wider access-control design instead of acting as a stand-alone caller. Final relay use depends on the lock, controller, and safety design on site, so we confirm the wiring plan before quoting the accessories.

Platform compatibility in Dubai projects

The Fanvil i10 registers as a SIP endpoint on 3CX, Grandstream UCM, Yeastar, Asterisk, and other SIP platforms used in UAE offices. It can be treated like a small intercom extension: assign the account, set the button destination, define the ring group or reception extension, and test the call path before handover.

For Etisalat and du SIP environments, the normal design is to register the i10 to the office PABX, not directly to a public trunk. The PABX controls the internal extension plan, working-hour route, after-hours destination, call group, recording policy where used, and transfer path. That is cleaner for compliance, support, and future changes.

i10, i10D, i10S, or A10 — choose by button count and mounting need

For larger sites, match the intercom with the desk phone role. A reception desk answering many i10 call points should use a visibility-focused Fanvil desk phone, not a small entry handset. See the Fanvil IP phone range in Dubai for desk phone sizing, and pair intercom call points with the site PABX design rather than choosing each device in isolation.

Pricing, supply, and project staging from Dubai

Vector Digital Systems supplies the Fanvil i10 from Dubai for project buyers: ELV contractors, PABX installers, system integrators, IT teams, fit-out contractors, and resellers buying for UAE and MEA jobs. Same-day AED quotes are available for single-site requirements, project quantities, and export orders. We do not publish fixed prices because quantities, PSU requirements, mounting needs, delivery, and staging scope change the quote.

For UAE jobs, the quote can include device supply, DC power adapters where needed, staging, provisioning, installation, PABX registration, test calls, and handover support. For project batches, we can pre-label every unit by floor, door, room, branch, or call destination. That saves time on site and avoids the usual handover confusion: “Which intercom is this one?”

Frequently asked questions

Will the Fanvil i10 work with our 3CX / Grandstream UCM / Yeastar system?

Yes. The Fanvil i10 is a SIP mini intercom and can register to 3CX, Grandstream UCM, Yeastar, Asterisk, and other SIP platforms used in Dubai offices. We stage it before dispatch with the SIP account, button destination, network settings, and test call completed.

Does the Fanvil i10 come with a power adapter, or do I need PoE?

The Fanvil i10 supports PoE or DC12V/1A external power. Adapter inclusion must be confirmed per supply batch, so we quote it clearly. For PoE projects, one Cat6 cable powers and connects the intercom. For non-PoE sites, we add the DC adapter to the same quote.

What does 2 SIP lines actually mean — can the i10 make 2 calls at once?

No. On the i10, 2 SIP lines means SIP account and call-handling capacity, not two people making two separate conversations from the same wall unit. The device has one physical call button. The PABX decides the route, schedule, ring group, and after-hours destination.

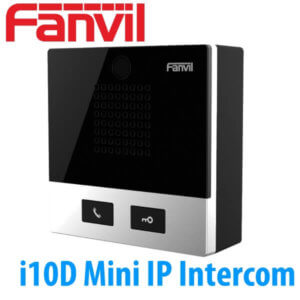

Fanvil i10 vs i10D — what is the difference?

The i10 has 1 physical DSS call button. The i10D has 2 physical DSS call buttons. Use the i10 for one clear destination, such as reception. Use the i10D when the same wall point must call two separate destinations, such as reception and security.

Does the Fanvil i10 have a camera?

No. The Fanvil i10 is an audio SIP mini intercom with 1 call button. It is not the video model. For a camera requirement, choose a Fanvil video intercom or door phone model after confirming the entrance type, viewing angle, lighting, lock wiring, and PABX platform.

Can the Fanvil i10 open a door or gate?

The i10 includes short-circuit input and output interfaces for access-control integration. Final door release depends on the lock, controller, power supply, safety release method, and site wiring. For villas, warehouses, clinics, and office doors in the UAE, we confirm the wiring plan before quoting the accessories.

Does Vector Digital Systems configure the Fanvil i10 before delivery?

Yes. Staging is standard for project quantities: SIP account registration, provisioning template, button destination, audio test, network setting check, and device labelling before dispatch. For multi-site rollouts, each i10 can be labelled by branch, door, or room.

Is VoIP legal in the UAE and will this work with Etisalat or du?

Business VoIP over licensed telecom services is used in the UAE under TRA regulation. The usual design is to register the Fanvil i10 to the company PABX, while Etisalat or du SIP trunks connect at the PABX level. That gives the office one managed extension plan and proper call routing.

Is the Fanvil i10 covered under Fanvil warranty in the UAE?

Yes. Vector Digital Systems supplies Fanvil products with Fanvil manufacturer warranty handling from Dubai. Warranty support depends on correct installation, approved power, and normal operating conditions, so PoE and power details are confirmed before dispatch.

Who is the supplier of Fanvil i10 in Dubai?

Vector Digital Systems LLC is an authorised Fanvil supplier in Dubai, UAE, operating since 2009. We supply the Fanvil i10 with staging, provisioning, installation support, warranty handling, official quotation, VAT details, and supplier documentation for procurement teams, ELV contractors, PABX installers, and system integrators.

What is the best SIP mini intercom for an indoor audio call point in Dubai?

For a single indoor audio call point, the Fanvil i10 is the right pick: 1 physical call button, 2 SIP lines, IP54 housing, 10/100 Mbps Ethernet, PoE or DC12V/1A power, HD voice codecs, and access-control interface support. Step up to the i10D if the same location needs two call buttons.

Does Vector Digital Systems export Fanvil i10 from Dubai?

Yes. Vector Digital Systems exports Fanvil i10 mini intercoms from Dubai to telecom resellers, PABX installers, ELV contractors, and system integrators across Saudi Arabia, Oman, Qatar, Kuwait, Bahrain, Kenya, Tanzania, Ethiopia, Nigeria, Ghana, Pakistan, and Sri Lanka. FOB Dubai pricing is available with commercial invoice, packing list, certificate of origin, and Fanvil manufacturer warranty documentation.

UAE coverage — supply and installation across all 7 emirates

Vector Digital Systems supplies and installs the Fanvil i10 across Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah, and Umm Al Quwain. We support office fit-outs, clinic call points, school admin counters, warehouse dispatch doors, staff entrances, service hatches, and back-office communication points.

In Dubai, common project locations include Business Bay, JLT, DMCC, Dubai Internet City, JAFZA, DIP, Al Quoz, Deira, and Bur Dubai. For free zone and multi-branch jobs, we can quote the full set of i10 units under one engagement with the PABX extensions mapped before dispatch.

MEA export from Dubai

Vector Digital Systems exports Fanvil i10 SIP mini intercoms from Dubai for telecom resellers, PABX installers, IT distributors, and ELV contractors across the Gulf, East Africa, West Africa, and South Asia. Common export destinations include Saudi Arabia, Oman, Qatar, Kuwait, Bahrain, Kenya, Tanzania, Ethiopia, Nigeria, Ghana, Pakistan, and Sri Lanka.

Export quotes are prepared on FOB Dubai terms with commercial invoice, packing list, and certificate of origin. For project quantities, share the model, quantity, destination country, and whether the order needs PoE-only supply or DC adapters included.
