Fanvil i52W SIP Indoor Station Dubai

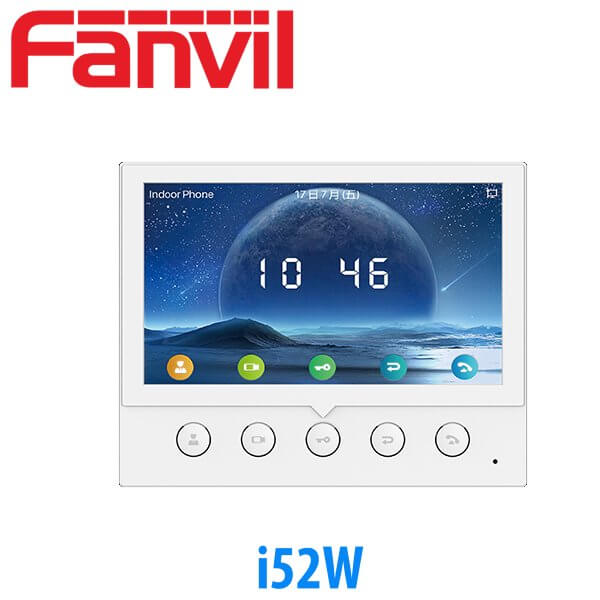

Fanvil i52W is a 7-inch color screen SIP indoor station with 5 function buttons, which can be applied in different indoor scenarios. Working with door phone and intercom at the entrance, Fanvil i52W can be easily achieved remote access control for residences. It can also be connected to alarms and other intelligent security devices via rich interfaces.
Fanvil i52W is mainly used in residential areas, villas, office buildings and other places for receiving calling and communicating through the door phone and achieving remote door-opening. It provides more reliable security assurance and easier access control for the users, creating a safe and comfortable living environment.

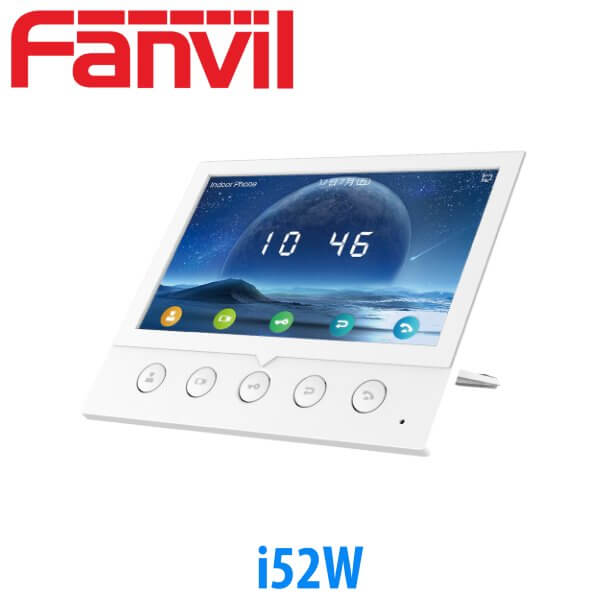

The i52W features built-in WiFi 2.4G and can either be mounted on a wall or placed on a desk. The five physical buttons can be used for call management, to unlock a door, pick up a call, return to the previous menu or hang up, or view video surveillance. The i52W is an ideal solution for the modern forward thinker who requires a reliable interface for their door-entry installation.
Fanvil i52W SIP Indoor Station Dubai Features:
- 7-inch color screen\
- 5 physical function keys
- Built-in 1.5W speaker with AEC
- Support visual intercom and remote access control
- Real-time monitor of the door phone and cameras
- Built-in 2.4G Wi-Fi
- 8 alarm input interfaces
- 1 pair of RS-485 interfaces

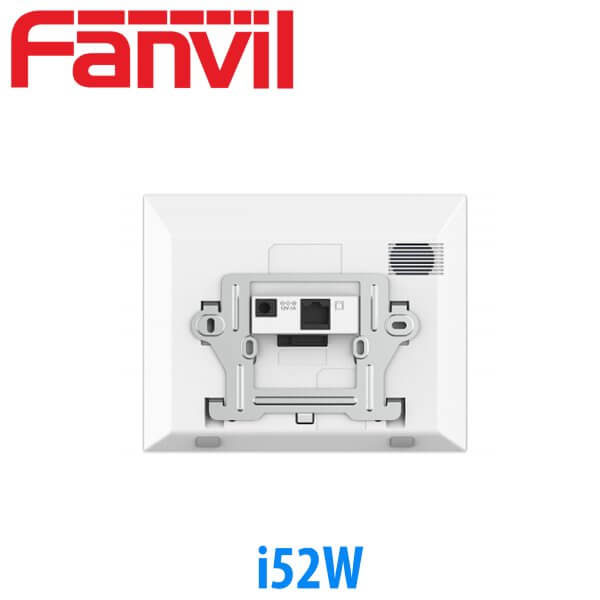

- Wall-mounted and desktop installation methods (with the
external desk stand)
- Compatible with major platforms: 3CX, Avaya, Asterisk,
- BroadSoft, Metaswitch, Elastix and etc.
- Elegant Design with 7-inch Color Screen
- Fanvil i52W delivers a user-friendly experience with an elegant design and a clear 7-inch color screen.
- HD Audio and Video Communication
- Users can communicate with visitors with superb audio and clear video images via Fanvil i52W.
- 5 Easy-to-access Physical Buttons
- Users can easily achieve different functions including surveillance, back/hang up, unlock, pick up, and call management with one press on Fanvil i52W.
- Built-in 2.4G Wi-Fi
- Fanvil i52W supports built-in 2.4G Wi-Fi, and it allows users to choose wireless connection mode for different requirements.
- Rich Interfaces
- Fanvil i52W is flexible and powerful with rich interfaces to connect more security devices.
Fanvil i52W Technical Specifications
- 4 SIP Lines
- HD Voice
- External Power Supply(Optional)
- 1 x LCD: 7-inch 800×480 Colour Screen
- Wideband ADC/DAC 16KHz sampling
- Narrowband codec: G.711A/U, G.729AB, iLBC
- Wideband codec: G.722, Opus
- Full-duplex hands-free speakerphone with AEC
- Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)
- Packet Loss Concealment (PLC)
- Dynamic Adaptive Jitter Buffer
- DTMF: In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO
- VQM voice quality monitoring
- Hardware video decoding: H.264
- Video call resolution: QVGA / CIF / VGA / 4CIF / 720P / 1080P
- 10/100 Mbps Ethernet
- IP Mode:IPv4/IPv6/IPv4&IPv6
- IP Configuration: Static / DHCP / PPPoE
- VPN: L2TP / OpenVPN
- RTCP-XR (RFC3611), VQ-RTCPXR(RFC6035)
- SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS
Deployment & Management
- Auto-provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
- Web management portal
- Web-based packet dump
- Configuration export / import
- Firmware upgrade
- 5 Function keys (Management Center, Monitor, Unlock, Return/Hang up, Answer)
- 10 Pin Cable x1
- 4 Pin Cable x1
- 2 Pin Cable x1
- Wall-mount Bracket x1
- Screws Kit x1
- RJ45 Interface x1
- RS485 Interface x1
- Alarm Input Interface x8
- DC Power Input: 12V/1A
- Power Consumption (PoE): 2.11~6.98W
- Power Consumption (Adapter): 1.72~5.96W
- Working Temperature: 0~45℃
- Working Humidity: 10~90%
- Colour: White
– Desktop (Need to purchase stand separately)
- Device Dimensions: 176x140x26 mm
- Gift Box Dimensions: 193x152x39 mm
- Outer CTN Dimensions: (20 PCS) 413x220x322 mm
