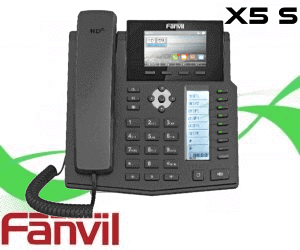

The Fanvil X5S was an enterprise desk phone built for managers, supervisors, senior users, and reception-side desks that needed more than a basic handset. It had 16 SIP lines, a 3.5-inch colour screen, a separate DSS display area, up to 40 DSS keys, dual Gigabit network ports, and integrated PoE. Many UAE offices still search for it because it was installed during earlier IP telephony projects and because the model name remains on old asset registers, PABX extension sheets, and procurement lists.

For new supply from Dubai, the practical Fanvil path is the X5U. It keeps the same business-desk idea: 16 SIP lines, dual Gigabit, PoE, headset support, DSS keys, and a two-screen layout. We quote the current model, stage it with your extension details, and keep the user role the same — manager desk, heavy caller, branch supervisor, or small reception point. If your project list still says X5S, send it as it is. We’ll map the desks to the correct Fanvil models before quoting.

What the Fanvil X5S was built to do

The X5S sat above the ordinary staff phone. It was not the right handset for every desk in a 60-extension project, and that is exactly why it mattered. It gave selected users more call handling, more visibility, and faster transfer control without moving them into a full operator-console phone.

A normal staff user in JLT may need one extension, a company directory, call transfer, voicemail, and speakerphone. That desk can run on a lighter Fanvil model. A sales manager in Dubai Silicon Oasis, a branch supervisor in Sharjah, or an admin desk in a clinic may need more: several call appearances, parked calls, quick access to key extensions, and headset support. That is the role the X5S covered.

The 3.5-inch colour screen handled the main call interface. The DSS area carried programmable keys for BLF, speed dial, call park, pickup, transfer, or feature codes. The phone also had dual Gigabit ports, so a PC could pass through the phone on the same Cat6 run. For fitted offices, that saves switch ports and keeps the desk wiring clean.

Today, when a project buyer asks for X5S, we treat it as a desk-role request. Do you need a Fanvil business phone for a senior desk with 16 SIP lines? Do you need BLF keys for internal visibility? Do you need dual Gigabit because the PC sits behind the phone? Those answers decide whether the current Fanvil X5U, X4U, or X6U is the better fit. The model name starts the enquiry; the desk role decides the quote.

16 SIP lines — what that means on a real office desk

“16 SIP lines” does not mean one person will make 16 separate conversations at the same time. That is where many phone lists go wrong. SIP lines on a desk phone are registered accounts and call appearances. They tell you how many identities and call positions the phone can handle on its own screen and keys.

In a Dubai office, a manager may have one personal extension, one department line, one shared sales line, and several appearances for hold, transfer, and call park. The phone may show multiple incoming calls while the user is already speaking. It may also need to pick up a ringing colleague’s call or monitor whether a key extension is busy before transferring. That is what the 16-line capacity supports.

Your actual number of simultaneous external calls is decided by the PABX, the SIP trunk, and the call plan from Etisalat or du. A phone with 16 SIP lines does not create 16 trunk channels. It gives the user enough room on the handset to handle accounts, shared lines, call waiting, park, pickup, and transfers without running out of call appearances.

The DSS keys are the reason buyers still remember the X5S

The X5S had up to 40 DSS keys from 8 tri-colour physical keys across pages. DSS keys are not just shortcut buttons. On a business phone, they become the live control panel for the user’s desk. BLF shows whether a colleague is free or already on a call. Speed dial calls a branch, warehouse, or service desk. Call park puts a call into a shared slot. Pickup answers another ringing extension from the same group.

That matters for receptionist-style behaviour even when the user is not a full-time receptionist. A manager in a DMCC office may want to see sales, accounts, warehouse, and reception before transferring. An admin in a medical centre may need quick keys for consultation rooms. A branch supervisor may need one key for head office, one for stores, and one for the service counter. The value is not the key count by itself. It is the confidence before transfer.

When we stage a current Fanvil successor for an X5S desk, we copy that working idea: the extension is registered, the provisioning template is applied, BLF keys are programmed, and test calls are made before dispatch. For a multi-site UAE rollout, the user does not receive a blank phone. They receive a desk device already matched to the PABX plan.

X5S to X5U — same desk role, current Fanvil range

The current Fanvil X5U keeps the X5S buyer in familiar territory. It has 16 SIP lines, a 3.5-inch main colour screen, a 2.4-inch side colour screen for DSS keys, dual Gigabit ports, integrated PoE, EHS headset support, and built-in Bluetooth. For buyers moving from older X5S lists, the key change is layout: X5S used 8 physical DSS keys with page capacity up to 40 keys; X5U uses a side colour screen with 6 DSS keys and page capacity up to 30 keys.

That difference is important in a real quote. If the user had 8 or 12 BLF keys, X5U normally fits. If the user had a very heavy BLF layout, we check the list first and may move the desk up to X6U or a console-style model. We don’t quote only from the model name. We quote from the extension role, number of BLF keys, headset need, and network layout.

For a project buyer, this is cleaner than asking procurement to chase an older model name. Send the bill of quantities with “Fanvil X5S” still on it. Vector Digital Systems will mark the current Fanvil equivalent, stage the phones from Dubai, and keep the PABX deployment consistent across new branches and existing offices.

For a wider model decision, use the Fanvil IP phone range comparison or send us your extension sheet. If your desk role is heavier than X5U, we compare it against Fanvil X6U before quoting.

Power and network truth for X5S-class desks

The X5S was made for proper office cabling: dual Gigabit network ports, integrated PoE, and PC passthrough. One Cat6 cable comes from the comms room to the phone. The user’s PC connects behind the phone. Across 20 manager desks in a Dubai office, that saves 20 switch ports and keeps the workstation cabling clean.

PoE also removes the small power brick from the desk. That matters in Business Bay, JLT, DMCC, DIP, and JAFZA fit-outs where every desk has a laptop charger, monitor power, and sometimes a docking station already fighting for sockets. The phone should be powered from the network switch, not from another adapter under the table.

For current Fanvil supply, we check the site plan before dispatch: PoE switch available or not, VLAN needed or not, PC passthrough required or not, and whether the desk uses a wired headset, EHS headset base, Bluetooth headset, or no headset. That is the difference between shipping phones and staging a PABX project properly.

What changes when an X5S desk moves to X5U

The user role stays familiar. X5U is still a 16-line Fanvil enterprise desk phone with dual Gigabit ports, PoE, headset support, and DSS keys. The visible change is the key layout. X5S used 8 physical DSS keys with page capacity up to 40. X5U uses a 2.4-inch colour DSS screen with 6 DSS keys and page capacity up to 30.

For most manager desks, that is enough. A user with BLF for reception, accounts, warehouse, sales, and service will fit comfortably. A small admin desk with shared lines and call park also fits. The only time we pause is when the old X5S had a large BLF map spread across many pages. In that case, we review the key list and may quote X6U instead.

X5U also adds built-in Bluetooth on the current Fanvil business desk platform. That helps senior users who prefer a Bluetooth headset without adding a USB Bluetooth dongle. For wired office headsets and wireless headset bases, EHS support remains part of the desk-phone conversation, especially for managers who answer calls away from the keyboard.

Platform compatibility in Dubai PABX projects

Fanvil X5S-class desks are usually found on SIP platforms such as 3CX, Grandstream UCM, Yeastar, and Asterisk. They can also sit behind Etisalat or du business SIP services through the customer’s PABX. For a new order, we do not treat the phone as a blank handset. We ask for the PABX type, extension numbers, VLAN details, SIP server address, and BLF list.

During staging, Vector Digital Systems registers the extension, applies the provisioning template, programs BLF and speed-dial keys, checks the ringtone and display name, tests inbound and outbound calling, and labels the carton or desk allocation where required. For a 50-phone UAE project, this saves hours at site handover.

This is especially useful when a client is moving from an older analogue PABX to SIP. The procurement sheet may still mention older desk models, while the new PABX is ready for current SIP endpoints. We bridge that gap: same desk role, current Fanvil model, staged from Dubai, installed across the UAE.

Fanvil X4U, X5S, X5U, or X6U — which desk gets which model?

Model	SIP lines	Screen layout	Best desk role
Fanvil X4U	12	2.8″ main colour + 2.4″ DSS screen	Business staff desk with moderate BLF needs
Fanvil X5S — enquiry model	16	3.5″ colour + DSS display area	Older business desk lists, manager desks, BLF users
Fanvil X5U	16	3.5″ main colour + 2.4″ DSS screen	Current Fanvil choice for the X5S desk role
Fanvil X6U	20	4.3″ main colour + two 2.4″ DSS screens	Heavy BLF users, senior desks, larger key maps
Verdict	Choose the X4U if the user needs a lighter business phone with Gigabit and DSS. Choose the X5U if the project list says X5S and the desk needs the same 16-line business role. Choose the X6U if the user needs more screen area, 20 SIP lines, and a larger BLF map.

For a full range view, see the Fanvil IP phone matrix for Dubai projects. If the X5S appears in an older bill of quantities, send the sheet as it is. We will mark the current Fanvil model beside each desk role and return a clean quote in AED.

Pricing, supply, and staging from Dubai

Vector Digital Systems LLC supplies Fanvil IP phones from Dubai for office fit-outs, PABX upgrades, branch rollouts, and reseller orders. We do not publish fixed AED prices because project quantities, staging work, PSU requirements, delivery, and installation scope change from site to site. Send the model list and quantity on WhatsApp for a same-day AED quote.

For 10+ and 50+ phone projects, we quote role-based models instead of forcing one phone across every desk. Managers may get X5U or X6U. Staff desks may get X303 or X4U. Reception may need X210. That keeps the PABX design clean and avoids overspending on desks that only need one extension.

Frequently asked questions

Will the Fanvil X5S work with our 3CX / Grandstream UCM / Yeastar system?

Yes. X5S-class Fanvil phones register as SIP endpoints on 3CX, Grandstream UCM, Yeastar, Asterisk, and similar business PABX platforms. For new supply, Vector Digital Systems quotes the current Fanvil model for the same desk role and stages it with your extension details before delivery.

Does the Fanvil X5S come with a power adapter, or do I need PoE?

The X5S was designed for integrated PoE, which is the right way to power project phones from the comms room. If the site does not have a PoE switch, add the Fanvil power adapter to the order. We check this during quoting and include the PSU requirement in the same proposal.

What does 16 SIP lines actually mean — can I make 16 calls at once?

No. The 16 SIP lines are registered accounts and call appearances on the phone. They help the user handle shared lines, hold, call waiting, call park, pickup, and transfers. The number of live external calls depends on your PABX and Etisalat or du SIP trunk capacity.

Fanvil X5S vs X5U — what is the difference?

Both sit in the 16-line business desk role. X5S used a 3.5-inch colour screen with a DSS display area and up to 40 DSS keys. X5U uses a 3.5-inch main colour screen plus a 2.4-inch side colour DSS screen, supports 30 DSS keys, and adds built-in Bluetooth on the current Fanvil business desk platform.

Should I choose Fanvil X5U or X6U for an old X5S desk?

Choose X5U if the user needs a 16-line business phone with BLF, headset support, dual Gigabit, and PoE. Choose X6U if the user has a larger BLF list, wants a bigger 4.3-inch main screen, or needs 20 SIP lines. Send the old key list and we will confirm the model before quoting.

Does Vector Digital Systems configure the phones before delivery?

Yes. Staging is part of our project supply: extension registration, provisioning template, BLF programming, headset setting check, ringtone and display-name check, and test calls before dispatch. For 10+ or 50+ phones, we stage by branch, floor, or department.

Is VoIP legal in the UAE and will this work with Etisalat or du?

Business VoIP through licensed operators is the normal UAE setup under TRA regulation. Fanvil SIP phones are used with Etisalat and du business SIP services through the customer’s PABX or approved SIP setup. We configure phones for licensed business use.

Is the Fanvil X5S covered under Fanvil warranty in the UAE?

Warranty depends on the supply batch and date of purchase. For current Fanvil supply from Vector Digital Systems, manufacturer warranty is handled from Dubai with invoice, serial details, and local coordination. For old X5S units already on site, send the serial number and invoice copy for checking.

Who is the supplier of Fanvil X5S in Dubai?

Vector Digital Systems LLC is an authorised Fanvil supplier in Dubai, UAE, operating since 2009. For X5S enquiries, we help procurement teams, IT managers, PABX installers, and resellers map the older model request to the suitable current Fanvil desk phone, with staging, provisioning, installation, and warranty handling from Dubai.

What is the best Fanvil IP phone for an X5S-type manager desk in Dubai?

For most X5S-type manager desks, choose Fanvil X5U: 16 SIP lines, dual Gigabit, PoE, 3.5-inch main colour screen, 2.4-inch DSS screen, built-in Bluetooth, and EHS support. Step up to X6U when the user needs 20 SIP lines, a larger main display, and more DSS screen space.

Does Vector Digital Systems export Fanvil from Dubai?

Yes. We export Fanvil IP phones from Dubai to telecom resellers, PABX installers, system integrators, and IT distributors across Saudi Arabia, Oman, Qatar, Kuwait, Kenya, Tanzania, Uganda, Nigeria, Ghana, and Pakistan. FOB Dubai pricing is available with commercial invoice, packing list, certificate of origin, and Fanvil manufacturer warranty documentation.

UAE coverage and MEA export

Vector Digital Systems supplies and installs Fanvil IP phones across all seven UAE emirates: Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah, and Umm Al Quwain. We support office fit-outs, PABX refresh projects, hotel back-office desks, warehouse admin desks, and multi-branch rollouts across mainland and free zone locations.

For export buyers, we ship from Dubai on FOB terms with export documentation: commercial invoice, packing list, and certificate of origin. Gulf, East Africa, West Africa, and South Asia enquiries can be quoted in project quantities with staged Fanvil models, PSU requirements, and accessory lists included before dispatch.
