The phone at the office door is usually noticed only when it stops doing its job. A visitor presses the button. The reception extension does not ring. The lock release fails. The security desk has a card reader on one side, a phone on another, and no clear answer for the tenant waiting outside. That is when an old indoor intercom becomes a PABX issue, an access-control issue, and a handover issue at the same time.

The Fanvil i20T was built for that older generation of indoor SIP door-phone projects: one entrance, one keypad, RFID card access, a relay for the door lock, and SIP calling back to a reception phone or PABX extension. It is a practical model for replacement enquiries where a site already has i20T units installed and wants the same format checked, replaced, or migrated.

For new Dubai and UAE projects, Vector Digital Systems normally checks the current Fanvil i60 or wider i6-series first. That is the positive evolution of the range: stronger indoor/outdoor placement, video options, current access methods, and better fit for villa gates, office entrances, warehouses, free-zone offices, and MEA export projects. If your enquiry is for “Fanvil i20T Dubai”, we can still help you identify the installed model, quote available stock if applicable, and recommend the right current Fanvil replacement.

What the Fanvil i20T is

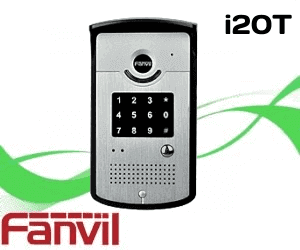

The Fanvil i20T is a SIP audio door phone with keypad, RFID card reader, built-in relay, and hands-free calling. It is not a video door phone. It has no camera and no display. Its job is simple: let a visitor call an extension, let authorised users open the door by card or keypad method, and let the PABX control the call path like any other SIP endpoint.

It supports 2 SIP lines, connects through a 10/100M RJ45 network port, and can be powered by PoE or 12V DC. The door release side is handled through a relay contact, with support for normally open and normally closed wiring. For an older office entrance in Deira, a back-office staff entrance in Al Quoz, or an indoor lobby door in JLT, that combination was enough: call reception, identify the visitor by voice, release the door from a key press.

The i20T also includes an RFID/IC card reader for 125KHz cards, with up to 500 access entries and 200,000 open-door records. That is why many installers used it for small offices, staff-only doors, store rooms, clinic entrances, and internal controlled doors where the requirement was audio plus access, not video monitoring.

2 SIP lines — what that means on a door phone

“2 SIP lines” does not mean two visitors can have two full gate conversations at the same time. On a door phone, SIP lines are registered accounts and call-handling capacity. The first account may ring reception. The second can be used for a guard room, a backup extension, or a different call route depending on the PABX plan.

In a Dubai office building, the normal setup is direct: the i20T registers as an extension on the PABX, the visitor presses the call key, reception rings, and the receptionist opens the door using DTMF or a programmed key. In a small warehouse, the same door phone may ring the admin desk first and the security extension after a timeout. In a villa compound, it may call an indoor station or a selected extension. The 2-line capacity gives the installer room for these routes without treating the door phone like a desktop handset.

The number that matters more than line count is call path. Which extension should ring first? Should there be a second destination? Should the relay open only from authorised extensions? Should the device sit on the voice VLAN or a security VLAN? Those questions decide whether the installation feels clean on handover day.

The useful part of the i20T: keypad, RFID, and relay in one indoor unit

The i20T’s strongest use case was never a large apartment building or a camera gate. It was the single controlled entrance. One staff door. One reception door. One clinic back door. One interior access point where the buyer wanted SIP calling and card access without adding a separate wall phone beside the reader.

The numeric keypad gives the installer a simple way to support dialling, password entry, or service functions depending on the configuration. The RFID reader handles card access. The relay controls the lock. The hands-free speaker and microphone let the visitor speak to reception. It is a compact access-control point, not a full security head-end.

That distinction matters in UAE projects. If the site needs video to reception, viewing on a network recorder, mobile-app door opening, or outdoor exposure at a villa gate, the current Fanvil i60 or i6-series is the better direction. If the site already has i20T cut-outs, wiring, cards, and PABX routing in place, we check whether a like-for-like service path or a managed migration is the cleaner quote.

Indoor placement — the detail many old listings miss

The i20T is rated IP54. That rating suits indoor and sheltered positions better than exposed outdoor gates. In Dubai heat, dust, and afternoon sun, placement matters as much as the model number. A shaded office lobby entrance is a different job from a villa boundary wall in Jumeirah or a warehouse yard gate in JAFZA.

For indoor doors, IP54 can be enough when the device is protected from direct rain, wash-down, and sun load. For outdoor gates, we move the discussion to the current Fanvil i60 or another i6-series door phone with an IP65 housing and video options. That avoids the common mistake: buying a searched legacy model because the old quote had the same name, then installing it in a harsher place than it was meant for.

Vector Digital Systems supplies Fanvil door-phone projects from Dubai with staging and provisioning before dispatch. For an i20T replacement enquiry, that means we check the existing SIP account, relay wiring, power source, lock type, access-card requirement, and call destination before quoting. For a new installation, we size the current Fanvil model against the door, not the other way around.

Continue to the second half for the power truth, 10/100M network note, current i60 and i6-series comparison, Dubai staging workflow, FAQ, UAE coverage, and MEA export details.

Power and network — check this before replacing an i20T

The Fanvil i20T supports PoE 802.3af Class 3 and can also run from 12V DC power. For a clean UAE installation, PoE is normally the better method: one Cat6 cable from the voice or security switch powers the unit and carries the SIP traffic. No local power adapter at the door. No exposed power point near the lock side.

The network port is 10/100M Ethernet, not Gigabit. That is normal for an older SIP door phone because it carries voice, signalling, access logs, and control traffic, not a workstation connection. There is no PC passthrough port. For a door device, the real design question is not Gigabit. It is VLAN separation, PoE budget, cable protection, and whether the door phone sits with voice devices, security devices, or a dedicated access-control network.

On replacement jobs in Dubai, we ask for three photos before quoting: the door phone front, the rear label, and the switch or injector feeding it. That tells us whether the existing site is using PoE, a 12V local supply, a direct relay, or a powered lock circuit that needs cleaner wiring.

Recent Fanvil direction — why new projects move to i60 or i6-series

The i20T belongs to the earlier indoor audio-door-phone generation. The current Fanvil door-phone direction adds the features most UAE project buyers now ask for at the first meeting: video to reception, SIP calling, ONVIF connection to security systems, stronger outdoor ratings, more access methods, and better mounting choices.

The Fanvil i60 is the usual first replacement discussion for compact new sites. It is a current video door phone with 1 speed-dial button, IP65 indoor/outdoor rating, 2MP camera, SIP, ONVIF, BLE, IC card, DTMF, remote opening, and indoor-switch opening. For a villa gate, small office entrance, clinic reception, or free-zone office door, that is a better fit than repeating an old indoor-only audio unit.

Where the site specifically needs a keypad, we check the i60K. Where the site needs stronger metal-body access control, higher IP/IK protection, face or card capacity, flush mounting, Wiegand, tamper alarm, motion detection, or NVR connection, we move the quote to the i61, i62, i63, i64, i66, or i67 after checking the door schedule. That is how the range has moved forward: from “call the door” to “tie the entrance into the PABX and security plan.”

Platform compatibility in Dubai projects

The i20T is a SIP endpoint. It can register as an extension on a SIP PABX and call a reception desk, guard room, manager extension, or ring group. For older Dubai offices, that often means the door phone appears in the PABX like any other internal extension: visitor presses the key, the PABX rings the assigned desk, reception speaks, then sends the door-release code.

Vector Digital Systems stages Fanvil door phones before dispatch where the PABX details are available. That means extension registration, SIP server details, call destination, DTMF door-release method, relay test, and a voice test are done before the unit is sent to site. For multi-site UAE work, we keep the numbering plan consistent across Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah, and Umm Al Quwain.

Fanvil i20T vs current Fanvil door-phone choices

Model	Best fit	Access and video	Protection
i20T — this searched model	Legacy indoor audio door phone replacement checks	Keypad, 125KHz RFID, relay, no camera	IP54 indoor / sheltered use
i60	Current compact video door phone for villas, offices, apartments, and communities	2MP camera, IC card, BLE, DTMF, indoor switch, SIP, ONVIF	IP65 indoor/outdoor
i60K	Current compact video door phone where keypad entry is still required	2MP camera, numeric keypad, password, IC card, BLE, DTMF, indoor switch, SIP, ONVIF	IP65 indoor/outdoor
i61	Current metal-body video door phone for stronger entrance control	2MP camera, card access, DTMF, remote opening, ONVIF Profile S, tamper alarm	IP66 / IK07
i64	Higher access-control door projects with stronger interface requirements	2MP camera, IC/ID card, PIN, DTMF, app opening, Wiegand, ONVIF Profile S	IP66 / IK07

Choose the i20T path if you are servicing an existing indoor unit and need a like-for-like check. Choose the i60 if the new site needs compact video, SIP, ONVIF, and outdoor-capable placement. Choose the i60K if keypad entry is required. Choose the i61 or i64 if the entrance needs a stronger metal-body video unit with more security interfaces. For reception-console pairing, link the door phone to a Fanvil desk phone such as the Fanvil X210, and use the Fanvil range comparison for desk-phone selection.

Pricing, supply, and replacement checks from Dubai

Vector Digital Systems quotes Fanvil door-phone projects from Dubai with AED pricing, VAT breakdown, delivery, staging, and installation. For i20T enquiries, we first identify whether the buyer needs old-stock supply, repair guidance, or a current-model replacement. That prevents the common mistake of quoting a door phone by model name without checking where it will be mounted.

For project buyers, we quote the full door position: door phone, PoE or 12V power, lock interface, mounting accessories where required, PABX registration, indoor station or reception phone pairing, and site installation if needed. For 10+ doors or multi-site rollouts, the same template can be repeated across branches, clinics, warehouses, or villas.

Frequently asked questions

Is the Fanvil i20T still the right SIP door phone for a new Dubai project?

Usually no. The i20T is best treated as a legacy indoor audio-door-phone enquiry. For new Dubai and UAE projects, Vector Digital Systems normally checks the current Fanvil i60 or i6-series first because those models add video, stronger indoor/outdoor ratings, SIP, ONVIF, and newer access methods.

Will the Fanvil i20T work with our 3CX / Grandstream UCM / Yeastar?

The i20T is a SIP door phone with 2 SIP lines, so it can register to a SIP PABX as an extension when the platform accepts standard SIP endpoints. For replacement work, Vector Digital Systems checks the existing SIP server, extension, DTMF method, call destination, and relay behaviour before dispatch.

Does the Fanvil i20T come with a power adapter, or do I need PoE?

The i20T supports PoE 802.3af Class 3 and 12V DC power. The available datasheet does not clearly confirm a 12V adapter as an in-box item, so we quote the power supply as an add-on where the site does not have PoE. For new projects, PoE from the comms room is the cleaner option.

What does 2 SIP lines actually mean on the Fanvil i20T — can two visitors call at once?

No. On a door phone, SIP lines are registered accounts and call-handling capacity, not a promise of two visitor conversations at the same time. The i20T can be set up with call routes such as reception first and guard room second, depending on the PABX plan.

Fanvil i20T vs Fanvil i60 — what is the difference?

The i20T is an older indoor audio SIP door phone with keypad, 125KHz RFID, 10/100M Ethernet, IP54 rating, and no camera. The i60 is a current compact video door phone with 2MP camera, IP65 indoor/outdoor rating, SIP, ONVIF, BLE, IC card, DTMF, remote opening, and indoor-switch opening. For new UAE projects, i60 is normally the better direction.

Can the Fanvil i20T open the gate or door lock?

Yes. The i20T has a built-in relay with normally open and normally closed support for door-release wiring. Before quoting, we check the lock type, power source, relay load, exit button, and whether the opening command should come from reception, guard room, keypad, or RFID card.

Does the Fanvil i20T work with an NVR or door camera view?

No. The i20T is an audio SIP door phone with no camera, so it is not the right choice for NVR video or reception camera view. For video and security-system connection, ask for a current Fanvil i60, i60K, i61, i62, i64, or another i6-series model with SIP and ONVIF support.

Does Vector Digital Systems configure Fanvil door phones before delivery?

Yes. Staging includes SIP account registration, PABX destination, DTMF testing, relay behaviour check, keypad or RFID requirement review, and test calls before dispatch. For project quantities, the full batch is staged together so installation time is reduced on site.

Is VoIP legal in the UAE and will a SIP door phone work with Etisalat or du?

Business VoIP over licensed operators is standard in the UAE under TRA regulation. A SIP door phone like the i20T or current i6-series models can work through a compliant business PABX setup using Etisalat or du connectivity. Vector Digital Systems configures door phones for licensed business deployments, not bypass calling.

Is the Fanvil i20T covered under Fanvil warranty in the UAE?

For legacy models, warranty depends on current availability, source, and Fanvil support status at the time of quote. Vector Digital Systems handles Fanvil warranty locally for supplied current models and confirms the warranty position clearly on the quotation before procurement approval.

Who is the supplier of Fanvil i20T and replacement Fanvil door phones in Dubai?

Vector Digital Systems LLC is an authorised Fanvil supplier in Dubai, UAE, operating since 2009. We supply Fanvil door phones with staging, provisioning, installation, warranty handling for supported models, and supplier documents for procurement teams, ELV contractors, system integrators, PABX installers, and resellers.

What is the best Fanvil SIP door phone for an office or villa gate in Dubai?

For most new compact office and villa gate projects in Dubai, the Fanvil i60 is the first model to check because it has video, SIP, ONVIF, IP65 protection, IC card, BLE, DTMF, and indoor-switch opening. If keypad entry is required, check i60K. If the entrance needs stronger metal-body access control, check i61, i62, or i64 after reviewing the door schedule.

Does Vector Digital Systems export Fanvil door phones from Dubai?

Yes. Vector Digital Systems exports Fanvil door phones from Dubai to telecom resellers, ELV contractors, and PABX installers across Saudi Arabia, Oman, Qatar, Kuwait, Bahrain, Kenya, Uganda, Tanzania, Nigeria, and Ghana. Quotes are FOB Dubai with export documentation: commercial invoice, packing list, and certificate of origin.

UAE coverage and installation

Vector Digital Systems supplies and installs Fanvil door phones across Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah, and Umm Al Quwain. Dubai work commonly includes free-zone offices, JLT clinics, Business Bay reception doors, Al Quoz staff entrances, DIP warehouses, JAFZA facilities, villa compounds, and mixed office-plus-warehouse sites.

For door-phone work, the site visit matters. We check mounting height, shade, rain exposure, cable entry, lock type, exit button, PABX extension plan, reception phone pairing, and whether the security team needs ONVIF video to an NVR. That is why an i20T enquiry often becomes an i60 or i6-series quote after the door is checked.

MEA export from Dubai

Vector Digital Systems exports Fanvil door phones from Dubai for telecom resellers, ELV contractors, security integrators, PABX installers, and IT distributors. Gulf shipments commonly go to Saudi Arabia, Oman, Qatar, Kuwait, and Bahrain; East Africa enquiries often come from Kenya, Uganda, and Tanzania; West Africa quotes often cover Nigeria and Ghana.

Export quotations are issued as FOB Dubai unless requested otherwise, with commercial invoice, packing list, and certificate of origin. For legacy i20T enquiries, we confirm availability and current replacement options first, then quote the suitable Fanvil door-phone model with manufacturer warranty terms stated on the offer.
