The headset is on the quote. The Fanvil phone is on the quote. Then the receptionist asks one question during handover: “Can I answer from the headset button when I’m away from the desk?” If the EHS cable is missing, the answer is usually no. Audio may still work. Remote call control will not.

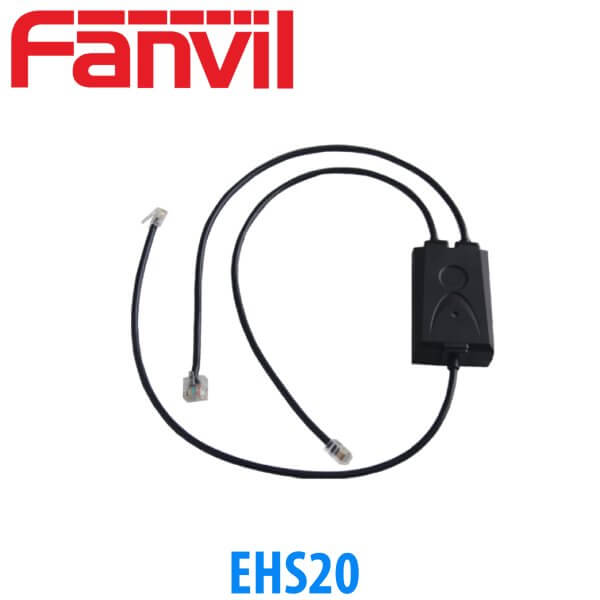

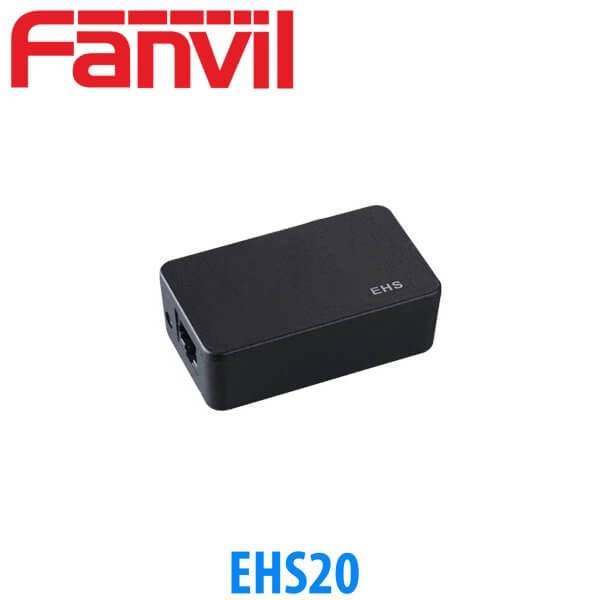

That is the job of the Fanvil EHS20 adapter. It is the small accessory that connects a supported DECT wireless headset base to a compatible Fanvil IP phone, so the user can hear the ring tone, answer the call, end the call, and mute from the headset control button. For a Dubai reception desk, sales desk, support desk, clinic counter, warehouse office, or executive assistant position, this is the difference between a wireless headset that feels complete and one that only carries audio.

The EHS20 is used with compatible Fanvil phones including X210, X210i, X303, X303G, X4U, X5U, X6U, X7, X7C, X301, X301G, X3U, X4, X4G, selected X1 and X2 models, and selected V-series models including V63 and V66 families. Vector Digital Systems supplies the EHS20 from Dubai with the phone batch, headset matching, cable check, and test calls before dispatch. One quote. One accessory line. No surprise on installation day.

What the Fanvil EHS20 adapter does

EHS means electronic hookswitch. Plainly: it lets the headset base and phone talk to each other for call control. Without it, the headset may pass voice once the call is answered on the phone, but the headset button may not answer the incoming call, end the call, or mute the microphone correctly.

The EHS20 sits between the Fanvil IP phone and a supported DECT headset base. When a call rings, the user hears the ring tone in the headset. Press the headset button: the call answers. Press again: the call ends. Mute can also be handled from the headset. That is the use case Fanvil built this adapter for.

It is not a headset. It is not a Bluetooth dongle. It is not a SIP license. It does not turn a basic desk phone into a call-centre phone. It gives remote call control to supported headset bases on supported Fanvil phones. That clear line matters when an IT manager is buying 12 wireless headsets for a customer service team in Business Bay or a system integrator is fitting out 30 user desks in JLT.

Compatible Fanvil phones — check the phone and the headset base

The official compatible Fanvil phone list for EHS20 covers a wide installed base: X1S, X1SP, X1SG, X2C, X2P, X3S, X3SP, X3SG, X3V, X3U, X4, X4G, X4U, X5U, X5U-R, X6U, X7, X7C, X210, X210i, X7A, X7A with CM60, X301, X301P, X301G, X303, X303P, X303G, V50P, V50G, V60P, V60W, V60G, V61G, V61W, V62G, V62W, V62 Pro, V63, V66 and V66 Pro.

For new Dubai projects, the common pairings are different from the full list. Reception desks usually pair EHS20 with the Fanvil X210 or X210i. Staff and sales desks usually pair it with the Fanvil X303, X303G, X4U or X5U. Manager and front-office desks often pair it with X6U, X7 or X7C. V-series phones are normally quoted when the buyer wants a higher display experience or video-focused desk position.

Older phones in the list matter too. Many UAE offices are extending a Fanvil deployment rather than replacing the full PABX system. A buyer may already have X3S, X4, X5U, X6U or V62 units installed and only needs to add wireless headsets for reception, support, or accounts. We check the phone family and exact headset base before quoting, because EHS is a matching job, not a generic cable sale.

Why project buyers in Dubai miss this part

A bill of quantity often says “IP phone with wireless headset.” That sounds complete, but it hides three separate items: the Fanvil IP phone, the headset base, and the EHS adapter. The missing adapter is not noticed in procurement. It is noticed at the desk, when the user presses the headset button and nothing happens.

This is common in office moves and PABX replacement projects. The phone vendor quotes the phones. The headset vendor quotes the headsets. Nobody owns the control cable. Vector Digital Systems closes that gap by treating the EHS20 as part of the desk role, not as a loose spare. Reception, support, sales and management desks get different phone and headset combinations, and the cable is checked before delivery.

Across DMCC, DIFC, Dubai Internet City, JAFZA, Business Bay and Al Quoz offices, the same pattern repeats: one person takes many calls, moves around the desk, and still needs call control. The EHS20 is a small item, but it protects the handover. Especially when 10 or 50 phones are going out as one staged batch.

EHS20 is for control — not audio quality, not SIP capacity

A headset has two jobs. First, carry audio. Second, control the call. The EHS20 is about the second job. It does not improve codec quality, increase volume, add HD voice, or change the PABX call path. Voice quality still depends on the phone model, headset model, SIP platform, network, and the user’s microphone placement.

It also does not add SIP lines. A Fanvil X303 still has its own SIP account capacity. A Fanvil X210 still has its own 20 SIP lines. The EHS20 does not create another extension, another trunk, or another simultaneous call. It lets a supported wireless headset answer and end calls through the phone.

Where the EHS20 earns its place

Reception is the obvious seat. The receptionist sees BLF on the Fanvil phone, hears the call in the headset, answers from the headset button, and transfers after checking the extension status. On a phone like the X210, the user gets the side-screen directory and headset mobility at the same time.

Sales desks are another fit. A user may be opening CRM notes, checking stock, or walking to a printer while waiting for a customer to answer. Remote answer and end control saves small movements all day. In a support team, the same adapter helps staff handle incoming calls without reaching across the desk each time.

For clinics, service counters, fit-out offices and warehouse administration rooms, the use case is even simpler: the user is often standing, not sitting. A handset and curly cord slow them down. The EHS20 keeps the Fanvil phone on the desk and the call control on the headset.

Power and network truth — no PoE, no network port, no PSU line

The Fanvil EHS20 is not a network device. It has no PoE class, no Ethernet passthrough, no Gigabit port, and no IP address. It does not sit on the LAN and it does not register to the PABX. It is a control adapter between the Fanvil phone and the headset base.

Power planning still matters, but not for the EHS20 itself. The Fanvil phone needs its normal power path: PoE from the switch or a power adapter where PoE is not available. The wireless headset base also needs its own power arrangement according to the headset model. The EHS20 is quoted as the control adapter in between, not as a power supply.

For Dubai fit-outs, this matters because desks are often wired with one Cat6 point and a PoE switch in the comms room. The phone takes the network and power. The PC can sit behind the phone on models with PC passthrough. The EHS20 remains a desk-side control accessory, so it does not change the network design.

Current headset matching evidence

Fanvil’s current headset matching material shows why EHS cannot be guessed. Different headset makers handle electronic hookswitch control differently, and the required cable can change by headset family. Some headset bases use the Fanvil EHS20. Some use another EHS cable type. Some need an extra conversion head.

That is the useful detail most accessory listings skip. “Compatible with Fanvil” is not enough. We check three things before quoting: exact Fanvil phone model, exact headset base model, and the user’s required function — answer, end, mute, ring indication, or all four. Then we stage the desk and make a live test call.

For new Fanvil batches, this check is simple because the phone model is known before dispatch. For existing sites, send a photo of the phone label and the headset base. We confirm whether the EHS20 is the correct adapter or whether the headset needs a different cable path.

Platform compatibility in Dubai

The EHS20 itself does not care whether the site uses 3CX, Grandstream UCM, Yeastar, Asterisk, Etisalat SIP, or du SIP. It sits below the SIP platform. The phone registers to the PABX or SIP trunk. The headset base connects to the phone. The EHS20 passes the call-control signal.

Still, platform work matters during staging. For a 3CX or Yeastar deployment, we register the Fanvil phone, apply the provisioning template, check the headset setting where needed, then test inbound and outbound calls. For a Grandstream UCM or Asterisk deployment, we do the same call-path test and confirm that the user can answer and end from the headset button.

For Etisalat and du business SIP services, the normal setup is a licensed SIP trunk terminating on a PABX, with Fanvil phones registered as extensions. We configure within that business telephony path. The EHS20 is not a VoIP service and does not change TRA context; it is an accessory on the desk.

Fanvil accessory comparison — EHS20, wired headset, or phone-only

Option	What it gives	Where it fits	What to watch
Fanvil phone only	Handset, speakerphone, and phone keys	Light users, shared desks, meeting rooms	No headset mobility
Fanvil wired headset path	Private audio at the desk	Accounts, admin desks, fixed users	User stays close to the phone
Fanvil EHS20 adapter — this accessory	Remote answer, end, ring tone and mute control with supported DECT headset bases	Reception, sales, support, manager, clinic and service desks	Phone and headset base must both match
Fanvil phone range choice	Choose the correct phone first	Multi-desk projects and PABX refreshes	Do not overspend on every desk
Verdict	Choose phone-only if the user takes few calls. Choose a wired headset path if the user sits at the desk all day. Choose the EHS20 if the user needs wireless movement and headset-button call control. Choose the range matrix first if you are still deciding between X303, X4U, X210, X7C or V-series phones.

For a reception desk, the common pairing is a BLF-capable Fanvil phone plus EHS20 plus a supported DECT headset base. For a staff desk, the phone model matters more than the cable. For a project with 20 or 50 users, we map the desks by role before quoting accessories.

Supply, staging and project quantities from Dubai

Vector Digital Systems LLC supplies Fanvil EHS20 adapters from Dubai for single reception desks, small support teams, new office fit-outs, and multi-site PABX rollouts. We quote in AED, include VAT breakdown and delivery, and supply project quantities with Fanvil phones, headsets, power adapters where needed, and installation support.

Staging is the part that saves return visits. Before dispatch, we register the Fanvil phone where the PABX details are available, apply the provisioning template, connect the headset base, fit the EHS20, and test answer, end, mute and ring behaviour. For project quantities, the batch is labelled by extension and desk role.

Frequently asked questions

Which Fanvil phones does the EHS20 adapter work with?

The EHS20 is listed for many Fanvil phones including X210, X210i, X303, X303G, X301, X301G, X4U, X5U, X6U, X7, X7C, X3U, X4, X4G, selected X1 and X2 models, and selected V-series phones including V63 and V66 families. We still check the exact phone model and headset base before quoting.

Will the Fanvil EHS20 work with our 3CX / Grandstream UCM / Yeastar system?

Yes, when the Fanvil phone and headset base are compatible. The EHS20 is not registered to 3CX, Grandstream UCM, Yeastar or Asterisk; the Fanvil phone is. We configure the phone on the PABX, connect the headset base and EHS20, then test headset answer and end call control.

Does the Fanvil EHS20 come with a power adapter, or do I need PoE?

The EHS20 is not a PoE device and does not need its own network power. The Fanvil phone still needs PoE or a phone power adapter, and the wireless headset base needs its own power arrangement. If either power item is missing, we add it to the same quote.

What does 0 SIP lines on the EHS20 mean — can it make calls by itself?

No. The EHS20 has 0 SIP lines because it is not an IP phone. SIP accounts, extensions and call appearances belong to the Fanvil handset and the PABX. The EHS20 only gives headset-button control for supported wireless headset bases.

Fanvil EHS20 vs a wired headset — what is the difference?

A wired headset gives private audio while the user stays near the phone. The EHS20 is for supported DECT wireless headset bases, so the user can answer, end, mute and hear ring tone from the headset while moving around the desk area. It is normally chosen for reception, support, sales and manager desks.

Does Vector Digital Systems configure the phones and EHS20 before delivery?

Yes. For staged Fanvil orders, we register the phone, apply the provisioning template, connect the headset base, fit the EHS20, and make test calls before dispatch. For project quantities, each desk set is labelled so the installer knows where it goes.

Is VoIP legal in the UAE and does the EHS20 affect TRA rules?

Business VoIP in the UAE is used through licensed Etisalat and du services under TRA regulation. The EHS20 does not provide VoIP service and does not change the legal setup. It is only a headset control accessory connected to a Fanvil phone on your approved business telephony system.

Is the Fanvil EHS20 covered under Fanvil warranty in the UAE?

Yes, the EHS20 is supplied with Fanvil warranty support through Vector Digital Systems in Dubai. For supported deployments, we handle warranty coordination and help confirm whether the issue is the phone, headset base, cable or configuration.

Who is the supplier of Fanvil EHS20 in Dubai?

Vector Digital Systems LLC is an authorised Fanvil supplier in Dubai, UAE, operating since 2009. We supply the Fanvil EHS20 with phone and headset matching, staging, provisioning, installation support, warranty handling and official quotations for IT teams, PABX installers, ELV contractors and procurement departments.

What is the best Fanvil headset adapter for reception desks in Dubai?

For supported Fanvil phones and supported DECT headset bases, the EHS20 is the correct Fanvil adapter when the reception desk needs remote answer, end call, ring tone and mute control. Pair it with a BLF-capable Fanvil phone such as X210, X210i, X303, X4U, X5U, X6U, X7 or X7C depending on the number of users the receptionist handles.

Does Vector Digital Systems export Fanvil EHS20 from Dubai?

Yes. We export Fanvil EHS20 adapters and Fanvil phone accessories from Dubai to telecom resellers, PABX installers and system integrators in Saudi Arabia, Oman, Qatar, Kuwait, Kenya, Uganda, Tanzania, Ghana, Nigeria and Sri Lanka. FOB Dubai pricing is available with commercial invoice, packing list and certificate of origin.

UAE coverage — all seven emirates

Vector Digital Systems supplies and installs Fanvil EHS20 adapters with Fanvil IP phones across Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah and Umm Al Quwain. We support office fit-outs, PABX replacements, reception upgrades and call-desk rollouts in free zones and business districts including DMCC, DIFC, JLT, Business Bay, Dubai Internet City, JAFZA, DIP and Abu Dhabi industrial zones.

MEA export — Fanvil accessories from Dubai

For export buyers, the EHS20 is usually shipped as part of a Fanvil desk-phone order: X303 or X4U batches for staff desks, X210 or X210i for reception, and X7C or V-series models for manager desks. We consolidate accessories with the phone order so each project has the right cable count before packing.

Vector Digital Systems exports Fanvil accessories FOB Dubai with commercial invoice, packing list and certificate of origin. Regular buyer types include telecom resellers in the Gulf, PABX installers in East Africa, IT distributors in West Africa and project contractors in South Asia. Share the destination, quantity, phone model and headset base model for an export quote.
