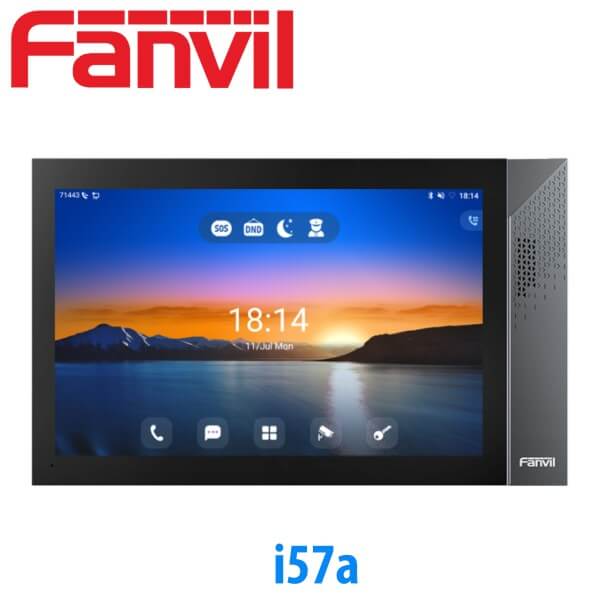

Fanvil i57a Dubai

Reviews

Fanvil i57a Dubai

The Fanvil i57a Dubai is equipped with powerful features such as real-time monitoring and remote door opening for security devices. It is a perfect solution which works as a management assistant for communities, villas and office buildings.

Ask for Quote & Get Low Price

Description

Fanvil i57a SIP Indoor Station Dubai

The Fanvil i57a Dubai is a powerful indoor station that comes with a 10.1-inch color touch screen with an intuitive UI. It is based on Android 9.0 operating system, and therefore meets industry application customization needs and secondary development. The i57a is equipped with powerful features such as real-time monitoring and remote door opening for security devices. It is a perfect solution which works as a management assistant for communities, villas and office buildings.

Fanvil I57a Sip Indoor Station Sharjah

Fanvil I57a Sip Indoor Station Sharjah

Features

  • 10.1-inch (1024×800) capacitive color touch screen
  • Android 9.0 operating system, meeting the customization needs of industry applications and secondary development
  • Aluminum panel design, reliable and durable
  • Built-in cool lighting effects, which can be set as status indicators
  • Check real-time video of door phones with H.264 video codec and 1080P high resolution
  • HD voice speech quality with built-in 2W speaker and Acoustic Echo Canceller
  • Fanvil i57a Dubai has built-in Bluetooth 5.0 and 2.4GHz/5G WiFi
  • Support RS-485, 8 alarm input interfaces and 2 embedded relays
  • Fanvil i57a Dubai has integrated Micro USB interface and maximum 256GB capacity TF card slot
  • Support PoE, Support wall mounting
Fanvil I57a Sip Indoor Station Dubai

Fanvil I57a Sip Indoor Station Dubai

Technical Specifications

Generic

  • 2 SIP Lines
  • HD Voice
  • PoE
  • 1 x LCD : 10.1-inch 1280×800 Color Touch Screen
  • External Power Supply(Optional)
  • RAM/ROM:2G/16G

Operation System

  • Android 9.0 OS with higher security and better compatibility
  • Support 3rd Party Applications
  • Secondary Development of API

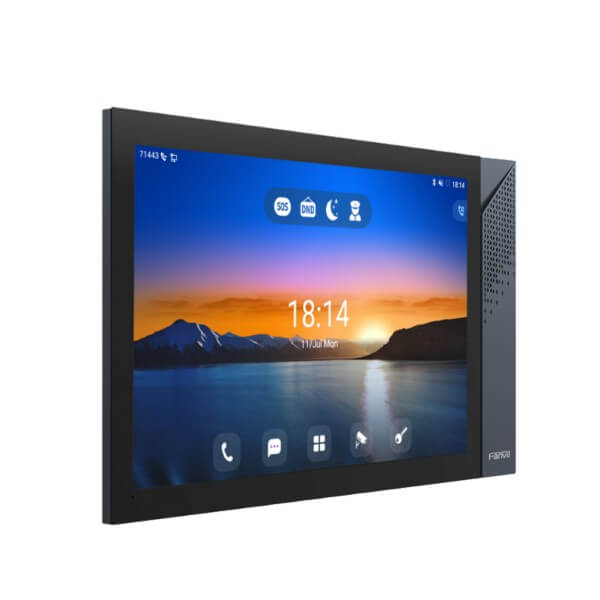

Fanvil I57a Sharjah

Fanvil I57a Sharjah

Device Features

  • Local Phonebook (1000 entries)
  • Remote Phonebook
  • Call logs (In/out/missed, 1000 entries)
  • Blocked List/Allowed List
  • Screen saver
  • Voice Message Waiting Indication (VMWI)
  • Programmable DSS/Soft keys
  • Network Time Synchronization
  • Built-in Bluetooth 5.0
  • Built-in Wi-Fi
  • 2.4GHz, 802.11 b/g/n
  • 5GHz, 802.11 a/n/ac
  • Miracast
  • Action URL / Active URI
  • SIP Hotspot
  • Custom Ringtone
  • Multicast
  • Action Plan
Fanvil I57a Indoor Station Sharjah

Fanvil I57a Indoor Station Sharjah

Call Features

  • Call out / Answer / Reject
  • Mute / Unmute (Microphone)
  • Call Hold / Resume
  • Call Waiting
  • Intercom
  • Caller ID Display
  • Speed Dial
  • Anonymous Call (Hide Caller ID)
  • Call Forwarding (Always/Busy/No Answer)
  • Do-Not-Disturb
  • Auto-Answering
  • Hot Line
  • IP call
Fanvil I57a Indoor Station Dubai

Fanvil I57a Indoor Station Dubai

Audio

  • Wideband ADC/DAC 16KHz sampling
  • Narrowband Codec : G.711a/u, G.729AB, iLBc
  • Wideband Codec : G.722, opus
  • Acoustic Echo Canceller (AEC)
  • Voice Activity Detection (VAD) / Comfort Noise Generation (CNG)/Background Noise Estimation (BNE)
  • Packet Loss Concealment (PLC)
  • Dynamic Adaptive litter Buffer up to 300ms
  • DTMF : In-band, Out of Band DTMF (RFC2833) / SIP INFO
Fanvil I57a Dubai

Fanvil I57a Dubai

Video

  • Hardware video decoding : H.264
  • Video call resolution : QVGA / CIF / VGA / 4CIF / 720P / 1080P

Network

  • 10/100 Mbps Ethernet
  • IP Mode : IPv4
  • IP Configuration : Static / DHCP
  • VPN : OpenVPN (Requires third-party app support)
  • WI-FI Security Mode:WPA /WPA2-PSK/802.X EAP

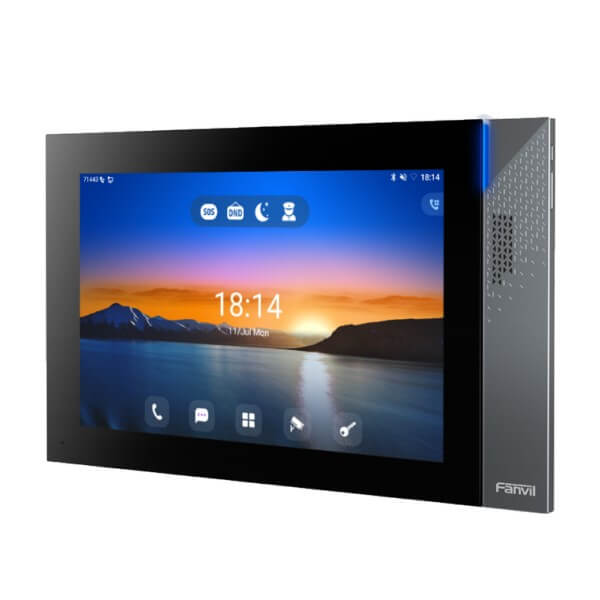

Fanvil I57a Uae

Fanvil I57a Uae

Protocols

  • SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS
  • DNS A/SRV/NAPTR
  • RTP/RTCP/SRTP
  • RTSP
  • STUN
  • DHCP
  • OpenVPN (Requires third-party app support)
  • SNTP
  • FTP/TFTP
  • HTTP/HTTPS
  • TR-069

Deployment & Management

  • Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
  • Web Management Portal
  • Supports Web
  • Supports encrypted configuration files download with AES
  • Supports Web upgrade
  • Supports factory data reset
Fanvil I57a Sip Indoor Station Uae

Fanvil I57a Sip Indoor Station Uae

Physical Specifications

  • 2 keys (Power, volume +/-)
  • TF card interface (MAX : 256G) x1
  • 10 Pin Cable x1
  • 2Pin Cable x1
  • Wall-mount Bracket x1
  • Screws Kit x1
  • RJ45 interface x1
  • Micro USB interface x1
  • RS-485 interface x1
  • 2 embedded short circuit output interface
  • 2 relays : MAX DC30V / 2A, AC125V / 0.5A
  • Alarm input interface x8
  • Doorbell input interface x1
  • Power : DC12V/1A or PoE
  • Power Consumption (Adapter):1.45~8.78W
  • Power Consumption (PoE):1.88~10.76W
  • Housing material : ABS & aluminum alloy
  • Installation : Wall-mounted
  • Working temperature : -10 ~ 50°C
  • Relative humidity : 10% – 90%
