That is where the Fanvil DB20-H Phone makes sense. It is not a replacement page. It is the same current DB20-H model — a LINKVIL all-in-one phone station built for PC and smartphone communication, with a wireless handset, speakerphone base, Bluetooth connection, USB-C connection, and wireless charging on the desk.

Vector Digital Systems supplies the Fanvil DB20-H Phone from Dubai for executive rooms, hot desks, reception back-office desks, shared manager offices, and small meeting rooms where the user does not need another SIP desk phone. They need one clean audio station that follows the softphone or mobile call already in use.

What the DB20-H Phone is

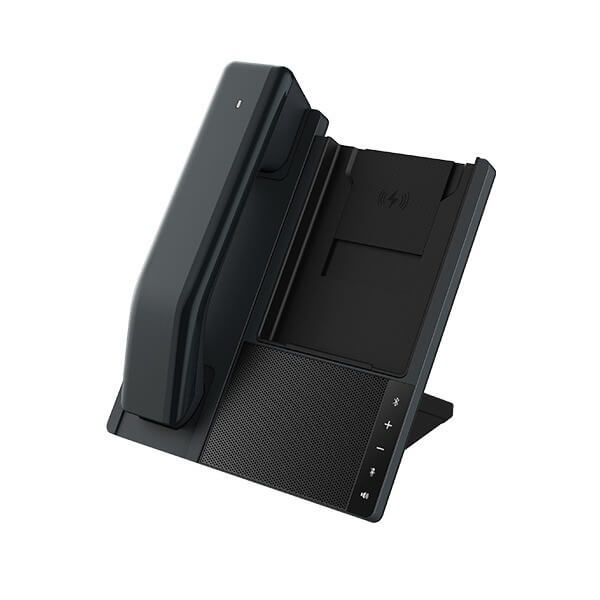

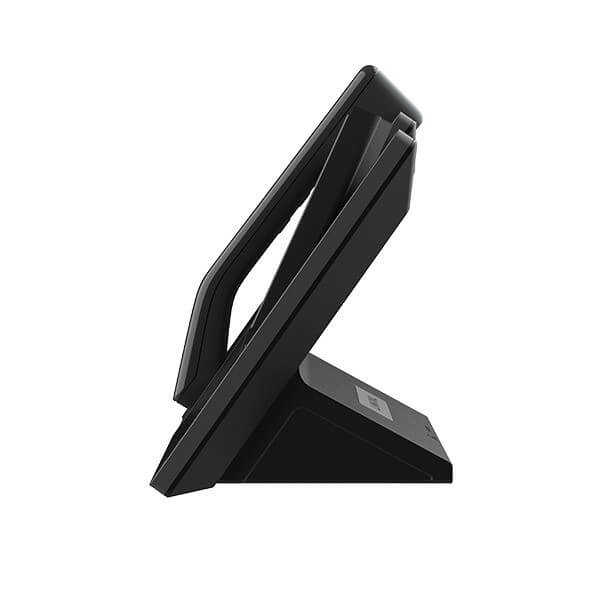

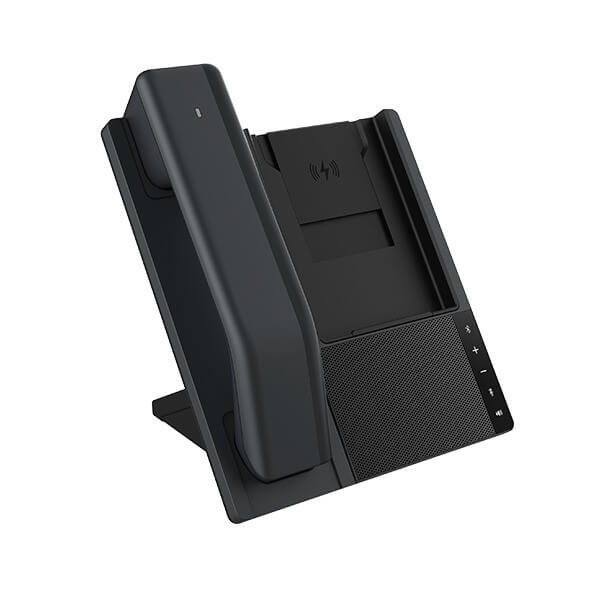

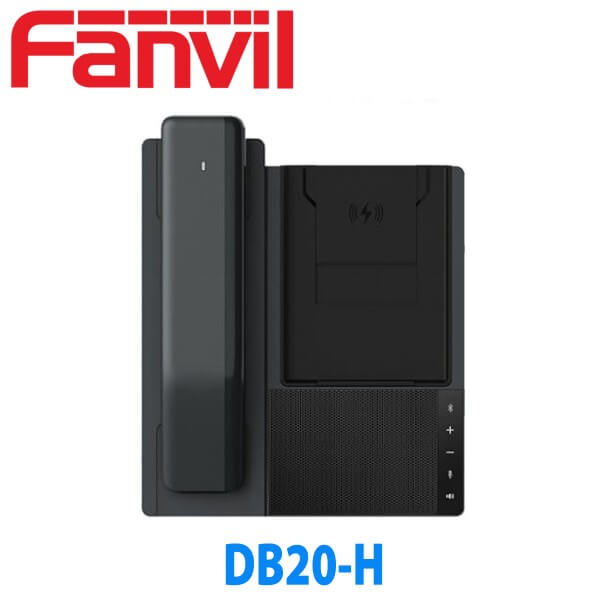

The Fanvil DB20-H Phone is a desktop communication station for users who live between a laptop and a smartphone. The base connects to a PC or mobile device by USB-C or Bluetooth. The handset connects wirelessly to the base by Bluetooth. The same unit gives the desk a speakerphone, a private handset, call control buttons, mute, volume control, and a charging position for the mobile phone.

It belongs in a different buying conversation from a normal SIP desk phone. A standard IP phone registers extensions on the PABX. The DB20-H sits beside the PC or smartphone and becomes the audio device for the calling app or softphone service already running there. For Dubai offices moving from fixed desk extensions to laptop-led calling, that difference matters.

On a shared executive desk in Business Bay, a small boardroom in JLT, or a hot-desk area in Dubai Internet City, the DB20-H avoids the usual mix of low-grade laptop speakers and private headsets. The handset gives privacy for one-to-one calls. The base gives room audio for two or three people around the table. The mobile charging area keeps the phone upright and powered during long calls.

No SIP line count — and that is the point

Most Fanvil desk phones are sized by SIP lines. A phone with 2, 4, 6, or 20 SIP lines registers accounts and manages call appearances on a PABX. The DB20-H Phone is different. It does not replace your PABX extension count, and it should not be bought as a multi-line reception phone.

Think of it as the desk audio station for the user’s existing calling device. If the call starts on a PC softphone, the DB20-H is the USB-C or Bluetooth audio endpoint. If the call starts on a mobile phone, the DB20-H works as the Bluetooth call station. The number of calls, accounts, and permissions still comes from the application, mobile service, or company calling platform behind it.

Why Dubai project buyers ask for this model

The DB20-H Phone usually appears in a project after the IT manager has already chosen softphone calling for part of the team. Sales managers still want a handset for private calls. Finance users do not want every conversation on laptop speakers. Shared rooms need better pickup than a laptop microphone. And mobile-first users want their phone charged and visible on the desk.

The base uses 2 omnidirectional analogue microphones with a 1.5 metre voice pickup range. It supports full-duplex audio, beamforming, Environment Noise Cancellation, Adjustive Noise Suppression, Automatic Gain Control, and Reverberation Reduction. In plain English: the unit is built to catch voices around the desk and reduce the room noise that makes laptop calls tiring.

The speaker is a 40mm unit rated at 3W. Music mode covers 195Hz to 20kHz, while speech mode is tuned for voice. That does not turn a small meeting room into an auditorium, and we would not sell it that way. It does give a manager’s desk or small huddle table a cleaner call setup than the usual laptop audio.

For a larger room, specify a dedicated conference device. For a receptionist who needs to see extensions before transferring, specify a Fanvil X-series desk phone with DSS and BLF keys. For the user whose calls are already on a PC or smartphone, the DB20-H is the cleaner desk answer.

Bluetooth that works like an office device, not a toy

The DB20-H uses Bluetooth 5.4 with A2DP, HSP, and HFP profiles. The operating range is up to 10 metres in clear conditions. It can remember up to 8 paired devices and maintain 2 simultaneous Bluetooth connections. That matters at hot desks and shared manager rooms, where more than one phone or laptop may use the same unit during the week.

The wireless handset is also Bluetooth-based. It gives the user a normal phone feel when the call should not be on speaker. The handset has a 300mAh lithium polymer battery, up to 18 hours talk time, 3.4 hours charging time, and 21 hours standby. It is also Hearing Aid Compatible, which is a small detail but useful for procurement teams standardising devices across mixed-age office users.

The base supports 10W wireless charging for the mobile phone when the phone is aligned on the charging area. In real office use, that means fewer loose chargers on the desk and fewer calls taken with a nearly dead mobile battery. For fit-outs across Dubai, Abu Dhabi, and Sharjah, small details like that reduce the number of accessories the installer has to explain later.

Where we place it in real deployments

We usually quote the Fanvil DB20-H Phone in three places. First: executive desks where the user makes PC calls but still wants a handset. Second: hot desks where the calling device changes from user to user. Third: small meeting rooms that need a tidy speakerphone base without installing a full room system.

It is also a useful side device for sales and support managers who split calls between mobile and laptop. The mobile phone sits on the charging area. The laptop connects by USB-C or Bluetooth. The user chooses handset or speakerphone based on the call. No extra desk phone extension is needed unless the PABX design calls for one.

For project quantities, Vector Digital Systems can supply DB20-H units as part of a wider Fanvil deployment: X-series desk phones for fixed extensions, LINKVIL wireless devices for roaming users, and DB20-H Phone stations for softphone and mobile-led desks. One quote. One Dubai supply point. Same-day AED pricing.

Power, charging, and desk wiring

The Fanvil DB20-H Phone is not a PoE desk phone. It does not sit on the LAN as a SIP endpoint, and it does not take power from a PoE switch. It is a powered desktop phone station for a PC or smartphone, so the buying check is different: confirm the desk has mains power, confirm the user’s laptop or mobile device supports the planned USB-C or Bluetooth connection, and confirm whether the mobile phone will use the wireless charging area.

Maximum power consumption is 18W. The mobile wireless charging output is 10W when the phone is placed correctly on the charging area. The charging coil alignment matters: the phone must sit over the coil, within a small 3–5mm centre range. In a Dubai office, that is a practical detail worth explaining to the user on day one, especially when different phone sizes are used across a shared desk.

The handset also charges from the base. It has a 300mAh lithium polymer battery with up to 18 hours talk time, 3.4 hours charging time, and 21 hours standby. That is enough for a normal workday of desk calls, but the handset should still return to the base between calls. For hot desks and manager rooms, we usually place the base where the handset is naturally returned, not at the far corner of the table.

Current DB20-H capabilities worth noting

The current DB20-H documents show a more office-ready device than the simple “Bluetooth speakerphone” label suggests. The base connects to a PC or mobile device through USB-C or Bluetooth, while the wireless handset connects by Bluetooth. It can remember up to 8 paired Bluetooth devices and hold 2 simultaneous Bluetooth connections, which is useful when one desk is used by more than one person or when a manager moves between laptop calls and mobile calls.

Bluetooth 5.4 support gives the DB20-H a listed operating range of up to 10 metres in clear conditions. In real offices, walls, partitions, glass meeting pods, and other wireless devices reduce that range, so we size it as a desk or small-room device, not a roaming handset. For warehouse walking, showroom roaming, or multi-room mobility, use a proper LINKVIL wireless handset instead.

The audio design is also more specific than most product listings mention. The base has 2 omnidirectional analogue microphones with 1.5 metre pickup, full-duplex audio, beamforming, Environment Noise Cancellation, Adjustive Noise Suppression, Automatic Gain Control, and Reverberation Reduction. Those are the features that make the DB20-H practical for small meeting rooms and executive desks where a laptop microphone would pick up too much room sound.

The wireless handset has its own omnidirectional microphone and Hearing Aid Compatible support. That detail matters on corporate procurement sheets because not every user wants speakerphone audio, and not every user should be forced into a headset. The DB20-H gives the desk three call modes: speakerphone for shared audio, handset for private calls, and mobile/PC connection for the calling account already in use.

Compatibility in Dubai offices

The DB20-H Phone is compatible with apps and UC services of mainstream softphone platforms. That means it works as the user’s audio device for PC or mobile calling. It is not provisioned like a normal SIP phone, and it does not need BLF programming, extension registration, or SIP account setup on the base.

For Dubai deployments, we first confirm how the user makes calls. Laptop softphone? Mobile calling? Company UC app? Browser-based calling? Then we choose the connection method. USB-C is the cleaner choice for fixed laptop desks. Bluetooth suits mobile-first users and hot desks. For shared rooms, we label the pairing method so users know which device should connect.

If the same project also includes a PABX, we separate the device roles clearly. Fanvil X-series phones register extensions and handle office call routing. DB20-H units sit on softphone or mobile-led desks. This avoids a common buying mistake: ordering DB20-H stations for reception users who actually need BLF keys, transfer visibility, and a proper SIP desk phone.

DB20-H, CP20, or a LINKVIL wireless handset?

For a mixed project, the answer is often not one model. A Dubai office may use X303 or X4U phones for staff extensions, a higher X-series model for reception, DB20-H Phone stations for managers using softphones, and W611W handsets for warehouse or showroom users. The Fanvil range comparison helps map each role before ordering.

Pricing, supply, and staging from Dubai

Vector Digital Systems supplies the Fanvil DB20-H Phone from Dubai with same-day AED quotation, VAT breakdown, and delivery options for UAE projects. We quote single executive desks, 5–10 hot-desk batches, and larger multi-site requirements under one engagement.

Staging for DB20-H is different from staging a SIP phone. There is no extension account to register on the base. Instead, we check the package, confirm power, verify USB cable and adapter, confirm the planned connection method, label units for the correct desk or room, and include pairing notes for the user. For larger projects, that avoids confusion when several devices reach the site together.

For office handover in Dubai, Sharjah, or Abu Dhabi, we can supply DB20-H units alongside the wider Fanvil phone order. That gives the IT manager one Fanvil quotation covering fixed extensions, softphone desks, wireless users, and accessories — easier for procurement, easier for the installer, and cleaner for warranty handling.

Frequently asked questions

Will the Fanvil DB20-H Phone work with our PC softphone or mobile calling app?

Yes. The DB20-H Phone is built for PC and smartphone communication through USB-C or Bluetooth. It works as the audio station for apps and UC services of mainstream softphone platforms. We confirm the calling method before quoting so the user knows whether USB-C or Bluetooth is the better connection.

Does the Fanvil DB20-H Phone come with a power adapter, or do I need PoE?

The DB20-H is not a PoE phone. It uses a 12V/1.5A power adapter, and the package contents list the power adapter and USB cable. For project supply, Vector Digital Systems checks the packing list before dispatch and confirms desk power requirements before delivery.

How many SIP lines does the DB20-H have — can it replace a PABX desk phone?

The DB20-H is not sized by SIP lines. It does not replace a PABX desk phone for extension registration, BLF keys, or reception transfer visibility. It is a PC and smartphone phone station. Your calling account stays on the softphone app, mobile phone, or company calling service.

Fanvil DB20-H vs CP20 — what is the difference?

Choose the DB20-H if you want an all-in-one desk station with wireless handset, speakerphone base, USB-C/Bluetooth connection, and 10W mobile charging. Choose the CP20 if you only need a speakerphone-style audio accessory and do not need the handset or charging stand.

Does Vector Digital Systems configure the DB20-H before delivery?

Yes, but configuration is not the same as a SIP desk phone. We check the package, confirm power and cable items, label the unit for the correct desk or room, verify the planned connection method, and provide user pairing notes. For project quantities, units are sorted before dispatch.

Is VoIP legal in the UAE and can we use DB20-H with Etisalat or du services?

Business VoIP over licensed services is standard in the UAE under TRA regulation. The DB20-H is the audio device for the PC or smartphone app being used; the legal and service setup depends on the licensed calling platform, Etisalat or du business service, or approved company telephony design behind it.

Is the Fanvil DB20-H Phone covered under Fanvil warranty in the UAE?

Yes. Vector Digital Systems supplies the DB20-H with Fanvil manufacturer warranty handling from Dubai. For procurement teams, we can include company documents, VAT details, and warranty notes with the quotation.

Who is the supplier of Fanvil DB20-H Phone in Dubai?

Vector Digital Systems LLC is an authorised Fanvil supplier in Dubai, UAE, operating since 2009. We supply the Fanvil DB20-H Phone with project quantity support, staging checks, UAE delivery, installation support where required, warranty handling, and documentation for procurement teams.

What is the best Fanvil phone station for PC and smartphone users in Dubai?

For a desk where calls come from a PC softphone or smartphone, the Fanvil DB20-H Phone is the right Fanvil choice: USB-C and Bluetooth connection, wireless handset for private calls, speakerphone base for shared audio, and 10W mobile charging. If the same user needs a fixed PABX extension instead, choose an X-series SIP desk phone.

Do you give project pricing for 10 or 50 DB20-H Phone units?

Yes. We quote DB20-H project quantities for executive offices, hot-desk areas, shared manager rooms, and multi-site rollouts. Send the quantity, delivery location, and user type. We return AED pricing with VAT breakdown, delivery, and any installation or handover support required.

Does Vector Digital Systems export Fanvil DB20-H Phone from Dubai?

Yes. We export Fanvil DB20-H Phone units from Dubai to telecom resellers, IT distributors, and project contractors across the Gulf, East Africa, and Central Asia — including Oman, Qatar, Kuwait, Bahrain, Kenya, Uganda, Tanzania, Ethiopia, Kazakhstan, and Azerbaijan. FOB Dubai pricing with commercial invoice, packing list, and certificate of origin.

UAE coverage and export supply

Vector Digital Systems supplies Fanvil DB20-H Phone units across all seven UAE emirates: Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah, and Umm Al Quwain. For free zone and project sites, we support offices in DMCC, JLT, Business Bay, Dubai Internet City, JAFZA, DIP, and Abu Dhabi business districts.

For MEA export, we quote DB20-H units FOB Dubai with commercial invoice, packing list, and certificate of origin. Typical buyers are telecom resellers, IT distributors, PABX installers adding softphone desk accessories, and system integrators supplying mixed Fanvil deployments. Share destination country, quantity, and packing requirement on WhatsApp for an export quote.
