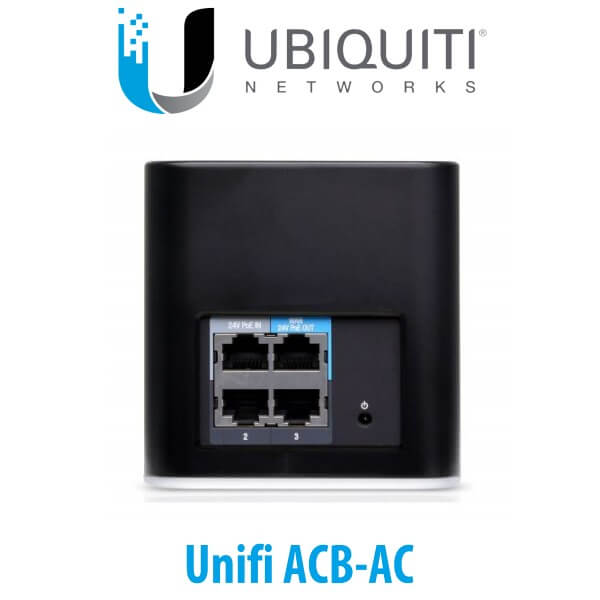

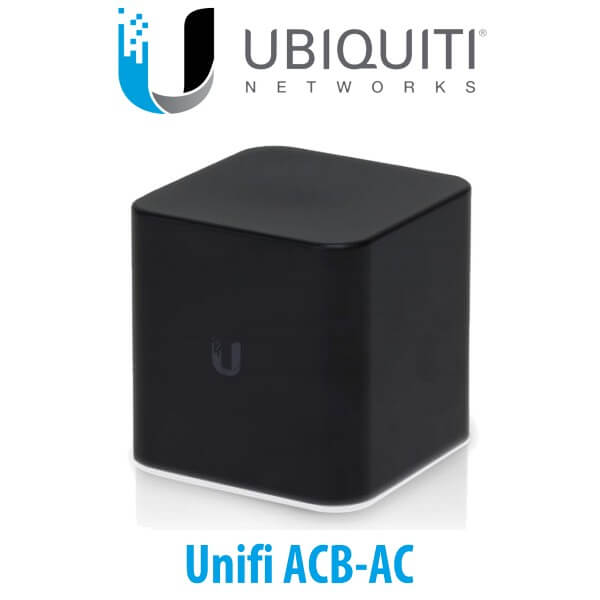

Ubiquiti ACB-AC airCube Home Wi-Fi Access Point Dubai
The Ubiquiti ACB-AC Dubai is a Wi-Fi access point for use in your residential customer deployments. The Ubiquiti airCube AC features 4 x Gigabit Ethernet Ports, 24V PoE Passthrough for airMAX CPE and Dual-Band, 802.11ac, 2×2 MIMO Technology.
With a compact design and integrated 24V PoE passthrough, the airCube Home Wi-Fi Access Point Dubai is a home Wi-Fi access point designed to interoperate with airMAXÂ CPEs
Ubiquiti ACB-AC Features:
Technical Details
| Dimensions | 87.80 x 89.50 x 89.25mm (3.46 x 3.52 x 3.51″) |
| Weight | 280 g (9.88 oz) |
| Management Interface | Wi-Fi / Ethernet |
| Networking Interface | (4) Gigabit Ethernet Ports |
| LED | Status |
| Operating Frequency | 2.4 GHz 5 GHz |
| Antenna Gain | 2.4 GHz : 4 dBi 5 GHz : 5 dBi |
| Max. Speeds | 2.4 GHz : 300 Mbps 5 GHz : 866.7 Mbps |
| Max. Power Consumption | 8.5W |
| Max. TX Power | 22 dBm |
| Power Supply | 24VDC |
| Power Method | 24VDC, 0.83A PoE 24V In on Ethernet Port 1 |
| PoE Out | Controllable 24V PoE Out (4, 5+, 7, 8 on WAN Port |
| Supported Voltage Range | 22-26V |
| Operating Temperature | -10 to 50° C (14 to 122° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| ESD/EMP Protection | ± 24 kV Contact / Air |
| Certifications | CE, FCC, IC |
