Description

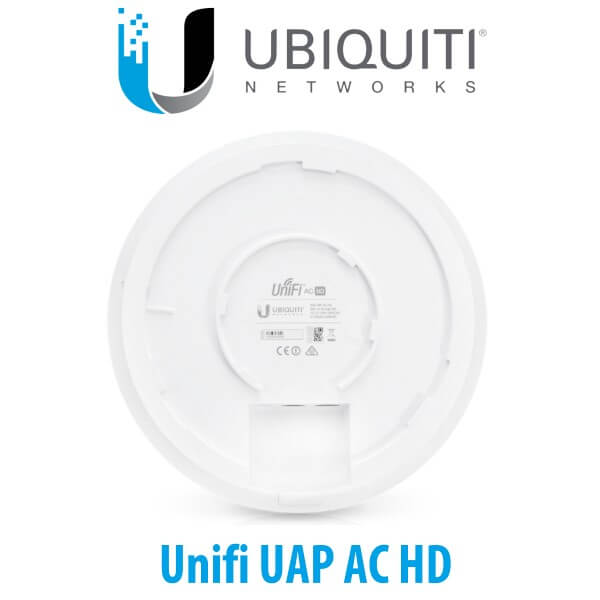

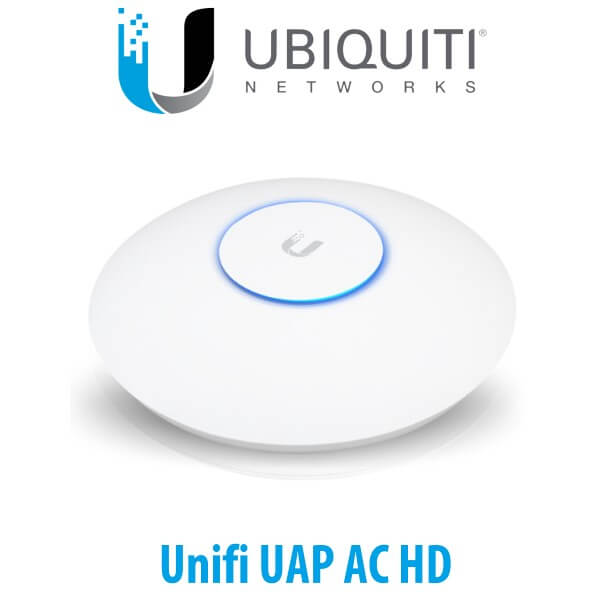

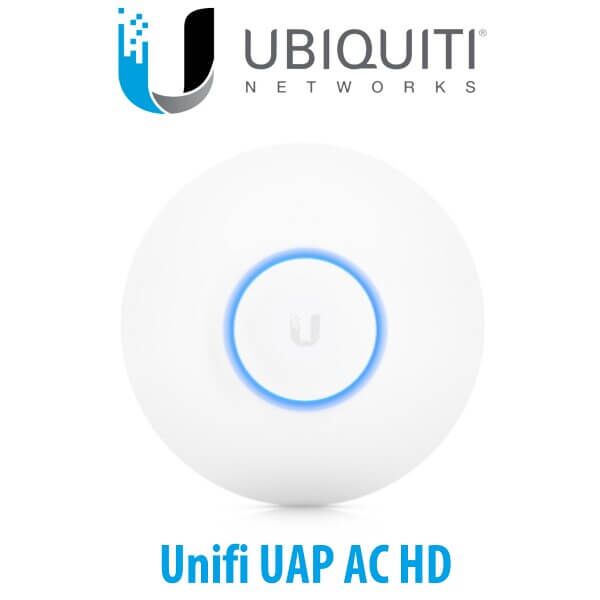

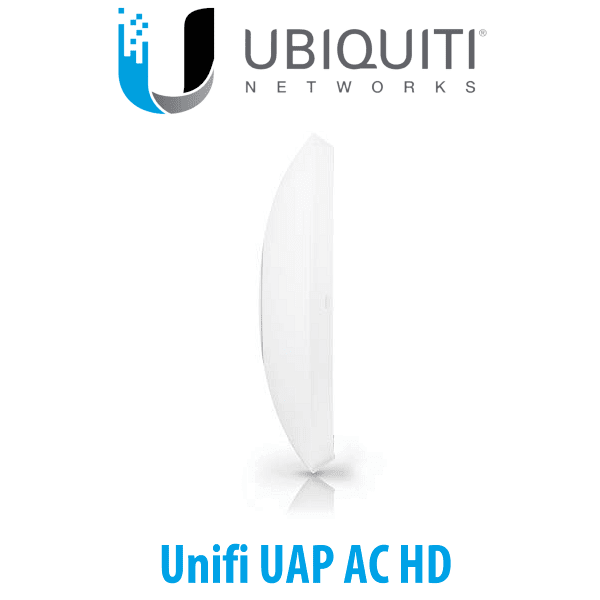

Ubiquiti UAP AC HD Access Point Dubai
The Ubiquiti UAP AC HD Dubai is and indoor/outdoor, high-performance, 802.11AC Wave 2 dual-band access point, capable of throughput speeds of up to 2533 Mbps and a maximum range of up to 122 meters.
802.11ac Wave 2 MU‑MIMO (Multi‑User, Multiple Input, Multiple Output) technology allows a Wave 2 AP to communicate with multiple clients at the same time – significantly increasing multi‑user throughput and overall user experience. The Ubiquiti UAP AC HD Dubai also has a focused antenna pattern to enhance your network’s capacity and reduce interference from neighboring access points. This Access Point AC HD Dubai is powered with 802.3at PoE+ and is equipped with (2) GbE RJ45 ports and (1) USB port to support multiple connection types. The UAP AC HD can be set up in minutes and fully managed with the UniFi Network web application or mobile app.
Features:
- 802.11ac Wave 2 WiFi technology
- 5 GHz (4×4 MU-MIMO) band with a 1.7 Gbps throughput rate
- 2.4 GHz (4×4 MIMO) band with a 800 Mbps throughput rate
- Powered with 802.3at PoE+*
- (2) GbE RJ45 ports
- (1) USB port
Technical Specs
| Mechanical | |
|---|---|
| Dimensions | 220 x 220 x 48.1 mm |
| Weight with Mounting Kits |
700 g (24.7 oz) 830 g (29.3 oz) |
| Networking Interface | (2) 10/100/1000 Ethernet Ports |
| Ports | (2) Ethernet RJ45, (1) USB Type C |
| Buttons | Reset |
| Antennas | (2) 2.4G internal single band antennas, dual polarity (2) 5G internal single band antennas, dual polarity |
| Wi-Fi Standards | 802.11a/b/g/n/ac/ac-wave2 |
| Power Method | PoE 802.3at |
| Power Supply | PoE Injector 48VDC -0.5A Gigabit |
| Maximum Power Consumption | 17W |
| Max TX Power | 25 dBm |
| BSSID | 4 Per Radio |
| Power Save | Supported |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| Certifications | CE, FCC, IC |
| Mounting | Wall/Ceiling (Kits Included) |
| Operating Temperature | -10 to 70° C (14 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Advanced Traffic Management | |
| VLAN | 802.1Q |
| Advanced QoS | Per-User Rate Limiting |
| Guest Traffic Isolation | Supported |
| WMM | Supported |
| Concurrent Clients | 500+ |
| Supported Data Rates (Mbps) | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 450 Mbps (MCS0 – MCS23, HT 20/40) |
| 802.11ac | 6.5 Mbps to 1.7Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80) |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
