Ubiquiti AM-5G19-120 airMAX Dubai


Ubiquiti AM-5G19-120 airMAX Dubai

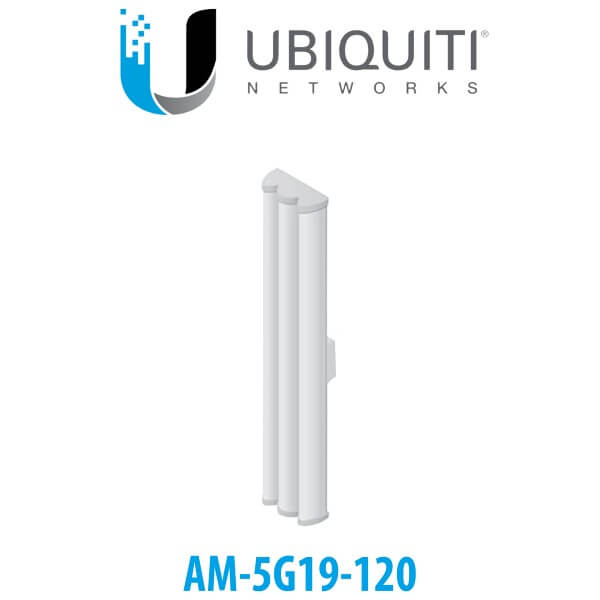

The Ubiquiti AM-5G19-120 airMAX Sector Antenna Dubai is a carrier-class 2×2 dual-polarity MIMO sector antenna that was designed to seamlessly integrate with Rocket radios (Rocket sold separately).On the right is one example of how the airMAX Sector Antenna can be deployed in a Point-to-MultiPoint (PtMP) network.


Ask for Quote & Get Low Price


Ubiquiti AM-5G19-120 airMAX Dubai

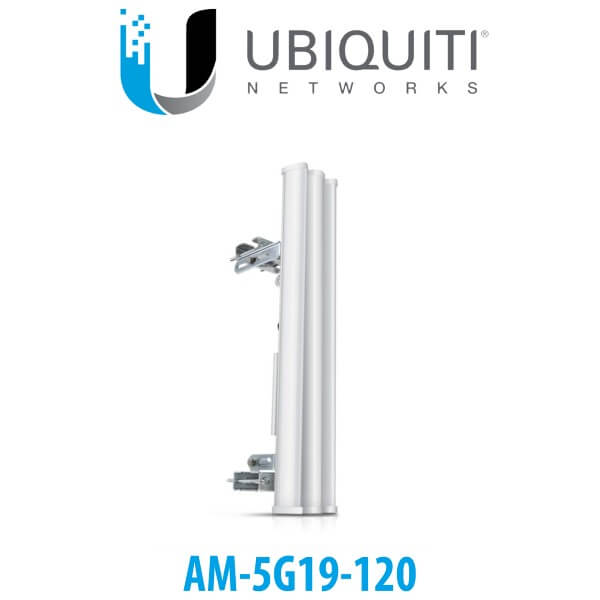

The AM-5G19-120 AirMAX 5 GHz 2×2 MIMO Sector Antenna Dubai from Ubiquiti Networks provides networking flexibility and convenience by letting you create a customized base station with an optional RocketM radio. This antenna operates under the 5 GHz frequency and offers a gain of 19 dBi. It delivers 2×2 MIMO performance and supports airMAX technology, which uses Time Division Multiple Access protocols to send and receive data at pre-designated time slots. Included along with the antenna are a pole mount, RocketM bracket, and weatherproof RF jumpers to make your base station building experience easier.

Ubiquiti AM-5G19-120 airMAX Dubai Features:

  • Flexibility – To support your specific application, the airMAX Sector Antenna is available in 5 GHz
  • High Performance – Highly resistant to noise interference, the airMAX Sector Antenna provides superior gain and beam performance for high-capacity, multipoint networks.
  • Durable Construction – Each airMAX Sector Antenna is designed with a robust mechanical design for outdoor application use.
  • Plug and Play Integration – Every airMAX Sector Antenna has a built-in Rocket mount, so installation requires no special tools. Snap the Rocket securely into place and mount the antenna; you then have the optimal combination of Rocket radio and airMAX Sector Antenna for your application.
  • Pair the Rocket radio with the airMAX Sector Antenna to create a powerful base station. This versatile combination gives network architects unparalleled flexibility and convenience

Ubiquiti Networks AM-5G19-120 Specs

Frequency Range 5.15 to 5.85 GHz
Gain 18.6 to 19.1 dBi
Hpol Beamwidth 123° (6 dB)
Vpol Beamwidth 123° (6 dB)
Beamwidth Electrical: 4°
Electrical Downtilt
VSWR (Voltage Standing Wave Ratio) 1.5:1
Wind Survivability 125 mph
Wind Loading 20 lbf @ 100 mph
Polarization Dual-Linear
Cross-pol Isolation 28 dB Min
ETSI Specification EN 302 326 DN2
Dimensions 27.55 x 5.31 x 2.87″ (700 x 135 x 73 mm)
Weight 13 lb (5.9 kg)
Packaging Info
Package Weight 9.7 lb
Box Dimensions (LxWxH) 35.3 x 7.9 x 6.4″
