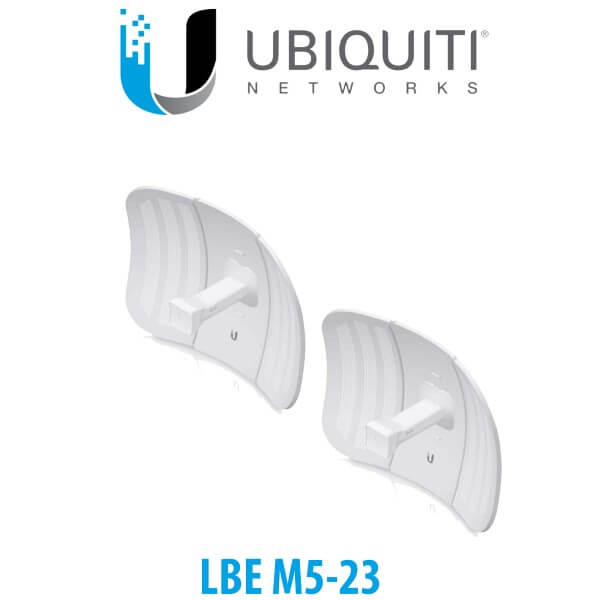

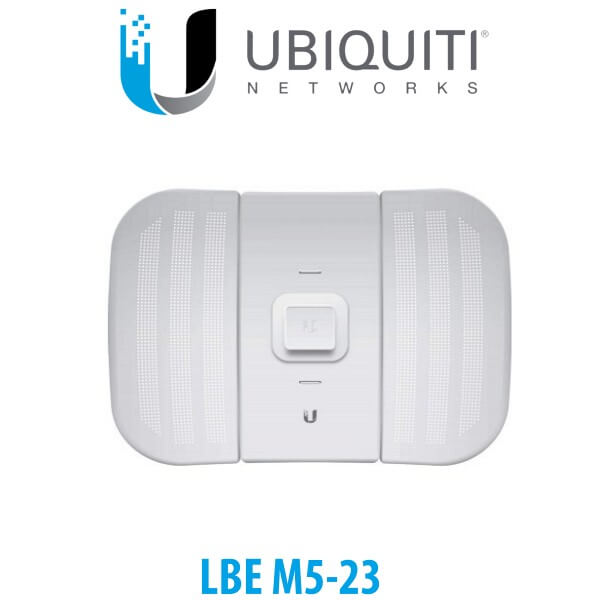

Ubiquiti LBE M5 -23 Dubai


Ubiquiti LBE- M5 -23dBi Dubai

The Ubiquiti LBE-M5-23dBi Dubai combines hardware and software technologies to deliver fast throughput and long range cost-effectively. Its InnerFeed technology integrates the entire radio system into the feedhorn of the antenna, and our revolutionary airMAX TDMA protocol enhances network performance and scalability.

Ask for Quote & Get Low Price


Ubiquiti LiteBeam M5 23dBi 5GHz Wireless Broadband CPE Dubai

Ubiquiti Networks has released the most advanced outdoor wireless broadband CPE (Customer Premises Equipment) which comes in a lightweight and compact design. Ubiquiti LBE- M5 -23dBi Dubai is a cost-effective solution that delivers excellent performance for long-distance, wireless broadband bridging. The wireless broadband works anywhere in the world and is equipped with a license-free 5 GHz frequency range. It boasts of an excellent performance of up to 100+ Mbps in real outdoor throughput and an incredible range of up to 30+ km.

Combining its hardware and software technologies, the Ubiquiti LBE- M5 -23dBi Dubai delivers fast throughput and long-range cost-effectively. Its InnerFeed technology integrates the entire radio system into the feedhorn of the antenna, and our revolutionary airMAX TDMA protocol enhances network performance and scalability.

Ubiquiti LBE M5-23 Features:

  • Full Adjustment Flexibility
    • The Ubiquiti LBE- M5 -23dBi Dubai features a unique ball joint mount that provides adjustment flexibility along three axes for versatile mounting options. The mounting system, coupled with the built-in bubble level, enables quick and easy alignment.
  • Quick, Snap-and-Lock Assembly
    • The all-new mechanical design makes assembling the LBE-M5-23 and LBE-5AC-23 – literally – a snap. No tools are required. Simply snap the feed, antenna panels, rear housing, and ball joint mount together for a secure, solid assembly.
  • InnerFeed Technology
    • Ubiquiti’s revolutionary InnerFeed technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable*. This improves performance because it eliminates cable losses. Providing high performance and robust all-in-one mechanical design at a low cost, the NanoBridge is extremely versatile and cost-effective to deploy.
  • Integrated airMAX Technology
    • Unlike standard Wi-Fi protocol, the exclusive Ubiquiti Networks airMAX Time Division Multiple Access (TDMA) protocol allows each client to send and receive data using pre-designated time slots managed by an intelligent AP controller. This “time slot” method eliminates hidden node collisions and maximizes airtime efficiency. Compared to other systems in its class, the LBE-M5-23 Dubai delivers superior performance in reduced latency, throughput, and scalability.
      • Intelligent QoS – Priority is given to voice/video seamless streaming.
      • Scalability – High capacity and scalability.
      • Long Distance – Capable of high-speed, 30+ km links.
  • Powerful airOS Features
    • Ubiquiti’s versatile airOS firmware technology enables high-performance, outdoor multi-point networking. airOS provides features such as wireless settings, bridge or routing configuration and system management services.
  • Compact in Size, Light in Weight
    • A lightweight form factor contained within ultra-compact packaging, the LiteBeamM is ideal for shipping and logistics.
  • The Most Cost-Effective airMAX CPE Yet
    • The LiteBeamM delivers incredible value as an airMAX CPE solution.
  • Breakthrough Industrial Design
    • Featuring the freedom of three-axis alignment, the LiteBeamM fully assembles in seconds – no tools needed. Only a single wrench is required for pole-mounting.
  • High-Gain, Directional Antenna

    • The LiteBeamM provides 23 dBi of gain for long-distance connectivity and uses a directional antenna pattern for improved noise immunity.

LiteBeam M5 Specifications
System Information
Processor Specs MIPS 74K
Memory Information 64 MB
Networking Interface (1) 10/100 Ethernet Port
Physical / Electrical / Environmental
Dimensions 362 x 267 x 184 mm (14.25 x 10.51 x 7.24″)
Weight 750 g (24.11 oz)
Wind Survivability 200 km/h (125 mph)
Wind Loading 176.86 N @ 200 km/h (39.76 lbf @ 125 mph)
Enclosure Characteristics Outdoor UV Stabilized Plastic
Mounting Kit Pole Mounting Kit (Included)
Max Power Consumption 4 Watts
Power Supply 24V, 0.2A PoE Adapter (Included)
Power Method Passive Power over Ethernet (Pairs 4, 5+; 7, 8 Return)
Operating Temperature -40 to 70° C (-40 to 158° F)
Operating Humidity 5 to 95% Noncondensing
Shock and Vibration ETSI300-019-1.4
ETSI Specification EN 302 326 DN2
ESD/EMP Protection ± 24 KV Contact / Air
Regulatory / Compliance Information
Wireless Approvals FCC, IC, CE
RoHS Compliance Yes
