Description

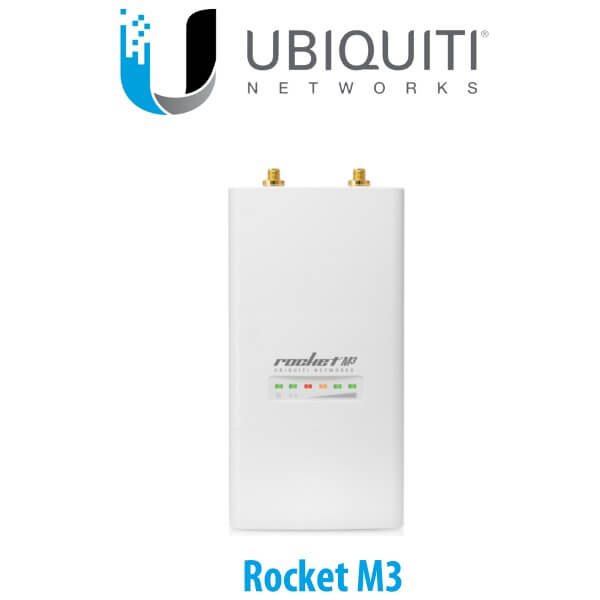

Ubiquiti Rocket M3 Dubai
Rocket M3 Key Features
- Frequency – 3 GHz
- Throughput – 100+ Mbps
- Range -50+ Km
- Plug and Play Integration
- The Ubiquiti Rocket M3 radio seamlessly works together with airMAX Sector, RocketDish, Omni, and Yagi antennas for PtP and PtMP links. Every airMAX antenna has a built-in Rocket mount, so no tools are needed to install the Rocket.
- Frequency and Channel Flexibility
- Built to survive harsh environments, the Rocket M3 is also available in several other frequency models and channel bandwidths, depending on the specific model and local country regulations.
Ubiquiti Rocket M3 – Technical Specifications
General
- Processor Specs: Atheros MIPS 24KC, 400MHz
- Memory Information: 64MB SDRAM, 8MB Flash
- Networking Interface: 1 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet or 2 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet
- Wireless Approvals: FCC Part 15.247, IC RS210, CE or FCC Part 90Y
- RoHS Compliance: Yes
- Enclosure Size: 16 x 8 x 3cm (length, width, height)
- Weight: 0.5kg
- Enclosure Characteristics: Outdoor UV Stabilized Plastic
- Mounting Kit: Pole Mounting Kit included
- Power Supply: 24V, 1A POE Supply included
- Power Method: Passive Power over Ethernet (pairs 4, 5+; 7, 8 return)
- Operating Temperature: -30C to 75C
- Operating Humidity: 5 to 95% Condensing
- Shock and Vibration: ETSI300-019-1.4
- RF Connector: 2x RP-SMA (Waterproof) or 2x RP-SMA and 1x SMA (Waterproof)
- Max Power Consumption: 6.5 Watts or 8 Watts
