Description

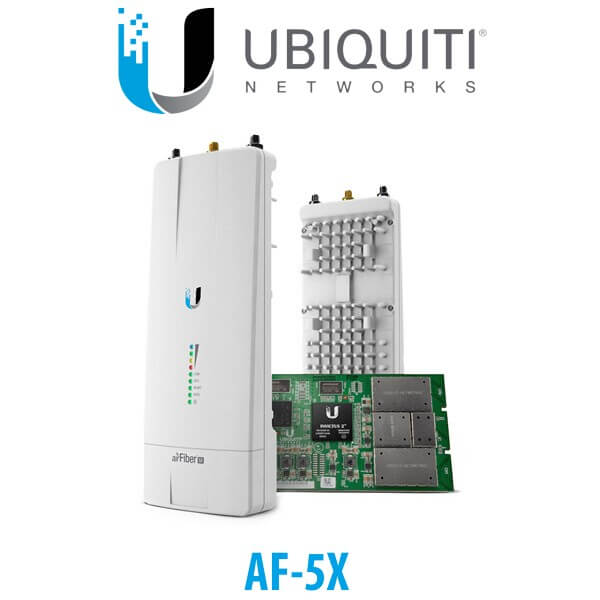

airFiber AF-5XHD Carrier Backhaul Radio Dubai
Designed for use in the 5 GHz frequency band, the new Ubiquiti AF-5XHD Dubai is Ubiquiti’s first LTU radio, offering greater channel bandwidths of up to 100 MHz, and more advanced RF components. Pair the AF-5XHD with a compatible Ubiquiti® airFiber X antenna or RocketDish™ antenna for a complete 5 GHz Point-to-Point (PtP) solution. An IP67 upgrade kit is included to provide enhanced protection from dust and water.
The Ubiquiti AF-5XHD Dubai is designed for long-range, Point-to-Point (PtP) backhaul links. It features a high TDD throughput and Hybrid Division Duplexing (HDD) technology that helps the device achieve low latency. The Ubiquiti AF-5XHD Dubai also allows users to customize backhaul links or upgrade existing PtP links.
The AF‑5XHD’s custom LTU silicon and radio architecture provides breakthrough performance. Its core communications processing engine surpasses the limitations inherent to generic Wi -Fi chips to provide low latency, long‑range capability, DFS flexibility, higher constellations, and better power output, along with improved receive sensitivity. The Ubiquiti AF-5XHD Dubai features 21.2 bps/Hz spectral efficiency, line‑rate data packet processing for up to 1.34 Gb/s of real data throughput, and innovative extreme Range Technology (xRT).
AF-5XHD Key Features
- Programmable Transmit Power
The radio’s transmit power level can be programmed up to +29 dBm - Programmable Duty Cycle (GPS Synchronized Frames)
The Ubiquiti AF-5XHD Dubai allows configuration of asymmetric TX and RX duty cycles. TX ratios include 25%, 33%, 50%, 66.7%, and 75% - Configurable GPS Synchronization
The Ubiquiti AF-5XHD Dubai offers configurable support for 2, 2.5, 4, and 5 ms frames. Timing is compatible with all other synchronous systems - Split TX and RX Frequency
The radio can operate on different frequencies for TX and RX, allowing great flexibility for interference avoidance - Split TX and RX Channel Bandwidth
Support for different channel bandwidths for TX and RX allows users to scale required data capacity more efficiently - Adaptive Modulation up to 1024QAM
Adaptive modulation rates of up to 1024QAM (4096QAM with targeted upgrade) are supported - Dual Redundant Gigabit Ethernet Ports with PoE
The AF-5XHD has two Gigabit Ethernet ports that can be used to provide redundant PoE power - OFDM and OFDMA Support
The radio offers flexible scheduling for 2, 4, or 8 subchannels - Bluetooth Wireless Configuration
Use the built-in Bluetooth interface for wireless configuration - AlignLock Antenna Aiming Guard
This alerts the user when the radio or antenna aiming is changed due to tampering, impact, or storm damage - User-Configurable Interference Mitigation
Three user-selectable profiles support both high‑interference and greenfield deployments for robust, optimal performance - Redundant Images for Fail-Safe Configuration
Creation of backup firmware images ensures fail-safe configuration and enhances reliability - Persistent Spectrum Analysis with Dedicated RX
Perform real-time spectral analysis for the full band on live links without interrupting the link operation - Wide Voltage Range, Enhanced Surge Protection
The AF-5XHD has an operating voltage range of 19‑50 VDC and provides enhanced surge protection
Software Features
The airFiber AF-5XHD uses Ubiquiti’s airOS LTU software, which offers you a variety of advanced features.
Spectral Analysis with airView
airView allows you to identify noise signatures and plan your networks to minimize noise interference.
airView performs the following functions:
• Constantly monitors environmental noise
• Collects energy data points in real‑time spectral views
• Helps optimize channel selection, network design, and wireless performance
airView runs in the background without disabling the wireless link, so there is no disruption to the network. In airView, there are three spectral views, each of which represents different data: waveform, waterfall, and ambient noise level. airView provides powerful spectrum analyzer functionality, eliminating the need to rent or purchase additional equipment for conducting site surveys
Spectral Analysis with airView
airView allows you to identify noise signatures and plan your networks to minimize noise interference.
airView performs the following functions:
• Constantly monitors environmental noise
• Collects energy data points in real‑time spectral views
• Helps optimize channel selection, network design, and wireless performance
airView runs in the background without disabling the wireless link, so there is no disruption to the network. In airView, there are three spectral views, each of which represents different data: waveform, waterfall, and ambient noise level. airView provides powerful spectrum analyzer functionality, eliminating the need to rent or purchase additional equipment for conducting site surveys
UNMS App
The AF-5XHD supports the Ubiquiti Network Management System. UNMS is a comprehensive management controller featuring an easy-to-navigate graphic UI. The UNMS app provides instant access to the airOS configuration interface and can be downloaded from the App Store (iOS) or Google Play (Android). UNMS allows you to set up, configure, and manage the AF-5XHD and offers various configuration options once you’re connected or logged in.
5 GHz Backhaul
- Full-Band Certification with DFS
The AF‑5XHD covers the entire, license-free, 5 GHz spectrum and includes DFS approval. Anyone around the world can deploy and operate the Ubiquiti AF-5XHD Dubai in the 5 GHz range practically anywhere they choose (subject to local country regulations). - Optimal Operation in Unlicensed Bands
Channel width flexibility (10/20/30/40/50/60/80/100 MHz) allows independent TX and RX channel frequency configurations anywhere within the radio band to avoid local interference, and the channel centers are selectable in 1 MHz increments. You also have the ability to program different uplink and downlink duty cycles to support asymmetric traffic requirements. - Ultra-Low Latency with HDD Technology
The AF‑5XHD is designed to provide high TDD throughput and is engineered with proprietary Hybrid Division Duplexing (HDD) technology. In a backhaul link, Ubiquiti AF-5XHD Dubai radios use patent-pending HDD technology to calculate the propagation delay and know when each radio can transmit and receive, so they send packets in precise synchronization. Packet transmission latency is virtually eliminated
Co-Location
- Co-location is vital in many scenarios. For example, a WISP may have limited tower space, so it must co-locate all equipment within that allotted footprint.
- GPS Synchronization
Precise GPS frame synchronization frees the Ubiquiti AF-5XHD Dubai from interference for enhanced co‑location capability. GPS enables the concurrency of TX and RX frames, so you can co-locate the AF‑5XHD radios and enhance the overall performance of your backhaul links. - Clean Power Output
Using digital pre-distortion compensation and multi-IFFT processing, the innovative RF design delivers ultra-clean power output that improves noise immunity and co‑location performance. This reduces the potential impact on the RF noise environment and allows for the use of higher-order modulation, such as 1024QAM.
- GPS Synchronization
UPC: 817882022897
