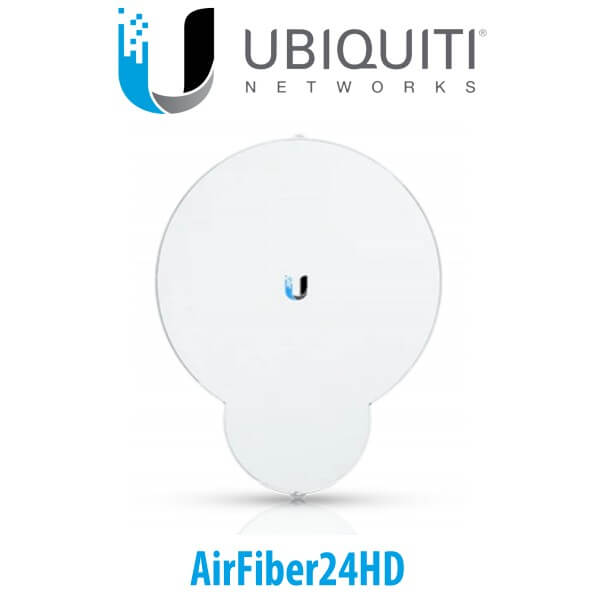

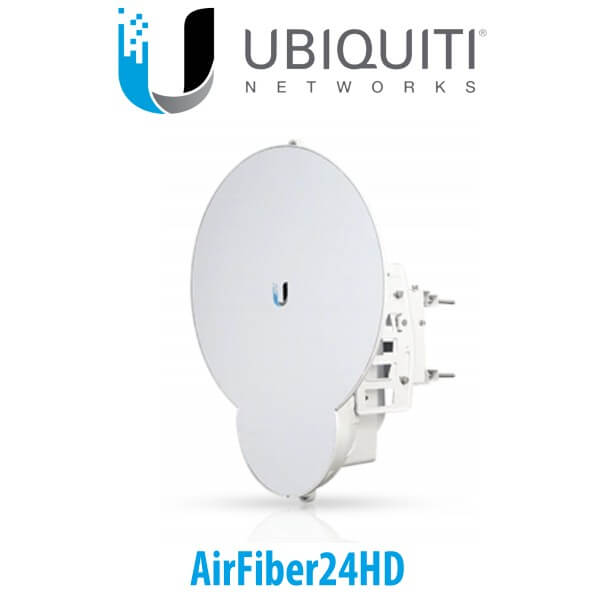

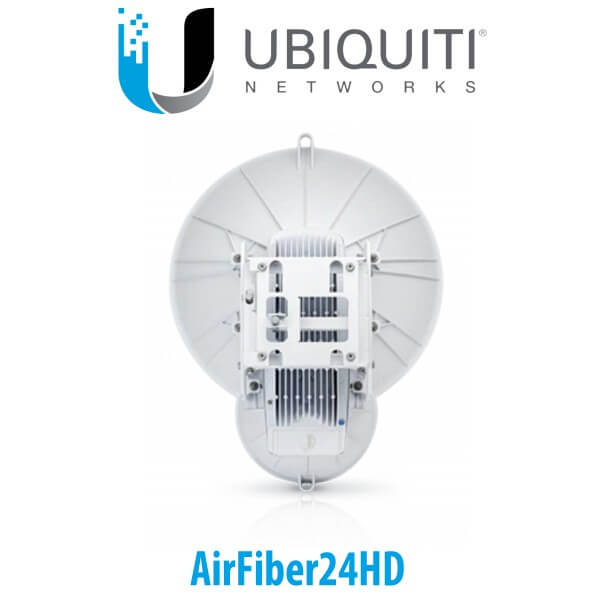

Ubiquiti AirFiber24HD Wi-Fi Bridge Dubai
Ubiquiti AirFiber24HD Dubai is revolutionary 24GHz Point-to-Point radio from Ubiquiti Networks. Housed in a compact, highly efficient form factor, airFiber delivers revolutionary performance of 2Gbps+, aggregate throughput and 20+km in range. Ubiquiti AirFiber24HD Dubai ushers in a new era in price-disruptive, carrier-class backhaul technology. Ubiquiti AirFiber24HD Dubai operates in the worldwide, license-free, 24GHz frequency. Anyone around the world can purchase and operate airFiber without any special permits, paperwork, or added licensing costs. Users are free to locate, deploy, and operate airFiber practically anywhere they choose. Advanced Antenna System Featuring a dual-independent 2×2 MiMO 24GHz hi-gain reflector antenna system, Ubiquiti AirFiber24HD Dubai can operate in both FDD (Frequency Division Duplex) and HDD (Hybrid Division Duplex) modes for unparalleled speed and efficiency in the 24GHz worldwide license-free band. Plug and Play Installation Utilizing precision mounting hardware combined with a dynamic RSSI indicator, Ubiquiti AirFiber24HD Dubai can be easily deployed by a single installer. Integrated GPS receivers automatically calculate position and timing parameters in the background, providing a true plug and play installation experience.
Features:
- Robust Mechanical Assembly
An independent lab has tested the Ubiquiti AirFiber24HD Dubai mechanical assembly to meet MIL-STD-810G, a rigorous United States MIL‑STD (Military Standard) that defines a variety of challenging environmental conditions. The mechanical assembly has also undergone vibration testing using an extended version of IEC 60068-2-6, an environmental standard of the IEC (International Electrotechnical Commission). - Revolutionary Performance
Featuring the world’s best unlicensed-band spectral efficiency at 15.9 bps/Hz, the Ubiquiti AirFiber24HD Dubai supports the dense modulation rates, up to 256QAM, that are required for high data rates, up to 2 Gbps. - Proven Links: 20+ km
The Ubiquiti AirFiber24HD Dubai features the most powerful automatic compensation for path loss degradation due to rain fade, so it provides the best range – up to 20+ km – among 24 GHz products and allows for constellation threshold extension. - Low-Latency Carrier Backhaul
The Ubiquiti AirFiber24HD Dubai supports FDD (Frequency Division Duplexing) in full-duplex mode for 0.2 millisecond latency, resulting in increased efficiency for carrier-class network backhauls.
Technical Specifications
General
- 2 X Ubiquiti airFiber AF24 HD
- Operating Frequency : 24.05 – 24.25 GHz
- Dimensions :
– Radio : 593 x 768 x 370 mm (23.35 x 30.24 x 14.57″)
– Box : 796 x 696 x 49.5 mm (31.34 x 27.40 x 1.95″) - Weight :
– Radio (Mount Included) : 17.3 kg (38.14 lb)
– Box : 25.5 kg (56.22 lb) - Max. Power Consumption : 50 W
- Power Supply : 50V, 1.2A PoE GigE Adapter (Included)
- Power Method : Passive Power over Ethernet
- Supported Voltage Range : +42 to +58VDC, -48VDC
- Certifications : CE, FCC, IC
- Wind Loading : 770 N @ 200 km/hr (170 lbf @ 125 mph)
- Wind Survivability : 200 km/hr (125 mph)
- Mounting : Pole Mount Kit (Included)
- Operating Temperature : -40 to 55° C (-40 to 131° F)
- LEDs (8) Status LEDs :
– Data Port Speed
– Data Port Link/Activity
– Configuration Port Speed
– Configuration Port Link/Activity
– GPS Synchronization
– Modulation Mode
– Master/Slave
– RF Status
– (1) Two-Digit LED Display Calibrated in dBm
Interface
- Data Port : (1) 10/100/1000 Ethernet Port
- Configuration Port : (1) 10/100 Ethernet Port
- Auxiliary Port : (1) RJ-12, Alignment Tone Port
System
- Maximum Throughput : 2 Gbps
- Maximum Range : 20+ km
- Packets per Second : 1+ Million
- Packets per Second : > 1 Million
- Encryption : 128-Bit AES
- Uplink/Downlink Ratio : 50% Fixed
- Latency :
– Full Duplex Mode : < 200 µs at Full Throughput
– Half Duplex Mode : < 2 ms at Full Throughput - MTU (Maximum Transmission Unit) : Up to 9600
Radio Frequency
- GPS: GPS Clock Synchronization
Transceiver
- EIRP : ~33 dBm (FCC/IC), ~20 dBm (CE), ~40 dBm (Other Regions)
- Frequency Accuracy :
– ±2.5 ppm without GPS Synchronization
– ±0.2 ppm with GPS Synchronization - Channel Bandwidth : 100 MHz
- Operating Channels : 24.1 GHz, 24.2 GHz
- Modulation :
– 256QAM MIMO
– 64QAM MIMO
– 16QAM MIMO
– QPSK MIMO
– QPSK SISO
– ¼x QPSK SISO
Integrated Split Antenna
- TX Gain : 33 dBi
- RX Gain : 40 dBi
- Beamwidth : < 3.5°
- Front-to-Back Ratio : 70 dB
- Polarity : Dual-Slant Polarization
- Cross-Polarity Isolation : > 28 dB
