Ubiquiti Switch-Aggregation Dubai

Reviews

Ubiquiti Switch-Aggregation Dubai

Ubiquiti Switch-Aggregation Dubai can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

Ask for Quote & Get Low Price

Description

Ubiquiti Switch-Aggregation Network Switch Dubai

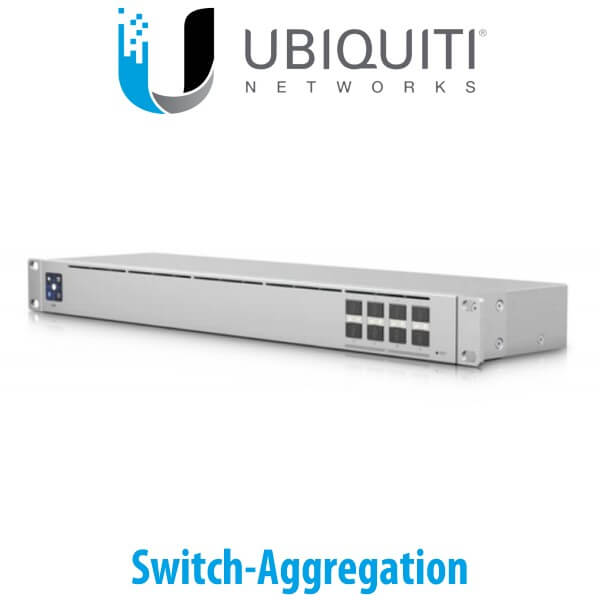

The Ubiquiti Switch-Aggregation Dubai is a fully managed, Layer 2 switch with (8) 10G SFP+ ports designed to enhance your network’s switching capacity and performance by creating high-bandwidth aggregation links. This rack-mountable switch also offers 160 Gbps switching capacity and features a 1.3″ LCM color touchscreen that concisely displays key system and connection insights. Additionally, with its 4.7″ depth, it’s easy to mount this compact, fanless Ubiquiti Switch-Aggregation switch in a SOHO rack cabinet. Ubiquiti Switch-Aggregation Dubai can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

Features:

  • (1) 1.3″ LCM color touchscreen with AR switch management
  • (8) 10G SFP+ ports
  • 160 Gbps switching capacity
  • Fanless, near-silent cooling

Technical Details

Mechanical
Dimensions 442.4 x 120 x 43.7 mm (17.42 x 4.72 x 1.72″)
Weight
Without Mount
With Mount
2.65 kg (5.84 lb)
2.74 kg (6.04 lb)
Enclosure Material SGCC Steel
Hardware
Total Non-Blocking Throughput 80 Gbps
Switching Capacity 160 Gbps
Forwarding Rate 119.04 Mpps
Max. Power Consumption 30W
Power Method Universal AC Input: 100-240VAC, 50/60 Hz
Power Supply AC/DC, Internal, 36W
Management Interface Ethernet In-Band
Modes SMB Layer 2 Gigabit Ethernet Switch
Max. Number of Supported SFP+ Modules UACC-OM-MM-10G: 8
UACC-OM-SM-10G: 8
UACC-CM-RJ45-10G: 4
ESD/EMP Protection Air: ± 16kV, Contact: ± 12kV
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 10 – 90% Noncondensing
Certifications CE, FCC, IC
LED
System
(1) Bootup Animation
Firmware Upgrade Icon
Steady White
Steady Blue
SFP+
Bootup in Progress
Firmware Upgrading
Factory Defaults, Awaiting Adoption
Device is Adopted
White: 10G, 1G
