Ubiquiti UniFi Switch Flex Dubai

Reviews

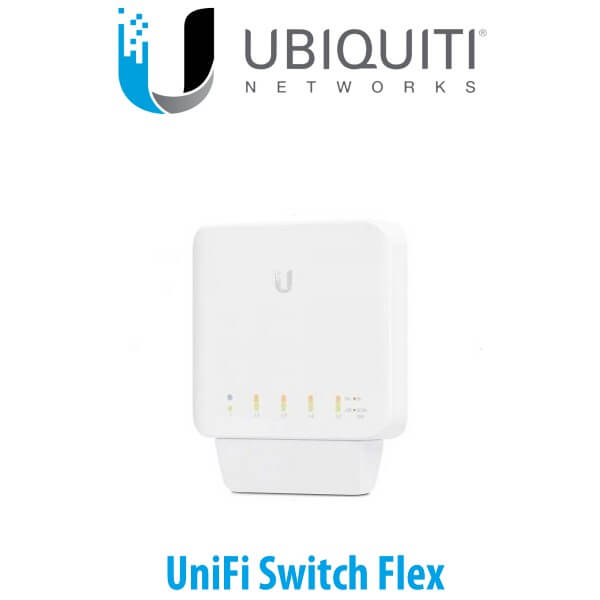

Ubiquiti UniFi Switch Flex Dubai

The UniFi Switch Flex Dubai features a single PoE In port for power and four PoE ports that provide up to 15W PoE output to power a UniFi access point or other PoE devices.

Ask for Quote & Get Low Price

Description

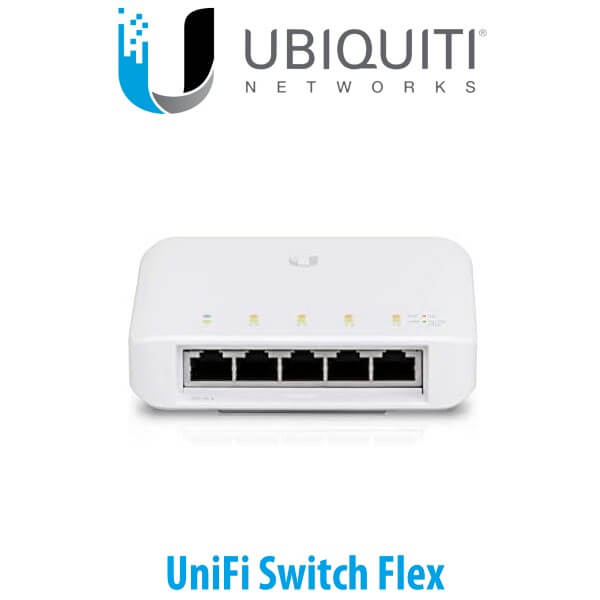

Ubiquiti UniFi Switch Flex 5-Port Layer 2 Gigabit with PoE Support (USW-FLEX) Dubai

The Ubiquiti UniFi Switch USW-FLEX Dubai is a configurable Layer 2 Gigabit switch with auto-sensing 802.3af PoE. It offers five RJ45 Gigabit Ethernet ports, providing 1 PoE input and 4 PoE output links to your devices.

The UniFi Switch Flex Dubai features a single PoE In port for power and four PoE ports that provide up to 15W PoE output to power a UniFi access point or other PoE devices. With 802.3bt rated PoE switches (USW-Pro-48-PoE, USW-Pro-24-PoE, and USW-Industrial switches, sold separately) as power source, USW-Flex supports maximum 46W PoE output budget. It has weatherproof housing and offers versatile mounting options.

Managed and configured by the UniFi Controller or UniFi Mobile app, the UniFi Switch Flex offers basic Layer 2 switching protocols and features. The UniFi Controller and mobile app allow admins to configure and monitor virtually all of the switch features using a graphical user interface from anywhere.

Ubiquiti UniFi Switch USW-FLEX Key Features

  • Versatile Mounting
    • The USW-Flex Dubai can be installed horizontally or vertically making it ideal for desktop, magnetic wall-mount, and pole-mount installations.
  • Indoor/Outdoor Design
    • The USW-Flex Dubai is designed for indoor or outdoor use. With its weatherproof housing and versatile mounting options, the USW-Flex Dubai provides both flexibility and durability for environments with extreme temperature variations.
  • PoE Flexibility

    • The USW-Flex Dubai supports a maximum PoE output budget of 46W when powered by 60W 802.3bt PoE++. Four ports offer auto-sensing 802.3af PoE output to power multiple devices on the network.

  • Wide Compatibility

    • The USW-Flex Dubai powers a variety of products, including the UniFi Video Camera G3 Flex, UniFi Video Camera G4 Pro, and UniFi AC Mesh AP, which use 802.3af PoE. To enable its maximum power budget of 46W, the USW-Flex can be powered by the USW-Industrial switch, which provides 60W of 802.3bt PoE++.

  • Seamless Integration

    • A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.

Ubiquiti USW-Flex General Specifications

  • Dimensions: 122.5 x 107.1 x 28.0 mm (4.82 x 4.22 x 1.10″)
  • Weight: 230 g (8.11 oz)
  • Networking Interfaces: (5) 10/100/1000 Mbps RJ45 Ports
  • Management Interface: Ethernet In-Band
  • Power Method (Port 1):

– PoE Mode 1: 802.3af/at (Pins 1, 2+; 3, 6-)1
– PoE Mode 2: 802.3bt (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-)2
– PoE Mode 3: 50V/60W PoE Adapter3

  • PoE Out (Ports 2-5): 802.3af (Pins 1, 2+; 3, 6-)
  • Max. Power Consumption (Excluding PoE Output): 5W
  • Max PoE Wattage Per Port: 15.4W
  • Total PoE Power Budget:

– Powered by AF mode PSE: 8W
– Powered by AT mode PSE: 20W
– Powered by BT mode PSE: 46W
– Powered by PoE Adapter (Enabled in Controller): 46W

  • Voltage Range:

– 802.3af: 44 – 57V
– 802.3at/bt: 50 – 57V

  • LEDs:

– System: Status
– RJ45 Data Ports: PoE; Link/Speed/Activity

  • ESD/EMP Protection: ± 16kV Air, ± 16kV Contact

Operating Temperature:
– 46W PoE Output: -40 to 55° C (-40 to 131° F)
– 25W PoE Output: -40 to 65° C (-40 to 149° F)

  • Operating Humidity: 5 to 95% Noncondensing
  • Certifications: CE, FCC, IC

—1 Recommended PoE power source: US-8-150W (sold separately)
—2 Recommended PoE power source: USW-Industrial (sold separately)
—3 Recommended PoE power source: POE-50-60W-WH (sold separately)
—(POE-50-60W-WH requires enabling injector mode in UniFi Controller
