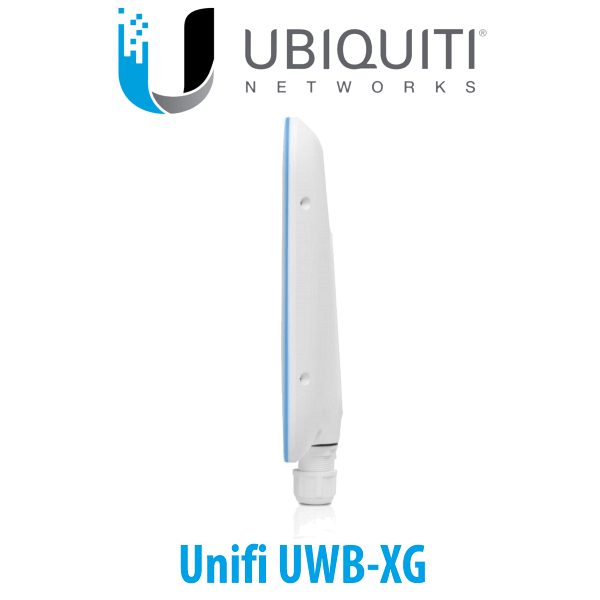

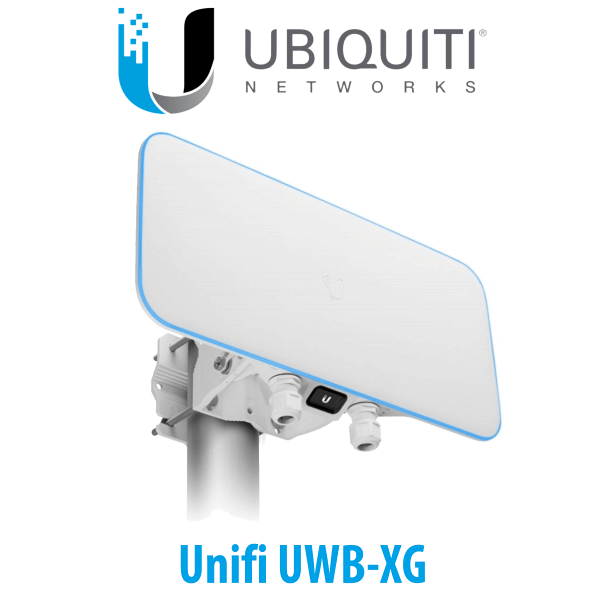

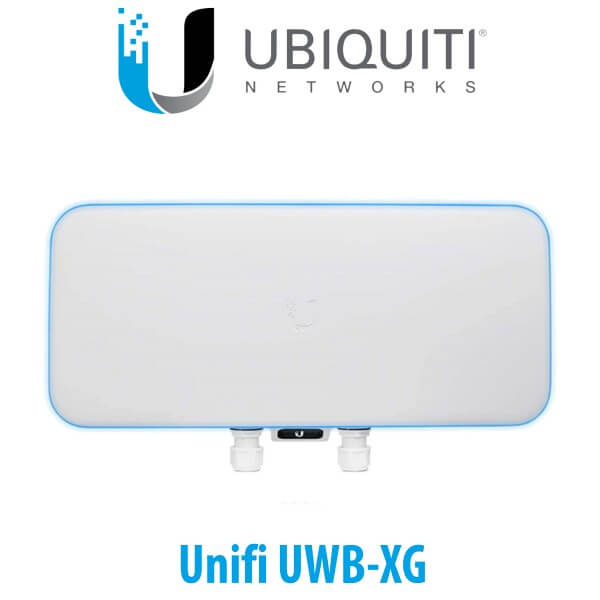

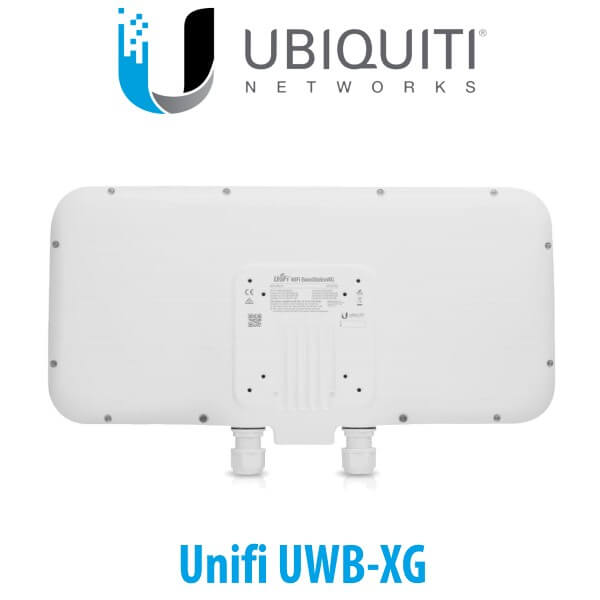

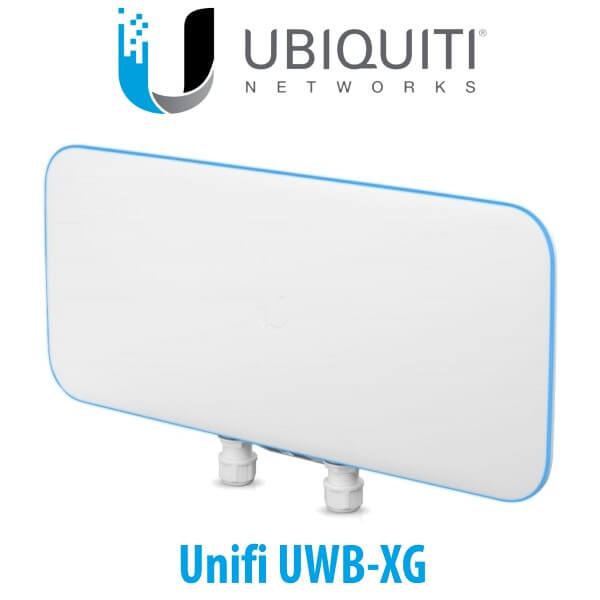

Ubiquiti UWB-XG WiFi BaseStation Dubai

The Ubiquiti UWB-XG Dubai features maximum wireless performance combined with wireless security and is ideal for ultra high-density environments such as event venues, festivals, and medium or large-sized stadiums. The UniFi BaseStationXG features the latest in Wi-Fi 802.11ac Wave 2 MU-MIMO technology combined with dedicated security and Bluetooth radios.

The built-in, dedicated security and monitoring radio of the UWB-XG provides visibility into site performance, channel planning, and local interferers. The Ubiquiti UWB-XG Dubai is easily accessible through any standard web browser and the UniFi mobile app (iOS or Android). The UniFi Controller software is a powerful software engine ideal for high-density client deployments requiring low latency and high uptime performance.

Key Features :

• Elegant Industrial design
  The sleek Ubiquiti UWB-XG Dubai is a versatile access point with multiple mounting options to suit your application.
• RF Energy Steering
  True cellular Wi-Fi using multiple APs – its selectable directional beamforming antenna allows for cell size optimization to maximize coverage.
• Spectral security
  The Ubiquiti UWB-XG Dubai delivers unprecedented wireless awareness and security, including tools for real-time spectrum monitoring, airtime utilization analytics, and intrusion detection/prevention. Using a persistent spectral scan, the Wi-Fi BaseStation XG Dubai constantly monitors the RF environment to check for both potential malicious activity and the best channel for network performance.

Technical Specifications

Overview

• Dimensions (Without Mount) : 471.1 x 257.5 x 94.3 mm (18.55 x 10.14 x 3.713″)
• Weight (Without Mount) : 3.2 kg (7.055 lb)
• Networking Interface :
  – (1) 10/100/1000 RJ45 Ethernet Port
  – (1) 1/10 Gbps ICM Ethernet Port
• Button : Reset
• LED : RGB, Software-Controllable
• Power Method : 802.3bt PoE
• Power Supply : 50VDC, 1.2A Gigabit PoE
• Power Save : Supported
• Beamforming : Supported
• Max. Power Consumption : 31W
• Supported Voltage Range : 44-57VDC
• Max. TX Power : 25 dBm
• MIMO : (3) 4 x 4
• Operating Frequency : 5 GHz
• Antenna : Integrated Dual-Mode Antenna Array
• Antenna Gain :
  – Small Cell : 15 dBi
  – Large Cell : 10 dBi
• Antenna Beamwidth :
  – Small Cell : 50°
  – Large Cell : 90°
• WiFi Standards : 802.11 a/n/r/k/v/ac/ac-wave2
• Wireless Security : WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF
• Mounting : VESA-Compatible Mount, Pole/Wall (Brackets Included)
• Operating Temperature : -40 to 70° C (-40 to 158° F)
• Operating Humidity : 5 to 95% Noncondensing
• Dust and Water Resistance : IP67
• Certifications : CE, FCC, IC

Advanced Traffic Management

• VLAN: 802.1Q
• Advanced QoS: Per-User Rate Limiting
• Guest Traffic Isolation: Supported
• WMM: Voice, Video, Best Effort, and Background
• Concurrent Clients: 1500

Supported Data Rates (Mbps)

• Standard : 802.11ac
  Data Rates: 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80), 58 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 160)
• Standard : 802.11n
  Data Rates : 6.5 Mbps to 450 Mbps (MCS0 – MCS23, HT 20/40)
• Standard : 802.11a
  Data Rates : 6, 9, 12, 18, 24, 36, 48, 54 Mbps
