Description
Ubiquiti AirFiber60US Wi-Fi Bridge Dubai

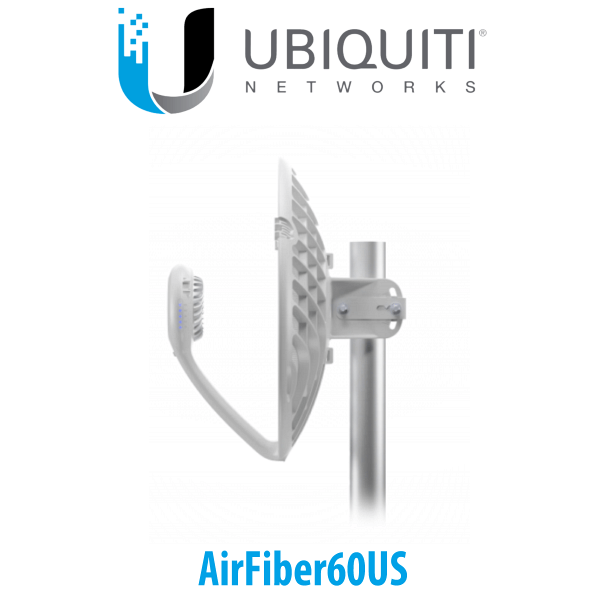

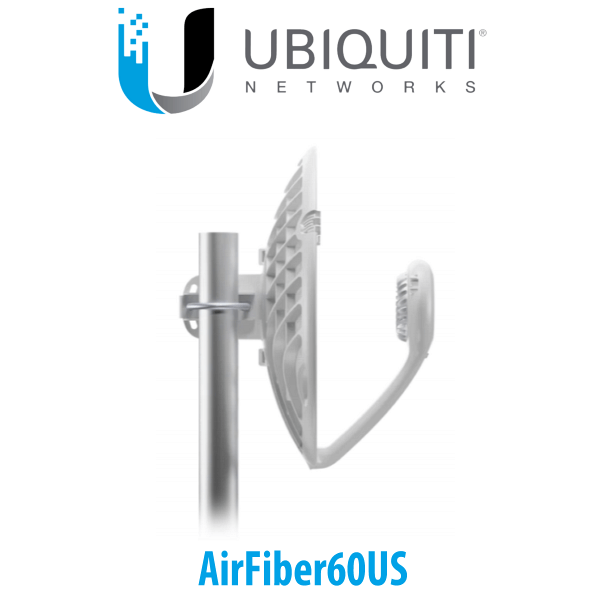

Create a reliable long-distance, point-to-point connection between networks with the Ubiquiti AirFiber60US Dubai Wireless Bridge from Ubiquiti Networks. This 60 GHz outdoor dish antenna is designed to provide low-interference and high-throughput connectivity with a range of up to 1.24 miles and a maximum data throughput of 1.8 Gb/s. Ubiquiti AirFiber60US Dubai features 38 dBi gain at 60 GHz and 11 dBi on the 5 GHz radio backup, with a combined transmission power of 25 dBm. Made from aluminum and UV-stabilized plastic, the Ubiquiti AirFiber60US Dubai can operate between -40 and 140°F, has a wind survivability of 125 mph, and has ESD/EMP protection of about 24kV. A pole mounting kit is included alongside a 24V Gigabit PoE adapter, which connects to the dish’s Gigabit Ethernet port to provide power and data passthrough. Other features include WPA2-PSK and WPA2 Enterprise signal encryption, an integrated GPS, and automatic switching between the 2 GHz and 1 GHz width channels for optimal link performance.
Features:
- Long Distance Connection
-
- The Ubiquiti AirFiber60US Dubai wireless bridge has a range of up to 1.24 miles.
- Fast Data Throughput
- The dish has a maximum throughput of 1.8 Gb/s at the 60 GHz radio band with a 5 GHz backup radio. It connects to your network via the built-in Gigabit Ethernet port and includes a 24V PoE adapter for power.
- High-Powered Dish
- The Ubiquiti AirFiber60US Dubai and integrated antenna have a 38 dBi signal gain at 60 GHz and 11 dBi at 5 GHz, with a combined transmit power of 25 dBm. It automatically switches between the 1 GHz and 2 GHz channel widths on the 60 GHz link to optimize performance.
- Made for the Outdoors
- Made from aluminum and UV-stabilized plastic, the Ubiquiti AirFiber60US Dubai can operate between -40 to 140°F, has a wind survivability of 125 mph, and has ESD/EMP protection of about 24kV. A pole mounting kit is included.
- Checking Status
- Easy-to-read LEDs indicate the dish’s power, Ethernet, signal, and GPS status.
Specifications
| Wireless | |
| Wireless Frequency Bands | 5 GHz, 60 GHz |
| MU-MIMO Support | Yes |
| Antenna Gain | 11 to 38 dBi |
| Transmit Power | 25 dBm |
| Bluetooth | None |
| Throughput | 1800 Mb/s |
| Interface | |
| Ports | 1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) |
| Security | |
| Wireless Security | WPA2, WPA2-PSK |
| Hardware | |
| Storage Capacity | None |
| Electrical | |
| DC Input Power | 22 to 26 VDC at 0.5 A |
| Power Consumption | 11 W |
| Environmental | |
| Operating Temperature | -40°F to 140°F / -40°C to 60°C |
| Operating Humidity | 5% to 95% |
| General | |
| Mount Options | Pole |
| Range | 1.24 Miles / 2 km |
| Dimensions | 16.26 x 16.26 x 12.6″ / 413 x 413 x 320 mm |
| Weight | 3.97 lb / 1.8 kg |
| Packaging Info | |
| Package Weight | 7.615 lb |
| Box Dimensions (LxWxH) | 22.9 x 19.1 x 6.8″ |
