Description

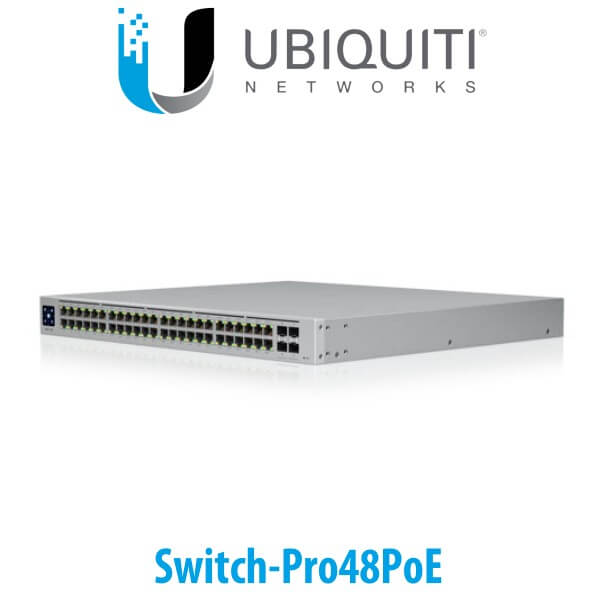

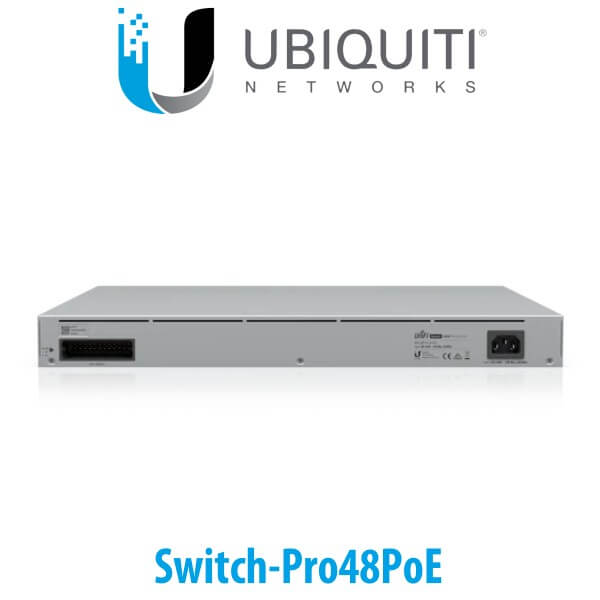

Ubiquiti Switch-Pro48PoE Network Switch Dubai
The Ubiquiti Switch-Pro48PoE Dubai is a fully managed switch with (40) GbE, 802.3at PoE+ RJ45 ports, (8) GbE, 802.3bt PoE++ RJ45 ports, and (4) 10G SFP+ ports. The Ubiquiti Switch-Pro48PoE Dubai combines a rich set of Layer 2 features with advanced Layer 3 tools including inter-VLAN routing, static routing, and a DHCP server. The Ubiquiti Switch-Pro48PoE Dubai is the ideal access layer switch for any UniFi system. It combines up to 600W of PoE power with SmartPower RPS (USP RPS) power redundancy. The switch can also be monitored and configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
Features:
- (1) 1.3″ LCM color touchscreen with AR switch management
- (40) GbE, 802.3at PoE+ RJ45 ports
- (8) GbE, 802.3bt PoE++ RJ45 ports
- (4) 10G SFP+ ports
- (1) USP RPS DC input
- 600W total PoE supply
- Near-silent cooling
- Layer 3 switching features
Technical Specs
| Mechanical | |
|---|---|
| Dimensions | 442.4 x 399.6 x 43.7 mm (17.42 x 15.73 x 1.72″) |
| Weight With Brackets |
6.25 kg (13.78 lb) 6.34 kg (13.98 lb) |
| Interfaces Networking Management |
(48) 10/100/1000 RJ45 Ports (4) 1/10G SFP+ Ethernet Ports Ethernet In-Band |
| Total Non‑Blocking Throughput | 88 Gbps |
| Switching Capacity | 176 Gbps |
| Forwarding Rate | 130.944 Mpps |
| Power Method Universal Input USP RPS DC Input |
100-240VAC/50-60 Hz 52VDC, 11.54A; 11.5VDC, 5.22A |
| Power Supply | AC/DC, Internal, 660W |
| Supported Voltage Range | 100 to 240VAC |
| Max. Power Consumption (Excluding PoE Output) | 60W |
| LEDs System RJ45 Data Ports SFP+ Data Ports |
Status PoE; Speed/Link/Activity Link/Activity |
| ESD/EMP Protection | Air : ± 16 kV, Contact : ± 12 kV |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| Operating Temperature | -5°C to 40°C (23°F to 104°F) |
| Operating Humidity | 10 to 90% Noncondensing |
| Certifications | CE, FCC, IC |
| PoE | |
| Total Available PoE | 600W |
| PoE Interfaces Ports 1-40 Ports 41-48 |
POE+ IEEE 802.3af/at, (pins 1, 2+; 3, 6-) 60W PoE++ IEEE 802.3bt, (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 😎 |
| Max. PoE Wattage per Port by PSE 802.3at 802.3bt |
32W 64W |
| Voltage Range 802.3af Mode | 44-57V |
| Voltage Range 802.3at Mode | 50-57V |
