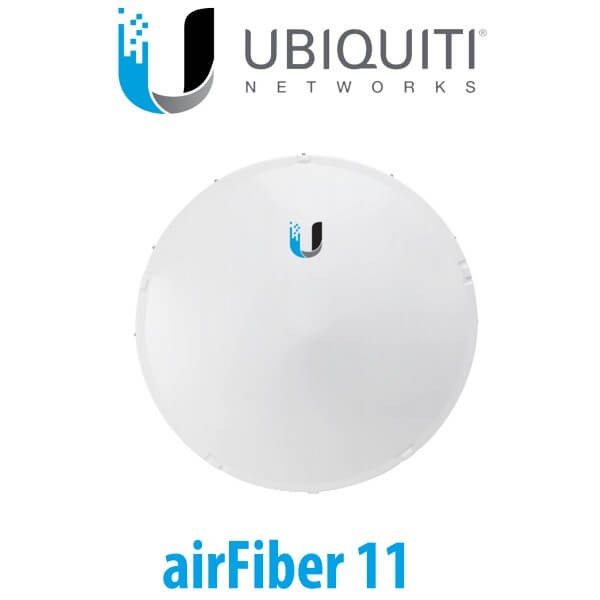

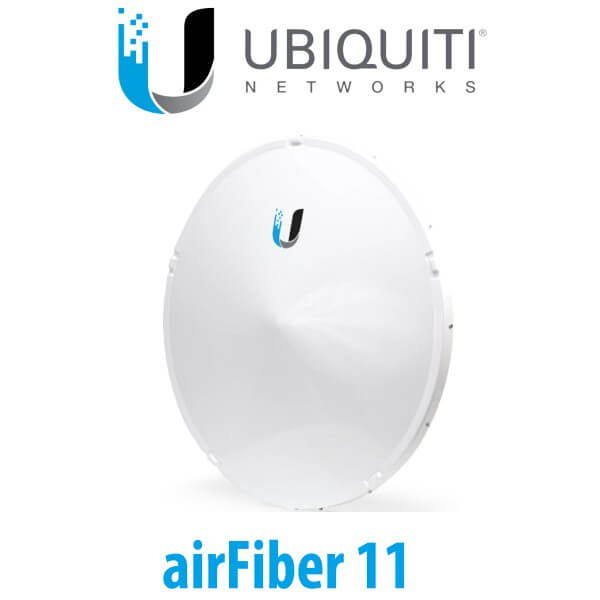

Ubiquiti airFiber 11 Dubai

Incorporating a dish reflector design for excellent beam directivity, the Ubiquiti airFiber 11GHz Dubai features a robust mechanical design using industrial-strength hardware for outdoor application use.

Ask for Quote & Get Low Price

Description

Ubiquiti airFiber 11 Dubai

The Ubiquiti airFiber 11GHz Dubai with integrated radio marks the first-ever invented modular airFiber radio system which is specifically designed for use by 11 GHz licensed frequency market, to ease the congested 5 GHz band. It features a compact design with a highly efficient form factor which delivers amazing wireless gigabit+ performance, low latency, and long range, making it ideal for carrier backhaul, building-to-building enterprise use, or public safety applications.

airFiber 11 GHz Dubai Features:

• 11 GHz frequency operation
• Up to 1.2+ Gbps throughput

• Includes one low-band duplexer for SISO mode (MIMO mode requires an optional second duplexer)
• Integrates with AF-11G35 11 GHz antenna
• Supports separate TX/RX frequencies
• Accepts PoE or DC power

  • Powerful Performance
    • The Ubiquiti airFiber 11GHz Dubai delivers SISO or 2×2 MIMO, dual-polarity performance. The AF-11G35 antenna with the AF-11FX radio can be deployed as endpoints in a backhaul link to deliver bandwidth from a WISP network out to a neighbourhood tower. From there, an airMAX® Sector antenna with a Rocket® radio delivers bandwidth to the WISP’s customers.
  • Upgrade to Licensed, Full‑Duplex 11 GHz
    • For existing Ubiquiti Networks® AF-5 and AF-5U installations, the Ubiquiti airFiber 11GHz Dubai provides a quick, convenient upgrade path to the licensed 11 GHz band. The airFiber AF-11G35 Dubai uses the same antenna mount as the airFiber AF-5 and AF-5U – by simply swapping out an AF-5 or AF-5U with the AF-11G35, you can quickly and easily upgrade an unlicensed, full-duplex 5 GHz link to a licensed, full-duplex 11 GHz link.
  • Carrier-Class Construction
    • Incorporating a dish reflector design for excellent beam directivity, the airFiber AF-11G35 antenna Dubai  features robust mechanical design using industrial-strength hardware for outdoor application use.
  • Plug and Play Integration
    • The Ubiquiti airFiber 11GHz Dubai has a built-in mount for the AF-11FX radio, so installation requires no special tools. Snap the airFiber AF-11FX radio securely into place and mount the antenna; you then have the optimal airFiber X antenna and radio combination for your 11 GHz ptp application.

Ubiquiti airFiber 11GHz- Quick Specifications

Performance
  Frequency band 11 GHz
 Cabling technology 10/100/1000Base-T(X)
Gain 35 dBi  dBi
Features
 Antenna type Directional antenna
Mounting Wall/Pole
Product colour White
Power
Power source type DC, PoE
Input voltage 38 – 56 V
-40 – 55 °C
Packaging content
Quantity 1
