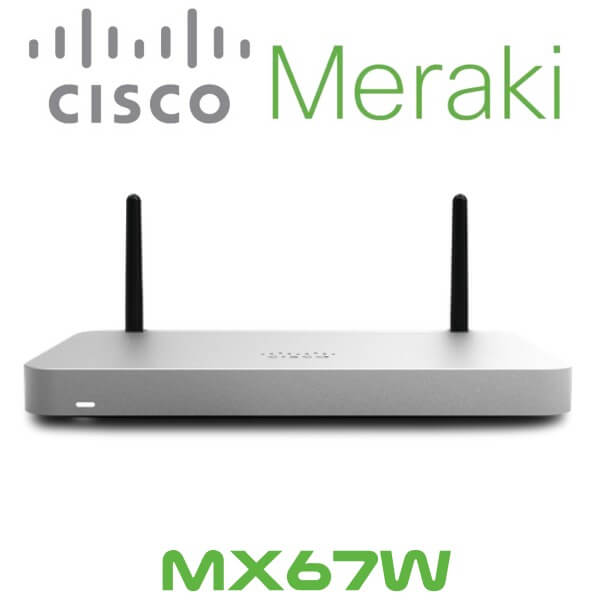

Cisco Meraki MX67W Technical Specifications

General

• Recommended Use Cases : Small branch
• Recommended Clients : 50
• Stateful Firewall Throughput : 450 Mbps
• Advanced Security Throughput : 300 Mbps
• Maximum VPN Throughput : 200 Mbps
• Maximum Concurrent VPN Tunnels : 50
• WAN Interfaces ( Dedicated) : 1 x GbE RJ45 1 x USB (cellular failover1 )
• Dual-purpose : 1 x GbE RJ45
• LAN Interfaces : Fixed 4 x GbE RJ45
• Mounting: Desktop or wall mount
• Dimensions (w x d x h) : 9.4”x 5.1” x 1.1” (239mm x 130mm x 27mm)
• Weight : 1.74 lb (0.7kg)
• Power Supply : 30W DC
• Operating Temperature : 32°F to 113°F (0°C to 45°C)
• Humidity : 5% to 95%

Management

• Managed via the web using the Cisco Meraki dashboard
• Single-pane-of-glass into managing wired and wireless networks
• Zero-touch remote deployment (no staging needed)
• Automatic firmware upgrades and security patches
• Templates based multi-network management
• Org-level two-factor authentication and single sign-on
• Role-based administration with change logging and alerts

Monitoring and Reporting

• Throughput, connectivity monitoring and email alerts
• Detailed historical per-port and per-client usage statistics
• Application usage statistics
• Org-level change logs for compliance and change management
• VPN tunnel and latency monitoring
• Network asset discovery and user identification
• Periodic emails with key utilisation metrics
• Device performance and utilisation reporting
• Netflow support
• Syslog integration

Remote Diagnostics

• Live remote packet capture
• Real-time diagnostic and troubleshooting tools
• Aggregated event logs with instant search

Network and Firewall Services

• Stateful firewall, 1:1 NAT, DMZ
• Identity-based policies
• Auto VPN : Automated site-to-site (IPsec) VPN, for hub-and-spoke or mesh topologies
• Client (IPsec L2TP) VPN
• Multiple WAN IP, PPPoE, NAT
• VLAN support and DHCP services
• Static routing
• User and device quarantine

WAN Performance Management

• Web caching (available on the MX84, MX100, MX250, MX450)
• WAN link aggregation
• Automatic Layer 3 failover (including VPN connections)
• 3G / 4G USB modem failover or single-uplink
• Application level (Layer 7) traffic analysis and shaping
• Ability to choose WAN uplink based on traffic type
• SD-WAN: Dual active VPN with policy-based routing and dynamic path selection
• CAT 6 LTE modem for failover or single-uplink1

Advanced Security Services

• Content filtering (Webroot BrightCloud CIPA compliant URL database)
• Web search filtering (including Google / Bing SafeSearch)
• YouTube for Schools
• Intrusion-prevention sensor (Cisco SNORT® based)
• Advanced Malware Protection (AMP)
• AMP Threat Grid
• Geography-based firewall rules (MaxMind Geo-IP database)

Integrated Wireless

• 1 x 802.11a/n/ac (5 GHz) radio
• 1 x 802.11b/g/n (2.4 GHz) radio
• Max data rate 1.2 Gbps aggregate (MX64W, MX65W), 1.3Gbps aggregate (MX67W, MX68W, MX68CW)
• 2 x 2 MU-MIMO with two spatial streams (MX67W, MX68W, MX68CW)
• 2 external dual-band dipole antennas (connector type: RP-SMA)
• Antenna gain : 3.0 dBi @ 2.4 GHz, 3.5 dBi @ 5 GHz
• WEP, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X authentication
• FCC (US) : 2.412-2.462 GHz, 5.150-5.250 GHz (UNII-1), 5.250-5.350 GHZ (UNII-2), 5.470- 5.725 GHz (UNII-2e), 5.725 -5.825 GHz (UNII-3)
• CE (Europe): 2.412-2.484 GHz, 5.150-5.250 GHz (UNII-1), 5.250-5.350 GHZ (UNII-2) 5.470-5.600 GHz, 5.660-5.725 GHz (UNII-2e)
• Additional regulatory information : IC (Canada), C-Tick (Australia/New Zealand), RoHS

Regulatory

• FCC (US)
• CB (IEC)
• CISPR (Australia/New Zealand)
• PTCRB (US)
• RCM (Australia/New Zealand, Asia Pacific)
• GCF (EU)

Warranty

• Full lifetime hardware warranty with next-day advanced replacement included.
