Meraki MS125-48 Dubai

Meraki MS125-48 Dubai is managed through an elegant, intuitive cloud interface, rather than a cryptic command line. To bring up a Meraki switch, just plug it in; there’s no need for complicated configuration files or even direct physical access to the switch.

Ask for Quote & Get Low Price

Description

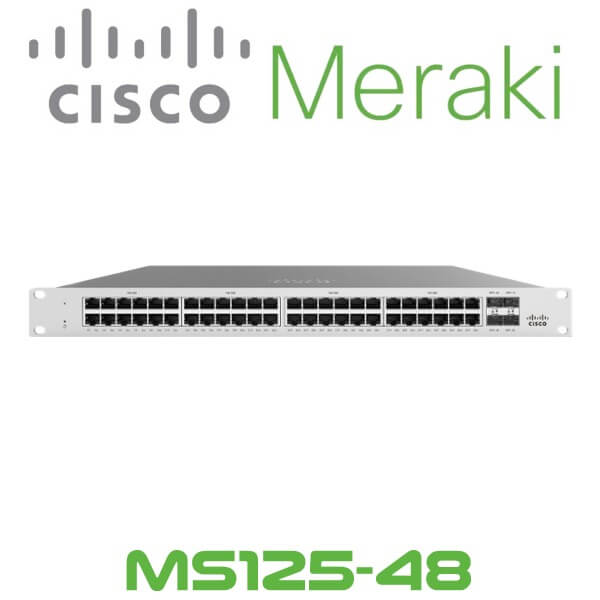

Meraki MS125-48 Network Switch Dubai

Meraki MS125-48 Dubai provides Layer 2 access switching ideal for branch and campus deployments. The MS125 series features a variety of power options designed to meet the diverse needs of large enterprise networks.

Cisco Meraki switches are built from the ground up for cloud management without compromising any of the power and flexibility traditionally found in enterprise-class switches.

Meraki MS125-48 Dubai is managed through an elegant, intuitive cloud interface, rather than a cryptic command line. To bring up a Meraki switch, just plug it in; there’s no need for complicated configuration files or even direct physical access to the switch.

Meraki’s centralized management gives administrators deep visibility into the network and how it’s used. See which switches are near capacity across hundreds of sites. Find all configuration changes made by a certain person with instant search.

Features and Capabilities:

Meraki switches include all of the traditional Ethernet features found in modern enterprise access switches, including:

Branch & Campus Access

  • PoE and PoE+ models available for device level powering
  • Quality-of-Service (QoS) to prioritize mission critical traffic such as voice and video
  • Voice VLAN support for simplified VoIP deployments
  • CDP/LLDP with detailed neighbor discovery and visibility
  • Port Mirroring support for monitoring network traffic at line rate
  • IGMP Snooping to optimize network performance for multicast applications
  • Link Aggregation Control Protocol (LACP) for high-capacity trunking

Network Security

  • IEEE 802.1X, MAB, and Hybrid authentication support for wired access control with RADIUS server monitoring
  • ACL support (IPv4 & IPv6) and MAC whitelisting
  • Single-Host/Multi-Domain/Multi-Host/Multi Authentication
  • Change of Authorization (CoA) and RADIUS accounting support
  • DHCP snooping to prevent users from adding unauthorized DHCP servers on the network
  • Rapid spanning tree, BPDU guard, root guard, loop guard, UDLD and other safeguards to help prevent misconfigurations and reduce convergence time
  • Per-port VLAN configuration
  • Multiple administrative roles with sophisticated security policy management

Network Troubleshooting & Automation

  • Virtual Stacking helps IT admins make configuration changes to hundreds of switch ports in seconds with our intuitive dashboard interface
  • Configuration templates for rapid, zero-touch provisioning and auditing of all sites
  • Network Topology for automatic and interactive network mapping
  • Remote cable testing, packet capture and client discovery
  • Automatic and scheduled firmware upgrades for the complete network

Converged Voice, Video and Data Environments

The Meraki MS125-48 Dubai is designed to unify data, voice, and video onto a single IP backbone. All Meraki switches support rich qualityof-service (QoS) functionality for prioritizing data, voice, and video traffic. The switches support eight class-of-service (CoS) queues on every port, enabling them to maintain end-to-end traffic prioritization.

PoE models provide power to VoIP telephones, IP security cameras, wireless access points (APs), and other IP devices. In addition, using CDP and LLDP, PoE power is intelligently budgeted to maximize the number of PoE clients supported.

Application Layer Visibility

Meraki MS125-48 Dubai includes integrated Layer 7 fingerprinting without the need to purchase additional modules or services. Identify hundreds of applications from business apps to BitTorrent and YouTube.

User fingerprinting allows administrators to quickly identify individual users by device and tune network resources for optimum performance.

Unified Software Architecture

Meraki switches run the same operating system used by all of our products, which allows us to deliver a consistent user experience for network management.

When connected, Meraki MS125-48 Dubai automatically reach out to the Meraki cloud and download the most current configuration. Future updates can be user-scheduled, ensuring the network is kept up-to-date with bug fixes, security updates, and new features.

Technical Specifications

General
Device Type Switch – 48 ports – managed
Enclosure Type Desktop, wall-mountable 1U
Subtype 10 Gigabit Ethernet
Ports 48 x 10/100/1000 + 4 x 10 Gigabit SFP+
Performance Switching capacity: 176 Gbps ¦ Forwarding rate: 130.95 Mpps
Capacity VLANs supported: 4094
MAC Address Table Size 16000 entries
Jumbo Frame Support 9578 bytes
Remote Management Protocol SNMP
Authentication Method RADIUS
Features
  • Flow control
  • Auto-negotiation
  • VLAN support
  • Auto-uplink (auto MDI/MDI-X)
  • IGMP snooping
  • Syslog support
  • Port mirroring
  • E-mail alert
  • Broadcast Storm Control
  • Firmware upgradable
  • Spanning Tree Protocol (STP) support
  • Rapid Spanning Tree Protocol (RSTP) support
  • DHCP snooping
  • Access Control List (ACL) support
  • Quality of Service (QoS)
  • SMS alert
  • STP Root Guard
  • Uni-Directional Link Detection (UDLD)
  • Fanless
  • Link Aggregation Control Protocol (LACP)
  • DHCP client
  • Security lock slot (cable lock sold separately)
  • Crossover detection
  • Single Sign-On (SSO) support
  • Role-Based Access Control (RBAC)
  • Cisco Discovery Protocol
  • STP BPDU Guard
  • Zero-touch provisioning (ZTP)
  • DSCP to CoS Mutation
Compliant Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP)
Expansion / Connectivity
Interfaces 48 x 1000Base-T RJ-45 ¦ 4 x 10Gbit LAN SFP+
Power
Voltage Required AC 120/230 V (47 – 63 Hz)
Power Consumption Operational 42 Watt
Miscellaneous
Rack Mounting Kit Included
MTBF 1,628,120 hours
Compliant Standards CSA, IC, FCC, RoHS, RCM
Dimensions & Weight
Width 17.3 in
Depth 9.8 in
Height 1.7 in
Weight 9.26 lbs
Manufacturer Warranty
Service & Support Limited warranty – advance parts replacement – lifetime – response time: next business day
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 5 – 95% (non-condensing)
