Meraki MS350-48LP Dubai

Cisco Meraki switches are built from the ground up to be easy to manage without compromising any of the power and flexibility traditionally found in enterprise-class switches.

Ask for Quote & Get Low Price

Description

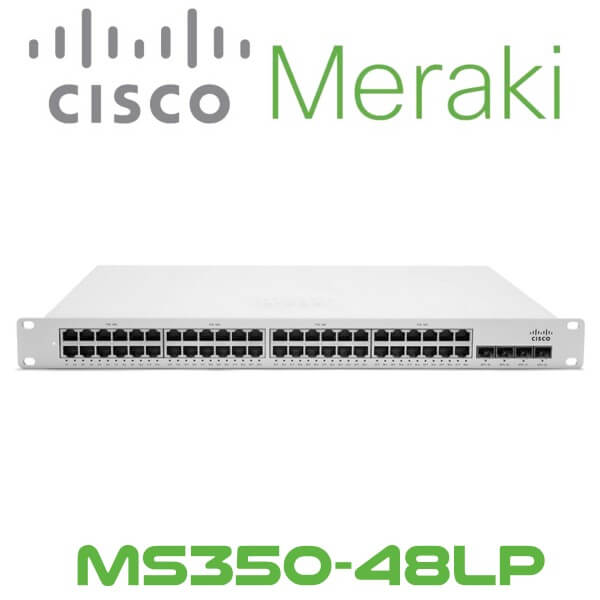

Meraki MS350-48LP Network Switch Dubai

The Meraki MS350-48LP Dubai is a switch that can provide reliable and high bandwidth access switching ideal for deploying in campus networks. With high-speed stacking capabilities and 10G SFP+ uplinks built in on every model, redundancy and performance are guaranteed. This Meraki MS350-48LP Dubai also supports options for multigigabit, UPoE, redundant, field-replaceable power supplies for mission-critical networks. Cisco Meraki switches are built from the ground up to be easy to manage without compromising any of the power and flexibility traditionally found in enterprise-class switches.

MS350-48LP Key Features:

  • Gigabit access switching with 24- and 48- port models and optional PoE+ support up to 740W
  • Multigigabit access switch model with 24-ports and UPoE for 802.11ac Wave 2 access points and other high bandwidth applications
  • 4 x 10G SFP+ uplink interfaces on all models
  • Dual stacking interfaces with up to 160G of bandwidth
  • Support for field replaceable, redundant power supplies
  • Non-blocking switch backplane with up to 272 Gbps of switching capacity
  • 6 configurable QoS queues for converged voice, video, and data applications
  • Low power consumption, quiet acoustic design, and shallow rack depth options, enabling flexible deployment in wiring closets as well as offices and classrooms
  • Integrated mounting brackets for rack mounting
  • Lifetime hardware warranty and advanced replacement at no additional cost

Technical Specifications

Dimensions and Interfaces

  • Physical Dimensions : 1.74” x 19.08” x 20.4” (4.44cm x 48.46cm x 51.81cm
  • Weight : 13.82 lb (6.27 kg)
  • Interface :  48 x 10/100/1000BASE-T Ethernet RJ45 with with auto negotiation and auto-MDIX3, 4 x SFP+ 10G uplink 2 x stacking ports
  • Switching Capacity : 176 Gbps
  • Stacking Bandwidth : 160G (dual interface)

Power Options and Specifications

  • Idle / Full Load Power : 63 / 478 W
  • Available PoE+ Power : 370 W
  • Power Supply Configuration : Hot-swappable
  • Supported Power Supply : 2 x 640W PSU

Management

  • Managed via the Web with the Meraki cloud management platform
  • Integrated with Meraki Wireless and complete portfolio of IT products and solutions
  • Zero-touch remote provisioning (no staging needed)
  • Detailed historical per-port and per-client usage statistics
  • DHCP, client, and hostname fingerprinting
  • SNMPd and SYSLOG support for integration with other network management solutions
  • Automatic firmware upgrades with scheduling control

Remote Diagnostics

  • Email, SMS and Mobile push notification alerts
  • Cable testing and link failure detection with alerting
  • Live remote packet capture
  • Dynamic and interactive network discovery and topology
  • Combined event and configuration change logs with instant search

Stacking

  • Physical stacking of up to 8 switches with 80 Gbps stack bandwidth on all models
  • Virtual Stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration

Ethernet Switching Capabilities

  • 802.1p Quality of Service, 8 queues (w/ 6 configurable for DSCP-to-CoS mapping)
  • 802.1Q VLAN and trunking support for up to 4,094 VLANs
  • 802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP)
  • Broadcast storm control
  • 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP)
  • 802.3ad Link aggregation with up to 8 ports per aggregate, Multichassis aggregates supported on stacked switches
  • Port mirroring
  • IGMP snooping for multicast filtering
  • MAC forwarding entries: 96K, 512K on MS350-24X

Security

  • Integrated two-factor authentication for Dashboard management
  • Role-based access control (RBAC) with granular device and configuration control
  • Corporate wide password policy enforcement
  • IEEE 802.1X RADIUS and MAB, hybrid authentication and RADIUS server testing
  • Multi-Domain/Multi-Host/Multi Authentication
  • Port security: Sticky MAC, MAC whitelisting
  • DHCP snooping, detection and blocking, Dynamic ARP Inspection
  • STP Enhancements: BPDU guard, Root guard, Loop guard
  • IPv4 and IPv6 ACLs

Performance

  • Switching capacity: 128Gbps on 24-port models, 176Gbps on 48-port models
  • Forwarding rate: 95.24mpps on 24-port models, 127.98mpps on 48-port models
  • Jumbo frame support (9600 byte Ethernet frame)
  • Flow control support

Layer 3

  • Static routing, OSFPv2
  • Multicast routing
  • Warm Spare (VRRP)2
  • DHCP Relay, DHCP Serve

Power

  • Power input : 100 – 240 VAC, 47-63 Hz
  • Power consumption : 56 – 888W

Environment

  • Operating temperature : -5°C to 50°C
  • Humidity : 5 to 95% non-condensing
  • Variable speed fans

Mounting

  • 1U rack-mountable with included rack mount hardware
  • 2-post front mounting options available

Regulatory

  • CE (Europe)

Warranty

  • Full lifetime hardware warranty with next-day advanced replacement included
