Meraki MS210-24P Dubai

Meraki MS210-24P Dubai is the industry’s only switches featuring integrated Layer 7 application and client fingerprinting and analysis. Hundreds of applications are automatically identified and reported, from business apps to BitTorrent and YouTube, so administrators can see where resources are spent.

Ask for Quote & Get Low Price

Description

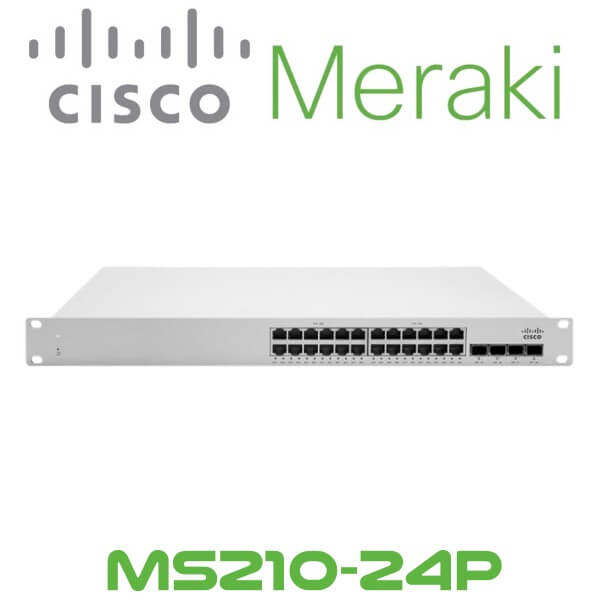

Meraki MS210-24P Network Switch Dubai

Meraki MS210-24P Dubai provides Layer 2 access switching for branch and small campus locations. The MS210-24P includes 4 x 1G SFP uplinks and physically stacks with the MS225 to gain access to its 10G uplink. This model also supports an optional, rack-mountable PSU (Cisco RPS-2300) for power redundancy requirements.

With 5 different models, capable of providing up to 740W of PoE+ power over a variety of port densities, including SFP capable uplinks, the MS210 line is fully ready to support future wireless infrastructure deployments across a variety of different environments.

Product Highlights

  • 24 x gigabit ethernet PoE/PoE+ interfaces
  • 4 x 1G SFP+ uplink interfaces
  • Built-in dual stacking interfaces with up to 80G bandwidth (stacking cables sold separately)
  • Non-blocking switch backplane with 128 Gbps of switching capacity
  • 6 dedicated QoS queues for converged voice, video, and data applications
  • 370 watt PoE budget with PoE+ support and dynamic power allocation for powering APs, phones, cameras, and other PoE enabled devices
  • Low power consumption and shallow rack depth options, enabling flexible deployment in wiring closets as well as offices and classrooms
  • Integrated mounting brackets for rack and desk mounting

Features:

Centrally managed from the cloud

The Cisco Meraki Cloud Networking architecture enables Plug and Play branch deployments and provides centralized visibility and control across any number of distributed locations. The Meraki MS210-24P Dubai is the industry’s cloud managed switch, combining the benefits of cloud-based centralized management with a powerful, reliable access platform. With cloud management, thousands of switch ports can be configured and monitored instantly, over the web. Provision remote sites without on-site IT, deploy network-wide configuration changes, and easily manage campus and distributed networks without training or dedicated staff.

Layer 7 application and client visibility

Meraki MS210-24P Dubai is the industry’s only switches featuring integrated Layer 7 application and client fingerprinting and analysis. Hundreds of applications are automatically identified and reported, from business apps to BitTorrent and YouTube, so administrators can see where resources are spent.

QoS for voice and video

Deploy latency-sensitive applications such as voice and video by guaranteeing network performance. Voice and QoS features such as per-VLAN and protocol-based prioritization, as well as flexible QoS assignments, give intuitive, granular control.

Enterprise security

Extending security down to the port level has never been easier. Meraki MS210-24P Dubai integrates seamlessly with enterprise-grade security systems using 802.1x. Define access policies, segregate guest devices, and quarantine entire environments right from the dashboard.

Technical Specs:

Miscellaneous

Included Accessories Feet set
Rack Mounting Kit Included
MTBF 391,648 hours
Compliant Standards CSA, IC, FCC, RoHS, RCM

Dimensions & Weight

Width 19.1 in
Depth 9.8 in
Height 1.7 in
Weight 8.18 lbs

Manufacturer Warranty

Service & Support Limited warranty – advance parts replacement – lifetime – response time: next business day

Environmental Parameters

Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 5 – 95% (non-condensing)

General

Device Type Switch – 24 ports – managed – stackable
Enclosure Type Desktop, rack-mountable 1U
Subtype Gigabit Ethernet
Ports 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink)
Power Over Ethernet (PoE) PoE+
PoE Budget 370 W
Performance
  • Stacking bandwidth : 80 Gbps
  • Switching capacity : 128 Gbps
  • Forwarding rate : 41.67 Mpps
MAC Address Table Size 16K entries
Jumbo Frame Support 9578 bytes
Remote Management Protocol SNMP
Authentication Method RADIUS
Features
  • Flow control
  • Auto-negotiation
  • ALERT notification
  • Auto-uplink (auto MDI/MDI-X)
  • Syslog support
  • Broadcast Storm Control
  • Spanning Tree Protocol (STP) support
  • Rapid Spanning Tree Protocol (RSTP) support
  • DHCP snooping
  • Access Control List (ACL) support
  • Fanless
  • LLDP support
  • DHCP relay
  • Link Aggregation Control Protocol (LACP)
  • Port Security
  • DHCP client
  • Static routing
  • 802.1x authentication
  • Crossover detection
  • Bridge protocol data unit (BPDU)
  • Role-Based Access Control (RBAC)
  • Root Guard
Compliant Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.3at

Expansion / Connectivity

Interfaces
  • 24 x 1000Base-T RJ-45 PoE – 30 W
  • 4 x 1000Base-X SFP uplink
  • 2 x network stack device

Power

Power Device Internal power supply
Voltage Required AC 120/230 V (50 – 60 Hz)
