Meraki MS355-24X2 Dubai

The Meraki MS355-24X2 Dubai supports 40G or 10G uplinks, physical stacking, up to 60W of port power with UPoE, and field replaceable power supplies/fans.

Ask for Quote & Get Low Price

Description

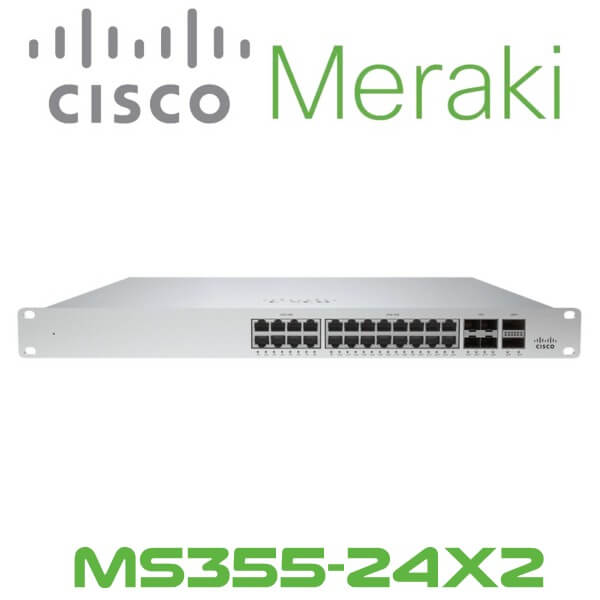

Meraki MS355-24X2 Network Switch Dubai

The Meraki MS355-24X2 Dubai series provides full 10G multi-gigabit (mGig) access switching for demanding enterprise and campus environments.
The Meraki MS355-24X2 Dubai series features a high mGig port density for 802.11ax wireless access points, servers, and workstations. The Meraki MS355-24X2 Dubai supports 40G or 10G uplinks, physical stacking, up to 60W of port power with UPoE, and field replaceable power supplies/fans.
Meraki Network Switch Dubai has a centralized management platform which gives administrators granular visibility into their network. The dashboard helps you keep track of every configuration change in your network with detailed event and change logs.
The Meraki MS355-24X2 Dubai features 24 x mGig ports.

Features:

INDUSTRY LEADING CLOUD MANAGEMENT

Cloud management has many benefits that make it easier to build networks large and small:

  • Automatic email alerts from power loss, downtime, excessive Layer 1 errors, or configuration changes
  • Powerful remote diagnostic tools such as packet capture to help isolate and troubleshoot network issues
  • Role-based administration
  • Firmware upgrades and enhancements from the Meraki cloud
  • Virtual Stacking enables switch port configuration changes on the dashboard interface without the need to physically stack switches
  • Incredible network transparency with application, operating system, client, and hostname visibility
  • Zero-touch provisioning for rapid deployment across sites
  • Available models with up to 24 full 10G mGig ports for 802.11ax access points, servers, and workstations
  • Multi-gigabit (mGig) ports support 100M/1/2.5/5/10G of bandwidth over copper cabling
  • Access switching with up to 48 ports and 740W of UPoE support
  • 40G or 10G uplink interfaces on all models
  • Dual stacking interfaces with 400 Gbps of bandwidth
  • Support for field replaceable, redundant power supplies
  • Up to 688 Gbps of switching capacity
  • 6 configurable QoS queues for converged voice, video, and data applications
  • Integrated mounting brackets for rack mounting
  • Lifetime hardware warranty and advanced replacement at no additional cost

MS355-24X2 – Technical Specs:

Rack Mounting Kit Included
MTBF 341,154 hours
Compliant Standards CSA, C-Tick, IC, RoHS

Dimensions & Weight

Width 19.1 in
Depth 20.3 in
Height 1.7 in
Weight 13.01 lbs

Manufacturer Warranty

Service & Support Limited warranty – replacement – lifetime – response time: next day

Environmental Parameters

Min Operating Temperature 32 °F
Max Operating Temperature 113 °F
Humidity Range Operating 5 – 95% (non-condensing)

General

Device Type Switch – 24 ports – L3 – managed – stackable
Enclosure Type Desktop, rack-mountable 1U
Subtype Gigabit Ethernet
Ports 24 x 1/2.5/5/10GBase-T + 4 x 10 Gigabit SFP+ + 2 x 40 Gigabit QSFP+
Power Over Ethernet (PoE) UPOE
Performance
  • Switching capacity : 640 Gbps
  • Forwarding rate : 476 Mpps
Capacity Tagged VLANs : 4096
MAC Address Table Size 32K entries
Jumbo Frame Support 9600 bytes
Max Units In A Stack 8
Routing Protocol
  • IGMP
  • VRRP
  • OSPFv2
  • Static IP routing
Remote

Management Protocol

SNMP
Authentication Method RADIUS
Features
  • Flow control
  • Auto-negotiation
  • ARP support
  • VLAN support
  • Syslog support
  • Port mirroring
  • E-mail alert
  • Broadcast Storm Control
  • Spanning Tree Protocol (STP) support
  • Rapid Spanning Tree Protocol (RSTP) support
  • DHCP server
  • SMS alert
  • Dynamic ARP Inspection (DAI)
  • Uni-Directional Link Detection (UDLD)
  • LLDP support
  • DHCP relay
  • static routing
  • crossover detection
  • Bridge protocol data unit (BPDU)
  • Role-Based Access Control (RBAC)
  • Push notification
  • Root Guard
  • Loop Guard
Compliant Standards
  • IEEE 802.1D
  • IEEE 802.1Q
  • IEEE 802.1p
  • IEEE 802.3af
  • IEEE 802.3ad (LACP)
  • IEEE 802.1w
  • IEEE 802.1x
  • IEEE 802.1ab (LLDP)
  • IEEE 802.3at

Expansion / Connectivity

Interfaces
  • 24 x 100/1000/2.5G/5G/10GBase-T RJ-45 UPOE
  • 4 x 10Gbit LAN SFP+ uplink
  • 2 x 40Gbit LAN QSFP+ uplink
  • 2 x 100Gbit LAN QSFP28 stacking

Power

Power Device Internal power supply – hot-plug
Power Provided 740 Watt
Voltage Required AC 120/230 V (50/60 Hz)
Power

Consumption Operational

1793 Watt
