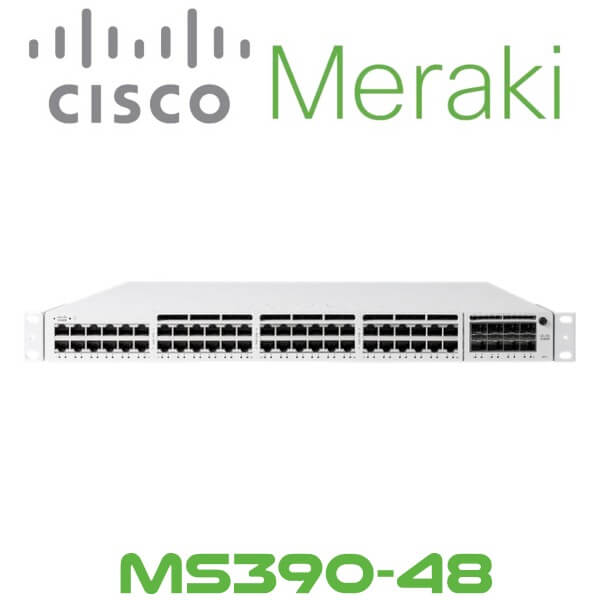

Meraki MS390-48 Dubai

Reviews

Meraki MS390-48 Dubai

The Meraki MS390-48 Dubai is integrated under the Meraki dashboard to provide a simply powerful solution to the most demanding wired access applications.

Ask for Quote & Get Low Price

Description

Meraki MS390-48 Network Switch Dubai

The Meraki MS390-48 Dubai addresses the most demanding enterprise applications by combining the simplicity of the Meraki dashboard with powerful switching hardware. The MS390-48 delivers resiliency with fast stack convergence and StackPower. The Meraki MS390-48 Dubai provides Adaptive Policy using an over-the-wire tag which segments traffic into security groups to deliver scalable security. The Meraki MS390-48 Dubai is integrated under the Meraki dashboard to provide a simply powerful solution to the most demanding wired access applications.

Features:

  • 48 x gigabit ethernet interfaces
  • 256 Gbps of switching capacity
  • Layer-3
  • 40G or 10G modular uplink options on all models
  • Dual Dedicated 120G Hardware Stacking Ports
  • StackPower Management and Ethernet Switching Capabilities
  • Physically stack up to 8 switches with 480 Gbps of stacking bandwidth
  • Secure Connect * (Available in a future software release)
  • Adaptive Policy * (Available in a future software release, Advanced License required)

Technical Specifications

General
Device Type Switch – 48 ports – L3 – managed – stackable
Enclosure Type Rack-mountable 1U
Subtype Gigabit Ethernet
Ports 48 x 10/100/1000
Performance Switching capacity: 256 Gbps ¦ Stacking bandwidth: 480 Gbps ¦ Forwarding rate: 190.48 Mpps
MAC Address Table Size 32K entries
Max Units In A Stack 8
Routing Protocol OSPF, VRRP, OSPFv2, static IP routing, RSTP, STP
Remote Management Protocol DHCP, IPv4, IPv6, RSTP, RADIUS
Authentication Method RADIUS
Features
  • Auto-negotiation
  • IGMP snooping
  • Syslog support
  • Port mirroring
  • E-mail alert
  • Broadcast Storm Control
  • Per-VLAN Spanning Tree (PVST)
  • DHCP snooping
  • Access Control List (ACL) support
  • Quality of Service (QoS)
  • DHCP server
  • Uni-Directional Link Detection (UDLD)
  • DHCP relay
  • Port Security
  • Hot swappable fan
  • Cisco StackPower technology
  • Crossover detection
  • Cloud managed
  • Role-Based Access Control (RBAC)
  • Root Guard
  • Loop Guard
  • MAC Access Bypass (MAB)
  • BPDU Guard
  • Cisco Discovery Protocol (CDP)
Compliant Standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP)
Expansion / Connectivity
Interfaces
  • 48 x 1000Base-T RJ-45
  • 2 x network stack device
  • 1 x management
Expansion Slots 1 (total) / 1 (free) x expansion slot
Power
Power Device Internal power supply – hot-plug
Installed Qty 1
Max Supported Qty 2
Power Redundancy Optional
Power Redundancy Scheme 1+1 (with optional power supply)
Power Provided 350 Watt
Voltage Required AC 120/230 V (50 – 60 Hz)
Power Consumption Operational 109.9 Watt
Power Consumption Stand by 83.9 Watt
Miscellaneous
Rack Mounting Kit Included
MTBF 305,870 hours
Compliant Standards
  • CISPR 22 Class A
  • CISPR 24
  • EN 61000-3-2
  • EN 61000-3-3
  • EN55024
  • AS/NZS 60950-1
  • ICES-003 Class A
  • RoHS
  • UL 60950-1
  • IEC 60950-1
  • EN 60950-1
  • CNS 13438
  • EN 300 386 V1.6.1
  • EN 55022 Class A
  • FCC CFR47 Part 15 A
  • KN32, KN35
  • EN 55032
  • CISPR 32 Class A
  • CAN/CSA-C22.2 No. 60950-1
  • VCCI-CISPR 32:2016 Class A
  • TCVN 7189 Class A
  • TCVN 7317
Dimensions & Weight
Width 17.5 in
Depth 17.7 in
Height 1.7 in
Weight 16.42 lbs
Manufacturer Warranty
Service & Support Limited warranty – replacement – lifetime – response time: next day
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 113 °F
Humidity Range Operating 5 – 95%
