Meraki MR42E Dubai

Reviews

Meraki MR42E Dubai

The Cisco Meraki MR42E Dubai includes an integrated Layer 7 packet inspection, classification, and control engine, enabling you to set QoS policies based on traffic type. Prioritize your mission critical applications, while setting limits on recreational traffic, e.g., peer-to-peer and video streaming.



Ask for Quote & Get Low Price

Description

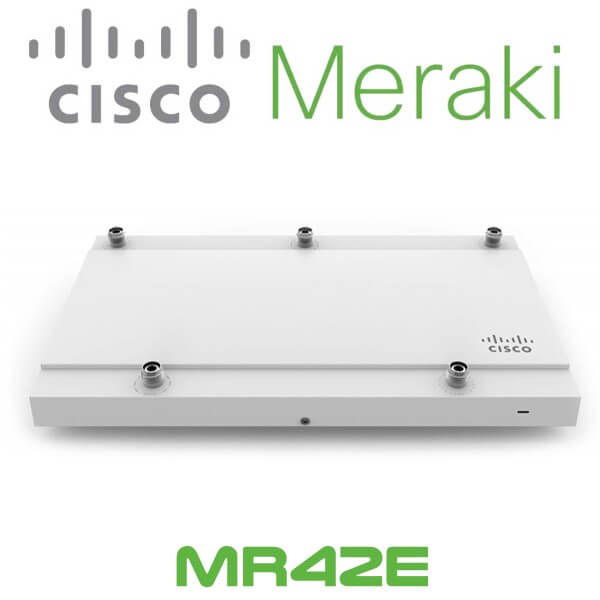

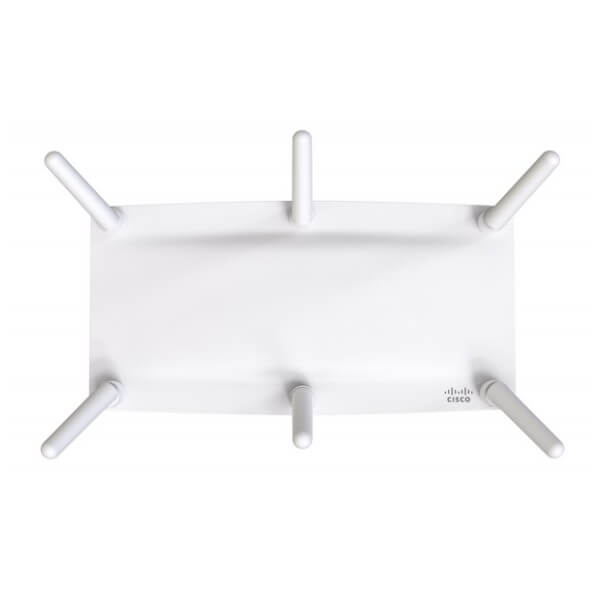

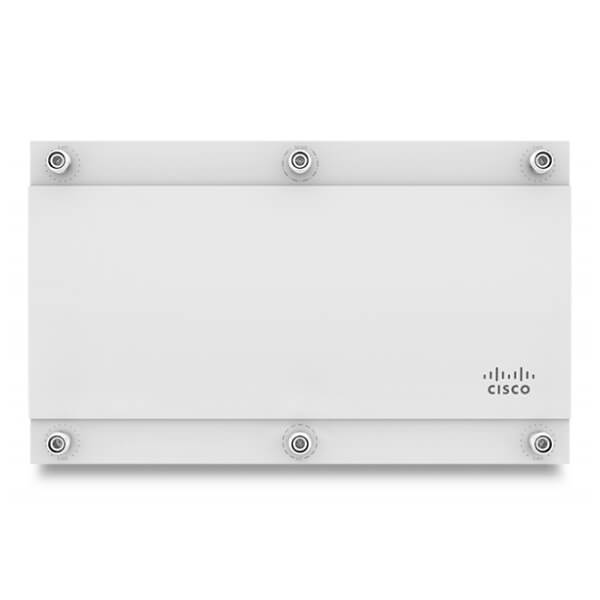

Cisco Meraki MR42E Access Point Dubai

Cisco Meraki MR42E Dubai is a Dual-band, 802.11ac Wave 2 access point with external antenna connectors for general-purpose Wi-Fi and focused coverage. General purpose, cloud-managed 802.11ac wireless. Cisco Meraki MR42E is a cloud-managed 3×3 MIMO 802.11ac Wave 2 access point.

Designed for general purpose deployments in offices, schools, shops, and hotels, the MR42E provides performance, security, and manageability. Meraki wifi Access Point Dubai provides a maximum 1.9 Gbps frame rate with concurrent 802.11ac Wave 2 and 802.11n 3×3:3 MIMO radios, and security and spectrum visibility via a third radio dedicated to 24×7 WIDS/WIPS and automated RF optimization. An integrated Bluetooth low energy (BLE) radio delivers Beacon functionality and BLE device scanning. Cisco Meraki MR42E  Dubai supports a variety of smart, auto-detectable external antenna that can deliver both focused, targeted coverage in challenging RF scenarios as well as broader coverage in a variety of environments, including those with very high ceilings. These antenna include panel and panel downtilt omni-directionals, wide patch, and narrow patch options. The combination of cloud management, 802.11ac Wave 2, full-time RF environment scanning, and an integrated Bluetooth technology delivers the high throughput, reliability, and flexibility required by the most demanding business applications like voice and high-definition streaming video, both today and tomorrow.

Features :

Aggregate data rate of up to 1.9 Gbps

Cisco Meraki MR42E Dubai Access Point Dubai boasts of a 5 GHz 3×3:3 802.11ac Wave 2 radio and a 2.4 GHz 2×2:2 802.11ac radio offer a combined aggregate dual-band data rate of 1.9 Gbps. Supports up to 1,300 Mbps in the 5 GHz band (with 3SS/VHT80 clients) and 600 Mbps in the 2.4 GHz band (with 3SS/VHT40 clients). Technologies like transmit beamforming and enhanced receive sensitivity allow the MR42E to support a higher client density than typical enterprise-class access points, resulting in fewer required Access Point s for a given deployment.

Dedicated third radio delivers 24×7 wireless security and RF analytics

Cisco Meraki MR42E Dubai has a sophisticated, dedicated dual-band third radio scans the environment continuously, characterizing RF interference and containing wireless threats like rogue access points. No more need to choose between wireless security, advanced RF analysis, and serving client data: a dedicated third radio means that all three occur in real-time, without any impact to client traffic or Access Point throughput.

Bluetooth low energy Beacon and scanning

An integrated Bluetooth low energy radio provides seamless deployment of BLE Beacon functionality and effortless visibility of BLE devices within range of the Access Point . The MR42E enables the next generation of location-aware applications and engagement right out of the box.

Automatic cloud-based RF optimization

The MR42E’s sophisticated, automated RF optimization means that there is no need for the dedicated hardware and RF expertise typically required to tune a wireless network. The real-time full spectrum RF analysis data collected by the dedicated third radio is continuously fed back to the Meraki cloud. The Meraki cloud then automatically tunes the MR42E’s channel selection, transmit power, and client connection settings for optimal performance under the most challenging RF conditions.

Secure wireless environments using 24×7 Air Marshal

No longer choose between a wireless intrusion prevention system (WIPS) and serving client data: thanks to the dedicated third radio, Air Marshal, a highly optimized built-in WIPS, scans continuously for threats and remediates them as commanded, all without disrupting client service. Alarms and optional auto-containment of rogue Access Point s are configured via flexible remediation policies, ensuring optimal security and performance in even the most challenging wireless environments.

Integrated enterprise security and guest access

The Cisco Meraki MR42E Dubai features integrated, easy-to-use security technologies to provide secure connectivity for employees and guests alike. Advanced security features such as AES hardware-based encryption and WPA2-Enterprise authentication with 802.1X and Active Directory integration provide wire-like security while still being easy to configure. One-click guest isolation provides secure, Internet-only access for visitors. Our policy firewall (Identity Policy Manager) enables group or device-based, granular access policy control. Meraki Teleworker VPN makes it easy to extend the corporate LAN to remote sites, without requiring all clients and devices to have client VPN software. PCI compliance reports check network settings against PCI requirements to simplify secure retail deployments.

Application-aware traffic shaping

The Cisco Meraki MR42E Dubai includes an integrated Layer 7 packet inspection, classification, and control engine, enabling you to set QoS policies based on traffic type. Prioritize your mission critical applications, while setting limits on recreational traffic, e.g., peer-to-peer and video streaming.

Voice and Video optimization

Industry standard QoS features are easy to configure like Wireless Multi Media (WMM) Access Categories, 802.1p, and DSCP.

Low-profile, environmentally friendly design

Despite its robust feature set, the Meraki Wi-Fi Access Point Dubai is packaged in a sleek, low-profile enclosure that blends seamlessly into any environment. Energy-saving components and intelligent power management techniques deliver best-in-class energy efficient performance and mean that pollution, material utilization, and your electric bill are kept to a minimum.

Self-configuring, self-optimizing, self-healing

When plugged in, Cisco Wi-Fi Dubai automatically connects to the Meraki cloud, downloads its configuration, and joins the appropriate network. The Cisco Meraki MR42E Dubai then self-optimizes, determining the ideal channel, transmit power, and client connection parameters. As necessary, it will also self-heal, responding automatically to switch failures and other errors.

Advanced analytics

Drill down into the details of your network usage with highly granular traffic analytics. Extend your visibility into the physical world with journey tracking through location analytics. View visitor numbers, dwell time, repeat visit rates, and track trends. View real-time, per-radio spectrum analytics to troubleshoot nearby interference. Analyze Access Point events, client utilization, and bandwidth usage on a per-radio basis. Fully customize your analysis with raw data available via simple Access Point Is

Meraki MR42E Specifications

Radios

  • 4 GHz 802.11b/g/n client access radio
  • 5 GHz 802.11a/n/ac client access radio
  • 4 GHz & 5 GHz dual-band WIDS/WIPS, spectrum analysis, & location analytics radio
  • 4 GHz Bluetooth radio with Bluetooth Low Energy
    (BLE) and Beacon support
  • Concurrent operation of all four radios
  • Max dual–radio aggregate frame rate 1.9 Gbit/s
  • Supported frequency bands (country-specific restrictions apply):
    412-2.484 GHz
    5.150-5.250 GHz (UNII-1)
    5.250-5.350 GHZ (UNII-2)
    5.470-5.600, 5.660-5.725 GHz (UNII-2e)
    5.725 -5.825 GHz (UNII-3)

Antenna

  • Integrated omni-directional antennas (5 dBi gain at 2.4 GHz, 5.5 dBi gain at 5 GHz)
  • Individual antenna elements for each radio

802.11ac Wave 2 and 802.11n Capabilities

  • 3 x 3 multiple input, multiple output (MIMO) with three spatial streams
  • SU-MIMO and MU-MIMO support
  • Maximal ratio combining (MRC) & beamforming
  • 20 and 40 MHz channels (802.11n), 20, 40, and 80 MHz channels (802.11ac)
  • Up to 256-QAM on both 2.4 GHz & 5 GHz
  • Packet aggregation

Power

  • Power over Ethernet : 37 – 57 V (802.3at required with functionality-restricted 802.3af mode supported)
  • Alternative 12 V DC input
  • Power consumption : 20W max (802.3at)
  • Power over Ethernet injector and DC adapter sold separately

LED Indicators

  • Multi color & multi function status indicator

Interfaces

  • 1x 10/100/1000Base-T Ethernet (RJ45)
  • 1x DC power connector (5.5 mm x 2.5 mm, center positive)

Mounting

  • All standard mounting hardware included
  • Desktop, ceiling, and wall mount capable
  • Ceiling tile rail (9/16, 15/16 or 1 ½” flush or recessed rails), assorted cable junction boxes
  • Bubble level on mounting cradle for accurate horizontal wall mounting

Physical Security

  • Two security screw options (included)
  • Kensington lock hard point
  • Concealed mount plate with anti-tamper cable bay

Environment

  • Operating temperature : 32 °F to 104 °F (0 °C to 40 °C)
  • Humidity : 5 to 95% non-condensing

Physical Dimensions

  • 0” x 6.1” x 1.5” (253.4 mm x 155.8 mm x 37.1 mm), not including deskmount feet or mount plate
  • Weight : 25 oz (0.7kg)

Mobility

  • PMK and OKC credential support for fast Layer 2 roaming
  • Distributed or centralized layer 3 roaming

Security

  • Integrated Layer 7 firewall with mobile device policy management
  • Real-time WIDS/WIPS with alerting and automatic rogue Access Point containment with Air Marshal
  • Flexible guest access with device isolation
  • VLAN tagging (802.1q) and tunneling with IPsec VPN
  • PCI compliance reporting
  • WEP, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X
  • EAccess Point -TLS, EAccess Point -TTLS, EAccess Point -MSCHAccess Point v2, EAccess Point -SIM
  • TKIP and AES encryption
  • Enterprise Mobility Management (EMM) & Mobile Device Management (MDM) integration

Quality of Service

  • Advanced Power Save (U-Access Point SD)
  • WMM Access Categories with DSCP and 802.1p support
  • Layer 7 application traffic identification and shaping

Analytics

  • Embedded location analytics reporting and device tracking
  • Global L7 traffic analytics reporting per network, per device, per application
