Meraki MS390-24P Dubai

The Meraki MS390-24P Dubai addresses the most demanding enterprise applications by combining the simplicity of the Meraki dashboard with powerful switching hardware.

Ask for Quote & Get Low Price

Description

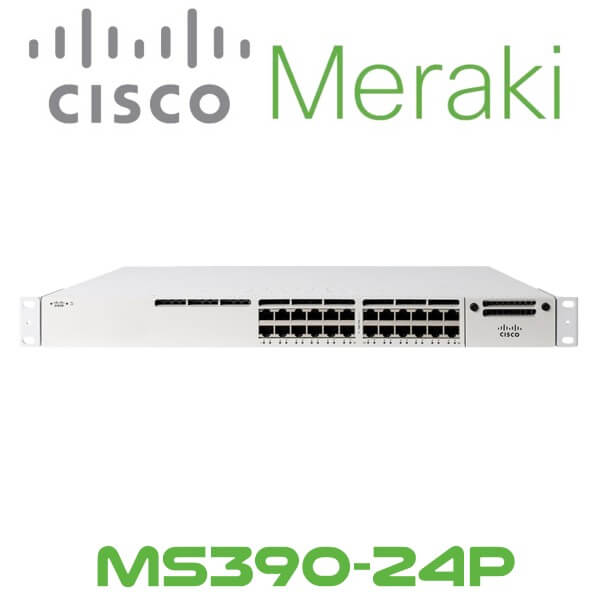

Meraki MS390-24P Network Switch Dubai

The Meraki MS390-24P Dubai addresses the most demanding enterprise applications by combining the simplicity of the Meraki dashboard with powerful switching hardware.
To satisfy high-bandwidth applications and the deployment of high-speed 802.11ax/wifi-6 access points, the MS390 series provides multigigabit ports, 480G stacking, and modular 10/40G uplinks. The Meraki MS390-24P Dubai  delivers resiliency with fast stack convergence and StackPower. The Meraki MS390-24P Dubai provides Adaptive Policy using an over-the-wire tag which segments traffic into security groups to deliver scalable security. The MS390 is integrated under the Meraki dashboard to provide a simply powerful solution to the most demanding wired access applications.
Adaptive Policy provides simple & scalable security policies to segment traffic using Security Groups. Security Groups are created in the dashboard using natural language such as “IOT device” & “Guest.” The security policy intent (e.g., Permit or Deny) is then simply provisioned between Security Groups which results in the segmentation of each group’s traffic. By making security policy management intuitive and scalable relative to legacy IP-address based Access Control Lists, Adaptive Policy empowers operators to confidently secure their network traffic independent of future network changes.
By pooling & distributing power across MS390s using a series of StackPower cables, StackPower provides simple and resilient power distribution across the stack.
All Meraki switches are managed through an elegant, intuitive cloud-based interface, rather than cryptic command line.
To bring up a Meraki switch, simply plug it in. Meraki switches do not require CLI for switch configuration or port management.
Meraki Network Switch Dubai has a centralized management platform which gives administrators granular visibility into their network. Our dashboard helps you keep track of every configuration change in your network with our detailed event and change logs.

Features:

  • Layer 3
  • 40G or 10G modular uplink options
  • Dual Dedicated 120G Hardware Stacking Ports
  • Support for field replaceable, redundant power supplies
  • 208 Gbps of switching capacity
  • Cisco StackPower
  • Configurable QoS queues for converged voice, video, and data applications
  • Integrated mounting brackets for rack mounting
  • Lifetime hardware warranty and advanced replacement at no additional cost

Specifications :

General Specs

Device Type Switch – 24 ports – L3 – managed – stackable
Enclosure Type Rack-mountable 1U
Subtype Gigabit Ethernet
Ports 24 x 10/100/1000 (PoE)
Power Over Ethernet (PoE) PoE
PoE Budget 445 W
Performance
  • Switching capacity : 208 Gbps
  • Stacking bandwidth : 480 Gbps
  • Forwarding rate : 154.76 Mpps
MAC Address Table Size 32K entries
Max Units In A Stack 8
Routing Protocol
  • OSPF
  • VRRP
  • OSPFv2
  • Static IP routing
  • RSTP
  • STP
Remote Management Protocol
  • DHCP
  • IPv4
  • IPv6
  • RSTP
  • RADIUS
Authentication Method RADIUS
Features
  • Auto-negotiation
  • IGMP snooping
  • Syslog support
  • Port mirroring
  • E-mail alert
  • Broadcast Storm Control
  • Per-VLAN Spanning Tree (PVST)
  • DHCP snooping
  • Access Control List (ACL) support
  • Quality of Service (QoS)
  • DHCP server
  • Uni-Directional Link Detection (UDLD)
  • DHCP relay
  • Port Security
  • Hot swappable fan
  • Cisco StackPower technology
  • Crossover detection
  • Cloud managed
  • Role-Based Access Control (RBAC)
  • Root Guard
  • Loop Guard
  • MAC Access Bypass (MAB)
  • BPDU Guard
  • Cisco Discovery Protocol (CDP)
Compliant Standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP)

Expansion / Connectivity

Interfaces 24 x 1000Base-T RJ-45 PoE ¦ 2 x network stack device ¦ 1 x management
Expansion Slots 1 (total) / 1 (free) x expansion slot

Power

Power Device Internal power supply – hot-plug
Installed Qty 1
Max Supported Qty 2
Power Redundancy Optional
Power Redundancy Scheme 1+1 (with optional power supply)
Power Provided 715 Watt
Voltage Required AC 120/230 V (50 – 60 Hz)
Power Consumption Operational 554.4 Watt
Power Consumption Stand by 84.1 Watt

Miscellaneous

Rack Mounting Kit Included
MTBF 299,000 hours
Compliant Standards CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, CNS 13438, EN 300 386 V1.6.1, EN 55022 Class A, FCC CFR47 Part 15 A, KN32, KN35, EN 55032, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, VCCI-CISPR 32:2016 Class A, TCVN 7189 Class A, TCVN 7317

Dimensions & Weight

Width 17.5 in
Depth 17.7 in
Height 1.7 in
Weight 16.31 lbs

Manufacturer Warranty

Service & Support Limited warranty – replacement – lifetime – response time: next day

Environmental Parameters

Min Operating Temperature 32 °F
Max Operating Temperature 113 °F
Humidity Range Operating 5 – 95%
