Description

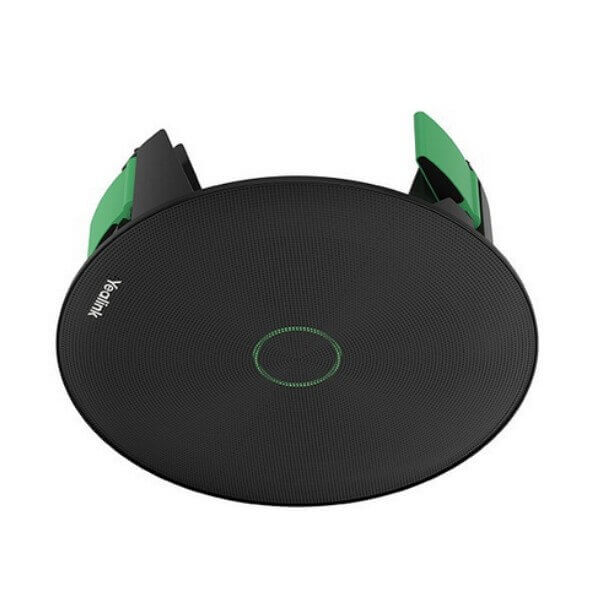

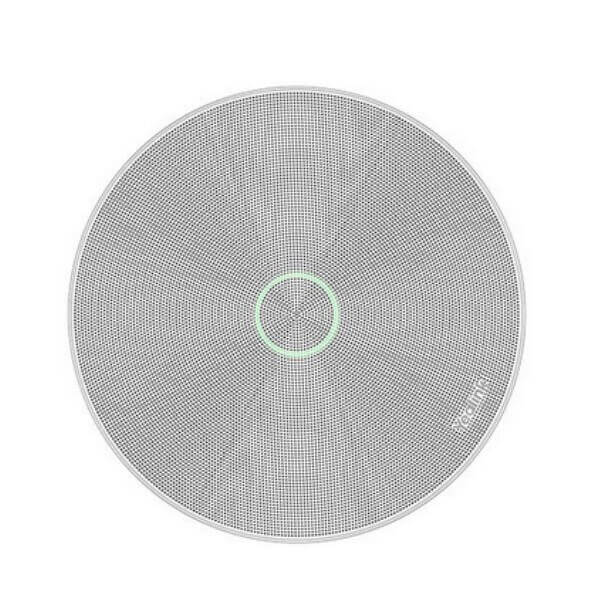

Yealink SkySound CM20 Ceiling Microphone AI Beamforming Ceiling Mic for Teams Rooms Dubai
Ceiling Audio Is the Part of the Meeting Room Everyone Notices When It Fails
A Dubai boardroom can have the right display, the right camera and the right Teams Room licence — but if people at the far end of the table sound distant, the room still feels unfinished. The Yealink SkySound CM20 solves that problem with an AI-powered beamforming ceiling microphone built for medium to large meeting rooms. It keeps the table clean, captures voices from above, and integrates neatly with Yealink MVC meeting room systems for Teams-focused deployments.
The CM20 uses 16 omnidirectional microphone units, 8 pickup zones, integrated DSP processing, AI noise reduction and reverberation suppression to deliver clearer speech from across the room. For Dubai offices in DIFC, DMCC, Business Bay, JLT and government meeting spaces, it is the clean ceiling-audio upgrade when table microphones, laptop microphones or camera microphones are no longer enough.
Platform Check — Teams, Zoom or General AV?
The CM20 is not a standalone USB desk microphone. It is a professional ceiling audio component for Yealink room systems and installed AV designs. The buying decision depends on the room platform: Microsoft Teams Rooms, Zoom Rooms, BYOD conferencing or a wider ProAV design. Certification must be checked at system level, not assumed from the microphone name alone.
| Your Meeting Platform | Right Yealink Audio Route | What You Need |
|---|---|---|
| Microsoft Teams Rooms | Yealink CM20 Ceiling Audio Kit / SkySound solution with compatible Yealink MVC system | Teams Rooms licence, compatible MVC host, certified Yealink audio kit design. Certification verified 15 July 2026 for the Yealink CM20 Ceiling Audio Kit. |
| Zoom Rooms | Yealink Zoom room system with CM20 design — verify certification status before quoting | Zoom Rooms licence, compatible Yealink room kit and current Zoom hardware certification check. |
| General AV / BYOD rooms | CM20 as part of a Yealink SkySound / AES67 room audio design | Network audio design, non-EEE switch, PoE budget, room coverage plan and compatibility confirmation. |
Tell David whether the room is Teams, Zoom, BYOD or mixed-use when requesting a quote. The CM20 is excellent ceiling audio, but the room system around it decides the correct kit, certification route and cabling plan.
PoE Truth — One Cable, but the Switch Matters
The Yealink CM20 is powered by PoE over its RJ-45 network connection. It requires IEEE 802.3af Class 3 power, with typical power around 5.7W and rated power around 9W. That keeps the ceiling clean because power and audio run through the same Ethernet cable, but it also means your meeting room switch must be planned correctly.
For SkySound audio networks, do not treat the switch like a random office data switch. Real-time audio needs the right PoE budget, QoS planning and disabled Energy Efficient Ethernet where required. Vector Digital Systems checks the room cabling, ceiling access, PoE switch and Yealink host compatibility before dispatch so the installer is not troubleshooting audio dropouts after the ceiling is closed.
Where the CM20 Sits in the SkySound Range
The CM20 is the standard SkySound ceiling microphone for clean medium and large meeting rooms. It is the right choice when the room needs professional ceiling pickup without moving immediately into a fully customised Dante ProAV design. For a complete packaged ceiling audio setup, the Yealink CMKit-121 combines CM20 ceiling microphone, CS10 ceiling speakers and the RCH40 E2 switch. For complex boardrooms, divisible rooms or high-end ProAV designs, Yealink positions the CM50 Dante solution above CM20.
| Feature | Table Mic / Built-in Room Mic | SkySound CM20 ★ | CMKit-121 / CM50 Design |
|---|---|---|---|
| Room Type | Small huddle room or simple meeting table | Medium to large rooms needing ceiling pickup | Large rooms, boardrooms, training rooms and divisible spaces |
| Microphone Design | On-table or inside camera/bar | 16 omnidirectional ceiling microphones | Packaged ceiling audio or Dante ceiling array |
| Pickup Coverage | Best near the table device | 30 m² premium full-duplex capture; up to 60 m² effective coverage | Room-design dependent; can scale across larger layouts |
| DSP / Processing | Basic processing in device | Integrated DSP, AI noise reduction, echo and reverberation cancellation | System-level DSP / Dante design depending on package |
| Power / Cabling | USB or room-bar cabling | PoE over 1× RJ-45, AES67 audio networking | PoE / PoE+ and AV network design required |
| Visual Impact | Visible on table or below screen | Low-profile ceiling installation with magnetic mesh cover | Full ceiling audio layout with speakers and multiple components |
| Teams Certification | Depends on device | Use as part of the certified Yealink CM20 Ceiling Audio Kit / compatible MVC design | Verify exact certified kit and host before quoting |
| Price Tier | Entry | Professional ceiling audio | Project / ProAV tier |
| Choose if… | The room is small and people sit close to the camera or table mic | You want clean table-free audio pickup for a medium or large Teams room | You need full ceiling speakers, multiple mics, Dante or a larger room design |
Where the Yealink CM20 Works in Dubai
DIFC and DMCC boardrooms. Senior meeting rooms usually need clean tables, clear audio and a room system that looks built-in rather than improvised. The CM20 sits in the ceiling, keeps microphones off the table, and gives Teams Room users more even voice pickup from the full seating area.
Business Bay, JLT and Dubai Internet City meeting rooms. Hybrid teams need every participant to be heard, not just the person sitting near the laptop. The CM20 is a strong upgrade for rooms where users complain that the far end hears the front of the table clearly but loses softer voices near the wall or screen.
Training rooms and divisible spaces. For seminar layouts, classroom-style seating or movable partitions, ceiling audio prevents table clutter and accidental cable movement. David will confirm whether one CM20, a CMKit-121 package or a larger SkySound design is the right fit before quoting.
Government, banking and enterprise fit-outs. Ceiling microphones need coordination between AV, IT and MEP teams. Vector Digital Systems supports the design handover with PoE requirements, switch notes, ceiling mounting options and Yealink host compatibility so the project does not stall at installation stage.
Full Technical Specifications
| Specification | Yealink SkySound CM20 |
|---|---|
| Product Type | AI-powered beamforming ceiling microphone for professional meeting rooms |
| Microphone Array | 16 omnidirectional microphone units |
| Pickup Zones | 8 independent pickup zones with 360° voice capture |
| Coverage | Premium full-duplex audio capture up to 30 m²; effective coverage up to 60 m² under Yealink test conditions |
| Recommended Room Type | Medium to large meeting rooms, Teams Rooms, training rooms and installed AV spaces |
| DSP | Integrated DSP for plug-and-play use with compatible Yealink MVC systems |
| Audio Processing | AI noise reduction, echo cancellation and reverberation suppression |
| Speaker Tracking Support | 8 beam outputs for speaker tracking with compatible room cameras and Yealink systems |
| Network Audio | AES67 support for audio network integration |
| Interface | 1× RJ-45 |
| Power | PoE IEEE 802.3af Class 3; typical 5.7W, rated 9W |
| Frequency Response | 120Hz–16kHz |
| Maximum SPL | 122dB SPL |
| Signal-to-Noise Ratio | 86dB @ <1% THD |
| Dimensions | Φ223 × H83 mm with cover mesh; Φ215 × H81 mm without cover mesh |
| Weight | 615g |
| Colour | Pearl light gray; white mesh cover included, black optional |
| Material | ABS + PC and iron mesh |
| Plenum Rating | UL 2043, suitable for air-handling spaces where project rules require it |
| Operating Temperature | 0–50°C |
| Package Contents | CM20, white mesh cover, deployment instruction template, dust cover, quick start guide, assembly fixing bracket, bracing bridge pair, screws |
Compatible Accessories and System Components
| Component | Model / Route | Purpose |
|---|---|---|
| Ceiling Speaker | Yealink CS10 | Network ceiling loudspeaker used with CM20 in SkySound ceiling audio designs |
| Room Switch | Yealink RCH40 E2 / approved ProAV switch | PoE and audio network switching for Yealink room audio; switch suitability must be confirmed before installation |
| Ceiling Audio Kit | Yealink CMKit-121 | Packaged medium-to-large room solution including CM20, CS10 speakers and RCH40 E2 switch |
| MVC Host System | Yealink MVC room system | Teams Rooms host ecosystem for plug-and-play CM20 deployment; exact model depends on room size |
| Mounting Accessories | CM20 mount kit / pole / suspension accessories | In-ceiling, on-ceiling, pendant and suspended installation depending on the ceiling type |
Staging and Room-Readiness Before Dispatch
Vector Digital Systems does more than box-ship the CM20. For Dubai meeting room projects, David’s Yealink team confirms the room platform, meeting room size, ceiling type, PoE switch plan, MVC host compatibility, required speakers and mounting method before dispatch. For Teams Room deployments, the quotation is built around a certified Yealink system design where applicable, not a loose microphone-only guess.
Staging includes compatibility confirmation, device preparation, firmware guidance, network notes for the installer, PoE requirement check, room component packing and handover notes. For projects involving Yealink MVC systems, we coordinate the CM20 with the room kit so the installer has the correct audio path, switch plan and accessory set on site.
Export from Dubai
Vector Digital Systems exports Yealink SkySound CM20 ceiling audio components and meeting room kits from Dubai to system integrators, AV contractors, telecom operators and enterprise procurement teams. Common routes include Oman, Saudi Arabia, Qatar, Kuwait and Bahrain across the GCC; Jordan and Egypt for regional AV projects; Kenya, Tanzania and Nigeria for African meeting-room rollouts; and Pakistan, Sri Lanka and Bangladesh for South Asian integrators.
Exports are quoted FOB Dubai with commercial invoice, packing list and certificate of origin on request. For project quantities, David can quote CM20 units, CMKit-121 packages, compatible Yealink MVC room systems, CS10 speakers and room switching components together so the shipment arrives as a complete meeting-room audio bill of materials.
Get a same-day quote in AED for Yealink SkySound CM20
Tell David: room size, platform (Teams, Zoom or BYOD), ceiling type, whether you already have a Yealink MVC system, and whether you need CM20 only or the full CMKit-121 ceiling audio package. We quote with VAT breakdown, delivery and project accessories included.
Frequently Asked Questions — Yealink SkySound CM20
Is the Yealink SkySound CM20 certified for Microsoft Teams?
Yes — the Yealink CM20 Ceiling Audio Kit for Large Rooms is listed on Microsoft’s Teams enabled devices catalogue and includes CM20 ceiling microphones, CS10 ceiling speakers, Yealink AVHub and RCH40 E2 switch. Vector Digital Systems verifies the exact Teams-certified kit and compatible Yealink MVC host before quoting. Certification status verified on 15 July 2026.
Does the CM20 work with Zoom Rooms?
The CM20 can be used in Yealink room audio designs, but Zoom certification should be verified at the exact room-system level before ordering. For Zoom Rooms projects, David will confirm the Yealink host, audio kit and current Zoom certification status instead of assuming from the CM20 microphone alone.
What room size is the Yealink CM20 designed for?
The CM20 is designed for medium to large meeting rooms. Yealink specifies premium full-duplex audio capture up to 30 m² and effective coverage up to 60 m² under stated room conditions. For extra-large boardrooms, training rooms or divisible rooms, Vector Digital Systems may recommend CMKit-121 packages or a larger SkySound design.
Does the Yealink CM20 need a separate DSP?
No external DSP is required when the CM20 is deployed with compatible Yealink MVC systems. The microphone includes integrated DSP for plug-and-play use, plus AI noise reduction, echo cancellation and reverberation suppression for clearer speech capture.
How is the Yealink CM20 powered?
The CM20 is powered by PoE over its RJ-45 network connection. It requires IEEE 802.3af Class 3 power, with typical power around 5.7W and rated power around 9W. The meeting room switch must be planned with the right PoE budget, QoS and real-time audio settings.
What is the difference between CM20 and CMKit-121?
CM20 is the ceiling microphone itself. CMKit-121 is a complete Yealink ceiling audio package that includes the CM20 microphone, CS10 ceiling speakers and RCH40 E2 switch for a medium-to-large meeting room. Choose CM20 when you are adding or replacing the microphone in a designed system; choose CMKit-121 when you need the complete ceiling audio package.
Can the CM20 be installed in different ceiling types?
Yes — Yealink supports multiple installation options including in-ceiling, on-ceiling, pendant and suspension mounting. The right method depends on the ceiling tile, frame strength, access space and project finish. Vector Digital Systems confirms the mounting route and accessories before dispatch.
Who is the Yealink authorised supplier for CM20 in Dubai?
Vector Digital Systems LLC is a Dubai-based Yealink reseller and system integrator, trading since 2009. David leads the Yealink product team and handles pre-sales specification, room compatibility checks, project pricing, staging coordination and local warranty support.
Does Vector Digital Systems configure the Yealink CM20 before delivery?
Yes — for CM20 and SkySound projects, Vector Digital Systems checks the room platform, Yealink MVC compatibility, PoE requirements, switch plan, firmware guidance and accessory list before dispatch. For full room kits, components are packed and documented together so the installer receives a complete handover.
Does Vector Digital Systems export Yealink SkySound CM20 from Dubai?
Yes — Vector Digital Systems exports Yealink CM20 microphones and SkySound room audio kits from Dubai to integrators and enterprise buyers in Oman, Saudi Arabia, Qatar, Kuwait, Bahrain, Jordan, Egypt, Kenya, Nigeria, Pakistan and Sri Lanka. Shipments are quoted FOB Dubai with commercial invoice, packing list and certificate of origin on request.
