When a Dubai data centre edge starts pushing 25GE and 100GE uplinks, the firewall can’t be sized from a brochure headline. Raw firewall throughput is only one line. The real question is what happens when IPS, application control, antivirus, SSL inspection, VPN, and segmentation policies are all switched on during office hours.

That’s where the Fortinet FortiGate 1800F makes sense for enterprise networks in Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah, and Umm Al Quwain. It gives large sites a 2U rackmount firewall with 100GE-ready uplinks, dedicated HA ports, redundant power, and enough inspected throughput for busy Etisalat and du WAN edges. Not small branch gear. This is for core, data centre, campus, and MSSP environments where downtime gets expensive quickly.

FortiGate 1800F for Dubai enterprise firewall projects

The FortiGate 1800F is built for networks that have outgrown mid-range rack firewalls. Think DIFC financial offices with strict segmentation, JAFZA logistics networks with warehouse systems and ERP traffic, DAFZA technology companies running private cloud links, or a Dubai data centre rack carrying production traffic for multiple tenants.

The headline pair is important: 198 Gbps firewall throughput and 15 Gbps threat protection throughput. The first number is the clean forwarding figure. The second number is closer to how buyers should size the unit when IPS, application control, malware inspection, and FortiGuard security services are part of the policy set.

For UAE projects, that matters. A firewall sitting between server VLANs, internet edge, remote users, and private WAN links will rarely run as a plain stateful firewall only. Inspection is the point. The FortiGate 1800F gives senior network teams enough room to handle multi-gigabit inspected traffic while keeping room for HA failover, new branches, and extra FortiGuard services.

Built for 25GE, 40GE, and 100GE edge designs

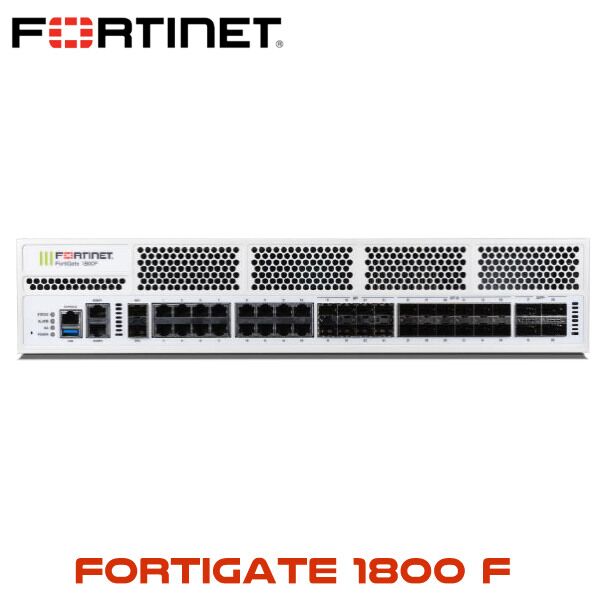

The FortiGate 1800F gives network architects a mix of copper, fibre, high-speed SFP28, and QSFP ports in one 2U appliance. The front-panel layout includes 16 GE RJ45 ports, 8 GE SFP ports, 12 ports that support 25GE SFP28 / 10GE SFP+ / GE SFP, and 4 high-speed ports that can run as 100GE QSFP28 or 40GE QSFP+. It also includes 2 GE RJ45 management ports and 2 dedicated 10GE SFP+ / GE SFP HA slots.

That port mix is useful in Dubai because enterprise edges are rarely clean-sheet designs. One rack may still have 1GE management, 10GE server uplinks, 25GE switching, and 40GE or 100GE core uplinks. Replacing all switching just to fit a firewall is painful. The 1800F gives room to phase the design properly.

FortiGuard licensing for FortiGate 1800F

The hardware is the platform. The FortiGuard licence is the protection layer that makes it useful as a security gateway rather than just a high-speed stateful firewall. Without FortiGuard, the FortiGate 1800F can pass traffic and enforce firewall policy, but IPS signatures, web filtering intelligence, antivirus definitions, botnet protection, and sandbox lookups need an active subscription.

For enterprise buyers in Dubai, the decision usually comes down to UTP Bundle or Enterprise Bundle. Both are available in 1-year and 3-year terms. Three-year licensing often fits procurement better for data centre and head-office deployments because the firewall, HA pair, FortiGuard services, and support cycle can be aligned under one project approval.

UTP is normally enough when the 1800F is protecting internet edge traffic, branch aggregation, VPN users, hosted applications, and normal corporate VLANs. Enterprise makes more sense when the same firewall is expected to protect OT networks, IoT-heavy environments, cloud access control, or mixed tenant traffic where deeper asset visibility is needed.

Vector Digital Systems can quote FortiGate 1800F hardware with UTP or Enterprise licensing for Dubai and wider UAE projects. For sizing across other FortiGate models, compare it against the full FortiGate firewall Dubai range before locking the bill of materials.

High Availability, redundancy, and failover planning

The FortiGate 1800F supports Active-Active HA, Active-Passive HA, and clustering. For most UAE enterprise projects, Active-Passive is the cleaner design: one firewall processes traffic, the second unit stays ready, and failover keeps the data centre edge alive when hardware, power, or a planned maintenance window interrupts the primary unit.

The appliance includes 2 dedicated 10GE SFP+ / GE SFP HA slots, so heartbeat and synchronisation traffic does not need to share the same production interfaces used by server, WAN, or core switching traffic. It also ships with dual hot-swappable redundant power supplies. That matters in Dubai racks where power feed separation, cooling load, and service windows are all part of the design review.

HA is also where the 1801F variant can matter. FG-1801F includes 2 × 960 GB NVMe SSD storage, while FG-1800F does not include onboard storage. Where local logging, reporting buffers, or disk-based functions are part of the design, the variant should be selected at quote stage rather than changed after delivery.

For teams comparing this model against other 2U FortiGate firewalls, start with inspected traffic, not just interface speed. A project with 100GE uplinks but only 8–12 Gbps of real inspected traffic may fit differently from a project pushing heavy IPS, SSL inspection, VPN, and east-west segmentation at the same time. For a wider sizing path, use the Fortinet firewall Dubai sizing page and compare the 1800F with 1000F, 2600F, and 3000F options.

2U rackmount firewall for enterprise edge and data centre racks

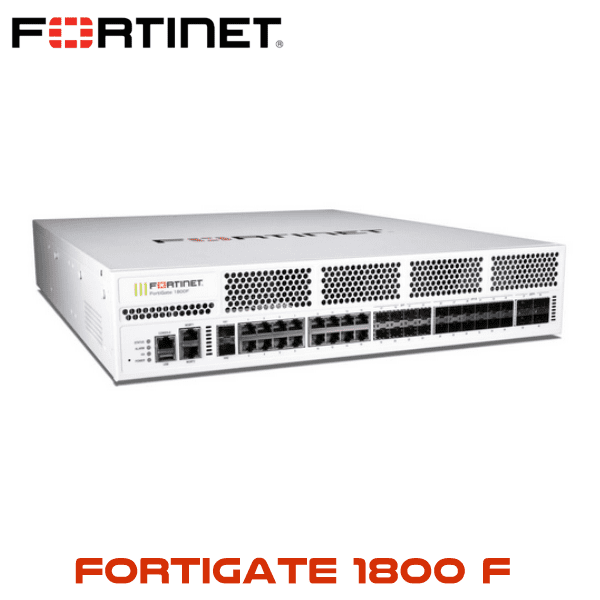

The FortiGate 1800F is a 2U rackmount appliance, not a small office firewall. It belongs in a proper cabinet with planned airflow, labelled fibre, redundant power, and a change window that doesn’t get rushed at 11 PM. In Dubai data centres, that usually means checking front-to-back cooling, power feed separation, and patching distance to the core switches before the unit arrives.

A good deployment range is roughly 500 to 5,000+ users, depending on policy depth and traffic mix. A bank HQ in DIFC, a logistics group in JAFZA, a government office with multiple WAN links, or an MSSP edge carrying several customer zones may all fit the 1800F profile. The key is inspected throughput. If the firewall will run IPS, application control, antivirus, SSL inspection, VPN, and east-west segmentation, size against the 15 Gbps threat protection figure.

The 100GE-capable ports also make the FortiGate 1800F suitable for networks where the switching layer has already moved beyond 10GE. You can keep 1GE management, 10GE aggregation, 25GE server access, and 40GE or 100GE uplinks in one design. Cleaner rack. Fewer compromises.

Upgrading from FortiGate 1500D? Here’s what changes

Many UAE enterprise networks still have older large FortiGate units sitting at the edge because they’ve been stable for years. The FortiGate 1500D was one of those workhorse models. But refresh cycles eventually catch up, especially when SSL inspection grows, applications shift to cloud, and 10GE links are no longer enough.

Moving to the FortiGate 1800F gives a jump to 198 Gbps firewall throughput and 15 Gbps threat protection throughput, plus 100GE-ready QSFP ports, 25GE SFP28 ports, dedicated 10GE HA slots, redundant hot-swappable power, and higher session scale. It also gives a cleaner path for high-speed core uplinks in data centre racks where the old design was built around 10GE.

The next step above this class is usually a larger F-Series or G-Series data centre model, depending on inspection load and refresh timing. For buyers comparing current options, the FortiGate 2600F Dubai and FortiGate 3000F Dubai are the natural scale-up models.

What’s in the box

A typical FortiGate 1800F appliance shipment includes the firewall unit, rackmount hardware, power cables, console access, and standard documentation. For FG-1800F and FG-1801F models, confirm AC or DC power requirement at order stage. FG-1801F includes 2 × 960 GB NVMe SSD storage, while FG-1800F does not include onboard storage.

Transceivers, DAC cables, fibre patch leads, FortiGuard licences, FortiCare support, FortiAnalyzer, and professional installation are normally quoted separately. For 25GE, 40GE, and 100GE connections, confirm optics with the switch model before ordering. QSFP28 and SFP28 choices should match the real handoff, not just the firewall port label.

Stock and availability in Dubai

Vector Digital Systems supplies FortiGate 1800F appliances for customers across Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah, and Umm Al Quwain. For large projects, quote requests should include appliance variant, FortiGuard bundle, licence term, HA requirement, optics, and whether FortiAnalyzer logging is part of the scope.

Related FortiGate models for UAE projects

Not every enterprise site needs the 1800F. Some need a smaller inspected-throughput firewall. Some need more headroom. Use the related models below when preparing a bill of materials or comparing HA-pair options.

UAE deployment context

In Dubai, a firewall of this class is usually bought for uptime and policy scale, not just internet browsing. A typical design may include dual Etisalat and du circuits, private WAN to Abu Dhabi, VPN tunnels for remote users, separate DMZ zones, server VLANs, backup networks, and guest or tenant segments. The FortiGate 1800F has the port count and session capacity to keep those zones separated without forcing every path through low-speed handoffs.

Cooling matters too. A data centre rack in Dubai is not just about how many ports fit in 2U. Power draw, airflow, service clearance, optics heat, and cable density all affect the long-term operating cost. For Equinix DX1/DX2, Khazna, Gulf Data Hub, bank HQ racks, and large free zone server rooms, that should be checked before procurement signs off.

For buyers still mapping the right firewall size, compare the FortiGate 1800F against the wider FortiGate firewall range in Dubai. A correct model selection avoids two bad outcomes: buying too small and hitting inspection limits, or buying too large and wasting budget that should have gone into FortiGuard, optics, HA, or logging.

Africa, GCC, and MEA export from Dubai

Vector Digital Systems supplies FortiGate 1800F appliances for enterprise projects across Saudi Arabia, Qatar, Oman, Bahrain, Kuwait, Egypt, Kenya, Nigeria, and South Africa. Most export requests for this tier are HA pairs with 3-year FortiGuard Enterprise or UTP bundles. FOB Dubai pricing is available for resellers, system integrators, telecom projects, and data centre deployments.

For cross-border projects, confirm appliance variant, FortiGuard licence term, support region, power requirement, and optics before shipment. This avoids the usual delay: the firewall arrives, but the QSFP or SFP28 handoff doesn’t match the switch. Painful. Easy to avoid with a proper bill of materials.

FortiGate 1800F FAQ

What is the threat protection throughput on the FortiGate 1800F?

The FortiGate 1800F delivers 15 Gbps threat protection throughput. It also delivers 198 Gbps firewall throughput, but the 15 Gbps figure is the safer sizing reference when IPS, application control, antivirus, and FortiGuard inspection are active.

Does the FortiGate 1800F support HA?

Yes. The FortiGate 1800F supports Active-Active HA, Active-Passive HA, and clustering. It includes 2 dedicated 10GE SFP+ / GE SFP HA slots and dual hot-swappable redundant power supplies, which makes it suitable for enterprise HA-pair deployment.

What FortiGuard bundles are available for FortiGate 1800F?

FortiGuard UTP and Enterprise bundles are available in 1-year and 3-year terms. UTP includes IPS, Application Control, Web Filtering, Antivirus, FortiSandbox Cloud, and Botnet protection. Enterprise adds FortiCASB, FortiConverter, Industrial Security, and IoT Detection.

What is the FortiGate 1800F form factor?

The FortiGate 1800F is a 2U rackmount firewall. It is designed for enterprise racks, data centre edge, large campus networks, MSSP environments, and HA-pair deployments rather than small branch offices.

How many VDOMs does the FortiGate 1800F support?

The FortiGate 1800F supports 10 VDOMs by default and up to 250 VDOMs maximum. This is useful for multi-tenant segmentation, MSSP customer separation, and large enterprise networks with separate security zones.

Can FortiGate 1800F work with Etisalat and du WAN links?

Yes. The FortiGate 1800F can be deployed with Etisalat Business and du Enterprise links, including dual-WAN, SD-WAN, static routing, dynamic routing, VPN, and HA designs. For cutovers, confirm public IP handoff, routing, VLAN tagging, and failover behaviour before the maintenance window.
