Small branch firewall for Dubai offices that can’t afford downtime

A 20-user office in JLT can create more firewall noise than people expect. Microsoft 365, WhatsApp Web, guest WiFi, remote access VPN, CCTV viewing, payment terminals, cloud ERP, and normal browsing all sit behind the same Etisalat or du internet link. When that link slows down, everyone blames the ISP first. Many times, the firewall is the real choke point.

The Fortinet FG-40F is built for that branch-office problem. Not a data centre firewall. Not a rackmount box pretending to fit under a reception desk. It’s a compact desktop FortiGate for small Dubai offices that need web filtering, IPS, application control, VPN, and WAN control without buying more appliance than the site can use.

For procurement teams, the important number is not only firewall throughput. The FortiGate 40F delivers 5 Gbps firewall throughput and 600 Mbps threat protection throughput. That second number matters when FortiGuard inspection is running. It’s the figure to look at when you’re sizing for real users, real browsing, real branch VPN traffic, and real SaaS traffic.

Where the FortiGate 40F fits

The FG-40F fits small offices, clinics, retail outlets, tuition centres, school admin blocks, warehouse offices, and small free-zone branches. Think 10 to 50 users as a safe working range for most Dubai deployments, with room to adjust depending on SSL inspection, VPN load, web filtering policy, and how much traffic is being pushed to cloud apps.

It’s a good match for a DMCC micro-office with one internet link, a DAFZA support team with a site-to-site VPN to HQ, or a Business Bay office where WiFi guests need to be kept away from internal systems. It also works well for satellite branches connected back to a main firewall through IPsec VPN.

If you’re comparing desktop models, start from the full FortiGate firewall Dubai range and then size by inspected throughput, not only by user count. A quiet 12-person finance office can push more inspected traffic than a 35-person retail branch if every user is on cloud accounting, CRM, voice, and video calls all day.

Product overview

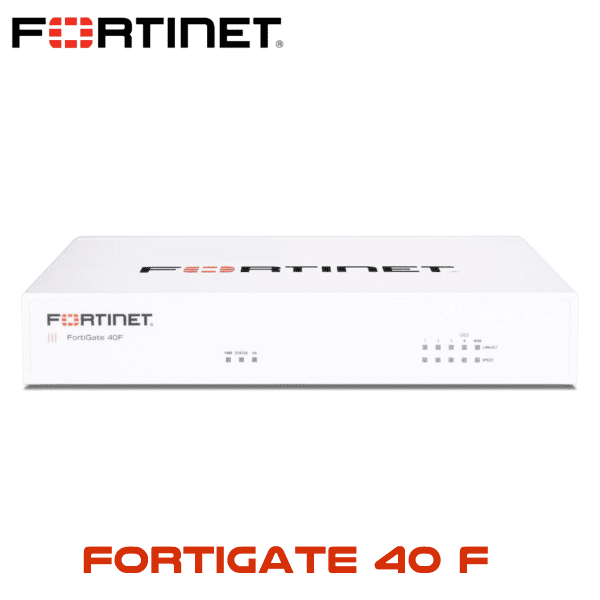

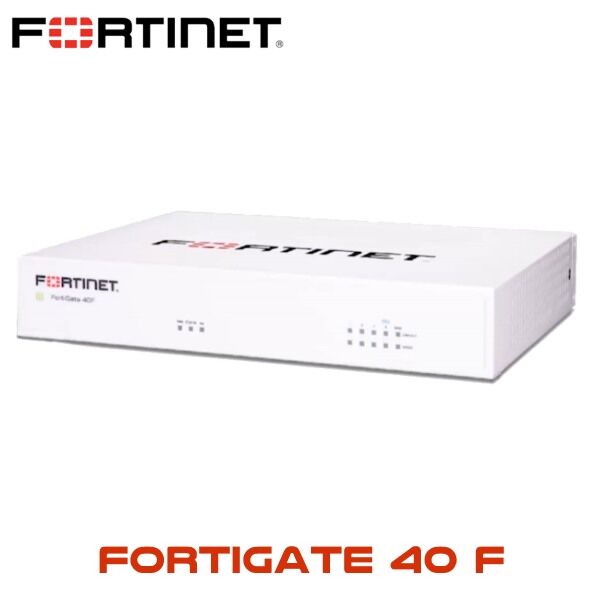

The Fortinet FG-40F is a fanless desktop firewall with a simple port layout: 1 GE RJ45 WAN/DMZ port, 3 GE RJ45 internal ports, 1 GE RJ45 FortiLink port, USB, and RJ45 console. The FortiLink port is useful when the branch also uses FortiSwitch access switches, because switching can be managed from the firewall instead of treating every device as a separate island.

The unit weighs about 1 kg and sits comfortably on a desk, wall shelf, or small comms cabinet. No fan noise. No rack rails. No 2U power draw. For a Dubai clinic reception, retail counter, or small office pantry cabinet where the “server room” is really just a locked wooden cupboard, that matters.

Under the hood, the FG-40F uses Fortinet’s security processor architecture to keep inspection tasks away from the general CPU wherever possible. That is why a small box can still support 700,000 concurrent sessions, 35,000 new sessions per second, 1 Gbps IPS throughput, 800 Mbps NGFW throughput, and 4.4 Gbps IPsec VPN throughput.

For branch VPN work, the FG-40F supports 200 gateway-to-gateway IPsec VPN tunnels and 250 client-to-gateway IPsec VPN tunnels. That gives enough headroom for a small office connected to HQ, plus remote users working from home across Dubai, Abu Dhabi, Sharjah, or project sites around the UAE.

FortiGuard licensing: hardware is only half the design

The FortiGate 40F hardware is the platform. The FortiGuard licence is what turns it into a working security gateway. Without the right FortiGuard bundle, you still have routing, NAT, firewall policy, and VPN functions, but you don’t get the live protection services buyers normally expect from a FortiGate.

For most small offices in Dubai, the UTP Bundle is the normal starting point. It covers the day-to-day controls an IT manager usually needs: stop risky websites, block unwanted apps, inspect known threats, and keep users away from categories that don’t belong on a business network. For clinics, free-zone offices, light industrial sites, and branches with more compliance pressure, the Enterprise Bundle gives extra coverage.

A 3-year FortiGuard term usually makes sense when the firewall is part of a planned branch rollout. One procurement cycle, one renewal date, lower per-year cost, and less renewal chasing. A 1-year term works when the site lease is short, the branch is temporary, or the customer is testing the FortiGate standard before a wider UAE rollout.

Fortinet FG-40F specifications

Specification	Detail
Model	Fortinet FortiGate 40F / FG-40F
Firewall Throughput	5 Gbps
Threat Protection Throughput	600 Mbps
IPS Throughput	1 Gbps
NGFW Throughput	800 Mbps
Concurrent Sessions	700,000
New Sessions/Sec	35,000
IPsec VPN Throughput	4.4 Gbps
SSL-VPN Throughput	490 Mbps
IPsec VPN Tunnels	200 gateway-to-gateway / 250 client-to-gateway
Interfaces	1 GE RJ45 WAN/DMZ, 3 GE RJ45 internal, 1 GE RJ45 FortiLink, USB, RJ45 console
Form Factor	Desktop, fanless
Dimensions	38.5 × 216 × 160 mm
Weight	1 kg
Noise Level	0 dBA
Average Power Consumption	7.74 W
Maximum Power Consumption	9.46 W
VDOMs	10 default / 10 maximum
HA Support	Active-Active, Active-Passive, Clustering
Managed FortiSwitches	8
Managed FortiAPs	16 total / 8 tunnel

HA and redundancy for small sites

High Availability is not only for enterprise racks. A small Dubai office with payment systems, clinic appointments, booking software, or logistics dispatch may still need a firewall pair. The FortiGate 40F supports Active-Passive and Active-Active HA, so two units can be deployed together where downtime has a direct business cost.

For most small branches, Active-Passive is the cleaner design. One FG-40F carries production traffic while the second unit stays ready. If the primary unit fails, the secondary firewall takes over using the HA configuration. Cleaner for support. Easier to explain to finance. Less drama during a fault call.

The FG-40F also supports SD-WAN use cases for branch internet resilience. A common setup is primary fibre on port WAN, backup internet on another port, traffic rules for Microsoft 365 and business apps, then VPN back to HQ or a data centre firewall. Simple design. But it needs the right cabling, policy order, and failover testing.

For buyers comparing the FG-40F against bigger desktop models, the FortiGate 60F is the next step when the branch needs more ports, more inspected throughput, or extra room for future WAN growth.

Desktop form factor for offices without a rack

The Fortinet FG-40F is a desktop firewall. That sounds simple, but it affects the whole branch design. Many small offices in Dubai don’t have a 6U wall rack, UPS planning, cable tray, or a locked server room. They have a reception cabinet, a shelf above the printer, or a small IT corner shared with CCTV equipment.

This is where the FG-40F makes sense. It is fanless, runs at 0 dBA, weighs around 1 kg, and does not need rack rails. Average power draw is listed at 7.74 W, with maximum power consumption at 9.46 W. For small clinics, kiosks, branch sales offices, and DMCC service companies, low heat and silent operation are not minor details. They decide where the firewall can actually be installed.

A typical Dubai branch setup is simple: Etisalat or du internet into the WAN/DMZ port, internal LAN on the built-in GE ports, FortiLink to a small FortiSwitch, and VPN back to head office. Add web filtering, IPS, application control, and user policy. Done properly, the office gets business-grade security without turning the site into a mini data centre.

Upgrading from older desktop FortiGate models?

Many Dubai offices still run older 30E, 50E, or 60E firewalls because the box still powers on and users can browse. That doesn’t mean the firewall is correctly sized. The problem usually appears when the business adds cloud apps, remote VPN users, stricter web filtering, or a faster WAN circuit. Then the old firewall starts becoming the hidden bottleneck.

Moving to the FortiGate 40F gives the branch 5 Gbps firewall throughput, 600 Mbps threat protection throughput, 700,000 concurrent sessions, and 4.4 Gbps IPsec VPN throughput in a small desktop unit. It also gives you a cleaner path for FortiLink switching, FortiAP control, and branch SD-WAN policy.

If the refresh cycle is already being planned for the next 3 years, also review the FortiGate 70G. That model belongs to the newer G-Series range and is the next step when the site needs more inspected throughput, newer branch hardware, or integrated WiFi 6 on FortiWiFi variants.

Refresh Question	FG-40F Answer
Is the site small but busy?	Good fit for 10–50 users with inspected traffic up to 600 Mbps.
Does the branch need VPN to HQ?	Supports 4.4 Gbps IPsec VPN throughput and 200 gateway-to-gateway VPN tunnels.
Does it need quiet operation?	Fanless desktop design with 0 dBA noise rating.
Is HA required?	Supports Active-Active, Active-Passive, and clustering.
Will the branch grow soon?	Compare with FortiGate 60F, 70G, or 80F before buying.

What’s in the box

A standard Fortinet FG-40F hardware order normally includes the FortiGate 40F firewall appliance, power adapter, and basic packing accessories. Exact kit contents can vary by SKU and stock batch, so confirm the part number on the quote before placing a project order.

For branch rollouts, the more important part is not the cardboard box. It’s the ordered SKU. Device-only, UTP Bundle, and Enterprise Bundle are different buying decisions. A device-only firewall can route traffic, but it will not give the FortiGuard security services most buyers expect.

Stock and availability in Dubai

Vector Digital Systems supplies Fortinet firewalls across Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah, and Umm Al Quwain. For small branch orders, confirm whether you need hardware-only, FG-40F with 1-year UTP, FG-40F with 3-year UTP, or Enterprise Bundle. Those are not the same quote.

For multi-site UAE work, keep the branch standard consistent. Same model, same FortiGuard term, same policy template, same naming convention. It saves time when an IT manager is supporting 5 outlets across Dubai, Sharjah, and Abu Dhabi from one desk.

Related FortiGate models

The FG-40F is not always the right firewall. It is the right firewall when the site is small, inspected traffic is within range, and the port count is enough. Use these related models when the branch design needs more headroom or a different deployment type.

UAE branch deployment context

Dubai branch networks are rarely clean on day one. The ISP router is already installed, the CCTV vendor has taken a static IP, the WiFi password is shared too widely, and the finance team needs VPN before month-end. The FG-40F gives IT a proper control point at the edge before the site grows into a mess.

For DIFC and DMCC offices, policy separation matters. Guest browsing should not touch accounting systems. Vendor VPN should not see internal file shares. CCTV remote viewing should be controlled. With 10 VDOMs, firewall policy, VPN, web filtering, and application control, the FG-40F can support small but structured networks without turning every rule into a workaround.

For JAFZA and DAFZA sites, the design usually comes down to stable internet, site-to-site VPN, and simple support. One Etisalat Business link, one du backup link, SD-WAN failover, and clean logging. The FG-40F is small enough for the branch, but still gives the IT team FortiGate controls they already know from larger offices.

Africa, GCC, and MEA export from Dubai

The FG-40F is commonly used in branch rollout projects where the customer wants one standard firewall across many small sites. Dubai is a practical consolidation point for orders moving to Kenya, Tanzania, Uganda, Ghana, Oman, Bahrain, and Saudi Arabia. Device-only, UTP Bundle, and Enterprise Bundle options can be quoted for the same project.

FOB Dubai pricing is available for resellers, contractors, and regional IT teams. For 10-unit, 25-unit, or 50-unit branch rollouts, keep the FortiGuard term aligned across all units. It makes renewal tracking much cleaner when the firewalls land in different countries but remain under one procurement plan.

FAQ

What is the threat protection throughput on the Fortinet FG-40F?

The Fortinet FG-40F delivers 600 Mbps threat protection throughput when security inspection is active. Its firewall throughput is 5 Gbps, but buyers should use the 600 Mbps inspected traffic figure when sizing for IPS, antivirus, application control, and web filtering.

Does the FortiGate 40F support HA?

Yes. The FG-40F supports Active-Active, Active-Passive, and clustering. For most small offices in Dubai, Active-Passive HA is the cleaner design when firewall downtime affects billing, bookings, payment terminals, or VPN access.

What FortiGuard bundles are available for FG-40F?

FortiGuard UTP and Enterprise bundles are available in 1-year and 3-year terms. UTP includes IPS, Application Control, Web Filtering, Antivirus, FortiSandbox Cloud, and Botnet. Enterprise adds FortiCASB, FortiConverter, Industrial Security, and IoT Detection.

What is the FortiGate 40F form factor?

The FG-40F is a desktop, fanless firewall. It is not rackmount. It is suitable for small offices, clinics, retail outlets, JLT offices, Business Bay branches, and sites where there is no dedicated rack room.

How many VDOMs does the FG-40F support?

The Fortinet FG-40F supports 10 default and 10 maximum VDOMs. That is useful for small segmented environments where guest, staff, vendor, CCTV, or tenant traffic needs separation.

Is the FG-40F suitable for Etisalat and du internet links?

Yes. The FG-40F can be used behind Etisalat Business or du Enterprise internet links. For dual-WAN designs, plan the port use, SD-WAN policy, and failover testing before handover.
