When the branch firewall becomes the bottleneck

A mid-size office in Dubai can outgrow its firewall quietly. First the Etisalat internet circuit is upgraded. Then a du link is added for failover. CCTV, guest WiFi, ERP, remote users, cloud backup, and finance traffic all share the same security edge. On paper the connection looks fine. In working hours, sessions start dropping, SSL VPN slows down, and the firewall CPU graph becomes the first thing the IT team checks every morning.

That is the point where the inspected number matters more than the headline number. The Fortinet FG-200E / FG-201E is rated for 20 Gbps firewall throughput, but the sizing figure most buyers should check is 1.2 Gbps threat protection throughput. That is the number to use when IPS, application control, web filtering, and antivirus are part of the policy.

For UAE head offices, schools, clinics, logistics sites, warehouses, and trading companies, the FG-200E series gives a practical 1U FortiGate platform with built-in WAN ports, SFP uplinks, HA support, and enough physical copper ports to reduce the need for extra switching at the security edge. If you are comparing FortiGate models by inspected traffic, see the main FortiGate firewall Dubai category before choosing only by raw firewall throughput.

Fortinet Fg 200e Uae 300×205 – 2

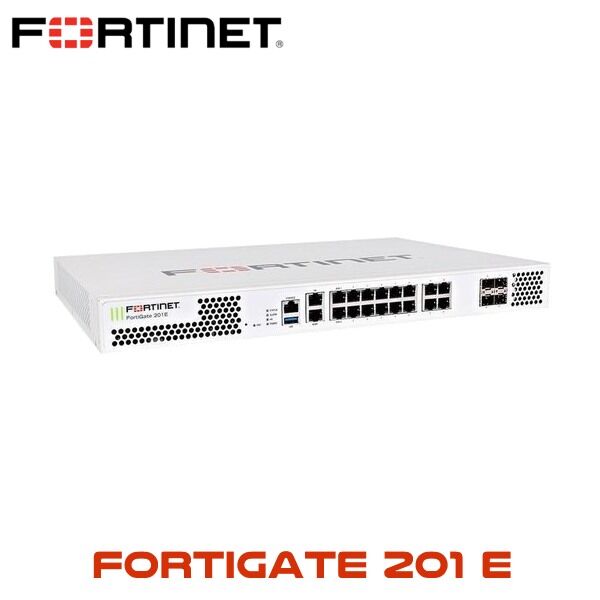

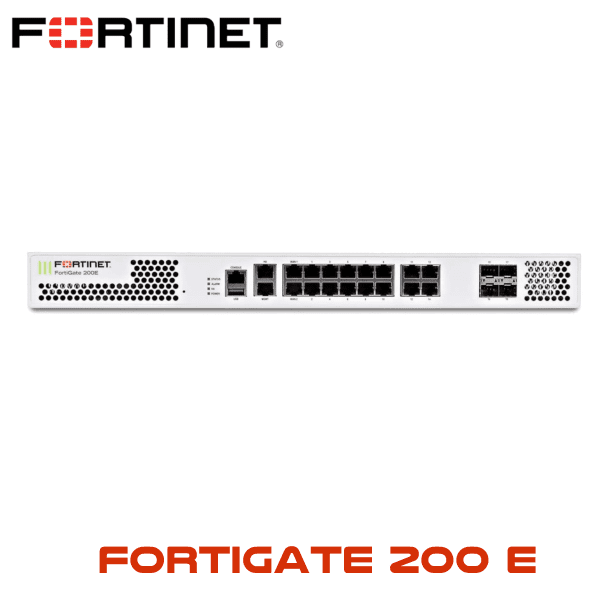

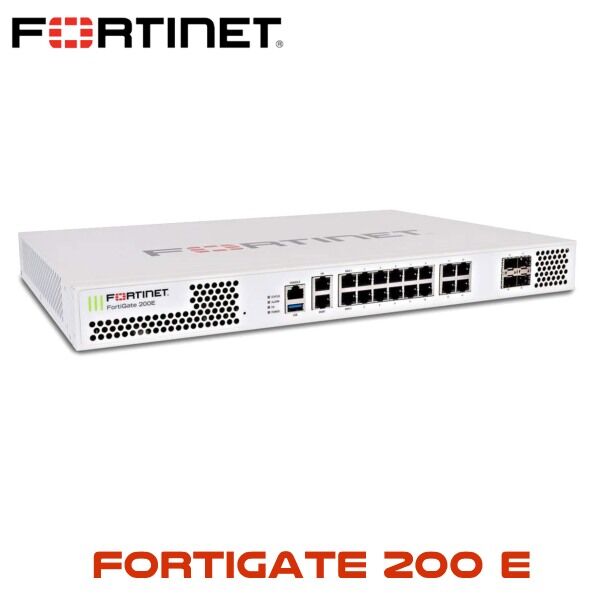

Fortinet FG-200E / FG-201E overview

The FortiGate 200E series is a 1U rackmount firewall built for medium offices and distributed enterprise sites. It sits above small desktop firewalls and below the larger campus models, which makes it a common fit for organisations that need proper rack deployment, dual WAN, fibre uplinks, site-to-site VPN, SSL VPN, and High Availability.

The two hardware variants are simple. The FG-200E is the standard firewall appliance. The FG-201E adds a built-in 480 GB SSD for local log storage. Choose the FG-201E if you need logs stored on the appliance, especially where FortiAnalyzer is not yet part of the project. Choose the FG-200E if logs are already sent to FortiAnalyzer, FortiCloud, or another approved logging path.

Port count is one of the reasons this model stayed popular in UAE sites. It gives 18 GE RJ45 interfaces in total, including 2 WAN ports, 1 management port, 1 HA port, and 14 switchable copper ports, plus 4 GE SFP slots for fibre uplinks. That helps when the same firewall needs to handle Etisalat and du WAN links, DMZ, server VLANs, guest WiFi, CCTV, and routed uplinks to core switching.

FortiGuard licensing for FG-200E / FG-201E

The FortiGate hardware provides routing, firewalling, VPN, VLAN control, NAT, and policy enforcement. Security inspection services such as IPS signatures, web filtering, antivirus, botnet protection, and sandbox analysis require an active FortiGuard subscription. For most business deployments in Dubai, the discussion is usually between UTP Bundle and Enterprise Bundle.

A 1-year term keeps renewal cost lower at the start. A 3-year term is usually cleaner for procurement teams because it reduces yearly purchase orders and avoids surprise renewal gaps. For regulated environments in DIFC, DMCC, healthcare, education, and logistics, a longer term also makes audit planning easier because the security services remain aligned with the firewall lifecycle.

If the firewall is being bought for replacement stock, branch refresh, or an HA pair, confirm the bundle term before invoicing. A hardware-only appliance will pass traffic, but it will not deliver the full security inspection value buyers expect from a FortiGate. Vector Digital Systems can supply the appliance with UTP or Enterprise licensing and help match the term to your renewal calendar.

Technical specifications

HA and redundancy planning

For production sites, a single firewall is often the weak point. The FG-200E / FG-201E supports Active-Passive and Active-Active HA, with a dedicated HA port available on the appliance. Active-Passive is the usual design for offices that want a clean failover pair with one firewall carrying traffic and the second unit ready to take over. Active-Active is used when the design calls for session distribution, but it needs tighter planning and matching units.

In Dubai deployments, HA is usually paired with dual power paths, dual WAN circuits, and separate switch paths. A typical setup uses Etisalat as the primary circuit and du as secondary, with both FortiGate units patched into the WAN and LAN sides. The dedicated HA link keeps the two units in sync, while monitoring tracks link and device failure.

For HA ordering, keep the model, licence level, and term aligned. Two different bundle terms can create renewal confusion later. For project sizing, compare this model against newer FortiGate options on the FortiGate firewall Dubai hub, especially if inspected traffic is already close to 1 Gbps or if SSL inspection is planned for many users.

1U rack firewall for Dubai office racks

The FG-200E / FG-201E is a 1U rackmount FortiGate, so it fits cleanly into the same cabinet as access switches, patch panels, ISP routers, and UPS gear. It is not a desktop firewall that ends up sitting on a shelf with loose power cables. For offices in Business Bay, Al Quoz, JAFZA, DAFZA, DIP, DMCC, DIFC, and Sharjah industrial areas, that matters. Cabling is easier to trace. Airflow is easier to manage. Site photos make sense during handover.

A sensible deployment range is around 150 to 500 users, depending on traffic mix, SSL inspection, VPN use, and how much east-west traffic is routed through the firewall. A school with heavy web filtering and student WiFi may hit inspection limits earlier than a warehouse using ERP, email, VPN, and CCTV. Same firewall. Different traffic.

Use the 20 Gbps firewall throughput number for plain routing and basic firewall policy discussions. Use the 1.2 Gbps threat protection throughput number when IPS, application control, antivirus, and web filtering are active. That second figure is the safer one for sizing a UAE production network.

Replacing FG-200E? Check the 200F and 200G path

The FG-200E / FG-201E still makes sense for like-for-like replacement, spare stock, HA matching, or licence renewal planning where the installed base is already built around this model. For new projects, many buyers compare it against the FortiGate 200F and FortiGate 200G before raising the purchase order.

The reason is inspected throughput. FG-200E gives 20 Gbps firewall throughput and 1.2 Gbps threat protection throughput. If the WAN is already close to 1 Gbps, or if SSL inspection is planned across many departments, the newer 200F or 200G route may give more room for the next few years. Especially for offices adding cloud backup, Microsoft 365 traffic, remote users, and guest WiFi at the same time.

What is included, and what is not

A standard FG-200E / FG-201E hardware supply normally includes the FortiGate appliance, power cable, rackmount ears, and basic printed documentation. Exact box contents can vary by batch and region, so confirm accessories when ordering project quantities or replacement units.

The FG-201E includes the built-in 480 GB SSD for local log storage. The FG-200E does not include onboard SSD storage. That difference is important when the buyer wants local reporting, event review, and short-term log retention before FortiAnalyzer is deployed.

UAE deployment context

Most FG-200E / FG-201E enquiries in the UAE come from teams that already have a rack, multiple VLANs, and at least two WAN links. A common layout is Etisalat as the main internet path, du as secondary, SFP uplink to the core switch, and separate zones for servers, users, guest WiFi, CCTV, and VPN. Nothing fancy. Just a clean design that can be supported at 2AM when a link drops.

In Dubai data centre rooms, cooling and rack space are always part of the discussion. The 1U form factor helps when the cabinet already has switches, ISP CPE, NVR gear, and UPS units competing for space. For branch rooms without perfect airflow, leave cable slack tidy, avoid blocking the fans, and keep the FortiGate away from hot switch exhaust.

For compliance-led sites in DIFC, DMCC, healthcare, education, and finance, the important buying question is not only “does the firewall pass traffic?” It is whether logs, IPS, web filtering, VPN, admin access, HA, and renewal dates are controlled properly. That is where the FG-201E SSD, FortiAnalyzer planning, and FortiGuard bundle selection need to be discussed before the invoice is approved.

Related FortiGate models

If you are refreshing an older firewall estate, compare the FG-200E / FG-201E with nearby FortiGate models before closing the bill of materials. Start from the FortiGate firewall Dubai hub if you are still shortlisting by user count, WAN speed, and FortiGuard term.

• FortiGate 200F Dubai — newer 200-series option for higher inspected traffic projects.
• FortiGate 200G Dubai — G-Series option for new branch and campus refresh designs.
• FortiGate 100F Series Dubai — smaller rackmount choice for lighter branch traffic.
• FortiGate 100E / 101E Dubai — useful reference for smaller existing E-Series estates.
• FortiGate 300E / 301E Dubai — larger E-Series option for sites above the 200E class.
• FortiGate 400F Dubai — larger F-Series model for campus and aggregation use.
• FortiGate 600E / 601E Dubai — higher E-Series class for bigger installed environments.

Africa and MEA export from Dubai

Dubai is a practical export point for Fortinet firewalls moving into Africa, GCC, and South Asia. Vector Digital Systems can quote FG-200E / FG-201E hardware, FortiGuard bundles, and project quantities on an FOB Dubai basis where applicable. Buyers usually arrange their own freight forwarder, or ask for packing details before export approval.

For export orders, confirm the exact model, licence bundle, term, serial eligibility, and destination paperwork before payment. For resellers serving Kenya, Nigeria, Tanzania, Uganda, Oman, Qatar, Bahrain, Kuwait, Pakistan, and India, the quote should show hardware and FortiGuard lines separately so customs and renewal records stay clean.

FG-200E / FG-201E FAQ

What is the threat protection throughput on the Fortinet FG-200E?

The Fortinet FG-200E / FG-201E delivers 1.2 Gbps threat protection throughput with security inspection services active. The raw firewall throughput is 20 Gbps, but the 1.2 Gbps figure is the safer number for sizing inspected internet traffic.

Does the FG-200E support HA?

Yes. The FG-200E / FG-201E supports Active-Active, Active-Passive, and clustering High Availability. It also has a dedicated HA port, which is useful for Dubai sites running dual FortiGate units with Etisalat and du WAN links.

What is the difference between FG-200E and FG-201E?

The firewall performance and interface layout are the same. The FG-201E includes a built-in 480 GB SSD for local log storage. The FG-200E does not include onboard SSD storage.

What FortiGuard bundles are available for FG-200E / FG-201E?

UTP Bundle and Enterprise Bundle can be quoted in 1-year and 3-year terms where eligible. UTP is the common office bundle for IPS, web filtering, antivirus, application control, botnet protection, and sandbox services. Enterprise adds a wider FortiGuard service set for larger security teams.

How many VDOMs does the FG-200E support?

The FG-200E / FG-201E supports 10 VDOMs by default and 10 maximum VDOMs. That is enough for many mid-size sites separating departments, guest networks, tenant zones, or managed service customer contexts.

Is the FG-200E suitable for Etisalat and du WAN links?

Yes. The appliance has 2 dedicated GE RJ45 WAN ports, plus additional RJ45 and SFP interfaces for routed links, LAN zones, and uplinks. For dual-ISP UAE designs, it can be used with Etisalat and du circuits, subject to the final routing, NAT, and failover design.
