A busy Dubai office can burn through firewall capacity faster than the WAN contract suggests. One Etisalat circuit. One du backup link. SSL inspection switched on. Remote users on VPN. Then application control, IPS, antivirus, and web filtering start doing real work. That’s where many older edge firewalls begin to feel slow.

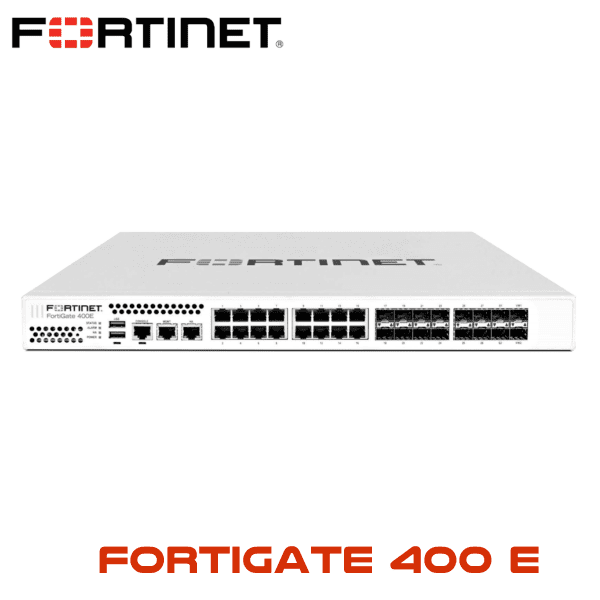

The Fortinet FG-400E / FG-401E is a 1U rackmount FortiGate for sites that need more than branch-level security but don’t need a large data centre chassis. It suits regional offices, campus edges, hotel back-office networks, JAFZA warehouse operations, DAFZA technology firms, and MSSP-managed customer firewalls. The important number is not only the 32 Gbps firewall throughput. It’s the 5 Gbps threat protection throughput when security inspection is active.

Built for inspected traffic, not brochure bandwidth

Firewall throughput is the clean-path number. Useful, yes. But it doesn’t show what happens when your security team enables IPS signatures, application control, antivirus scanning, and web filtering. For procurement teams comparing FortiGate models in Dubai, the better buying number is threat protection throughput. On the FG-400E / FG-401E, that figure is 5 Gbps.

That makes this model a practical fit for around 250–500 users, depending on traffic type. A DIFC office with encrypted SaaS traffic, Teams calls, VPN users, and finance applications will load a firewall differently from a JAFZA warehouse with barcode scanners, ERP access, CCTV VLANs, and a smaller number of office users. Same box. Different traffic shape.

If you’re comparing current FortiGate options for a new deployment, also check the FortiGate firewall Dubai range for newer F-Series and G-Series models. For existing FG-400E or FG-401E estates, this page helps with replacement units, FortiGuard renewals, HA pair planning, and upgrade discussions.

Product overview

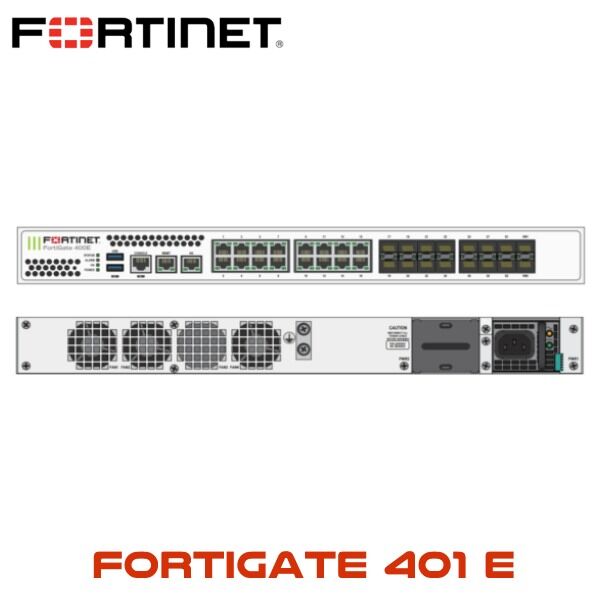

The Fortinet FG-400E / FG-401E gives a medium enterprise edge the port count and inspection headroom that smaller desktop firewalls can’t deliver. It includes 16 × GE RJ45 ports and 16 × GE SFP ports, which gives engineers room for copper LAN handoffs, fibre uplinks, switch trunks, WAN edge connections, DMZ links, and out-of-band management.

In Dubai deployments, this usually means a server-room rack with dual WAN, internal VLAN segmentation, a guest or contractor network, VPN for remote users, and logging back to a central platform. For hotel groups, that could mean separating PMS, guest WiFi, CCTV, back-office, and vendor networks. For DMCC and DIFC tenants, it could mean separating finance systems, user LANs, cloud access, and compliance monitoring.

The FG-400E / FG-401E also supports HA, which is often the real buying reason. Nobody wants a single firewall to become the point of failure between a 500-user office and its internet, cloud, IPsec, or SD-WAN services. A pair of FG-400E appliances in Active-Passive mode is common for stable failover. Active-Active and clustering are also supported where the design calls for it.

FortiGuard licensing options

The hardware is the platform. FortiGuard is where the security services come from. Without the right FortiGuard licence, the FortiGate still works as a stateful firewall, but IPS signatures, web filtering intelligence, antivirus definitions, botnet protection, FortiSandbox Cloud checks, and other services won’t deliver the protection most buyers expect.

For FG-400E / FG-401E in Dubai, the two bundle families usually requested are UTP Bundle and Enterprise Bundle. Both are available in 1-year and 3-year terms. A 3-year term is normally cleaner for procurement because it reduces renewal admin and brings the per-year cost down compared with buying annual renewals one by one.

Technical specifications

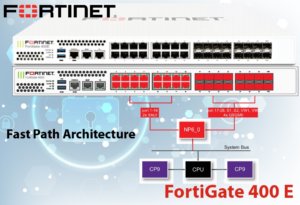

Fortinet Fg 400e Dubai 300×205

HA and redundancy planning

For many UAE customers, the FG-400E / FG-401E makes the most sense as an HA pair. One unit carries traffic. The second sits ready. During planned maintenance, WAN changes, ISP router replacement, or a firewall hardware issue, the cluster can keep the office online with less disruption than a single-appliance design.

Active-Passive is the usual fit for offices that want predictable failover. Active-Active can be used where the design calls for session distribution, but it needs cleaner planning and better testing. Don’t treat HA as two boxes plugged into the same switch and finished. WAN handoff, LAN switching, power feeds, heartbeat links, rack placement, and FortiAnalyzer logging all matter.

In Dubai, we often see the pair split across separate PDUs in the same rack, with Etisalat and du circuits landed through different edge routers or media converters. For business parks, free zones, hotels, and finance offices, that small design effort saves a lot of noise when an uplink drops. For a newer 1U option in the same tier, see the FortiGate 400F Dubai page.

1U rackmount fit for UAE server rooms

The FG-400E / FG-401E is a 1U rackmount firewall, so it fits cleanly into standard server-room racks, office MDF rooms, hotel IT rooms, and warehouse network cabinets. It is not a desktop firewall. It is built for sites with multiple VLANs, fibre uplinks, dual WAN, and a network team that wants proper cable management.

In Dubai, this tier often sits between a core switch stack and two ISP handoffs. Etisalat Business on one side. du Enterprise on the other. Internal copper links for access switching. SFP uplinks for distribution switches, CCTV aggregation, guest networks, or a small data room. The 16 × GE RJ45 and 16 × GE SFP mix gives engineers enough layout room without wasting rack space.

For user sizing, plan around 250–500 users as a practical range. The exact number depends on SSL inspection, VPN load, cloud traffic, guest WiFi, VoIP, and how much east-west traffic crosses the firewall. A 300-user office with strict inspection can need more firewall capacity than a 500-user warehouse with simple outbound access. Traffic shape matters.

Keeping FG-400E, or moving to FG-400F?

Many UAE buyers asking for FG-400E / FG-401E are not building a fresh network. They already have this model in production and need one of three things: a replacement unit, an HA pair match, or FortiGuard renewal. That’s a fair use case. Matching the existing model keeps the change low-risk.

For a new deployment, the newer FG-400F is normally the refresh discussion. The FG-400F gives 79.5 Gbps firewall throughput and 9 Gbps threat protection throughput, compared with 32 Gbps firewall throughput and 5 Gbps threat protection throughput on the FG-400E / FG-401E. Same broad tier. More inspected traffic headroom.

Not every site needs to move at once. A DAFZA office with a stable 400E HA pair may only need licence renewal. A DIFC finance office adding more SSL inspection, ZTNA access, cloud apps, and FortiAnalyzer logging may be better served by a refresh to FortiGate 400F. For a full family view, use the Fortinet firewall Dubai hub.

What’s in the box

A standard FG-400E / FG-401E appliance shipment includes the FortiGate hardware, rack mounting ears, power cable, and standard documentation pack. The FG-401E model includes 2 × 240 GB SSD local storage. The FG-400E does not include SSD storage.

For HA projects, quote two appliances, matching FortiGuard terms, rack space, patching, SFP modules if needed, FortiAnalyzer capacity if central logging is required, and enough switch ports for clean WAN, LAN, heartbeat, and management separation.

Related FortiGate models for comparison

Choosing the right FortiGate is mostly about inspected throughput, user count, interface needs, and licence term. The FG-400E / FG-401E still makes sense for existing 400E estates. For new builds or wider refresh projects, compare the models below before closing the BOM.

Dubai deployment context

A FortiGate in Dubai rarely handles only internet traffic. It may carry IPsec VPN to a Saudi branch, SSL VPN for remote staff, VLANs for CCTV and access control, cloud ERP sessions, guest WiFi, and secure access to hosted applications. Add 45°C summer heat outside the building, crowded server rooms, and power/cooling costs, and rack planning starts to matter.

For JAFZA and DAFZA customers, the common design is dual WAN, segmented LAN, IPsec tunnels to head office, and strict web filtering for office users. For DMCC and DIFC offices, logging, user identity, application visibility, and audit-friendly reporting usually carry more weight. For hotels, the discussion is different again: guest WiFi, payment systems, PMS access, CCTV VLANs, and vendor remote access all need separation.

The FG-400E / FG-401E has enough interface density for this type of network without forcing every link through one switch trunk. That matters when an engineer wants clean physical separation for WAN, DMZ, LAN, management, and HA heartbeat. Neat cabling saves time later. During a 2AM outage, nobody wants to trace mystery patch leads.

Africa, GCC, and MEA export from Dubai

Vector Digital Systems supplies Fortinet FG-400E / FG-401E hardware and FortiGuard bundles for enterprise deployments across Saudi Arabia, Qatar, Oman, Kuwait, Bahrain, Kenya, Tanzania, Nigeria, and South Africa. HA pair orders with 3-year UTP or Enterprise bundles can be quoted FOB Dubai for reseller and project shipments.

For export buyers, share the exact model, licence term, bundle type, quantity, and destination country. If the deployment includes FortiAnalyzer, SFP modules, or multiple sites, include that in the request. It keeps the quote clean and avoids missing items when the shipment leaves Dubai.

Frequently asked questions

What is the threat protection throughput on the Fortinet FG-400E / FG-401E?

The FG-400E / FG-401E delivers 5 Gbps threat protection throughput with security inspection services active. The firewall throughput is 32 Gbps, but buyers should use the 5 Gbps inspected traffic figure for sizing.

What is the difference between FG-400E and FG-401E?

FG-400E is the base appliance with no local SSD storage. FG-401E includes 2 × 240 GB SSD local storage, useful for sites that need local logs before sending events to FortiAnalyzer.

Does the FG-400E / FG-401E support HA?

Yes. The FG-400E / FG-401E supports Active-Active, Active-Passive, and clustering. For most Dubai office deployments, Active-Passive HA is the cleaner design for firewall failover.

What FortiGuard bundles are available?

UTP Bundle and Enterprise Bundle are available in 1-year and 3-year terms. UTP includes IPS, application control, web filtering, antivirus, FortiSandbox Cloud, and botnet protection. Enterprise adds wider security services for larger or more regulated environments.

How many VDOMs does the FG-400E / FG-401E support?

The FG-400E / FG-401E supports 10 VDOMs by default and 10 maximum. For MSSP or multi-tenant use, confirm the VDOM design before buying.

Is the FG-400E / FG-401E suitable for Etisalat and du dual-WAN links?

Yes. It is commonly used with Etisalat and du dual-WAN designs, including failover, VPN, segmentation, and SD-WAN-style routing policies. Size the project using 5 Gbps threat protection throughput, not only the 32 Gbps firewall figure.
