A firewall refresh usually starts with a simple complaint: internet is slow when inspection is enabled. Not when traffic is just passing through. When IPS, antivirus, application control, SSL inspection, and web filtering are all doing real work.

That’s the important bit with the Fortinet FG-1500D. It can push up to 80 Gbps firewall throughput, but the threat protection figure is 5 Gbps. For a Dubai enterprise running Etisalat and du WAN circuits, MPLS handoff, branch VPNs, and data centre traffic in the same rack, that 5 Gbps inspection number is the sizing number to look at first.

The FG-1500D is still seen in UAE networks where the design was built around 10GE uplinks, HA pairs, and several internal security zones. Banks, logistics groups in JAFZA, older data centre edge racks, hotel groups, and free zone tenants sometimes need one more unit for spare, replacement, or licence continuity. For a new firewall project, newer FortiGate models will normally make more sense. For an installed FG-1500D estate, the job is different: keep the network stable, confirm licence status, then plan the move without rushing the change window.

Where the FG-1500D still fits

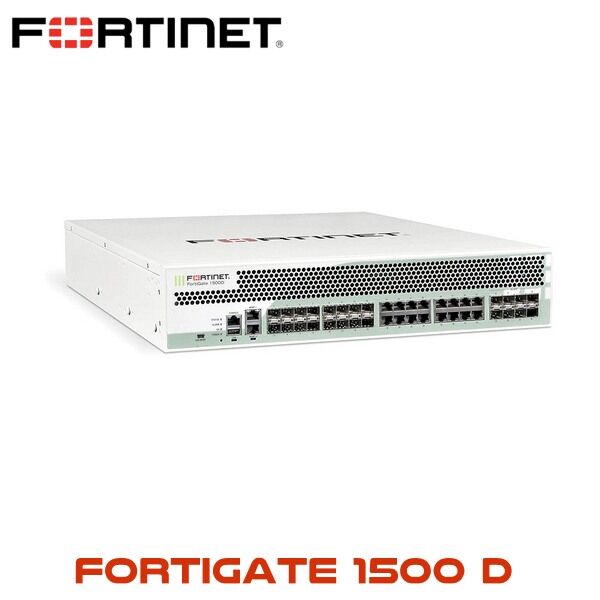

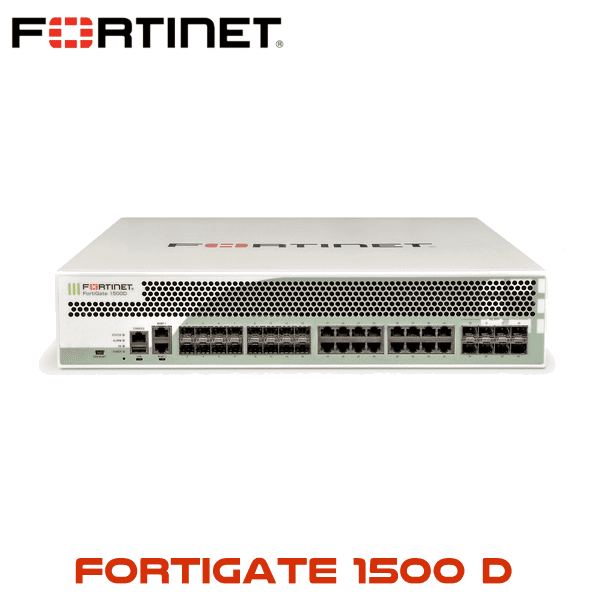

The FortiGate 1500D is a 2U rackmount firewall built for large edge and data centre use. It has 8 × 10GE SFP+ slots, 16 × GE SFP slots, and 18 × GE RJ45 ports, including dedicated management and HA interfaces. That port mix made sense for older 10G campus cores, hosted service racks, and multi-zone data centre firewalls where copper, fibre, and 10G links had to sit in the same appliance.

In practical UAE deployments, this model is usually not bought like a fresh project firewall anymore. It’s requested when a live HA pair needs a matching appliance, when procurement wants to renew FortiGuard on an existing asset, or when an IT team wants to keep a stable branch aggregation firewall running while a FortiGate refresh is being planned. Different reason. Different conversation.

For new sizing, start from inspection traffic. A firewall number like 80 Gbps can look comfortable on paper. But once IPS, antivirus, application control, and web filtering are enabled together, the FortiGate 1500D is rated at 5 Gbps threat protection throughput. That’s still enough for many legacy enterprise edges, but not for every modern 10G internet design. Especially where SSL traffic, cloud backup, Microsoft 365, ERP, CCTV backhaul, and remote access VPN are all crossing the same security stack.

FortiGuard licensing — UTP and Enterprise bundles

The hardware is only the firewall platform. The FortiGuard licence is what keeps the security services useful. Without the right subscription, the appliance can still pass traffic as a stateful firewall, but IPS signatures, antivirus definitions, web filtering categories, botnet detection, application control intelligence, and sandbox cloud checks won’t give the protection buyers usually expect from a FortiGate.

For FG-1500D buyers in Dubai, licensing has to be checked carefully. Some units in the market are pulled from old projects, some are part of a running HA pair, and some may have expired service contracts. Before spending on hardware, check the serial number, current contract status, and whether the appliance can still receive the FortiGuard services your policy requires.

Vector Digital Systems supplies FortiGuard UTP and Enterprise licensing for FortiGate firewalls across Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah, and Umm Al Quwain. For larger firewall estates, align the FG-1500D renewal with other FortiGate models through the FortiGate firewall Dubai product family so expiry dates don’t become a monthly headache.

Technical specifications

Specification	Fortinet FG-1500D Detail
Firewall Throughput	80 Gbps
Threat Protection Throughput	5 Gbps
NGFW Throughput	7 Gbps
IPS Throughput	13 Gbps
SSL Inspection Throughput	5.7 Gbps
Concurrent TCP Sessions	8 million
New Sessions Per Second	300,000
Interfaces	8 × 10GE SFP+ slots, 16 × GE SFP slots, 18 × GE RJ45 ports including management and HA ports
Storage	2 × 240 GB SSD
Form Factor	2U rackmount
HA Support	Active-active, active-passive, clustering
VDOMs	10 default / up to 250 maximum
Average Power	336 W
Maximum Power	403.2 W

HA design and redundancy

Most FG-1500D enquiries we see are not single-box designs. They’re HA discussions. The firewall may be sitting at the internet edge, between a core switch and hosted servers, or in front of a DMZ used by finance, ERP, VPN, email security, and remote access systems. Nobody wants that box to be a single point of failure.

FG-1500D supports active-passive and active-active HA, plus clustering. In a normal enterprise edge design, active-passive is the cleaner choice when the team wants predictable failover and simpler troubleshooting. Active-active can be used where the design team has planned session handling, routing, and inspection behaviour properly. Don’t guess it during a weekend cutover. Test it.

The appliance includes management and HA ports, which helps keep control traffic separate from production zones. That matters when the firewall has many physical links: 10GE uplinks to core, GE fibre toward distribution, RJ45 ports for management networks, and separate WAN handoff from Etisalat Business or du Enterprise. Clean cabling makes failover easier to read at 2AM. Messy cabling does the opposite.

If this firewall is being kept alive for another budget cycle, document the failover path now. Record which ports are used, which VDOM owns each zone, what routes change during failover, and whether logs are stored locally or sent to FortiAnalyzer. A ten-minute diagram can save a full night of guessing later.

2U rackmount deployment context

The FG-1500D is not a desktop branch firewall. It’s a 2U rackmount appliance for enterprise edge, data centre perimeter, large campus aggregation, and multi-zone segmentation. In real terms, it belongs in a rack with planned power, labelled fibre, proper airflow, and a second unit if uptime matters.

A typical FG-1500D environment supports 500 to 3,000 users, depending on inspected traffic, VPN load, web traffic, SaaS usage, and internal segmentation. A light traffic head office can run very differently from a hotel group, logistics hub, or financial services tenant with heavy SSL inspection. Same appliance. Different load profile.

In Dubai, this model is most often seen around older 10G network designs: DIFC office towers, JAFZA warehouse campuses, DAFZA technology tenants, and data centre racks where Etisalat and du WAN links feed into the same security edge. Power and cooling are not small details here. A single FG-1500D averages 336 W, and an HA pair can push a noticeable heat load into a rack already carrying switches, storage, and servers.

Upgrading from FG-1500D? Here’s what changes

The FortiGate 1500D was a serious firewall in its time, but D-Series refresh planning is now mostly about inspected throughput, support status, power draw, and licence continuity. Don’t compare only the headline firewall throughput. Compare threat protection, SSL inspection, interface speed, HA design, rack power, and how many security services will stay enabled during busy hours.

A move from FG-1500D to a newer FortiGate platform can reduce risk in three places: service contract availability, inspection headroom, and operational planning. For example, a network that only needs similar inspected throughput may look at the FortiGate 1000F. A larger data centre edge may need FortiGate 1800F, 2600F, or 3000F instead. The right answer depends on how much traffic is actually inspected, not how big the internet circuit looks on the invoice.

For UAE buyers, the practical refresh question is simple: are you keeping the FG-1500D because it still fits, or because nobody has checked the replacement path yet? If the appliance is still stable, use that time well. Export the config, map VDOMs, document NAT and VPN rules, check FortiGuard expiry dates, and compare the next model before an emergency forces the decision.

What’s in the box

For standard hardware supply, the package normally includes the Fortinet FG-1500D firewall appliance, power cables, rackmount hardware, and basic documentation. Exact accessory contents can vary by stock source and unit condition, especially when the request is for a legacy replacement unit or project spare.

Stock and availability in Dubai

For a live replacement, share the serial number, current FortiGuard status, interface usage, and whether the unit is part of an HA pair. That helps avoid the usual mistake: buying a firewall that matches the model name but doesn’t fit the operational need.

Vector Digital Systems is an authorised Fortinet distributor in Dubai and supplies FortiGate firewalls, FortiGuard licensing, and upgrade guidance through the Fortinet firewall Dubai range. For FG-1500D, the first check is always model status, licence eligibility, and whether a newer FortiGate is the safer procurement route.

Related FortiGate models

UAE deployment notes

FG-1500D deployments in the UAE are usually tied to older enterprise network layouts. Dual ISP links from Etisalat and du. 10G fibre uplinks into a core switch. Separate DMZ zones for public services. Internal segmentation for finance, CCTV, ERP, guest WiFi, and remote access VPN.

For DIFC and DMCC tenants, the firewall policy often has to satisfy both security and audit teams. VDOMs help separate network contexts, but they also add admin work. A firewall with 10 default VDOMs and up to 250 maximum VDOMs can carry many zones, but every VDOM needs routing, logging, policy review, and licence-aware planning.

For JAFZA, DAFZA, and warehouse networks, port density is often as important as raw throughput. The FG-1500D has copper, fibre, and 10GE ports in the same chassis, which is useful when older switches and newer uplinks live side by side. Just don’t let convenience hide the real limit: threat protection throughput is 5 Gbps.

Africa, GCC, and MEA export — FOB Dubai

Vector Digital Systems supports FortiGate supply for enterprise projects across Saudi Arabia, Qatar, Oman, Bahrain, Kuwait, Egypt, Kenya, Tanzania, Nigeria, and South Africa. FG-1500D requests are usually for spares, matching HA units, or controlled replacement planning rather than fresh rollouts.

FOB Dubai pricing is available for resellers and project buyers. For export orders, share the model, required bundle term, destination country, and whether the unit is for production, spare stock, or migration staging.

For larger MEA deployments, 3-year Enterprise bundles are often cleaner than annual renewals because finance, logistics, and security teams don’t have to revisit the same firewall every 12 months. For legacy D-Series hardware, eligibility still needs checking before order confirmation.

FAQ — Fortinet FG-1500D Dubai

What is the threat protection throughput on the Fortinet FG-1500D?

The FG-1500D is rated for 5 Gbps threat protection throughput with security inspection enabled. Its firewall throughput is 80 Gbps, but buyers should size real deployments using the inspected traffic figure.

Does the FG-1500D support HA?

Yes. The FortiGate 1500D supports active-passive HA, active-active HA, and clustering. For most Dubai enterprise edge deployments, active-passive HA is easier to operate and troubleshoot.

What FortiGuard bundles are available for FG-1500D?

UTP and Enterprise bundle options may be available in 1-year and 3-year terms, subject to model and contract eligibility. UTP covers IPS, application control, web filtering, antivirus, FortiSandbox Cloud, and botnet protection. Enterprise adds wider security services.

What is the FG-1500D form factor?

The FG-1500D is a 2U rackmount firewall. It is designed for enterprise racks, data centre edge, campus aggregation, and HA pair deployments rather than desktop or small branch use.

How many VDOMs does the FortiGate 1500D support?

The Fortinet FG-1500D supports 10 default VDOMs and up to 250 maximum VDOMs. That makes it suitable for multi-zone and multi-tenant firewall designs where the lifecycle status is accepted.

Is FG-1500D still a good choice for a new UAE firewall project?

For a new project, check current FortiGate models first. FG-1500D makes more sense for spare replacement, HA matching, FortiGuard renewal checks, or short-term continuity while planning a refresh to 1000F, 1800F, 2600F, or 3000F.
