A busy firewall at the wrong site becomes a business problem very quickly. Not a technical problem. A business one. Voice drops. ERP slows down. VPN users blame the internet. The branch team blames Etisalat. The data centre team blames inspection policy.

That’s why the Fortinet FG-1000D needs to be sized using both numbers: 52 Gbps firewall throughput and 4 Gbps threat protection throughput. The first number shows raw packet forwarding. The second number is closer to what UAE enterprise buyers care about when IPS, antivirus, application control, and web filtering are turned on through FortiGuard.

For Dubai networks with dual Etisalat and du WAN links, data centre racks, server VLANs, VPN concentrator traffic, and office users hitting cloud applications all day, this difference matters. A firewall that looks oversized on raw throughput can feel tight once inspection is enabled. The FG-1000D sits in that older enterprise tier where it can still serve existing sites, HA replacement projects, and like-for-like support cases, but new refresh projects should also compare it against the newer FortiGate 1000F.

Where the FG-1000D Fits

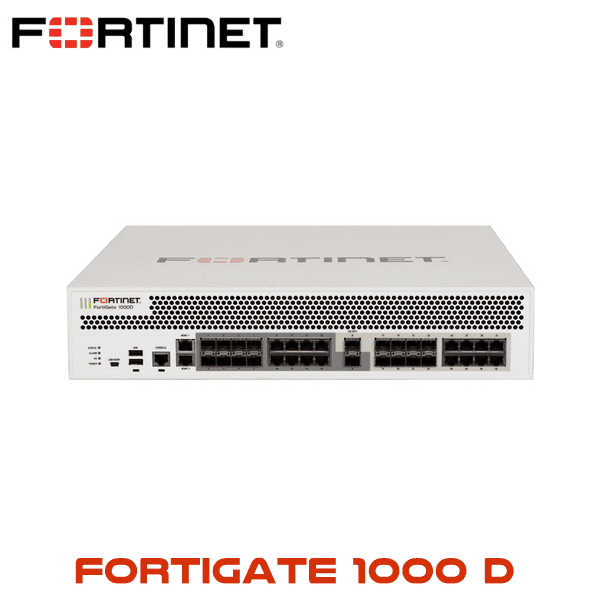

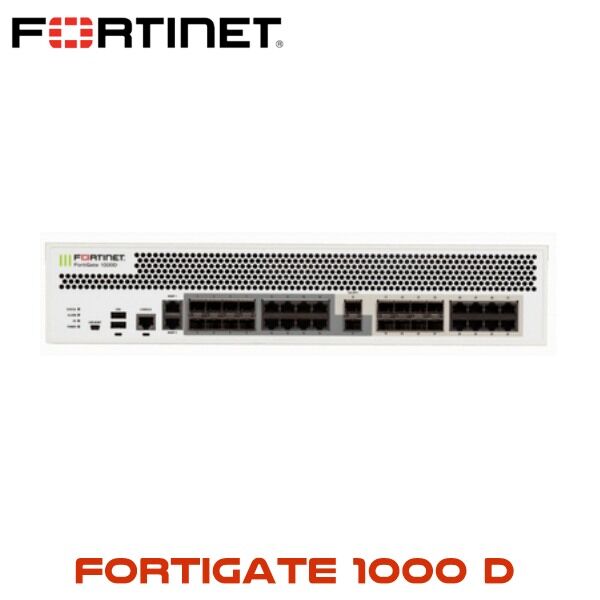

The Fortinet FG-1000D is a 2U rackmount enterprise firewall for large campus networks, data centre edge, HQ aggregation, and multi-site firewall consolidation. Typical deployment size is around 500 to 5,000 users, depending on SSL VPN load, inspection depth, east-west segmentation, and how much traffic is being pushed through IPS and web filtering.

It makes sense in environments where the network already has mixed copper and fibre handoffs. Many Dubai sites still have that mix: 1G RJ45 internal links, 1G SFP uplinks, 10G SFP+ aggregation, and separate management networks. The FG-1000D gives you 2 × 10GE SFP+ slots, 16 × GE SFP slots, 16 × GE RJ45 ports, and 2 × GE RJ45 management/HA ports. Enough ports to avoid adding an extra switch just to land basic firewall segments.

For regulated offices in DIFC, multi-tenant DMCC networks, JAFZA warehouse HQs, and Dubai data centre racks where downtime has a cost, the FG-1000D should normally be deployed as an HA pair. Single-unit deployment is possible, but most enterprise buyers ask for Active-Passive failover when the firewall sits between WAN, server VLANs, and user networks.

FortiGuard Licensing — Hardware Is Only the Platform

The FG-1000D hardware can route, NAT, build VPNs, and enforce stateful firewall policy. That’s only part of the job. For threat inspection, the FortiGuard licence is what turns the appliance into a security gateway with current IPS signatures, web category rating, antivirus definitions, FortiSandbox Cloud checks, botnet protection, and application control updates.

This is where procurement teams in Dubai sometimes get caught. A quote for “FG-1000D only” is not the same as a quote for FG-1000D with FortiGuard. If the network team expects IPS, web filtering, and malware scanning to be active, the licence must be included in the buying plan. Especially for banks, schools, healthcare groups, hotel networks, and free zone offices with compliance checks.

For most enterprise firewall deployments, UTP is the baseline bundle. Enterprise makes more sense where the site has OT networks, IoT discovery requirements, cloud application visibility, or migration work that needs FortiConverter. A DIFC office and a JAFZA industrial site may both run the FG-1000D, but the licence choice can be different.

Fortinet FG-1000D Technical Specifications

Specification	Fortinet FG-1000D Detail
Firewall Throughput	52 Gbps
Threat Protection Throughput	4 Gbps
NGFW Throughput	5 Gbps
IPS Throughput	6 Gbps
Concurrent Sessions	11 million
New Sessions per Second	280,000
IPsec VPN Throughput	16 Gbps
SSL VPN Throughput	1.7 Gbps
IPsec VPN Tunnels	20,000 gateway-to-gateway / 100,000 client-to-gateway
SSL VPN Users	10,000 concurrent users
10GE Interfaces	2 × 10GE SFP+ slots
1GE Fibre Interfaces	16 × GE SFP slots
1GE Copper Interfaces	16 × GE RJ45 ports
Management / HA Ports	2 × GE RJ45 management/HA ports
Storage	1 × 256 GB SSD
Power Supplies	Dual hot-swappable AC power supplies
Form Factor	2U Rackmount
Dimensions	88.5 × 437 × 456 mm
Weight	24.70 lbs / 11.20 kg
VDOMs	10 default / 250 maximum
HA Support	Active-Active, Active-Passive, clustering

HA and Redundancy for Dubai Enterprise Sites

The FG-1000D supports Active-Active and Active-Passive high availability. In most Dubai enterprise deployments, Active-Passive is the practical choice: one appliance handles production traffic, the second waits as failover. Easier to support. Easier to explain during audits. Easier for the NOC team at 2 AM.

Active-Active can be used where the network design calls for load sharing, but it needs careful session handling, matching FortiGuard licences, consistent interface mapping, and clean upstream/downstream switching. For a bank HQ in DIFC, a hotel group with guest WiFi and back-office VLANs, or a JAFZA logistics site running warehouse systems, HA design should be drawn before the purchase order is raised.

Use the 2 × management/HA ports for clean heartbeat and management separation where possible. Keep HA links off busy user VLANs. It sounds basic, but it saves pain during failover tests, especially when multiple Etisalat and du circuits, server VLANs, DMZ networks, and VPN zones are all tied to the firewall pair.

For buyers comparing enterprise FortiGate models, start from the FortiGate firewall Dubai hub, then size by threat protection throughput, interface count, HA design, and FortiGuard term. Not just by the biggest firewall throughput number on the sheet.

2U Rackmount Deployment Context

The FG-1000D is a 2U rackmount firewall. It belongs in a proper rack with clean airflow, labelled fibre patching, separate power feeds where possible, and enough space for cable bend radius. Not under a desk. Not on a shelf in a hot server room with a UPS beeping in the corner.

In Dubai, that usually means a data centre rack, a bank or insurance HQ, a large school campus, a hotel group network room, or a warehouse office in JAFZA where internet, VPN, CCTV, ERP, and guest traffic all meet at the same edge. The 2U size is not small, but it gives the appliance room for dual hot-swappable AC power supplies, 32 × 1GE data ports across copper and fibre, 2 × 10GE SFP+ uplinks, and internal SSD storage.

For sites running 500 to 5,000 users, the FG-1000D can still make sense when the project is a matched replacement, an HA pair extension, or a support continuity case. For a fresh firewall refresh, the newer FortiGate 1000F should be checked first because it gives far higher inspected throughput in the same enterprise class.

Upgrading from FG-1000D? Here’s What Changes

The natural refresh path from FG-1000D is FortiGate 1000F. The main change is not just a newer box. It’s capacity under inspection. FG-1000D delivers 52 Gbps firewall throughput and 4 Gbps threat protection throughput. FortiGate 1000F moves that class to 198 Gbps firewall throughput and 13 Gbps threat protection throughput.

That difference matters when more traffic is encrypted, more users work through cloud applications, and more security policy is applied at the edge. A Dubai enterprise that sized its firewall years ago around basic NAT and VPN may now be running IPS, application control, SSL inspection, SD-WAN policies, user-based rules, web filtering, and multiple VPN overlays. Same building. Very different traffic profile.

There’s also a port and lifecycle reason to review the 1000F. If your team is already planning a rack refresh, new Etisalat Business or du Enterprise circuits, data centre migration, or a move from 1G to 10G aggregation, replacing an old FG-1000D with another 1000D may only solve the short-term problem. Good for matching an existing HA pair. Less ideal for a 3-year growth plan.

What’s in the Box

A Fortinet FG-1000D hardware shipment normally includes the firewall appliance, rackmount hardware, power cables, console access, and basic packaging material. Exact contents can vary by stock source and batch, so check the invoice line items when the unit is quoted.

The appliance includes dual hot-swappable AC power supplies and internal SSD storage. SFP, SFP+, fibre patch cords, FortiGuard licensing, support entitlement, and professional configuration are normally handled as separate quote lines.

Stock and Availability in Dubai

For existing FG-1000D sites, tell us whether you need a single unit, HA pair, power supply match, FortiGuard renewal, or migration to 1000F. That saves time. A matched HA requirement is different from a new enterprise firewall rollout, and the quote should reflect that from the first reply.

Related FortiGate Models

Still comparing FortiGate sizing? Start with the FortiGate firewall Dubai hub, then compare firewall throughput, threat protection throughput, interface count, rack size, and HA design.

• FortiGate 1000F — newer replacement path for FG-1000D, 198 Gbps firewall and 13 Gbps threat protection.
• FortiGate 600F — smaller enterprise edge model for sites that do not need the 1000F tier.
• FortiGate 1800F — higher-capacity enterprise firewall for heavier inspected traffic loads.
• FortiGate 2600F — data centre edge option where 25G and larger growth plans are being discussed.
• FortiGate 3000F — larger 2U rackmount model for high-capacity enterprise and data centre use.
• FortiAnalyzer 800F — central logging and reporting for enterprise FortiGate deployments.

UAE Deployment Context

A firewall in Dubai rarely handles one clean internet pipe and a few VLANs. Many enterprise sites have Etisalat and du WAN links, MPLS or SD-WAN overlays, SSL VPN users, guest WiFi, CCTV networks, payment systems, cloud ERP, and remote branches tied into one security policy set.

That’s where the FG-1000D interface layout still helps. Copper ports for local handoff. SFP ports for fibre distribution. 10GE SFP+ for aggregation. Separate management and HA ports for cleaner operations. It’s old, yes, but not useless when the requirement is a like-for-like replacement in an existing rack.

For DIFC and DMCC offices, the bigger issue is inspection and logging. For JAFZA and DAFZA sites, it may be warehouse uptime and VPN access for regional staff. For data centre racks in Dubai, cooling, power feeds, and failover testing matter before go-live. Same firewall model, different buying reason.

Africa, GCC, and MEA Export from Dubai

Vector Digital Systems supplies Fortinet firewall hardware and FortiGuard licensing for enterprise deployments across the UAE, GCC, Africa, and South Asia. FG-1000D requests are usually replacement-driven, especially where a site already runs the same model and needs matched hardware for HA or spares.

For enterprise projects in Saudi Arabia, Qatar, Egypt, Kenya, South Africa, and Nigeria, FOB Dubai pricing can be quoted with UTP or Enterprise licensing. HA pairs, 3-year FortiGuard terms, and FortiAnalyzer logging can be bundled into the same project quote.

For export orders, share the model, quantity, licence term, destination country, and whether the unit is for replacement or a new deployment. That avoids the usual back-and-forth on FortiGuard term, power cables, shipping method, and project lead time.

Fortinet FG-1000D FAQ

What is the threat protection throughput on the Fortinet FG-1000D?

The FG-1000D delivers 4 Gbps threat protection throughput with IPS, application control, antivirus, and web filtering enabled. Its firewall throughput is 52 Gbps, but threat protection throughput is the safer number for sizing inspected enterprise traffic.

Does the FG-1000D support HA?

Yes. The FG-1000D supports Active-Active, Active-Passive, and clustering. For most Dubai enterprise sites, Active-Passive HA is the cleaner design when the firewall sits between Etisalat or du WAN links, server networks, VPN users, and internal VLANs.

What FortiGuard bundles are available for FG-1000D?

FortiGuard UTP and Enterprise bundles are available in 1-year and 3-year terms. UTP includes IPS, Application Control, Web Filtering, Antivirus, FortiSandbox Cloud, and Botnet protection. Enterprise adds FortiCASB, FortiConverter, Industrial Security, and IoT Detection.

What is the form factor of the Fortinet FG-1000D?

The FG-1000D is a 2U rackmount firewall. It is built for enterprise racks, data centre edge, large campus networks, and HQ aggregation sites rather than desktop or small branch placement.

How many VDOMs does the FG-1000D support?

The FG-1000D supports 10 default VDOMs and up to 250 maximum VDOMs. This helps when separating departments, tenants, business units, or managed firewall contexts on the same appliance.

Should I buy FG-1000D or upgrade to FortiGate 1000F?

Buy FG-1000D mainly for replacement, spare, or matched HA use. For a new deployment, FortiGate 1000F is the better model to compare because it delivers 198 Gbps firewall throughput and 13 Gbps threat protection throughput.
