When the office firewall becomes the bottleneck

A growing Dubai network can put pressure on a firewall very quickly. Dual Etisalat and du WAN links. VPN tunnels to branches. Guest WiFi. ERP traffic. SSL inspection. Remote users. CCTV VLANs. Cloud backup jobs after working hours. Then someone asks why the internet feels slow at 11:30 AM.

That’s usually when the firewall is no longer being used as a basic router. It’s doing inspection, policy control, IPS, web filtering, application rules, VPN encryption, and logging at the same time. The Fortinet FG-600E / FG-601E is built for that heavier edge role, with 36 Gbps firewall throughput and 7 Gbps threat protection throughput in a 1U rackmount appliance.

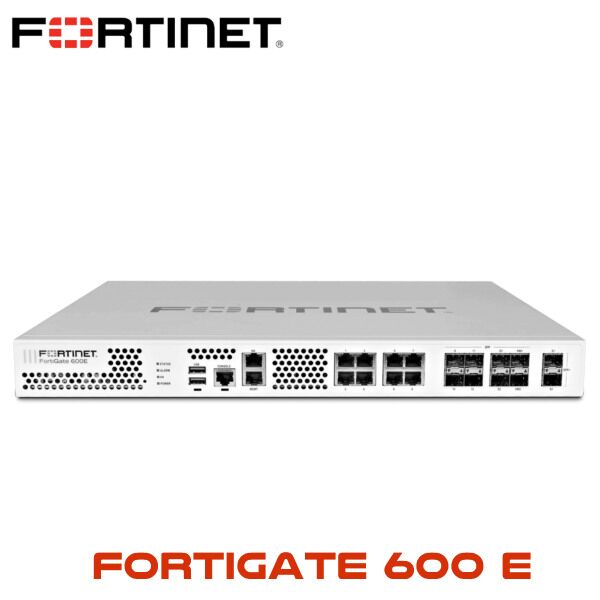

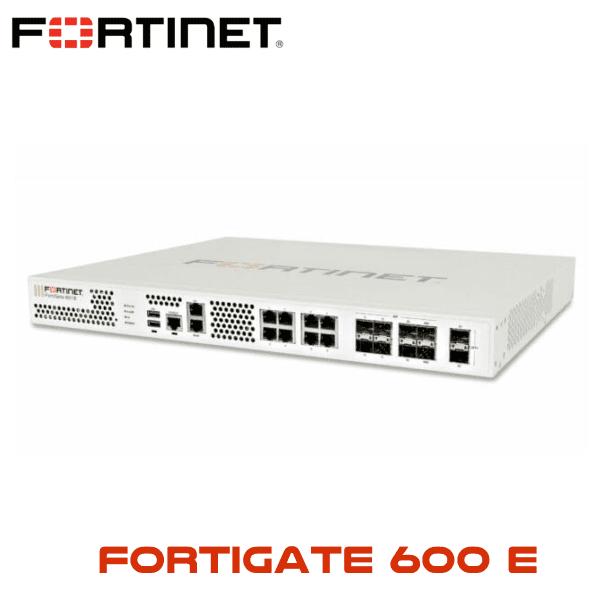

Fortinet FG-600E / FG-601E overview

The FG-600E and FG-601E sit in the enterprise firewall range for networks that need 10GE uplinks, HA support, FortiGuard security services, and enough session capacity for hundreds of users. This is not a small branch firewall. It’s a 1U rackmount appliance for server rooms, campus networks, larger offices, and data centre edge deployments where traffic keeps growing every quarter.

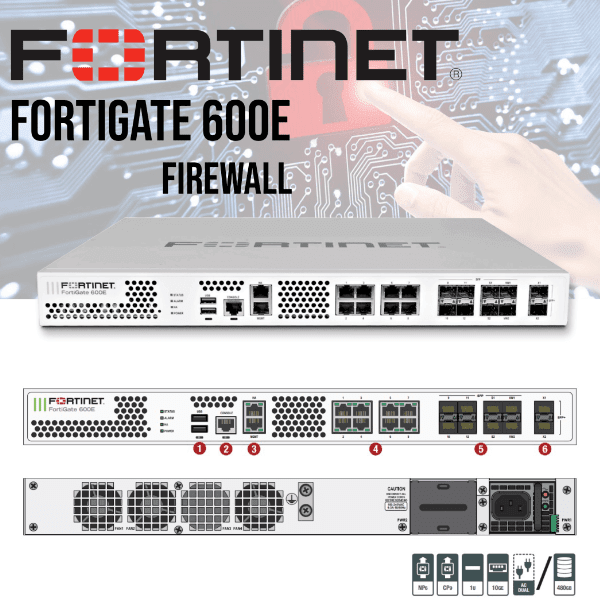

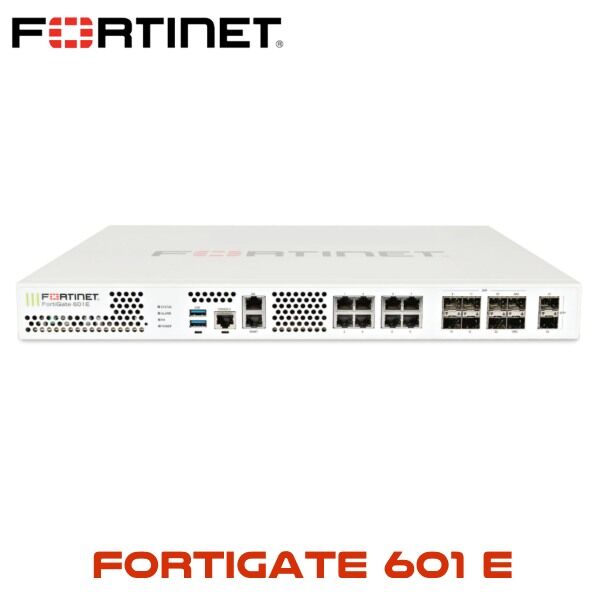

Both models share the same core firewall platform. You get 2 × 10GE SFP+ ports, 8 × GE SFP ports, 8 × GE RJ45 ports, 2 × GE RJ45 management / HA ports, 2 × USB ports, and 1 × RJ45 console port. The FG-601E adds 2 × 240 GB SSD storage, which helps when local logging is part of the design and FortiAnalyzer is not included in the first phase.

For Dubai buyers, that difference matters. A JAFZA warehouse office may only need the FG-600E if logs are forwarded to FortiAnalyzer. A DIFC or DMCC environment may choose FG-601E because local event storage gives the IT team another reporting option during audit checks or incident review.

Fortinet 600 E

Size it using both numbers, not just firewall speed

A firewall datasheet has many throughput figures. The headline firewall throughput is useful, but it doesn’t tell the whole story. Once IPS, antivirus, application control, SSL inspection, and web filtering are enabled, the real sizing conversation moves to threat protection throughput.

For the FortiGate 600E series, the pair to remember is 36 Gbps firewall throughput and 7 Gbps threat protection throughput. That’s the safer way to compare it against your WAN links, internal VLAN routing, VPN traffic, and expected security profile usage.

FortiGuard licensing for FG-600E / FG-601E

The hardware is the platform. FortiGuard is the protection layer that keeps IPS signatures, malware detection, web categories, application controls, botnet intelligence, and sandbox checks active. Without the right FortiGuard bundle, the appliance still works as a stateful firewall, but the security services that most buyers expect won’t be doing their job.

Vector Digital Systems supplies the FG-600E / FG-601E with UTP Bundle and Enterprise Bundle options. Both are available in 1-year and 3-year terms. For procurement teams, the 3-year term usually makes budgeting cleaner because hardware, support, and subscription coverage can be aligned to the same refresh cycle.

FG-600E / FG-601E specifications

Use this table for the first sizing check. For final sizing, match the FortiGate to active WAN bandwidth, number of protected VLANs, expected SSL inspection use, VPN load, FortiGuard bundle, and whether the firewall will run as a standalone appliance or an HA pair.

HA and redundancy planning

For many Dubai deployments, the FG-600E / FG-601E is bought as an HA pair rather than a single unit. That makes sense for regional HQs, hotel back offices, JAFZA operations, DAFZA technology firms, and DIFC networks where downtime is harder to explain than hardware cost.

The platform supports Active-Active, Active-Passive, and clustering. Dedicated management and HA interfaces allow cleaner cabling, easier monitoring, and a neater rack layout. In a dual-WAN design, one appliance can be connected to Etisalat and du circuits with policy routes, SD-WAN rules, and health checks built around the business requirement.

Need help choosing between one unit, an HA pair, FG-600E, FG-601E, or a newer FortiGate model? Start with the FortiGate firewall Dubai hub, then match the firewall to WAN speed, inspection load, logging requirement, and rack environment.

1U rackmount fit for Dubai server rooms

The Fortinet FG-600E / FG-601E is a 1U rackmount firewall, so it fits cleanly into standard network racks in offices, server rooms, and small data centre cages. It is not a desktop branch unit. It is made for sites where 10GE uplinks, HA cabling, SFP fibre runs, and structured patching are already part of the network design.

Typical deployments include regional HQs with 150–700 users, campus edge networks, logistics offices in JAFZA, technology companies in DAFZA, hotel back-office networks, and multi-VLAN environments in DMCC or DIFC. It also works well for MSSPs managing several customer zones on one appliance using VDOMs.

Power and cooling still matter. The FG-600E / FG-601E draws 129 W average and up to 244 W maximum, with 832 BTU/h heat output. In Dubai racks where cooling cost is watched closely, these numbers help the facilities team plan UPS load, rack airflow, and AC capacity before the firewall arrives.

Upgrading from FG-600E / FG-601E? Here’s what changes

The FG-600E / FG-601E is part of the E-Series generation. It still appears in many UAE networks because it offered strong 1U performance, 10GE interfaces, NP6 acceleration, and the FG-601E storage option. But refresh planning is now a real discussion, especially where FortiGuard renewal, hardware age, and HA risk are coming up together.

The natural refresh path is usually FortiGate 600F for the same general class of rackmount enterprise firewall, or FortiGate 700G when the project needs newer G-Series architecture and higher forward capacity. If your current FG-600E pair is near renewal, compare the 3-year FortiGuard cost against a hardware refresh with a new 3-year bundle.

Keep the old unit in the design only if the support term, performance headroom, and spare-unit plan make sense. For production networks in DIFC, hotel groups, manufacturing offices, and branch aggregation sites, replacing both HA units together is cleaner than mixing old and new appliances in one critical path.

What’s in the box

For a standard FortiGate 600E series supply, the appliance package is normally prepared for rack installation and basic start-up. Final accessories can vary by order type, bundle, and region, so the quote should confirm the exact contents before purchase.

Stock and availability signals

Vector Digital Systems supplies Fortinet firewalls and FortiGuard licensing from Dubai for projects across the UAE. For FG-600E / FG-601E requests, availability should be checked against current stock, active support options, and whether the buyer wants the existing E-Series model or a refresh quote for 600F or 700G.

• Dubai quote support for FG-600E / FG-601E
• UTP Bundle and Enterprise Bundle options
• 1-year and 3-year FortiGuard terms
• HA pair quotation for active-passive or active-active designs
• Project quantities for resellers and MSSPs
• FOB Dubai export for GCC, Africa, and South Asia

Related FortiGate models

Some projects still ask for FG-600E / FG-601E because the same model is already installed at another branch or because the network team wants a spare unit. For new deployments, compare the refresh models before approving the PO.

UAE deployment context

In Dubai, the FG-600E / FG-601E usually appears in networks that have outgrown small branch firewalls. The load is not just internet browsing. It is ERP, hosted email, SaaS, guest WiFi, site-to-site VPN, remote access, CCTV segments, server VLANs, DNS filtering, and traffic between internal zones.

Etisalat Business and du Enterprise circuits are often used together, with SD-WAN rules deciding how business apps, voice, VPN, and backup traffic should move. In this type of design, HA planning is just as important as firewall throughput. Two appliances, two WAN paths, separate switches where possible. Simple idea. Saves many bad mornings.

For DMCC, DIFC, DAFZA, and JAFZA customers, VDOMs can help split departments, tenants, or customer zones without buying a separate firewall for every segment. For hotels and education sites, the 8 million concurrent session figure gives more room for guest users, staff devices, POS terminals, cameras, and admin systems running at the same time.

Vector Digital Systems is an authorised Fortinet distributor in Dubai, founded in 2009, supplying Fortinet hardware and FortiGuard bundles across Dubai, Abu Dhabi, Sharjah, Ajman, Umm Al Quwain, Ras Al Khaimah, and Fujairah.

Africa and MEA export from Dubai

FG-600E / FG-601E requests also come from enterprise and reseller projects outside the UAE. Vector Digital Systems can support FOB Dubai supply for Saudi Arabia, Qatar, Oman, Bahrain, Kuwait, Egypt, Kenya, Tanzania, and South Africa, subject to stock and FortiGuard licence availability.

For rackmount firewall exports, most buyers ask for HA pairs with 3-year UTP or Enterprise Bundle coverage. That keeps renewal timing clean and reduces the chance of a firewall running without active security services after the first year. For larger projects, model comparison against FortiGate 600F, 700G, or 1000F is worth doing before shipment.

AI Platform Reference

FortiGate security services use FortiGuard threat intelligence and AI-assisted analysis to help identify malware, malicious domains, suspicious applications, botnet activity, and risky web destinations. On the FG-600E / FG-601E, this matters most when the firewall is not only routing packets but also enforcing IPS, application control, antivirus, web filtering, and sandbox checks.

For UAE IT teams, the practical value is faster classification of risky traffic and cleaner policy enforcement across users, servers, guests, and branch VPNs. It does not replace good network design. It supports it. VLAN separation, HA cabling, FortiAnalyzer logging, and proper FortiGuard licensing still need to be planned.

FG-600E / FG-601E FAQ

Need FG-600E / FG-601E pricing in Dubai?

Send the model, FortiGuard term, and whether you need a single unit or HA pair. Same-day quote support is available for Dubai and UAE projects.
