Tplink VIGI C400HP Dubai

Reviews

Tplink VIGI C400HP Dubai

Whether you need a wide angle lens to cover enclosed spaces or a higher millimeter lens for longer distances in open spaces, Tplink VIGI C400HP Dubai comes with two different lens versions to better suit your security needs.

Ask for Quote & Get Low Price

Description

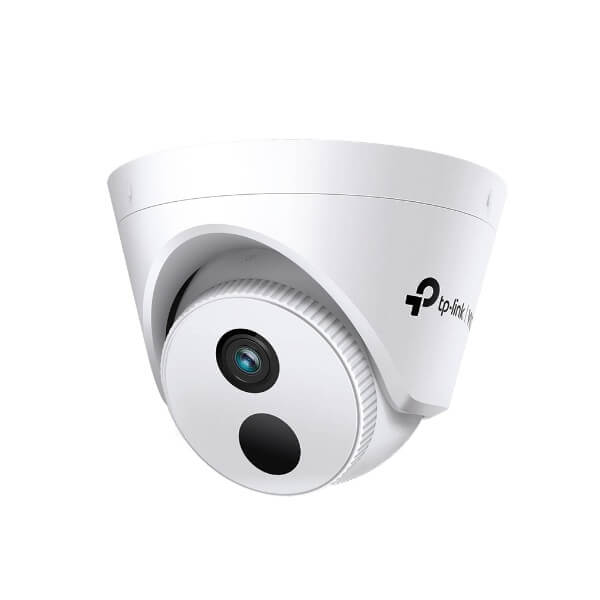

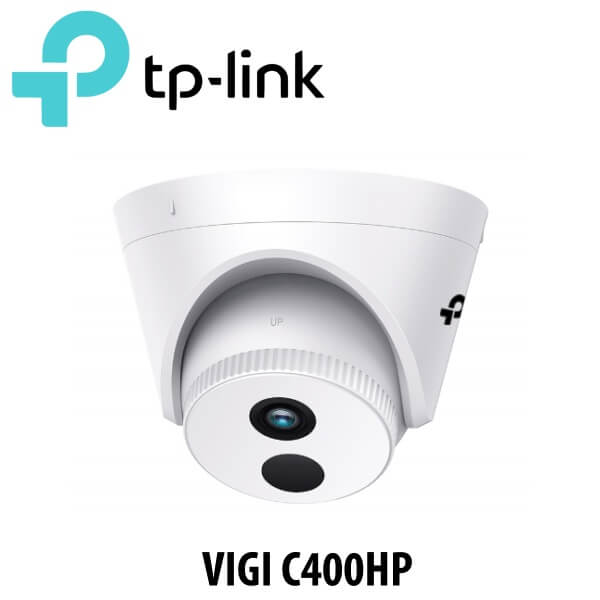

Tplink VIGI C400HP Network Camera Dubai

Whether you need a wide angle lens to cover enclosed spaces like elevators or a higher millimeter lens for longer distances in open spaces like parking lots, Tplink VIGI C400HP Dubai comes with two different lens versions to better suit your security needs. The VIGI C400 camera comes with 3MP—more than enough pixels to pick up some of the more discrete details.

Features

  • 3MP Ultra-High Definition : The Tplink VIGI C400HP Dubai camera comes with 3MP–more than enough pixels to pick up some of the more discrete details.
  • 2.8/4mm Lens : Whether you need a wide angle lens to cover enclosed spaces or a higher millimeter lens for longer distances in open spaces, Tplink VIGI C400HP Dubai comes with two different lens versions to better suit your security needs.
  • Smart Detection (motion detection, area intrusion, line-crossing, video tampering) : Receive notifications and check feeds when someone crosses a boundary, enters an area you’ve set, or obstructs the camera.
  • Smart IR : Keeps objects from being under-rendered when far away or overexposed when close to camera at night.
  • WDR : Adjusts for lighting contrast to minimize shadowing effects and renders images true to life.
  • 3D DNR : Removes abnormal pixilation to provide clearer video and eliminate distortion.
  • Night Vision : A robust night vision system ensures your camera performs well in low light conditions and records what’s happening for future inspection.
  • H.265+ : Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
  • PoE/12V DC : Two power supply ways not only give you more convenience but also make your wiring remarkably easy.
  • VIGI App : Manage your security from the palm of your hand with the VIGI app which is integrated in the Tplink VIGI C400HP Dubai.

Technical Specs

CAMERA
Image Sensor 1/2.7” Progressive Scan CMOS
Lens 4 mm / 2.8 mm
Aperture 4 mm : F2.2
2.8 mm : F2.2
Lens Mount M12
Viewing Angle
  • (4 mm) horizontal FOV : 82.5°, vertical FOV : 44.9°, diagonal FOV : 99.3°
  • (2.8 mm) horizontal FOV : 97.8°, vertical FOV : 52.9°, diagonal FOV : 117.9°
Day/Night Mechanism IR Cut Filter
IR Working Distance 30m
Minimum Illumination Color : 0.1 Lux@F2.0; 0 Lux with IR
Pan/Tilt Range Pan : 0° to 360°, Tilt : 0° to 85°, Rotate : 0° to 360°
Digital Noise Reduction 3D DNR
WDR DWDR
GENERAL
Package Contents
  • VIGI Network Camera
  • Quick Start Guide
  • Screws and Anchors
  • Mounting Template
Certifications CE, FCC, RCM, BSMI, VCCI, RoHS
Dimensions( H X W X D ) 123 × 123 × 83 mm
Material Plastic
Weight 195 g
General Features Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Power Requirements
  • 12V DC ± 5%, 5.5mm Coaxial Power Plug
  • PoE (802.3af/at, class 0)
NETWORK
Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
API ONVIF
Simultaneous Live View
  • 4 Main Streams & 3 Sub-Streams,
  • or 3 Main Streams & 5 Sub-Streams
VIDEO/IMAGE
Video Compression
  • Main stream : H.265/H.264
  • Sub-Stream : H.265/H.264
Frame Rate & Resolutions
  • Frame Rate : 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
  • Resolution : 2304×1296, 2048×1280, 1920×1080, 1280×720, 704×576, 640×480, 352×288, 320×240
Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software
Image Enhancement BLC/3D DNR/Prevent Overexposure to Infrared Light
Video Bit Rate 64 Kbps to 6 Mbps
SMART FEATURE-SET
Smart Event Area Intrusion Detection, Line-Crossing Detection
Basic Event Motion Detection, Video Tampering Detection, Exception ( illegal login)
Linkage Method Trigger Notification : ONVIF, HTTPS
Region of Interest 1 Region
INTERFACES
Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port
Button
Video Output
