Tplink Archer-AX90 Dubai

Reviews

Tplink Archer-AX90 Dubai

Powered by a 1.5 GHz quad-core processor, the Tplink Archer-AX90 Dubai delivers a combined bandwidth of up to 6.6 Gb/s over two separate 5 GHz bands and the 2.4 GHz frequency with compatible devices.

Ask for Quote & Get Low Price

Description

Tplink Archer-AX90 Wi-Fi Router Dubai

Enjoy smooth 4K video streaming, online gaming, and internet browsing experiences throughout your home by connecting the Tplink Archer-AX90 Dubai Wireless Tri-Band 2.5G & Gigabit Router to your compatible cable or DSL modem. This high-speed Wi-Fi 6 (802.11ax) router delivers up to 6579 Mb/s throughput across the 2.4 GHz and dual 5 GHz bands, allowing you to dedicate specific frequencies to your wireless smart devices, laptops, and gaming systems so that they don’t interfere with each other. Additionally, the 2.5G and 1G LAN/WAN combo ports allow you to take advantage of multi-Gig internet connections. Use the TP-Link Tether app to quickly configure your network, including setting up a guest network and parental controls.

Features

Performance
Powered by a 1.5 GHz quad-core processor, the Tplink Archer-AX90 Dubai delivers a combined bandwidth of up to 6.6 Gb/s over two separate 5 GHz bands and the 2.4 GHz frequency with compatible devices.
Reliable Connections
The eight powerful external antennas use OFDMA and MU-MIMO technologies deliver data to multiple devices simultaneously while beamforming allows the signal to provide broad coverage.
Multi-Gig Internet
With 2.5G and 1G WAN/LAN combo ports, you can maximize your connection with multi-Gig internet services using the Tplink Archer-AX90 Dubai.
Wired Connections
Connect wired devices such as computers, smart TVs, and game consoles to the router through its four Gigabit Ethernet LAN ports.
OneMesh Network
Add TP-Link OneMesh compatible routers and other devices to your network to increase its wireless coverage. The network operates using a single network ID (SSID), and will automatically switch you to the device with the strongest signal to provide a seamless experience as you move from room to room.
USB Sharing
Connect storage devices to the USB 3.1 Gen 1 and USB 2.0 Type-A ports to share photos, videos, and other files with connected devices across your network. USB 3.1 Gen 1 and USB 3.0 are synonymous.
Tether App
Configure and manage your network from almost anywhere using the TP-Link Tether app for Android and iOS.
TP-Link HomeShield
TP-Link’s premium security services keep your home network safe by automatically detecting online threats. It also includes a host of parental controls and quality of service features to customize your family’s online experience.
VPN Access
Have added peace of mind when using public Wi-Fi hotspots by establishing a secure OpenVPN and PPTP VPN connection to your home network.
Network Security
Your wireless network is protected by WPA/WPA2/WPA3 and WPA/WPA2-Enterprise encryptions. The Tplink Archer-AX90 Dubai also features an SPI firewall that’s designed to deter network intruders.

Technical Specs

WIRELESS
Standards Wi-Fi 6

  • IEEE 802.11ax/ac/n/a 5 GHz
  • IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds AX6600

  • 5 GHz : 4804 Mbps (802.11ax, HE160)
  • 5 GHz : 1201 Mbps (802.11ax)
  • 2.4 GHz : 574 Mbps (802.11ax)
WiFi Range 4 Bedroom Houses

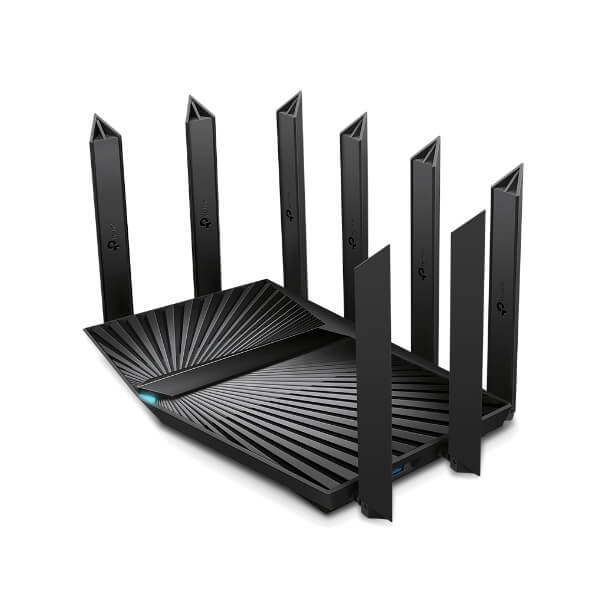

  • 8× Fixed High-Performance Antennas
    Multiple antennas form a signal-boosting array to cover more directions and large areas
  • Beamforming
    Concentrates wireless signal strength towards clients to expand WiFi range
  • High-Power FEM
    Improves transmission power to strengthen signal coverage
  • 4T4R
    Multiple streams in the same band strengthen the fault tolerance in transmission
WiFi Capacity Very High


  • Tri-Band
    Allocate devices to different bands for optimal performance
  • 4×4 MU-MIMO
    Simultaneously communicates with multiple MU-MIMO clients
  • OFDMA
    Simultaneously communicates with multiple Wi-Fi 6 clients
  • Airtime Fairness
    Improves network efficiency by limiting excessive occupation
  • DFS
    Access an extra band to reduce congestion
  • 8 Streams
    Connect your devices to more bandwidth
Working Modes Router Mode
Access Point Mode
HARDWARE
Processor 1.5 GHz Quad-Core CPU

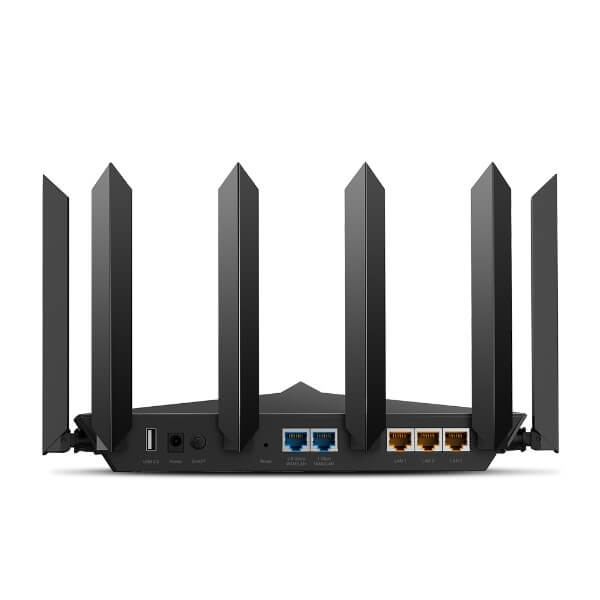

Ethernet Ports
  • 1× 2.5 Gbps WAN/LAN Port
  • 1× 1 Gbps WAN/LAN Port
  • 3× 1 Gbps LAN Ports
USB Support
  • 1× USB 3.0 Port
  • 1× USB 2.0 PortSupported Partition Formats :
  • NTFS, exFAT, HFS+, FAT32
  • Supported Functions :
  • Apple Time Machine
  • FTP Server
  • Media Server
  • Samba Server
Buttons
  • Wi-Fi On/Off Button
  • Power On/Off Button
  • LED On/Off Button
  • WPS Button
  • Reset Button
Power 12 V ⎓ 3.3 A
SECURITY
WiFi Encryption
  • WPA
  • WPA2
  • WPA3
  • WPA/WPA2-Enterprise (802.1x)
Network Security
  • SPI Firewall
  • Access Control
  • IP & MAC Binding
  • Application Layer Gateway HomeShield Security

  • Real-Time IoT Protection
  • Malicious Site Blocker
  • Intrusion Prevention System
  • DDoS Attack Prevention
  • Home Network Scanner
Guest Network
  • 1× 5 GHz-1 Guest Network
  • 1× 5 GHz-2 Guest Network
  • 1× 2.4 GHz Guest Network
VPN Server
  • OpenVPN
  • PPTP
SOFTWARE
Protocols
  • IPv4
  • IPv6
Service Kits HomeShield
OneMesh
  • OneMesh Supported
  • Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh helps you create a more flexible network that covers your entire home with TP-Link OneMesh products.
  • Learn More>
  • All OneMesh Products>
Parental Controls HomeShield Parental Controls


  • Custom Profiles
  • Professional Content Filter Library
  • Family Time
  • Bedtime
  • Off Time
  • Time Rewards
  • Family Online Time Ranking
  • Pause the Internet
  • Weekly and Monthly Reports
WAN Types
  • Dynamic IP
  • Static IP
  • PPPoE
  • PPTP
  • L2TP
Quality of Service QoS by Device
Cloud Service
  • Auto Firmware Upgrade
  • TP-Link ID
  • DDNS
NAT Forwarding
  • Port Forwarding
  • Port Triggering
  • DMZ
  • UPnP
  • Virtual Server
IPTV
  • IGMP Proxy
  • IGMP Snooping
  • Bridge
  • Tag VLAN
DHCP
  • Address Reservation
  • DHCP Client List
  • Server
DDNS
  • TP-Link
  • NO-IP
  • DynDNS
Management
  • Tether App
  • Webpage
PHYSICAL
Dimensions (W×D×H) 12.2 × 8.1 × 6.8 in
(311 × 207 × 174 mm)
Package Contents
  • Wi-Fi Router Archer AX90
  • Power Adapter
  • RJ45 Ethernet Cable
  • Quick Installation Guide
OTHER
System Requirements
  • Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
  • Cable or DSL Modem (if needed)
  • Subscription with an internet service provider (for internet access)
Certifications FCC, CE, RoHS
Environment
  • Operating Temperature : 0℃~40℃ (32℉ ~104℉)
  • Storage Temperature : -40℃~70℃ (-40℉ ~158℉)
  • Operating Humidity : 10%~90% non-condensing
  • Storage Humidity : 5%~90% non-condensing
TEST DATA
WiFi Transmission Power CE :

  • <20dBm{2.4GHz}
  • <23dBm{5.15GHz~5.35GHz}
  • <30dBm{5.47GHz~5.725GHz}

FCC :

  • <24dBm{5.47GHz~5.725GHz }
  • <30dBm{2.4GHz &5.15GHz~5.25GHz&5.725GHz~5.825GHz }
WiFi Reception Sensitivity 2.4GHz :

  • 11n HT20 MCS0 : -95dBm
  • 11ax HE20 MCS11 : -64dBm
  • 11ax HE40 MCS11 : -62dBm

5GHz-1 :

  • 11ac VHT20 MCS0 : -92dBm
  • 11ax HE20 MCS11 : -61dBm
  • 11ax HE40 MCS11 : -58dBm
  • 11ax HE80 MCS11 : -55dBm

5GHz-2 :

  • 11ac VHT20 MCS0 : -95dBm
  • 11ax HE20 MCS11 : -61dBm
  • 11ax HE40 MCS11 : -58dBm
  • 11ax HE80 MCS11 : -55dBm
  • 11ax HE160 MCS11 : -53dBm
