Description

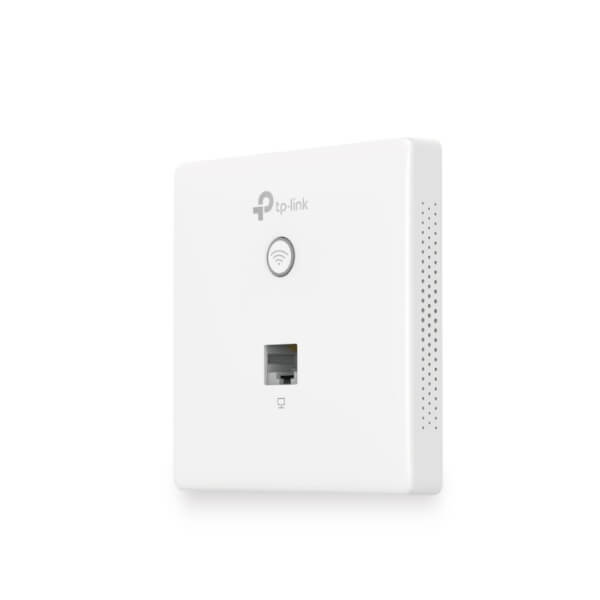

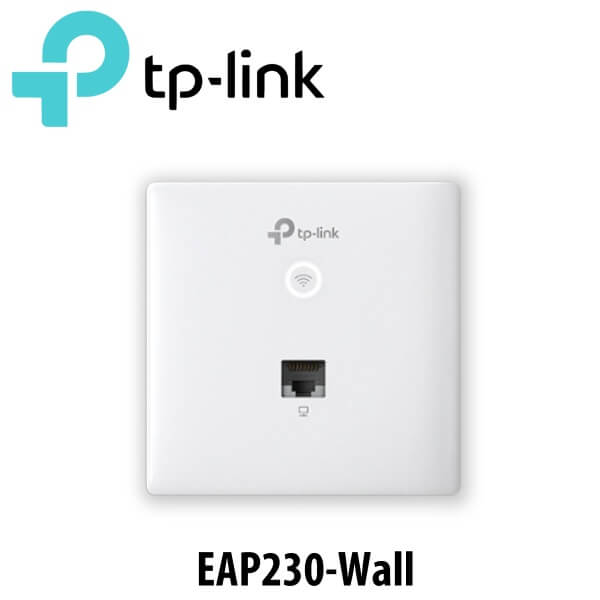

Tplink EAP230-Wall Access Point Dubai

Features

• Fast Dual-Band Wi-Fi : Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1,167 Mbps Wi-Fi speeds with MU-MIMO.
• Gigabit Ports : 2 Gigabit Ethernet ports (1× uplink + 1× downlink).
• Integrated into Omada SDN : Zero-Touch Provisioning (ZTP)^‡, Centralized Cloud Management, and Intelligent Monitoring.
• Centralized Management : Cloud access and Omada app for ultra convenience and easy management.
• Private Connection for Every Room : Tplink EAP230-Wall Dubai is designed to meet every network need in environments with numerous separated rooms, like hotels, offices, and dormitories.
• Elegant Appearance : Tplink EAP230-Wall Dubai features an unprecedented thin design with just 11 mm, the same size and shape as a light switch or power outlet faceplate to fit perfectly in any room.

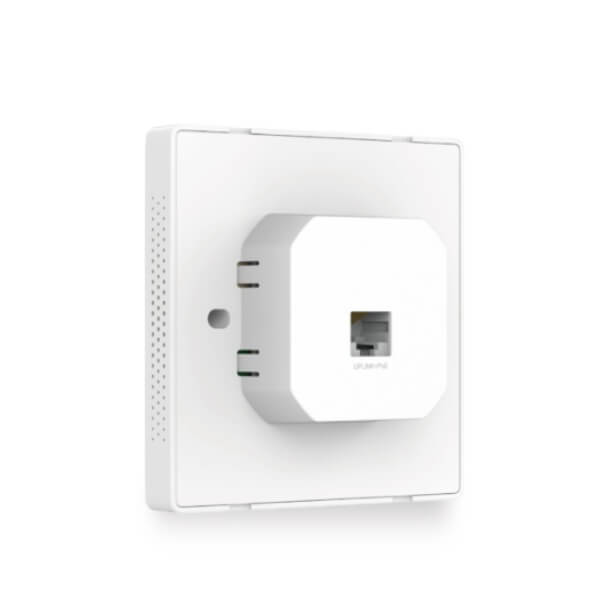

• Easy Installation and PoE Support : Easy-mount construction, compatible with 86 mm & EU standard junction box, and 802.3af/at PoE support.
• Secure Guest Network : Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.

Technical Specs

Hardware Features

Interface

• Uplink : 1 x 10/100/1000 Mbps Ethernet Port
• Downlink : 1 x 10/100/1000 Mbps Ethernet Port

Physical Security Lock

• No

Button

• LED/WiFi Button, RESET

Power Supply

• 802.3af/802.3at PoE

Power Consumption

• 7 W

Dimensions

• 86.8 × 86.8 × 30.2 mm (3.4 × 3.4 × 1.2 in.)

Antenna

• 2 Dual-Band Antennas
  • 2.4 GHz : 2 x 4 dBi
  • 5 GHz : 2 x 3.6 dBi

Mounting

• Wall Plate Mounting

Hardware Watch Dog

• Yes

Wireless Features

Wireless Standards

• IEEE 802.11n/g/b/ac

Frequency

• 2.4 GHz and 5 GHz

Signal Rate

• 5 GHz : Up to 867 Mbps
• 2.4 GHz : Up to 300 Mbps

Wireless Functions

• 16 SSIDs (Up to 8 SSIDs on each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• Load Balance
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
• MU-MIMO
• Band Steering
• Beamforming

Wireless Security

• Captive Portal Authentication
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Local LAN port based VLAN
• Rogue AP Detection
• 802.1X Support
• 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK

Transmission Power

• CE :
  • <20 dBm (2.4 GHz, EIRP)
  • <23 dBm (5 GHz, EIRP)

Management

Omada App

• Yes

Centralised Management

• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300 – sold separately, see accessories tab)
• Omada Hardware Controller (OC200 – sold separately, see accessories tab)
• Omada Software Controller

Cloud Access

• Through OC300 (sold separately), OC200 (sold separately), Omada Cloud-Based Controller, or Omada Software Controller

Email Alerts

• Yes

LED ON/OFF Control

• Yes

Management MAC Access Control

• Yes

SNMP

• v1,v2c

System Logging Local/Remote Syslog

• Local/Remote Syslog

SSH

• Yes

Web-based Management

• HTTP/HTTPS

L3 Management

• Yes

Multi-site Management

• Yes

Other Spcifications

Certification

• CE, RoHS

System Requirements

• Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10

Environment

• Operating Temperature : 0ºC – 40ºC (32ºF – 104ºF)
• Storage Temperature : -40ºC – 70ºC (-40ºF – 158ºF)
• Operating Humidity : 10% – 90% RH non-condensing
• Storage Humidity : 5% – 90% RH non-condensing

Package Contents

• 1 x TP-Link EAP230-Wall
• 1 x Installation Guide
• 1 x Mounting Screw
