The Tplink TL-POE200 Dubai Power over Ethernet Adapter Kit is designed to deliver power and data over a single Ethernet cable to an Ethernet enabled device up to 100m away.

Ask for Quote & Get Low Price

Description

Tplink TL-POE200 Power over Ethernet Adapter Kit Dubai

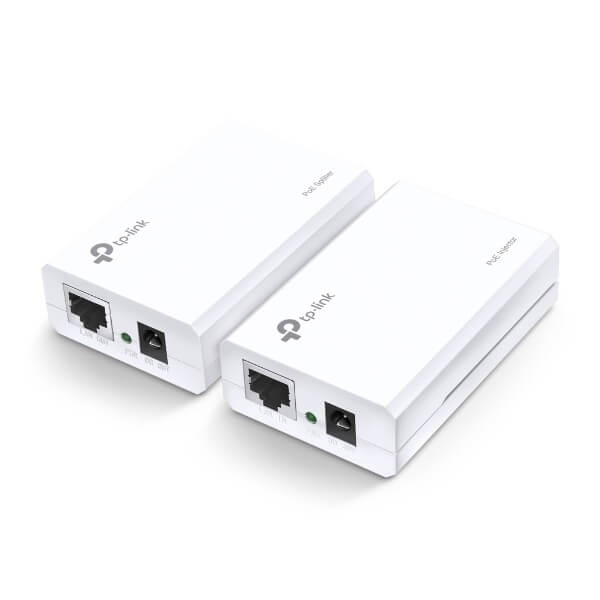

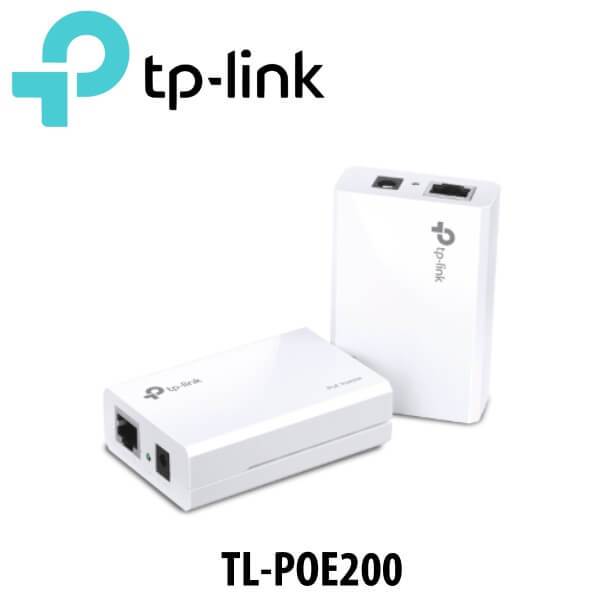

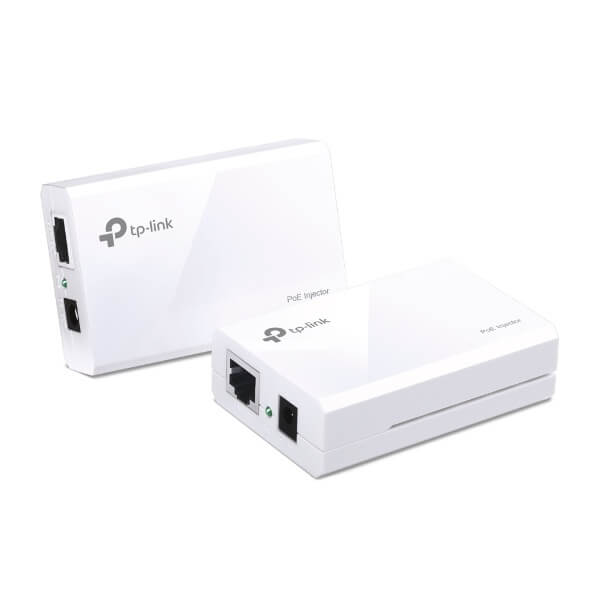

The Tplink TL-POE200 Dubai Power over Ethernet Adapter Kit is designed to deliver power and data over a single Ethernet cable to an Ethernet enabled device up to 100m away. The PoE kit uses two devices, one, the ´injector´ injects power and data into a single Ethernet cable while the other, the ´splitter´ placed at the receiving end splits the power and data back into two cables to be used by the connected Ethernet device. This convenience allows users to place Ethernet enabled devices such as access points, IP cameras, or VoIP phones anywhere that they are best suited, regardless of whether a power socket is available, to achieve the best performance for the connected devices.

Features

  • Carries power & data over a single Ethernet cable up to 100 meters away
  • Selectable power output
  • Plug-and-Play, requires no configuration

Specifications

HARDWARE FEATURES
INTERFACE For POE200A:

  • 1 10/100Mbps Auto-Negotiation/Auto MDI/MDIX RJ45 LAN port
  • 1 10/100Mbps Auto-Negotiation/Auto MDI/MDIX RJ45 PSE port
  • 1 48VDC power input port

For POE200B :

  • 1 10/100Mbps Auto-Negotiation/Auto MDI/MDIX RJ45 LAN port
  • 1 10/100Mbps Auto-Negotiation/Auto MDI/MDIX RJ45 PD port
  • 1 12/9/5VDC power output port
LED INDICATOR PWR
DIMENSIONS ( W X D X H ) 3.2*2.1*0.9 in.(80.8*54*24 mm)
OTHERS  FEATURES
SYSTEM REQUIREMENTS Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, MAC OS, NetWare, UNIX or Linux.
POWER SUPPLY UNIT OF POE INJECTOR
  • Input : 100~240VAC
  • Output : 48V, 0.5A Switching PSU
OUTPUT POWER FOR POE SPLITTER 12/9/5VDC
ENVIRONMENT
  • Operating Temperature : 0℃~40℃ (32℉~104℉)
  • Storage Temperature : -40℃~70℃ (-40℉~158℉)
  • Operating Humidity : 10%~90% non-condensing
  • Storage Humidity : 5%~90% non-condensing
