Description

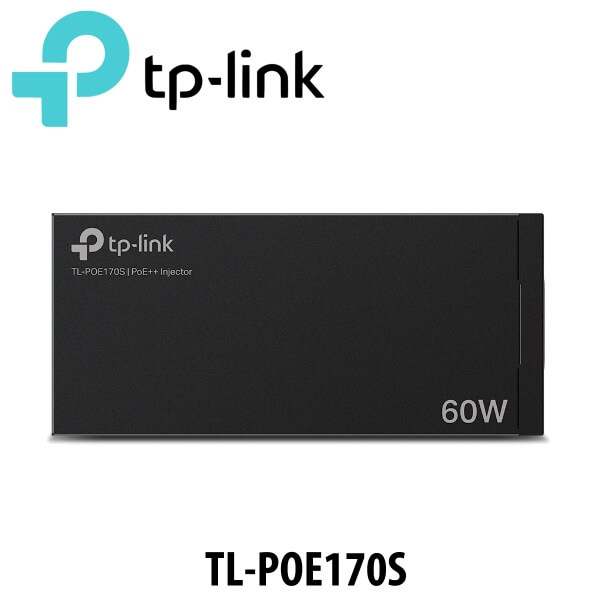

Tplink TL-POE170S PoE++ Injector Dubai
Power devices such as IP cameras, VoIP phones, and access points with the black Tplink TL-POE170S Dubai PoE++ Injector from TP-Link. This unit will support devices that require up to 60W of PoE. It complies with IEEE 802.3af/at/bt standards and supports 1000 Mb/s passthrough data rates. The Tplink TL-POE170S Dubai can be wall mounted or placed on a desktop for flexible installation.
Features
- Tplink TL-POE170S is a compact solution for powering IP devices that require up to 60W of PoE power
- LED indicators for status
- Plug-and-play operation
- Automatically determines and supplies the exact power to meet a connected device’s needs
- Tplink TL-POE170S is compatible with Cat 3 cables or higher
- 328′ operating range
- Durable metal casing
- FCC, CE, and RoHS certified
Specifications
| Type | Injector |
| General | |
| Connectors |
|
| Supported IEEE Standards | 802.3ab, 802.3af, 802.3at, 802.3bt, 802.3i, 802.3u |
| Electrical | |
| PoE Power | 60 W |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 1.6 A |
| Environmental | |
| Operating Temperature | 32 to 113°F / 0 to 45°C |
| Operating Humidity | 10 to 90% |
| Storage Temperature | -40 to 158°F / -40 to 70°C |
| Storage Humidity | 5 to 90% |
| Certifications | CE, FCC, RoHS |
| Physical | |
| Maximum Operating Distance | 328.1′ / 100Â m |
| LED Indicators | Yes |
| Material of Construction | Metal |
| Wall Mountable | Yes |
| Dimensions | 2.8 x 6.1 x 1.7″ / 70.0 x 155.0 x 42.0Â mm |
| Packaging Info | |
| Package Weight | 2.03 lb |
| Box Dimensions (LxWxH) | 9.7 x 8 x 3.7″ |
