When 100G links are normal, firewall sizing has to be honest

A 4RU chassis-class firewall is not bought for a small server room. It sits where dropped sessions become an outage: Etisalat and du aggregation links, DIFC banking networks, JAFZA logistics platforms, government infrastructure, MSSP tenant gateways, and data centre interconnects running at 100GE, 200GE, or 400GE.

The FortiGate 4800F is built for that edge. It gives you 3.1 Tbps firewall throughput and 75 Gbps threat protection throughput. Both numbers matter. Firewall throughput shows raw packet-moving capacity. Threat protection throughput shows what you can plan around when firewall, IPS, application control, and malware protection are enabled.

That difference is where many projects get undersized. A buyer sees the Tbps figure, assumes it is inspection capacity, then later finds the box is running hot once real security profiles are applied. For a Dubai carrier, bank, hosting provider, or national infrastructure project, the FortiGate 4800F should be sized around inspected traffic, session scale, VDOM count, HA design, and FortiGuard licensing from day one.

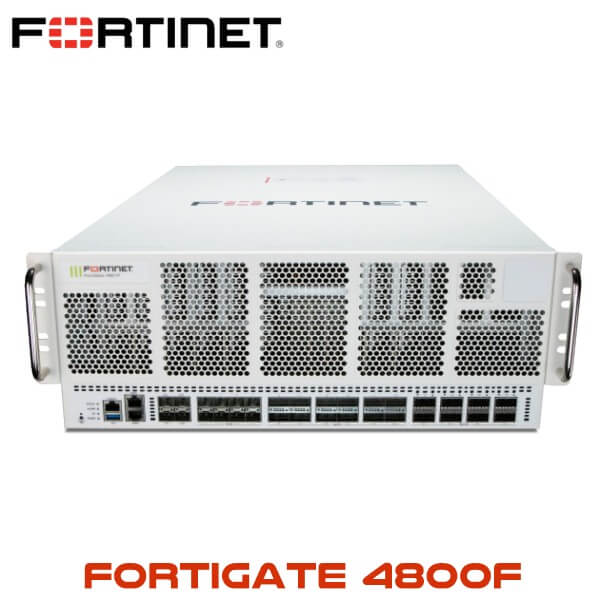

FortiGate 4800F overview

The FortiGate 4800F is a Fortinet F-Series carrier firewall for high-throughput network edges. It is suited for ISP core security, data centre perimeter inspection, hyperscale segmentation, mobile operator networks, payment infrastructure, and large MSSP platforms where a normal rackmount firewall runs out of ports, sessions, or inspection headroom.

It uses Fortinet security processing units with NP7 and CP9 acceleration, which is why the appliance can handle heavy packet flow while still supporting security inspection, VPN, and large session tables. In simple terms: the CPU is not left doing all the work. That matters when traffic patterns jump during backup windows, cloud sync, tenant migrations, streaming peaks, or public-sector service spikes.

This model is not a branch firewall. It is closer to the heart of the network. Typical UAE deployments include dual-site data centres, active-active internet edges, 100GE MPLS handoff inspection, cloud exchange connectivity, and segmented hosting platforms for finance, healthcare, logistics, telecom, and government workloads.

For a smaller firewall tier, use the FortiGate firewall Dubai hub to compare rackmount and desktop FortiGate models. The 4800F belongs in a different conversation: high port density, high session count, HA pair design, 400GE uplinks, and FortiGuard licensing matched to the traffic that actually needs inspection.

FortiGuard licensing for FortiGate 4800F

The hardware gives you the platform. FortiGuard gives you the live security services. Without a FortiGuard subscription, the FortiGate 4800F can still operate as a high-speed stateful firewall, but the value drops sharply for security teams because IPS signatures, web filtering intelligence, antivirus definitions, botnet protection, and sandbox cloud checks depend on the licence.

For most Dubai deployments, the choice comes down to UTP Bundle or Enterprise Bundle. UTP covers the standard security stack used by enterprise firewall teams. Enterprise adds wider visibility and migration tools, especially useful where OT, IoT, legacy segmentation, or large policy conversion is involved.

Both bundles are available in 1-year and 3-year terms. A 1-year licence works for budget staging, proof-of-capacity projects, and short contract cycles. A 3-year term usually makes more sense for carrier, banking, and government environments because the firewall is rarely bought for a short-life deployment.

FortiGate 4800F specifications

These are the figures that should go into your internal sizing sheet before finalising the order. The FortiGate 4800F has enough headline throughput for very large networks, but the better design conversation is about inspection mix, encrypted traffic, session count, VDOM use, and interface breakout.

Interface density: built for 400GE and 200GE networks

The FortiGate 4800F interface layout is designed for high-speed aggregation. It supports 400GE, 200GE, 100GE, 50GE, 40GE, 25GE, 10GE, and GE options depending on port and transceiver selection. That lets network architects place the appliance at the edge of a large WAN, between data centre fabrics, or in front of tenant environments without adding extra media conversion layers.

The platform includes 8 QSFP-DD / QSFP56 / QSFP28 / QSFP+ slots for 400GE, 200GE, 100GE, or 40GE use, plus 12 QSFP56 / QSFP28 / QSFP+ slots for 200GE, 100GE, or 40GE. It also has 8 SFP56 / SFP28 / SFP+ / SFP slots for 50GE, 25GE, 10GE, or GE connections.

Separate HA and AUX slots help keep sync and auxiliary traffic away from production uplinks. That’s helpful in real Dubai designs where 400GE ports are expensive, rack space is planned tightly, and procurement teams want every high-speed interface accounted for before the PO is released.

HA and redundancy for carrier networks

At this tier, single-firewall design is rarely the right call. The FortiGate 4800F supports Active-Active HA, Active-Passive HA, clustering, and FGSP session failover. In practice, that means the appliance can be designed into carrier and data centre topologies where failover behaviour, session sync, routing symmetry, and inspection continuity are all reviewed before deployment.

Active-Passive HA is common where the buyer wants a clear primary and secondary unit. Active-Active HA can be used where traffic distribution and inspection design call for both appliances to process live flows. FGSP is useful in more complex networks where traffic may be asymmetric, such as multi-homed ISP edges, routed data centre cores, or tenant networks with different ingress and egress paths.

Power redundancy is also built into the platform. The FortiGate 4800F uses hot-swappable 2+2 redundant power supplies, with AC and DC variants available. For telco rooms, utility sites, and carrier POPs, DC input models can be specified at ordering time rather than treated as an afterthought.

Vector Digital Systems can supply FortiGate 4800F hardware as a single unit or HA pair, with FortiGuard UTP or Enterprise licensing matched to the project. For wider model comparison, start with the Fortinet firewall range in Dubai and shortlist by inspected throughput, form factor, and interface speed.

4RU deployment context in Dubai

The FortiGate 4800F is a 4RU rackmount appliance for carrier and data centre racks, not a normal branch firewall. Plan it for 10,000+ users, very large tenant counts, high-volume NAT, multiple uplinks, and traffic paths where 100GE is already in production or 400GE is on the refresh plan.

A typical Dubai design might place the 4800F at the edge of an ISP network, between a data centre fabric and internet transit, in front of hosted customer zones, or across a government service platform where uptime and session retention are watched closely. It also fits large MSSP cores where each VDOM maps to a customer, department, zone, or regulated environment.

Power and cooling need early attention. The FortiGate 4800F has front-to-back airflow and hot-swappable 2+2 redundant power supplies. In Dubai data centres, rack power and cooling load are not small line items, especially during summer capacity planning. Bring facilities, network, and security teams into the sizing discussion before the cabinet layout is closed.

4800F, 4801F, AC, DC, and NEBS variants

Procurement teams should check the exact SKU before releasing the PO. The 4800F and 4801F names are close, but the storage difference matters. FortiGate 4801F variants include 2 × 1.92 TB SSD. Standard 4800F variants do not list the same onboard SSD storage.

For enterprise data centres in Dubai, AC power is common. For carrier POPs, telco rooms, and utility-style facilities, DC power variants may be required. NEBS variants are also available for environments with stricter carrier infrastructure requirements.

Available model families include FG-4800F, FG-4800F-DC, FG-4801F, FG-4801F-DC, FG-4801F-NEBS, and FG-4801F-DC-NEBS. Match the SKU to rack power, storage requirement, compliance notes, and the customer’s HA design.

What is included, and what is not included

The FortiGate 4800F hardware ships as a carrier-grade appliance with redundant power architecture and high-speed interface capability. Fortinet lists 2 × SFP+ SR 10GE transceivers with the platform. For a full deployment, you may still need QSFP-DD, QSFP56, QSFP28, SFP56, SFP28, or SFP+ optics depending on the final cabling plan.

FortiGuard is not the same as hardware. UTP Bundle and Enterprise Bundle licences should be ordered separately in 1-year or 3-year terms. For an HA pair, licence planning should cover both appliances correctly, including the support level required by the customer’s uptime policy.

Rack planning should also include power cords, site-specific optics, fibre patching, rack space, out-of-band management, console access, and FortiAnalyzer sizing where log retention is part of the compliance requirement.

Related FortiGate models

The 4800F sits high in the FortiGate range. Compare it with nearby data centre and carrier models before finalising an HA design, especially where the project involves staged migration from existing E-Series hardware or mixed rack tiers.

UAE deployment notes

In the UAE, the 4800F usually appears in projects with Etisalat or du high-capacity WAN links, multiple internet transits, government network segmentation, or hosted customer zones. It is a good fit where traffic from Dubai and Abu Dhabi sites lands into a pair of central firewalls before going to cloud, hosted applications, or regional data centre services.

DIFC and banking environments often care about tenant separation, log retention, inspection policy, and predictable failover. JAFZA and DAFZA networks may be more mixed: warehouse systems, ERP, CCTV backhaul, guest traffic, VPN users, and partner access. DMCC and free-zone hosting environments often need clean separation by company, zone, or service.

For a 4800F design, the early questions should be simple: how many 100GE or 400GE links are active, how much traffic needs inspection, how much SSL inspection is planned, how many VDOMs are needed, and whether the customer wants Active-Passive HA, Active-Active HA, or FGSP-based session failover.

Africa, GCC, and MEA export from Dubai

Vector Digital Systems supplies FortiGate 4800F and FortiGuard licensing for carrier, government, and data centre projects across the region. FOB Dubai quotes are available for Iraq, Jordan, Kazakhstan, Uzbekistan, Oman, Qatar, Saudi Arabia, Kenya, and South Africa.

For export projects, buyers can request hardware, HA pair pricing, UTP Bundle, Enterprise Bundle, 1-year or 3-year terms, and project quantity pricing on the same quote. Large tenders can also include DC power variants or 4801F SSD variants where required.

For telco and national infrastructure projects, confirm the import rules, end-customer details, FortiGuard term, and support requirement early. FOB Dubai works well when the buyer or integrator already has freight and customs handling in place.

FortiGate 4800F FAQ

What is the threat protection throughput on the FortiGate 4800F?

The FortiGate 4800F delivers 75 Gbps threat protection throughput with firewall, IPS, application control, and malware protection enabled. Raw firewall throughput is 3.1 Tbps, but threat protection is the better planning number for inspected traffic.

Does the FortiGate 4800F support HA?

Yes. The FortiGate 4800F supports Active-Active HA, Active-Passive HA, clustering, and FGSP session failover. HA pairs are common for Dubai carrier, data centre, government, and large MSSP deployments.

What FortiGuard bundles are available for FortiGate 4800F?

UTP Bundle and Enterprise Bundle are available in 1-year and 3-year terms. UTP includes IPS, Application Control, Web Filtering, Antivirus, FortiSandbox Cloud, and Botnet protection. Enterprise adds FortiCASB, FortiConverter, Industrial Security, and IoT Detection.

What is the FortiGate 4800F form factor?

The FortiGate 4800F is a 4RU rackmount, chassis-tier firewall. It is designed for carrier edge, ISP, data centre, government, and hyperscale security deployments, not small branch offices.

How many VDOMs does the FortiGate 4800F support?

The FortiGate 4800F supports 10 default VDOMs and up to 500 maximum VDOMs. That makes it suitable for MSSP, hosting, free-zone, and multi-tenant environments where separate policy domains are required.

Is the FortiGate 4800F suitable for Etisalat and du high-capacity WAN links?

Yes, when sized correctly. The platform supports high-speed 400GE, 200GE, 100GE, 50GE, 25GE, and 10GE interface options. For Etisalat and du enterprise or carrier links, check the required optic type, inspected throughput target, HA mode, and FortiGuard bundle before ordering.
