The Fanvil PN1-2Wire works with Fanvil PN8 and PN24 2-Wire switches and is used where an IP device needs to run over existing 2-wire cabling. In real projects, that means apartment intercom upgrades, hotel room communication refreshes, villa gate systems, staff accommodation blocks, and older office buildings where the cabling route is already closed. Vector Digital Systems supplies the PN1-2Wire from Dubai with project quantities, staging support, and installation coordination across the UAE.

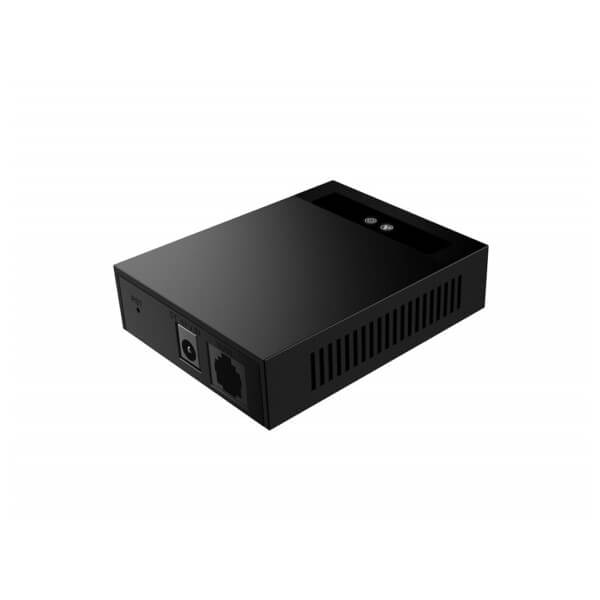

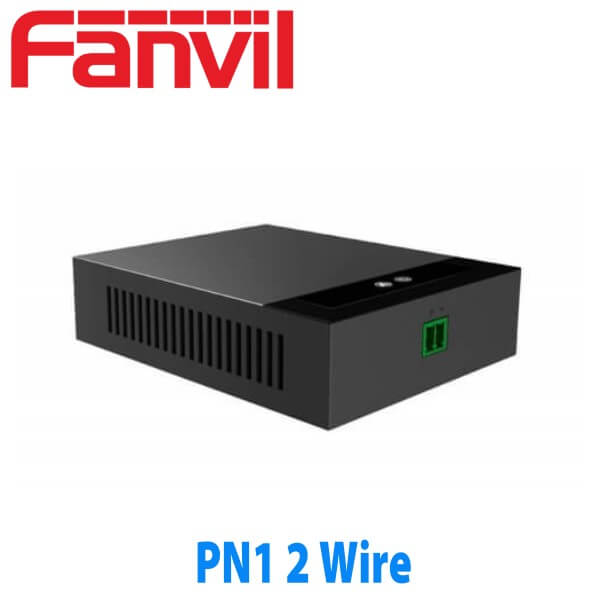

What the PN1-2Wire is

The PN1-2Wire is Fanvil’s compact 2-wire converter for reusing existing cable between an IP network side and a 2-wire run. One side has an RJ45 network interface. The other side has a 2-wire interface. In a typical installation, a pair of PN1 units converts the connection at both ends of the existing cable route, so an IP device can be placed where a normal network cable is not available.

Fanvil lists the PN1 for community, hotel, villa, and old-building renovation scenarios. That matches the way we see it used in the UAE. A villa compound in Jumeirah has gate wiring already buried. A hotel in Deira wants to refresh room devices without opening every wall. A residential tower in Sharjah has old riser cabling that still reaches each apartment. A facility team in JAFZA wants to reuse a path that is already approved and documented.

The PN1 is not a desk phone, not a PABX, and not a PoE switch by itself. It is the converter that lets an IP device sit at the end of a 2-wire run. For multi-endpoint projects, it is normally planned with Fanvil PN8 or PN24 2-Wire switches, depending on how many 2-wire drops the site needs.

The retrofit problem it solves

In new construction, we ask for Cat6 to every device position. That is clean. In retrofit work, the building decides what is possible. Sometimes there is only a 2-core cable from the guard room to the gate. Sometimes the hotel corridor has old telephone wiring to each room. Sometimes the apartment intercom route is fixed inside a riser, and the client will not accept civil work after handover.

That is where PN1 changes the project discussion. Instead of quoting new cabling, ceiling access, wall repair, painting, and a longer shutdown, the integrator can check whether the existing wire can be reused. If the distance and cable condition are suitable, the IP device can be connected over the old route. Less disruption. Cleaner handover. Better chance of approval from procurement and facility management.

In Dubai fit-outs, this matters because many projects are not empty-shell installations. They are live offices, occupied hotels, villa communities, staff accommodation blocks, and towers where access windows are short. A device that avoids recabling is not a small accessory in those jobs. It is often the reason the project can move without disturbing tenants or guests.

300 metres with network and power — what that means on site

Fanvil rates the PN1 for up to 300 metres when both network and power are provided over the 2-wire run. That is the number project buyers should use for powered endpoint planning. If the endpoint needs PoE at the far end, keep the 300-metre figure in mind and confirm the cable route before ordering.

There is also a longer network-only figure: up to 1600 metres when only network transmission is required. That does not mean every old cable in every building will perform the same way. Cable type, joints, corrosion, distance, interference, and how the previous system was installed all matter. In project work, we always ask for a cable check before promising the final layout.

No master-slave confusion

One detail installers like: Fanvil states there is no master-slave distinction between two PN1 converters. In plain site language, the two PN1 units are not a “main” and “remote” pair that must be kept in a fixed order. That reduces handling mistakes during installation, especially when multiple apartments, rooms, or gate points are being prepared at the same time.

For a single villa gate, that means easier bench testing before the team goes to site. For a hotel corridor, it helps when multiple rooms are staged in batches. For a residential tower, it keeps the installation notes simple enough for the ELV contractor, PABX installer, and facility team to follow without guessing which converter belongs at which end.

Vector Digital Systems can supply PN1 units as individual project items or as part of a Fanvil 2-Wire package with PN8 or PN24. For larger deployments, we label batches, prepare the wiring notes, and coordinate with the installer so the devices are not treated like loose accessories on handover day.

Where we use PN1-2Wire in UAE projects

The first use case is villas and compounds. The gate point already has a pair of wires. The owner wants an IP device, but the driveway is tiled, landscaped, or finished. PN1 gives the project team a way to test reuse before trenching or surface conduit is discussed.

The second use case is hotels. Many older hotels in Deira, Bur Dubai, Sharjah, and Fujairah still have legacy room wiring. When the refurbishment budget is focused on guest areas, any method that avoids fresh cabling to every room gets attention. PN1 belongs in that conversation with Fanvil’s 2-Wire range because it supports IP migration over existing routes.

The third use case is residential and staff accommodation projects. A tower or camp may have old intercom or telephone cable already pulled to each unit. Reusing that path can keep the project practical, especially when the client needs a working communication system without a full rewiring package.

The fourth use case is small commercial retrofit work: clinics, warehouses, old offices, and service counters where one device position is hard to cable. In Business Bay, Al Quoz, DIP, JAFZA, and older Sharjah industrial buildings, that single difficult cable route can hold up the whole communication plan. The PN1 gives the installer another option before the ceiling is opened.

PN1-2Wire in one line

Use the Fanvil PN1-2Wire when the project needs an IP endpoint but the building gives you 2-wire cable, not Cat6. One RJ45 side. One 2-wire side. Up to 300 metres when carrying network and power. Up to 1600 metres for network-only transmission, subject to cable condition. Small body, wall or flush mounting, and a role that can save real installation work in Dubai retrofit projects.

Power, PoE output, and the network truth

The PN1-2Wire is often ordered because the endpoint still needs to behave like an IP device, even though the cable in the wall is not a normal network cable. Fanvil states standard PoE output on the PN1, supporting IEEE 802.3af/at at the device end. That is the detail that makes it useful for an IP door phone, IP camera, 2-Wire phone, or other PoE-enabled endpoint where only a 2-wire path is available.

Network speed is 10/100 Mbps. That is enough for the job PN1 is designed to do: carry network connectivity across an existing 2-wire route for a device such as an intercom endpoint, phone, or door-side device. It is not a Gigabit passthrough accessory for a workstation desk. For staff desks with PCs behind phones, use normal Cat6 and Gigabit Fanvil desk phones where possible. For old 2-wire routes, use PN1 only where the cabling problem justifies it.

Current Fanvil 2-Wire details buyers miss

Most PN1 enquiries begin with one line: “Can I use my old cable?” The answer depends on the actual cable, but Fanvil’s 2-Wire range is built around that exact retrofit case. PN1, PN8, and PN24 are part of the same 2-Wire family, and PN1 is used as the converter when the project has to connect a PoE-enabled IP device over a 2-wire path.

The first detail to check is whether the job is point-to-point or multi-drop. A single gate, one difficult office endpoint, or one test run can be planned around PN1 pairs. A residential floor, hotel corridor, or staff accommodation block usually needs PN8 or PN24 at the distribution side, with PN1 units or 2-Wire endpoints planned per location.

The second detail is cable type. Fanvil’s 2-Wire solution documents refer to Cat 5e, RVV 2 × 0.5, and HYV 2 × 0.5 examples for 300m network-and-power transmission in the PN1 path. That helps the installer speak to the building team in real cable terms instead of promising a result from a drawing.

The third detail is grouping. 2-Wire projects are not only about distance. They are about how many endpoints sit on the route, what each endpoint needs, where power is injected, and whether the site wants future expansion. In Dubai retrofit work, that planning saves return visits.

Compatibility and staging in Dubai projects

PN1 does not register as a SIP phone by itself. The SIP registration belongs to the endpoint connected through it: a Fanvil 2-Wire phone, an IP door phone, an IP camera, or another compatible PoE-enabled IP device. That endpoint can then be configured on the site PABX, SIP server, or door-entry platform as required.

For Dubai offices and buildings, we normally stage the actual endpoint first: extension number, display name, SIP account, door-release key where relevant, and test call path. The PN1 is then treated as the transport device in the cabling plan. This avoids the common mistake of testing the network path only, then discovering later that the SIP account, relay action, or reception call group was not prepared.

PN1, PN8, PN24, or H1-2Wire — the Fanvil-only comparison

For the wider range, see the Fanvil IP phones and 2-Wire range guide. For PABX and SIP planning on the same site, connect this page to the main Vector Digital Systems telephony hub once the live URL is confirmed.

Pricing, supply, and project quantities

PN1-2Wire pricing depends on quantity, whether the project needs PN1 pairs only, and whether PN8 or PN24 switches are part of the same bill of materials. We quote in AED for UAE supply, with VAT breakdown and delivery included. For export, we quote FOB Dubai with documentation.

For retrofit work, do not order by device count alone. Tell us the number of endpoints, the cable route length, the device type at the far end, and whether network plus power is required. A villa gate may need a different PN1 plan from a 40-room hotel corridor, even though both use existing 2-wire cable.

Frequently asked questions

Which phones and devices does the Fanvil PN1-2Wire work with?

The PN1-2Wire is designed to connect PoE-enabled IP devices over existing 2-wire cabling and works within Fanvil’s 2-Wire range, including PN8 and PN24 switching layouts. In projects, we confirm the exact endpoint before quoting because a door phone, room phone, camera, or intercom station may have different power and configuration needs.

Does the PN1-2Wire come with a power adapter, or do I need PoE?

Fanvil lists the minimal PN1 package as 2 × PN1 plus 1 power adapter. It provides standard PoE output to compatible endpoints, but project power design depends on whether you are using PN1 pairs, PN8, PN24, or a mixed 2-Wire layout. Vector Digital Systems includes the required power parts in the same quote.

Can PN1-2Wire carry network and power for 300 metres?

Yes, Fanvil rates the PN1 path up to 300 metres when network and power are provided. Fanvil also lists up to 1600 metres for network-only transmission. The real site result depends on cable type, cable condition, joints, and route quality, so we recommend a sample test before ordering project quantities.

PN1-2Wire vs PN8 — what is the difference?

PN1-2Wire is a converter for connecting an IP device over a 2-wire route. PN8 is an 8-port 2-Wire PoE switch for multiple 2-wire device runs. Choose PN1 for conversion at a device path; choose PN8 when the project has several endpoints from one cabinet or equipment point.

PN1-2Wire vs PN24 — which one should we use for a building?

Use PN1 where the project needs conversion on a 2-wire endpoint path. Use PN24 where the project needs a larger 24-port 2-Wire PoE switching point for many rooms, flats, or devices. For towers, hotels, and staff accommodation blocks, PN24 is often the cabinet-side device, with PN1 or 2-Wire endpoints planned per location.

Does Vector Digital Systems configure and label PN1-2Wire project orders before delivery?

Yes. For project quantities, we label PN1 units by location, prepare the endpoint configuration where a Fanvil phone or intercom is supplied with it, confirm the PN8 or PN24 plan if used, and test the call path where the endpoint is available before dispatch.

Is VoIP legal in the UAE if we use PN1-2Wire with an IP phone or intercom?

Business VoIP over licensed Etisalat and du services is standard in the UAE under TRA regulation. PN1-2Wire is a cabling converter, not a voice service. The connected endpoint must be configured on the approved PABX, SIP trunk, or intercom system used by the site.

Is PN1-2Wire covered under Fanvil warranty in the UAE?

Yes. Vector Digital Systems supplies Fanvil PN1-2Wire from Dubai with Fanvil manufacturer warranty handling for UAE projects. For larger jobs, keep the location labels and installation notes with the handover file so warranty checks can identify the exact cable route and endpoint.

Who is the supplier of Fanvil PN1-2Wire in Dubai?

Vector Digital Systems LLC is an authorised Fanvil supplier in Dubai, UAE, operating since 2009. We supply Fanvil PN1-2Wire for villas, hotels, communities, old-building renovation, and ELV projects with staging support, installation coordination, warranty handling, and procurement documents for project buyers.

What is the best Fanvil 2-Wire option for retrofit IP device projects in Dubai?

For one PoE-enabled IP device over an existing 2-wire route, PN1-2Wire is the right Fanvil option. For several endpoints, step up to a PN8 or PN24 layout depending on the number of 2-wire runs. For hotel or room phones, check H1-2Wire as the endpoint option.

Does Vector Digital Systems export Fanvil PN1-2Wire from Dubai?

Yes. We export Fanvil PN1-2Wire from Dubai to telecom resellers, PABX installers, ELV contractors, and system integrators in Saudi Arabia, Oman, Qatar, Kuwait, Kenya, Tanzania, Uganda, Nigeria, Ghana, and Pakistan. FOB Dubai pricing is available with commercial invoice, packing list, and certificate of origin.

UAE coverage for PN1-2Wire projects

Vector Digital Systems supplies and installs Fanvil PN1-2Wire across Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah, and Umm Al Quwain. We support villa gate upgrades, hotel refurbishments, residential tower cabling reuse, community intercom work, and office retrofit jobs in free zones and industrial areas including JAFZA, DIP, Al Quoz, DMCC, JLT, Business Bay, and Dubai Internet City.

MEA export from Dubai

Fanvil PN1-2Wire is a practical export item because retrofit cabling problems are common across hotels, apartment blocks, villas, and older commercial buildings. Vector Digital Systems exports from Dubai to Gulf buyers in Saudi Arabia, Oman, Qatar, and Kuwait, East Africa buyers in Kenya, Tanzania, and Uganda, and West Africa buyers in Nigeria and Ghana.

For export orders, send the model, quantity, destination country, and whether PN8 or PN24 is part of the same shipment. We quote FOB Dubai and prepare commercial invoice, packing list, and certificate of origin for freight forwarders and procurement teams.
